Documentation Project & Build Overview

Drawlib is not only a drawing library—it is a complete documentation compiler that bridges executable Python illustrations and version-controlled technical documentation.

The Documentation-as-Code Workflow

Instead of writing documentation in static wikis and manually copying and pasting PNG screenshots, Drawlib establishes a clean, repeatable build pipeline:

project_quicklook_1

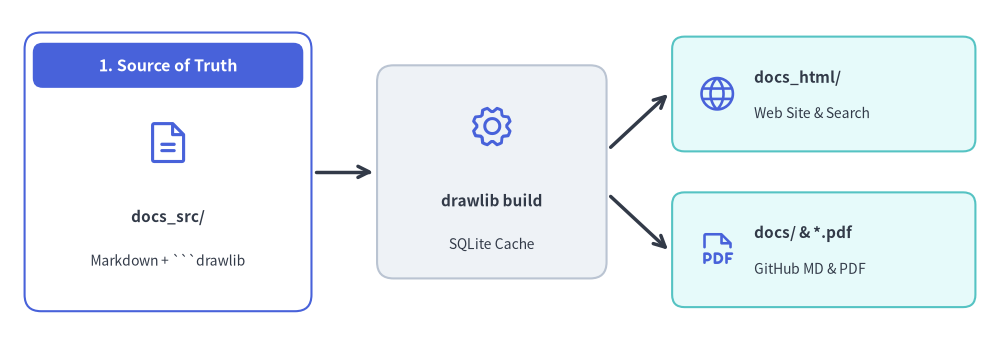

Drawlib Documentation Build Pipeline
Source Code
from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.lines import line
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=122, height=42)

# 1. Source folder (Hero focal origin)
rectangle((20.5, 21.0), width=35.0, height=34.0, style=Styles.PrimaryOutline.patch(shape_r=2.0))
rectangle((20.5, 34.0), width=33.0, height=5.5, style=Styles.PrimaryFlat.patch(shape_r=1.2), text="1. Source of Truth", text_style=Styles.WhiteBold.patch(text_size=11.5))
phosphor.file_text((20.5, 24.5), width=6.0, style=Styles.Primary)
text((20.5, 15.5), "docs_src/", style=Styles.DarkBold.patch(text_size=11.0))
text((20.5, 10.2), "Markdown + ```drawlib", style=Styles.Dark.patch(text_size=10.0))

# 2. Build engine (Calm Neutral card)
rectangle((60.0, 21.0), width=28.0, height=26.0, style=Styles.Neutral.patch(shape_r=2.0))
phosphor.gear((60.0, 26.5), width=5.8, style=Styles.Primary)
text((60.0, 17.5), "drawlib build", style=Styles.DarkBold.patch(text_size=11.0))
text((60.0, 12.2), "SQLite Cache", style=Styles.Dark.patch(text_size=10.0))

# 3. Outputs (Secondary Neutral cards)
rectangle((100.5, 30.5), width=37.0, height=14.0, style=Styles.SecondaryNeutral.patch(shape_r=1.5))
phosphor.globe((87.5, 30.5), width=5.0, style=Styles.Primary)
text((92.0, 32.5), "docs_html/", style=Styles.DarkBold.patch(text_size=11.0, halign="left"))
text((92.0, 28.2), "Web Site & Search", style=Styles.Dark.patch(text_size=10.0, halign="left"))

rectangle((100.5, 11.5), width=37.0, height=14.0, style=Styles.SecondaryNeutral.patch(shape_r=1.5))
phosphor.file_pdf((87.5, 11.5), width=5.0, style=Styles.Primary)
text((92.0, 13.5), "docs/ & *.pdf", style=Styles.DarkBold.patch(text_size=11.0, halign="left"))
text((92.0, 9.2), "GitHub MD & PDF", style=Styles.Dark.patch(text_size=10.0, halign="left"))

# Connectors
line((38.5, 21.0), (45.5, 21.0), arrow_head="->", style=Styles.DarkBold)
line((74.5, 24.0), (81.5, 30.5), arrow_head="->", style=Styles.DarkBold)
line((74.5, 18.0), (81.5, 11.5), arrow_head="->", style=Styles.DarkBold)
save()

The Golden Rule: <name>_src/ is the Single Source of Truth

  • Always edit Markdown files and Python code inside the source directory (e.g. docs_src/).
  • Never edit the output directories (docs/, docs_html/, docs.pdf) directly; they are build artifacts completely overwritten during compilation.

1. Project Scaffolding (drawlib init)

Scaffold a complete project template with a single command:

# List available starter project templates
$ uv run drawlib init list

# Initialize a multi-page documentation website (creates docs_src/)
$ uv run drawlib init site

# Or scaffold into a custom target name (positional argument, e.g., mybook_src/ -> mybook_html/):
$ uv run drawlib init site mybook

# Optional flags: --style (-s) for theme and --lang (-l) for language fonts
$ uv run drawlib init doc rbac -s google --lang ja

Drawlib supports four starter project types:

  • doc: Linear technical document / spec / RFC / report compiled to HTML (doc_html/), PDF (doc.pdf), Markdown (doc_markdown/), and diagrams (doc_images/).
  • site: Multi-page documentation website (docs_html/), Markdown site (docs_markdown/ or docs/), and diagrams (docs_images/).
  • slide: 16:9 presentation slide deck compiled to web deck (slide_html/), vector PDF (slide.pdf), and diagrams (slide_images/).
  • images: Standalone Python illustration scripts (images_src/*.py) batch-compiled to image files (images/*.png).
project_quicklook_2

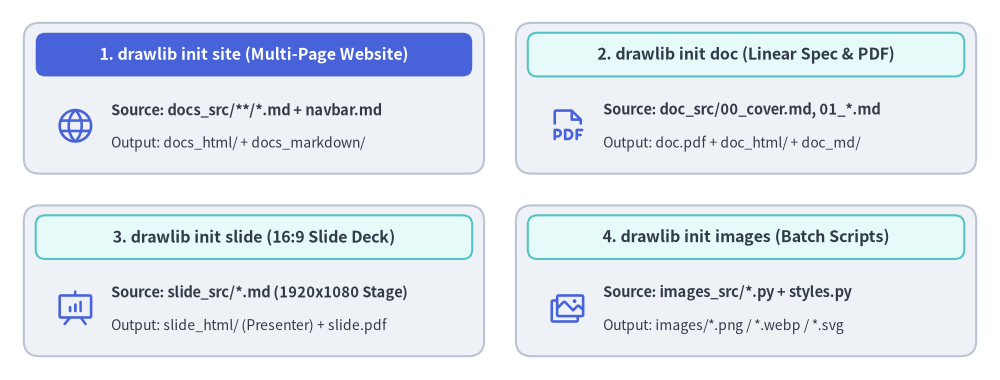

The Four Drawlib Project Scaffolding Archetypes (drawlib init)
Source Code
from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=126, height=48)

hdr_white = Styles.WhiteBold.patch(text_size=11.5)
hdr_dark = Styles.DarkBold.patch(text_size=11.5)
body_bold = Styles.DarkBold.patch(text_size=10.5, halign="left")
body_sub = Styles.Dark.patch(text_size=10.0, halign="left")

# 1. Top-Left: drawlib init site (Hero header)
rectangle((32.0, 35.5), width=58.0, height=19.0, style=Styles.Neutral.patch(shape_r=2.0))
rectangle((32.0, 41.0), width=55.0, height=5.5, style=Styles.PrimaryFlat.patch(shape_r=1.2), text="1. drawlib init site (Multi-Page Website)", text_style=hdr_white)
phosphor.globe((9.5, 32.0), width=5.2, style=Styles.Primary)
text((14.0, 34.0), "Source: docs_src/**/*.md + navbar.md", style=body_bold)
text((14.0, 29.8), "Output: docs_html/ + docs_markdown/", style=body_sub)

# 2. Top-Right: drawlib init doc
rectangle((94.0, 35.5), width=58.0, height=19.0, style=Styles.Neutral.patch(shape_r=2.0))
rectangle((94.0, 41.0), width=55.0, height=5.5, style=Styles.SecondaryNeutral.patch(shape_r=1.2), text="2. drawlib init doc (Linear Spec & PDF)", text_style=hdr_dark)
phosphor.file_pdf((71.5, 32.0), width=5.2, style=Styles.Primary)
text((76.0, 34.0), "Source: doc_src/00_cover.md, 01_*.md", style=body_bold)
text((76.0, 29.8), "Output: doc.pdf + doc_html/ + doc_md/", style=body_sub)

# 3. Bottom-Left: drawlib init slide
rectangle((32.0, 12.5), width=58.0, height=19.0, style=Styles.Neutral.patch(shape_r=2.0))
rectangle((32.0, 18.0), width=55.0, height=5.5, style=Styles.SecondaryNeutral.patch(shape_r=1.2), text="3. drawlib init slide (16:9 Slide Deck)", text_style=hdr_dark)
phosphor.presentation_chart((9.5, 9.0), width=5.2, style=Styles.Primary)
text((14.0, 11.0), "Source: slide_src/*.md (1920x1080 Stage)", style=body_bold)
text((14.0, 6.8), "Output: slide_html/ (Presenter) + slide.pdf", style=body_sub)

# 4. Bottom-Right: drawlib init images
rectangle((94.0, 12.5), width=58.0, height=19.0, style=Styles.Neutral.patch(shape_r=2.0))
rectangle((94.0, 18.0), width=55.0, height=5.5, style=Styles.SecondaryNeutral.patch(shape_r=1.2), text="4. drawlib init images (Batch Scripts)", text_style=hdr_dark)
phosphor.images((71.5, 9.0), width=5.2, style=Styles.Primary)
text((76.0, 11.0), "Source: images_src/*.py + styles.py", style=body_bold)
text((76.0, 6.8), "Output: images/*.png / *.webp / *.svg", style=body_sub)

save()

2. One-Command Compilation (drawlib build)

Once initialized, compile your documentation using the generated build.sh script or the drawlib build CLI:

# Run the project master build script
$ ./docs_src/build.sh

# Or compile using the CLI subcommands directly:
$ uv run drawlib build html docs_src/ -o docs_html/
$ uv run drawlib build markdown docs_src/ -o docs/
$ uv run drawlib build pdf doc_src/ -o doc.pdf
$ uv run drawlib build slide slide_src/ -o slide_html/
$ uv run drawlib build image images_src/ -o images/

# Force a clean re-render bypassing the SQLite build cache (.drawlib/cache.db):
$ uv run drawlib build html docs_src/ -o docs_html/ --no-cache

During the build process:

  1. Drawlib detects all drawlib code blocks across your Markdown documents (or .py scripts in images_src/).
  2. The code blocks are executed in isolated memory spaces to render vector/raster diagrams.
  3. Rendered images are cached deterministically in .drawlib/cache.db (only modified code blocks or styles re-render; pass --no-cache or run uv run drawlib cache clear --images to force re-rendering).
  4. The final HTML website, slide deck, PDF, or rendered Markdown documents are generated with verified image links.

3. Local Live Preview & Link Verification (drawlib serve)

Preview your compiled HTML site locally with automatic pre-flight link and asset inspection:

# Start local HTTP preview server on http://localhost:8000
$ uv run drawlib serve docs_html/

# Run headless broken-link and missing-asset verification only (ideal for CI/CD)
$ uv run drawlib serve docs_html/ --check

Open http://localhost:8000 in your browser to inspect the full documentation site, navigation sidebar, and responsive styling.

[!NOTE] For in-depth guides on code block attributes (show-code, fold-code, caption:), custom HTML templates, CSS theming, caching, and Chromium PDF exports, see Chapter 8: Document Builder & CLI.
