BulletPoints

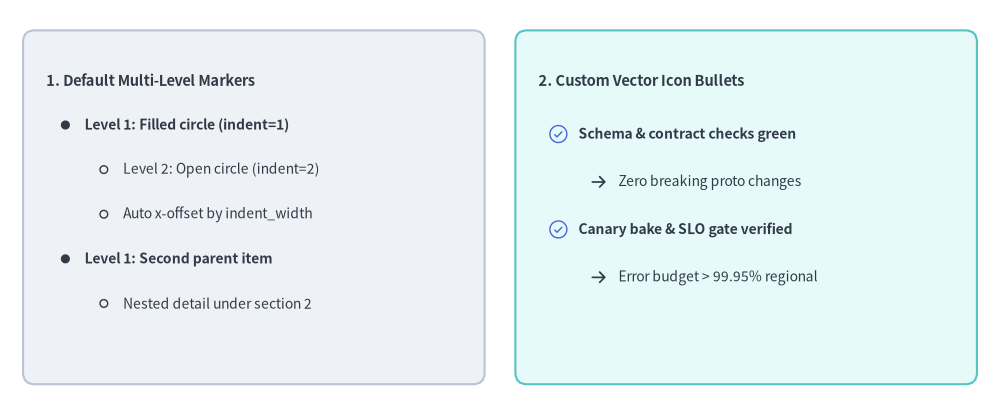

The BulletPoints component renders multi-level nested bullet lists starting from a top-left anchor (x, y). It supports customizable indentation widths, line spacing, per-level shape or icon markers, and layout-preserving visibility toggling.

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.shapes import rectangle
from drawlib.smartarts import BulletPoints
from drawlib.styles import Styles
from drawlib.text import text

setup(width=130, height=54)

# 1. Left Card: Built-in Default Multi-Level Bullet Markers (indent=0, 1, 2)
rectangle((33, 27), width=60, height=46, style=Styles.Neutral.patch(shape_r=1.5))

bp_default = BulletPoints(
    text_style=Styles.Dark.patch(text_size=10.0),
    vertical_margin=5.8,
    indent_width=5.0,
)
bp_default.set_indent(0)
bp_default.add("1. Default Multi-Level Markers", text_style=Styles.DarkBold.patch(text_size=10.5))
bp_default.set_indent(1)
bp_default.add("Level 1: Filled circle (indent=1)", text_style=Styles.DarkBold.patch(text_size=10.0))
bp_default.set_indent(2)
bp_default.add("Level 2: Open circle (indent=2)")
bp_default.add("Auto x-offset by indent_width")
bp_default.set_indent(1)
bp_default.add("Level 1: Second parent item", text_style=Styles.DarkBold.patch(text_size=10.0))
bp_default.set_indent(2)
bp_default.add("Nested detail under section 2")
bp_default.draw(xy=(6, 43.5))

# 2. Right Card: Custom Vector Icon Bullets (set_bullet_style with Phosphor Icons)
rectangle((97, 27), width=60, height=46, style=Styles.SecondaryNeutral.patch(shape_r=1.5))
text((70, 43.5), "2. Custom Vector Icon Bullets", style=Styles.DarkBold.patch(text_size=10.5, halign="left"))

bp_icons = BulletPoints(
    text_style=Styles.Dark.patch(text_size=10.0),
    vertical_margin=6.2,
    indent_width=5.2,
)
bp_icons.set_bullet_style(
    indent_level=1,
    function=phosphor.check_circle,
    style=Styles.PrimaryFlat,
    args={"width": 2.8},
)
bp_icons.set_bullet_style(
    indent_level=2,
    function=phosphor.arrow_right,
    style=Styles.DarkBold,
    args={"width": 2.4},
)
bp_icons.set_indent(1)
bp_icons.add("Schema & contract checks green", text_style=Styles.DarkBold.patch(text_size=10.0))
bp_icons.set_indent(2)
bp_icons.add("Zero breaking proto changes")
bp_icons.set_indent(1)
bp_icons.add("Canary bake & SLO gate verified", text_style=Styles.DarkBold.patch(text_size=10.0))
bp_icons.set_indent(2)
bp_icons.add("Error budget > 99.95% regional")
bp_icons.draw(xy=(70, 36.5))

save()

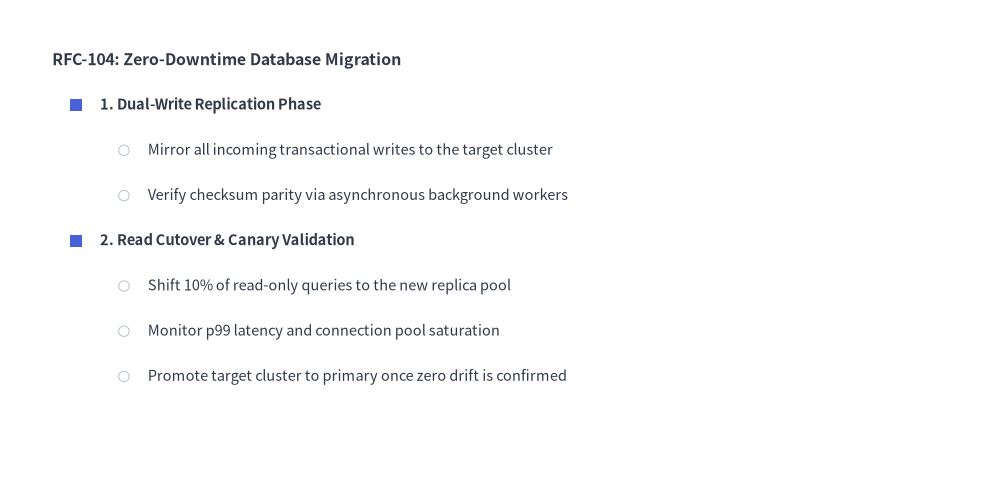

1. Multi-Level Nested Bullet Hierarchy

By default, indent=0 renders unbulleted section titles, indent=1 renders filled circle bullets, and indent=2 renders open outline circle bullets. You can also customize any indentation level's bullet marker using set_bullet_style(...).

from drawlib.canvas import save, setup
from drawlib.shapes import circle, rectangle
from drawlib.smartarts import BulletPoints
from drawlib.styles import Colors, Styles

setup(width=115, height=56)

bp = BulletPoints(
    text_style=Styles.Dark.patch(text_size=10.5),
    vertical_margin=5.2,
    indent_width=5.5,
)

# Customize level-1 marker to a Primary square and level-2 to a Muted circle
bp.set_bullet_style(
    indent_level=1,
    function=rectangle,
    style=Styles.PrimaryFlat.patch(shape_line_width=0),
    args={"width": 1.4, "height": 1.4},
)
bp.set_bullet_style(
    indent_level=2,
    function=circle,
    style=Styles.DarkThin.patch(shape_fill_color=Colors.White),
    args={"radius": 0.6},
)

bp.set_indent(0)
bp.add("RFC-104: Zero-Downtime Database Migration", text_style=Styles.DarkBold.patch(text_size=11.5))

bp.set_indent(1)
bp.add("1. Dual-Write Replication Phase", text_style=Styles.DarkBold.patch(text_size=10.5))
bp.set_indent(2)
bp.add("Mirror all incoming transactional writes to the target cluster")
bp.add("Verify checksum parity via asynchronous background workers")

bp.set_indent(1)
bp.add("2. Read Cutover & Canary Validation", text_style=Styles.DarkBold.patch(text_size=10.5))
bp.set_indent(2)
bp.add("Shift 10% of read-only queries to the new replica pool")
bp.add("Monitor p99 latency and connection pool saturation")
bp.add("Promote target cluster to primary once zero drift is confirmed")

bp.draw(xy=(6, 49))
save()

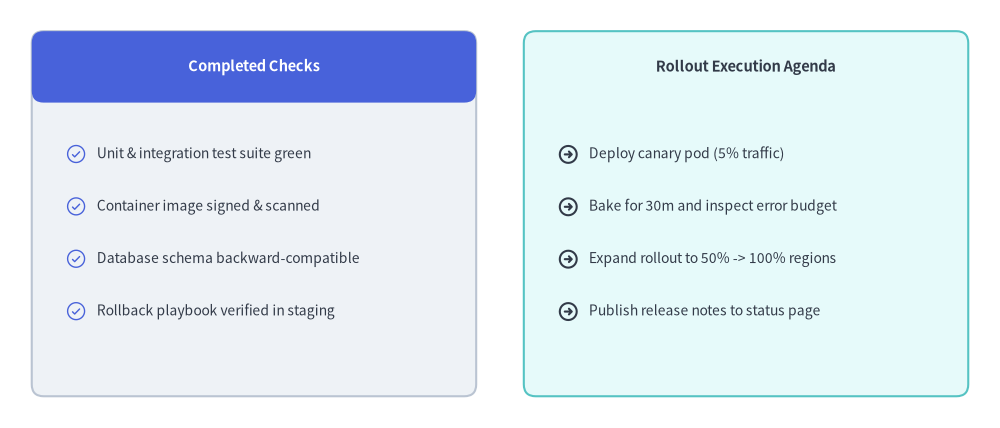

2. Checklist & Agenda Cards with Vector Icon Markers

By passing Phosphor icon functions (such as phosphor.check_circle or phosphor.arrow_right) to set_bullet_style(...) and placing BulletPoints inside rectangular cards, you can create rich release checklists, feature comparison cards, and sprint agendas.

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.shapes import rectangle
from drawlib.smartarts import BulletPoints
from drawlib.styles import Styles
from drawlib.text import text

setup(width=126, height=54)

# Left Card: Completed Pre-Flight Checks (Neutral card + Primary header)
rectangle((32, 27), width=56, height=46, style=Styles.Neutral.patch(shape_r=1.5))
rectangle(
    (32, 45.5),
    width=56,
    height=9,
    style=Styles.PrimaryFlat.patch(shape_r=1.5),
    text="Completed Checks",
    text_style=Styles.WhiteBold.patch(text_size=10.5),
)

done_list = BulletPoints(
    text_style=Styles.Dark.patch(text_size=10.0),
    vertical_margin=6.6,
    indent_width=5.2,
)
done_list.set_bullet_style(
    indent_level=1,
    function=phosphor.check_circle,
    style=Styles.PrimaryFlat,
    args={"width": 2.8},
)
done_list.set_indent(1)
done_list.add("Unit & integration test suite green")
done_list.add("Container image signed & scanned")
done_list.add("Database schema backward-compatible")
done_list.add("Rollback playbook verified in staging")
done_list.draw(xy=(7, 34.5))

# Right Card: Rollout Execution Steps (SecondaryNeutral card)
rectangle((94, 27), width=56, height=46, style=Styles.SecondaryNeutral.patch(shape_r=1.5))
text((94, 45.5), "Rollout Execution Agenda", style=Styles.DarkBold.patch(text_size=10.5))

agenda_list = BulletPoints(
    text_style=Styles.Dark.patch(text_size=10.0),
    vertical_margin=6.6,
    indent_width=5.2,
)
agenda_list.set_bullet_style(
    indent_level=1,
    function=phosphor.arrow_circle_right,
    style=Styles.DarkBold,
    args={"width": 2.8},
)
agenda_list.set_indent(1)
agenda_list.add("Deploy canary pod (5% traffic)")
agenda_list.add("Bake for 30m and inspect error budget")
agenda_list.add("Expand rollout to 50% -> 100% regions")
agenda_list.add("Publish release notes to status page")
agenda_list.draw(xy=(69, 34.5))
save()

3. Coordinate & Indentation Mechanics

• Top-Left Anchor (x, y): The xy coordinate passed to bp.draw(xy=...) specifies the left edge and vertical center of the first line (y). Subsequent items step downward by vertical_margin (y - i * vertical_margin).
• Indentation Geometry:
  • Text for an item at indentation level indent starts at x_text = x + indent_width * indent.
  • When indent != 0 and a bullet style is registered for indent, the marker is centered at x_marker = x + indent_width * (indent - 0.5).
• Default Bullet Markers:
  • indent = 0: No bullet marker (ideal for list titles and section headers).
  • indent = 1: Filled circle (radius=0.5) matching text_style.text_color.
  • indent = 2: Open outline circle (radius=0.5) matching text_style.text_color.

4. API Reference

Constructor

BulletPoints(
    *,
    text_style: Style,
    vertical_margin: float,
    indent_width: float,
)

Methods & Properties

• set_indent(level: int) -> None: Sets the active indentation level (0, 1, 2, ...) applied to subsequent add() calls.
• set_bullet_style(indent_level: int, function: Callable, style: Style, args: dict) -> None: Registers a custom drawing callable (such as rectangle, circle, or any phosphor.* icon function) for indent_level. At draw time, function(xy=(x_marker, y), style=style, **args) is invoked.
• add(text: str, *, text_style: Style | None = None, show: bool = True) -> BulletPointItem: Appends a bullet item at the current indentation level and returns a mutable BulletPointItem (indent: int, text: str, text_style: Style, show: bool). Note that BulletPointItem.style is also provided as a mutable property alias for BulletPointItem.text_style. Setting show=False hides the bullet and text while keeping the vertical spacing reserved for subsequent lines.
• bp.items -> list[BulletPointItem]: Returns the list of all registered BulletPointItem instances, allowing deferred mutation of .text, .text_style (or .style), .indent, and .show before or between draw() calls.
• draw(xy: tuple[float, float], scale: float = 1.0) -> None: Renders all visible bullet items starting at xy, with optional proportional scaling via scale.
