ERDiagram: Relational Schemas & Crow's Foot Notations

ERDiagram visualizes relational database architectures adhering strictly to Information Engineering (IE) / Crow's Foot notation—the industry standard for physical database schema modeling.

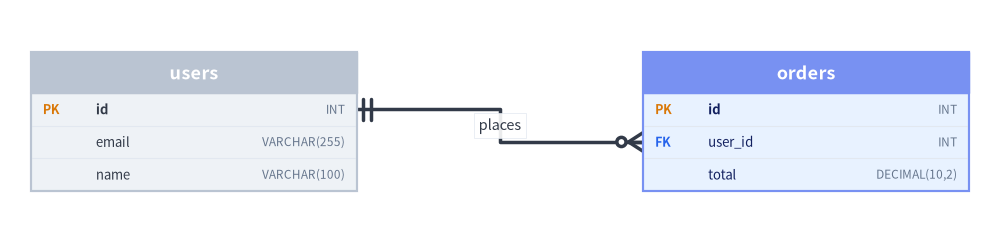

1. Overview & Crow's Foot Notation

from drawlib.canvas import save, setup
from drawlib.diagrams.er import ERDiagram, Entity
from drawlib.styles import Styles

setup(width=98, height=24)

er = ERDiagram(
    node_style=Styles.Neutral,
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=10.5),
)

users = er.add(Entity(name="users", width=32.0), xy=(19.0, 12.0))
users.add_column("id", type="INT", pk=True)
users.add_column("email", type="VARCHAR(255)", nullable=False)
users.add_column("name", type="VARCHAR(100)")

orders = er.add(Entity(name="orders", width=32.0, style=Styles.PrimaryNeutral), xy=(79.0, 12.0))
orders.add_column("id", type="INT", pk=True)
orders.add_column("user_id", type="INT", fk=True)
orders.add_column("total", type="DECIMAL(10,2)", nullable=False)

users.connect(
    orders,
    cardinality="1:*",
    start_side="right",
    end_side="left",
    start_column="id",
    end_column="user_id",
    label="places",
)

er.draw(xy=(0.0, 0.0))
save()

• Information Engineering (IE) Standard: Uses standard Crow's Foot vector markers (double vertical bar for exactly one, circle + crow's foot for zero or many, bar + crow's foot for one or many, and circle + bar for zero or one).
• Column-Level Anchoring: Rather than connecting to arbitrary points on the table perimeter, Drawlib allows you to anchor lines directly to the specific primary key and foreign key table rows (start_column="id", end_column="user_id").
• Key Badges: Automatically renders [PK] and [FK] tags next to column definitions with syntax highlighting.

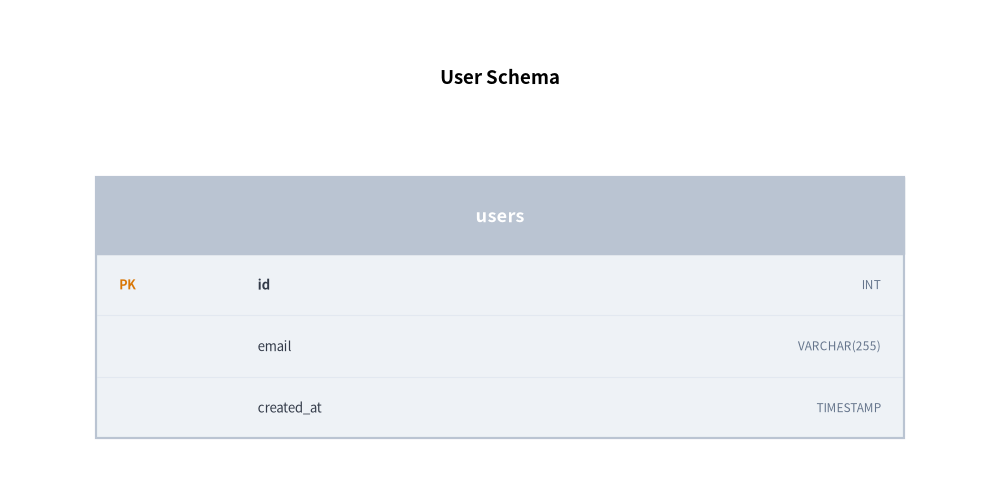

2. Constructor & Entity Definition

from drawlib.canvas import save, setup
from drawlib.diagrams.er import ERDiagram, Entity
from drawlib.styles import Styles

setup(width=52, height=26)

er = ERDiagram(
    node_style=Styles.Neutral,
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=10.5),
    title="User Schema",
    title_style=Styles.BlackBold.patch(text_size=13.5),
    width=52.0,
    height=20.0,
)

# Create entity table
users = er.add(Entity(name="users", width=42.0), xy=(26.0, 10.0))
users.add_column("id", type="INT", pk=True)
users.add_column("email", type="VARCHAR(255)", nullable=False)
users.add_column("created_at", type="TIMESTAMP")

er.draw(xy=(0.0, 0.0))
save()

Parameter Reference Tables

ERDiagram Class

Entity Class

Column Declaration (add_column, add_columns & ColumnInfo)

from drawlib.diagrams.er import ColumnInfo

# Single column & batch column registration
entity.add_column(name: str, type: str = "", pk: bool = False, fk: bool = False, nullable: bool = True) -> Entity
entity.add_columns(
    columns: Sequence[Sequence[Any] | ColumnInfo],
    # Each item is a ColumnInfo or tuple (name, [type, pk, fk, nullable])
) -> Entity

Relationship (entity.connect & er.connect)

Registration, Sizing & Rendering Methods

• er.add(entity, xy=(cx, cy), show: bool | None = None) -> Entity: Places an entity table centered at (cx, cy) and returns the mutable Entity.
• entity.connect(target, cardinality="1:*", ..., show=True) -> Relationship or er.connect(start, end, cardinality="1:*", ..., show=True) -> Relationship (and er.add_relationship(rel) -> Relationship): Connects two entities with Crow's Foot notation and returns a mutable Relationship (rel.show, rel.style, rel.text_style).
• er.get_size() -> tuple[float, float]: Returns the overall (width, height) of the diagram.
• er.draw(xy=(0.0, 0.0), *, scale: float = 1.0) -> None: Renders the ER diagram anchored at bottom-left xy, proportionally scaling table geometry, Crow's Foot markers, and font sizes by scale.

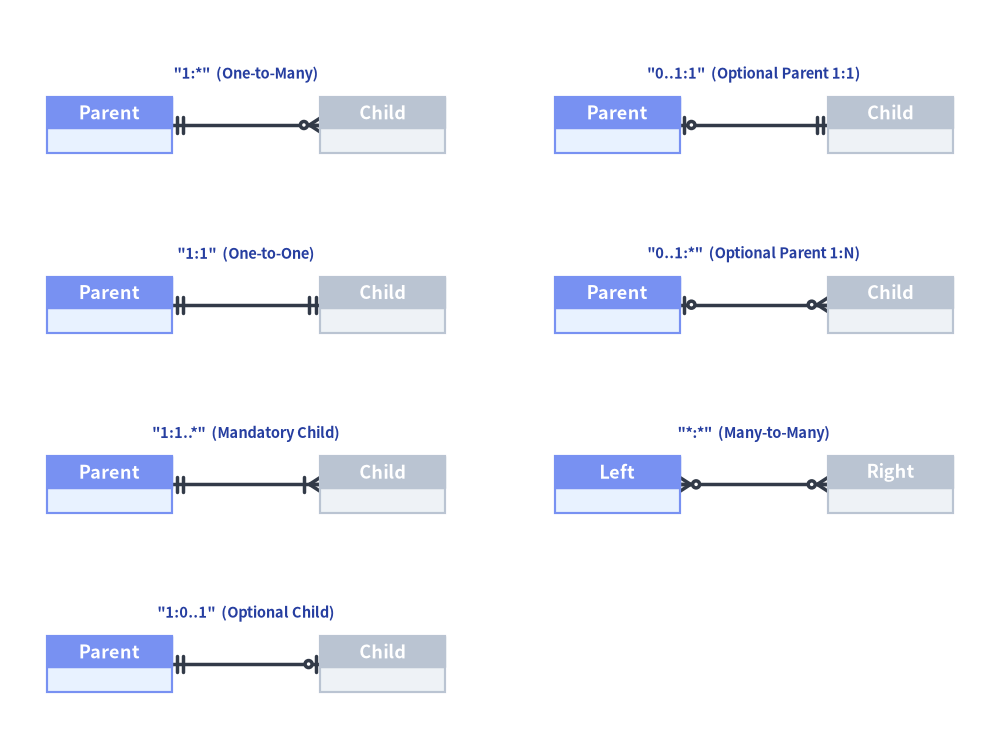

3. Supported Cardinality Notations

from drawlib.canvas import save, setup
from drawlib.diagrams.er import ERDiagram, Entity
from drawlib.styles import Colors, Styles
from drawlib.text import text

setup(width=128, height=96)

er = ERDiagram(
    node_style=Styles.Neutral,
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=10.5),
)

# 7 supported Crow's Foot cardinality strings arranged in a clean 2-column catalog
specs = [
    # Left column (x_src=14, x_dst=49)
    ('"1:*"  (One-to-Many)', "1:*", 14.0, 49.0, 80.0, "Parent", "Child"),
    ('"1:1"  (One-to-One)', "1:1", 14.0, 49.0, 57.0, "Parent", "Child"),
    ('"1:1..*"  (Mandatory Child)', "1:1..*", 14.0, 49.0, 34.0, "Parent", "Child"),
    ('"1:0..1"  (Optional Child)', "1:0..1", 14.0, 49.0, 11.0, "Parent", "Child"),
    # Right column (x_src=79, x_dst=114)
    ('"0..1:1"  (Optional Parent 1:1)', "0..1:1", 79.0, 114.0, 80.0, "Parent", "Child"),
    ('"0..1:*"  (Optional Parent 1:N)', "0..1:*", 79.0, 114.0, 57.0, "Parent", "Child"),
    ('"*:*"  (Many-to-Many)', "*:*", 79.0, 114.0, 34.0, "Left", "Right"),
]

lbl_style = Styles.DarkBold.patch(text_size=10.5, text_color=Colors.Primary5)

for _title_str, card, x1, x2, y, src_name, dst_name in specs:
    e_src = er.add(Entity(name=src_name, width=16.0, style=Styles.PrimaryNeutral), xy=(x1, y))
    e_dst = er.add(Entity(name=dst_name, width=16.0, style=Styles.Neutral), xy=(x2, y))
    e_src.connect(e_dst, cardinality=card, start_side="right", end_side="left")

er.draw(xy=(0.0, 0.0))

for title_str, _card, x1, x2, y, _src_name, _dst_name in specs:
    text(((x1 + x2) / 2.0, y + 6.5), title_str, style=lbl_style)

save()

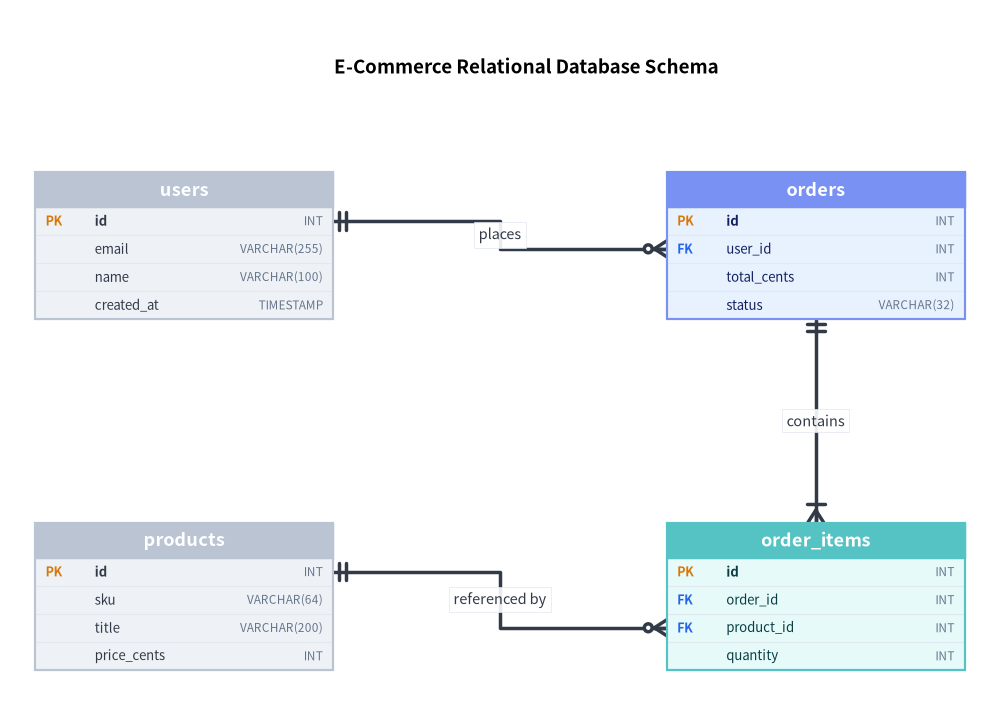

4. E-Commerce Relational Schema with Column Anchors

The following four-table schema (users, orders, order_items, and products) anchors every relationship directly to its primary and foreign key rows:

from drawlib.canvas import save, setup
from drawlib.diagrams.er import ERDiagram, Entity
from drawlib.styles import Styles

setup(width=114, height=82)

er = ERDiagram(
    node_style=Styles.Neutral,
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=10.5),
    title="E-Commerce Relational Database Schema",
    title_style=Styles.BlackBold.patch(text_size=13.5),
)

# Top row: users (left) -> orders (right)
users = er.add(Entity(name="users", width=34.0), xy=(21.0, 54.0))
users.add_column("id", type="INT", pk=True)
users.add_column("email", type="VARCHAR(255)", nullable=False)
users.add_column("name", type="VARCHAR(100)")
users.add_column("created_at", type="TIMESTAMP")

orders = er.add(Entity(name="orders", width=34.0, style=Styles.PrimaryNeutral), xy=(93.0, 54.0))
orders.add_column("id", type="INT", pk=True)
orders.add_column("user_id", type="INT", fk=True)
orders.add_column("total_cents", type="INT", nullable=False)
orders.add_column("status", type="VARCHAR(32)")

# Bottom row: products (left) -> order_items (right)
products = er.add(Entity(name="products", width=34.0), xy=(21.0, 14.0))
products.add_column("id", type="INT", pk=True)
products.add_column("sku", type="VARCHAR(64)", nullable=False)
products.add_column("title", type="VARCHAR(200)")
products.add_column("price_cents", type="INT", nullable=False)

order_items = er.add(Entity(name="order_items", width=34.0, style=Styles.SecondaryNeutral), xy=(93.0, 14.0))
order_items.add_column("id", type="INT", pk=True)
order_items.add_column("order_id", type="INT", fk=True)
order_items.add_column("product_id", type="INT", fk=True)
order_items.add_column("quantity", type="INT", nullable=False)

# Row-anchored relationships
users.connect(
    orders,
    cardinality="1:*",
    start_side="right",
    end_side="left",
    start_column="id",
    end_column="user_id",
    label="places",
)
orders.connect(
    order_items,
    cardinality="1:1..*",
    start_side="bottom",
    end_side="top",
    label="contains",
)
products.connect(
    order_items,
    cardinality="1:*",
    start_side="right",
    end_side="left",
    start_column="id",
    end_column="product_id",
    label="referenced by",
)

er.draw(xy=(0.0, 0.0))
save()

5. Best Practices & Guidelines

1. Always Use Column Anchoring: Supplying start_column and end_column visually connects the specific foreign key attribute to its referenced primary key, making schemas intuitive and professional.
2. Width Budgeting: Tables with long data types (e.g., VARCHAR(255)) look best with a width of 28.0 to 34.0 canvas units.
3. Cardinality Strings: Always use explicit cardinality strings ("1:*", "1:1", etc.) rather than manual arrow heads.
