FlowDiagram: ISO Flowcharts & Cross-Functional Swimlanes

FlowDiagram implements standard flowchart symbols according to ISO 5807 and JIS X 0121 standards, with native support for cross-functional swimlane layouts (vertical columns or horizontal rows) sharing a unified global coordinate plane.

1. Overview & Standard Symbols

from drawlib.canvas import save, setup
from drawlib.diagrams.flow import Data, Decision, End, FlowDiagram, Process, Start
from drawlib.shapes import circle
from drawlib.styles import Colors, Styles
from drawlib.text import text

setup(width=130, height=58)

flow = FlowDiagram(
    node_style=Styles.Neutral.patch(text_size=10.5),
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=10.5),
    width=122.0,
    height=50.0,
)

# 6 Standard Flowchart Symbol Classes: Start, Data, Process, Decision, Junction, End
s_start = flow.add(
    Start("Start\n(Terminal)", width=20.0, height=11.0, style=Styles.PrimaryNeutral.patch(text_size=10.5)),
    xy=(13.0, 37.0),
)
s_data = flow.add(Data("Data\n(Input / I/O)", width=23.0, height=12.0), xy=(44.5, 37.0))
s_proc = flow.add(Process("Process\n(Operation)", width=23.0, height=12.0), xy=(77.5, 37.0))
s_dec = flow.add(
    Decision("Decision\n(Branch?)", width=24.0, height=15.0, style=Styles.SecondaryNeutral.patch(text_size=10.5)),
    xy=(77.5, 14.0),
)

# Junction waypoint for orthogonal retry loop back to Data
j_retry = flow.junction((44.5, 14.0))
s_end = flow.add(
    End("End\n(Complete)", width=20.0, height=11.0, style=Styles.PrimaryFlat, text_style=Styles.WhiteBold.patch(text_size=10.5)),
    xy=(110.0, 14.0),
)

s_start.connect(s_data)
s_data.connect(s_proc)
s_proc.connect(s_dec, start_side="bottom", end_side="top")
s_dec.connect(s_end, label="Yes", start_side="right", end_side="left")
s_dec.connect(j_retry, label="No", start_side="left", end_side="right")
j_retry.connect(s_data, label="Retry", end_side="bottom")

flow.draw(xy=(4.0, 4.0))

# Highlight the zero-size Junction coordinate point (4 + 44.5 = 48.5, 4 + 14 = 18)
circle((48.5, 18.0), radius=1.3, style=Styles.PrimaryFlat)
text(
    (48.5, 12.8),
    "Junction (x, y)",
    style=Styles.DarkBold.patch(text_size=10.5, text_color=Colors.Primary5),
)

save()

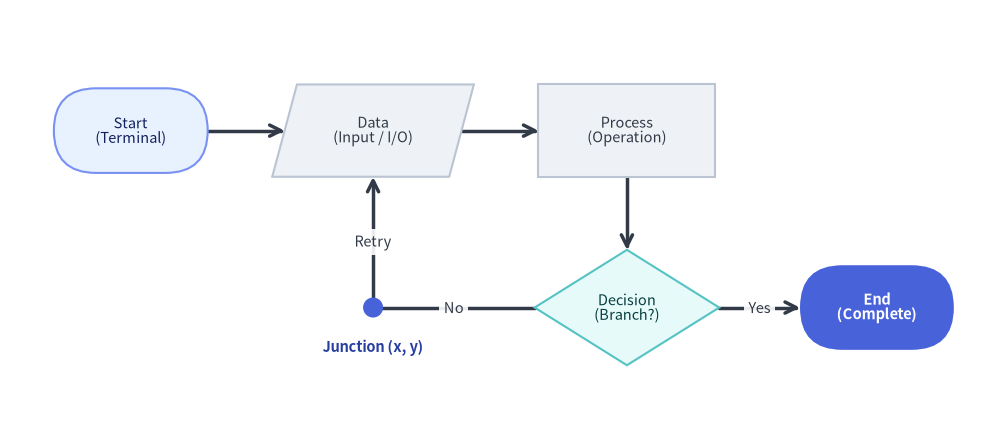

Flowchart Symbol Classes

2. Global Coordinate Architecture & Core API Reference

In Drawlib's FlowDiagram, swimlanes provide a structured visual background and column/row headers without trapping nodes inside local relative coordinates.

All nodes share a single global canvas coordinate system (flow.add(node, xy=(cx, cy)) places the center (cx, cy) of the shape). This means:

• Steps occurring at the same stage in different departments can be placed at the exact same vertical $Y$ coordinate.
• Connecting lines cross swimlane boundaries cleanly with automatic orthogonal right-angle routing.

Parameter Reference Tables

FlowDiagram Class

FlowNode & Concrete Node Classes (Start, End, Process, Decision, Data)

• Anchor & Geometry Properties on FlowNode: node.xy, node.center, node.top, node.bottom, node.left, node.right, node.get_anchor(side="auto"), and node.get_bounds().

Core Registration, Swimlane, Connection & Waypoint Methods

• Node Registration (flow.add):

  flow.add(item: FlowNode | Junction, xy: tuple[float, float], *, show: bool | None = None) -> FlowNode | Junction


  Places item at center coordinate xy and returns the mutable instance (node.show, node.style, node.text_style). If show=False, the node and its connected edges are hidden during rendering while diagram bounds remain unchanged.
• Swimlane Registration (flow.add_lane):

  flow.add_lane(
      title: str,
      size: float | None = None,
      width: float | None = None,
      height: float | None = None,
      style: Style | None = None,
      text_style: Style | None = None,
      header_size: float = 6.0,
      header_style: Style | None = None,
      show: bool = True,
  ) -> Lane


  Adds a vertical column (width or size, default 30.0) or horizontal row (height or size, default 30.0) swimlane and returns the Lane instance. Setting show=False hides the lane visual while keeping subsequent lane offsets fixed.
• Connecting Nodes (FlowNode.connect & flow.connect):

  node.connect(
      target: FlowNode | Junction,
      label: str = "",
      arrow: Literal["->", "<-", "<->", "-"] | None = None,
      routing: Literal["orthogonal", "direct"] = "orthogonal",
      start_side: Literal["left", "right", "top", "bottom", "auto"] = "auto",
      end_side: Literal["left", "right", "top", "bottom", "auto"] = "auto",
      style: Style | None = None,
      text_style: Style | None = None,
      padding: float | tuple[float, float] = 0.0,
      show: bool = True,
  ) -> FlowEdge


  Also callable at the diagram level via flow.connect(start, end, ...) -> FlowEdge (or flow.add_edge(edge, *, show=None) -> FlowEdge). When arrow=None, defaults to "-" if target is a Junction, otherwise "->".
• 1-to-N Bus Fan-Out (FlowNode.fork) & Junction:
  • node.fork(targets: list[Connectable], at_x: float | None = None, at_y: float | None = None, style: Style | None = None, padding: float | tuple[float, float] = 0.0, show: bool = True) -> list[FlowEdge]: Branches from node to multiple targets through an intermediate Junction.
  • flow.junction(xy: tuple[float, float], *, show: bool = True) -> Junction: Creates and registers a zero-size connectable waypoint at xy (j.connect(...)).
• FlowEdge Waypoint Methods:
  • edge.points(waypoints: list[tuple[float, float]]) -> FlowEdge: Sets explicit intermediate (x, y) waypoints and returns self.
  • edge.via(*waypoints: tuple[float, float]) -> FlowEdge: Unpacked variadic shorthand for .points(list(waypoints)).
  • edge.add_point(xy: tuple[float, float]) -> Junction: Appends xy as a waypoint on edge and returns a branching Junction registered at xy.
• Sizing & Rendering (flow.get_size & flow.draw):
  • flow.get_size() -> tuple[float, float]: Returns the overall (width, height) of the diagram.
  • flow.draw(xy=(0.0, 0.0), *, scale: float = 1.0) -> None: Renders the diagram anchored at bottom-left xy, proportionally scaling all coordinates, lane widths/heights, node dimensions, and font sizes by scale.

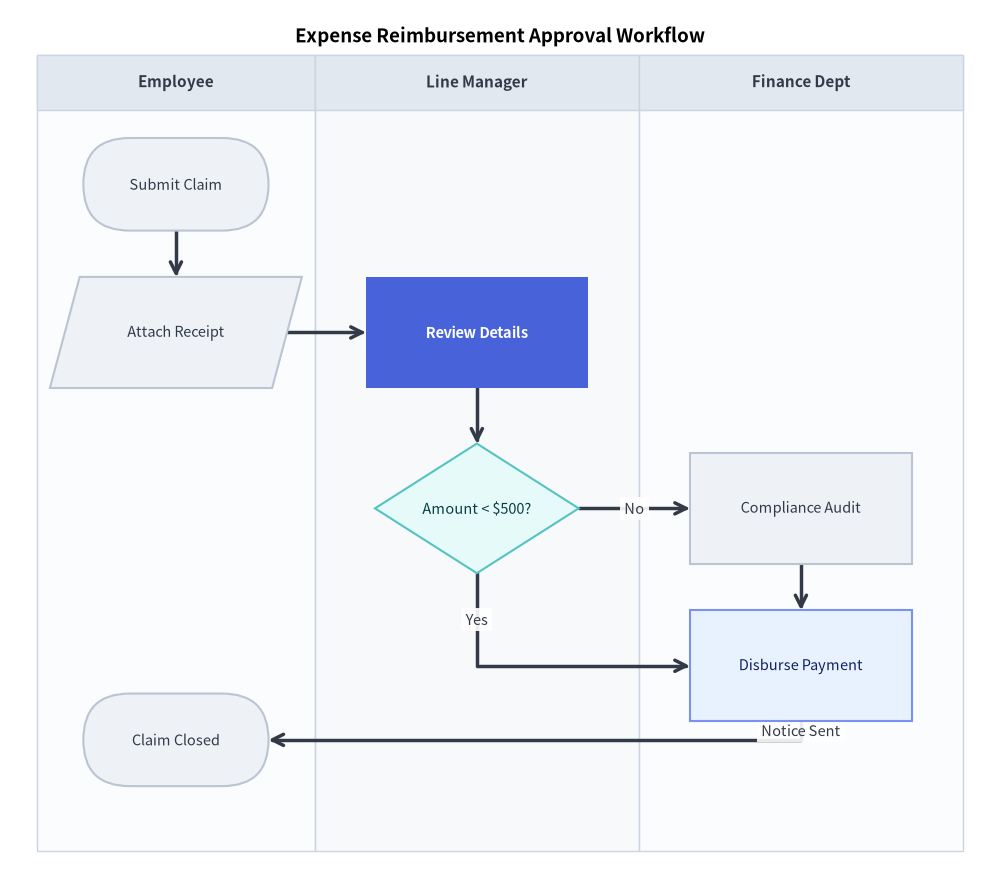

3. Vertical Swimlanes: Approval Workflow

The following example illustrates a multi-department expense reimbursement process across three vertical swimlanes:

from drawlib.canvas import save, setup
from drawlib.diagrams.flow import Data, Decision, End, FlowDiagram, Process, Start
from drawlib.styles import Styles

setup(width=108, height=96)

flow = FlowDiagram(
    node_style=Styles.Neutral.patch(text_size=10.5),
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=10.5),
    title="Expense Reimbursement Approval Workflow",
    title_style=Styles.BlackBold.patch(text_size=13.5),
    width=100.0,
    height=86.0,
)

# 1. Define vertical department lanes (columns from left to right)
lane_lbl = Styles.DarkBold.patch(text_size=11.0)
flow.add_lane("Employee", width=30.0, text_style=lane_lbl)
flow.add_lane("Line Manager", width=35.0, text_style=lane_lbl)
flow.add_lane("Finance Dept", width=35.0, text_style=lane_lbl)

# 2. Add nodes (Y coordinates align corresponding steps horizontally)
submit = flow.add(Start("Submit Claim"), xy=(15.0, 72.0))
receipt = flow.add(Data("Attach Receipt"), xy=(15.0, 56.0))
review = flow.add(
    Process("Review Details", style=Styles.PrimaryFlat, text_style=Styles.WhiteBold.patch(text_size=10.5)),
    xy=(47.5, 56.0),
)
decision = flow.add(
    Decision("Amount < $500?", style=Styles.SecondaryNeutral.patch(text_size=10.5)),
    xy=(47.5, 37.0),
)

audit = flow.add(Process("Compliance Audit"), xy=(82.5, 37.0))
auto_pay = flow.add(
    Process("Disburse Payment", style=Styles.PrimaryNeutral.patch(text_size=10.5)),
    xy=(82.5, 20.0),
)
end = flow.add(End("Claim Closed"), xy=(15.0, 12.0))

# 3. Connect steps
submit.connect(receipt)
receipt.connect(review)
review.connect(decision)

# Decision routing (separate vertical levels avoid label collisions)
decision.connect(audit, label="No", start_side="right", end_side="left")
decision.connect(auto_pay, label="Yes", start_side="bottom", end_side="left")
audit.connect(auto_pay, start_side="bottom", end_side="top")
auto_pay.connect(end, label="Notice Sent", start_side="bottom", end_side="right")

flow.draw(xy=(4.0, 4.0))
save()

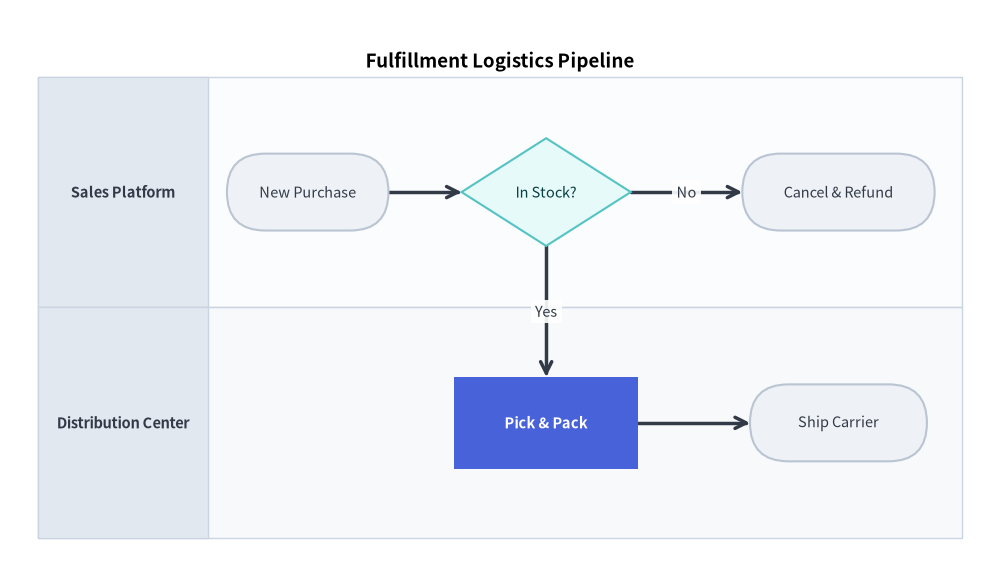

4. Horizontal Swimlanes: Order Logistics

By specifying lane_orientation="horizontal", lanes are laid out as stacked horizontal bands:

from drawlib.canvas import save, setup
from drawlib.diagrams.flow import Decision, End, FlowDiagram, Process, Start
from drawlib.styles import Styles

setup(width=130, height=74)

flow = FlowDiagram(
    node_style=Styles.Neutral.patch(text_size=10.5),
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=10.5),
    title="Fulfillment Logistics Pipeline",
    title_style=Styles.BlackBold.patch(text_size=13.5),
    lane_orientation="horizontal",
    width=120.0,
    height=60.0,
)

lane_lbl = Styles.DarkBold.patch(text_size=10.5)
flow.add_lane("Sales Platform", height=30.0, header_size=22.0, text_style=lane_lbl)
flow.add_lane("Distribution Center", height=30.0, header_size=22.0, text_style=lane_lbl)

order = flow.add(Start("New Purchase", width=21.0), xy=(35.0, 45.0))
validate = flow.add(Decision("In Stock?", style=Styles.SecondaryNeutral.patch(text_size=10.5)), xy=(66.0, 45.0))
cancel = flow.add(End("Cancel & Refund", width=25.0), xy=(104.0, 45.0))
pack = flow.add(
    Process("Pick & Pack", style=Styles.PrimaryFlat, text_style=Styles.WhiteBold.patch(text_size=10.5)),
    xy=(66.0, 15.0),
)
dispatch = flow.add(End("Ship Carrier", width=23.0), xy=(104.0, 15.0))

order.connect(validate)
validate.connect(cancel, label="No", start_side="right", end_side="left")
validate.connect(pack, label="Yes", start_side="bottom", end_side="top")
pack.connect(dispatch)

flow.draw(xy=(5.0, 4.0))
save()

5. Best Practices & Guidelines

1. Explicit Decision Exits: Always specify start_side (e.g. start_side="right" for "No", start_side="bottom" for "Yes") on Decision nodes to keep branch directions clear and consistent.
2. Merge with flow.junction: When multiple paths lead to a single destination or pass through a bottleneck, route them through an intermediate junction to prevent crossing lines.
3. Lane Width Balancing: Ensure lane widths accommodate the widest nodes with at least 5 coordinate units of padding on either side.
