BarChart: Vertical, Horizontal, Grouped & Stacked Bars

The BarChart component (drawlib.charts.bar) renders vertical columns or horizontal bars for comparing discrete categorical metrics across one or more series. It supports side-by-side grouped clusters, cumulative stacked bars, outer-tip corner rounding (bar_r), inline value annotations, orientation-aware axis properties, and decoupled legend rendering.

1. Overview & Topologies

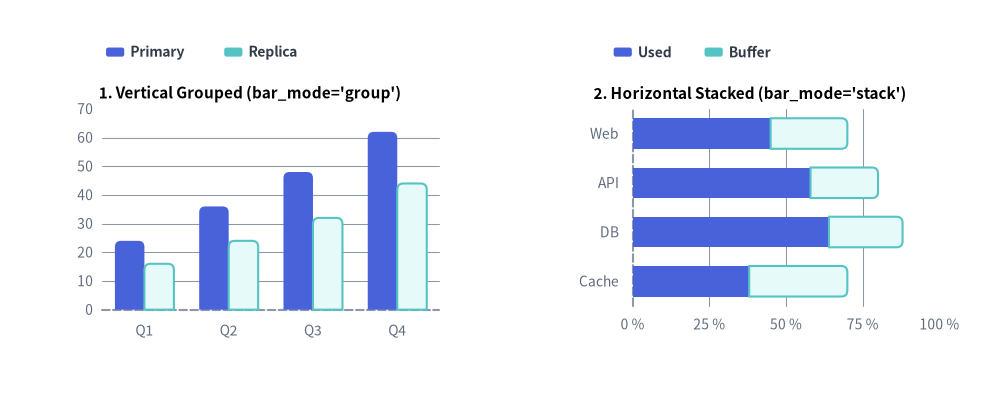

bar_1
BarChart Topologies: Grouped Vertical Bars (bar_mode='group') vs. Stacked Horizontal Bars (bar_mode='stack')
Source Code
from drawlib.canvas import save, setup
from drawlib.charts.bar import BarChart
from drawlib.styles import Styles

setup(width=132, height=52)

# Left: Vertical Grouped (orientation="vertical", bar_mode="group")
vert_chart = BarChart(
    categories=["Q1", "Q2", "Q3", "Q4"],
    axis_line_style=Styles.MutedDashed,
    axis_text_style=Styles.Muted.patch(text_size=10.0),
    grid_style=Styles.MutedThin,
    width=56.0,
    height=36.0,
    orientation="vertical",
    bar_mode="group",
    bar_r=0.8,
    title="1. Vertical Grouped (bar_mode='group')",
    title_style=Styles.BlackBold.patch(text_size=11.0),
)
vert_chart.add_series("Primary", [24.0, 36.0, 48.0, 62.0], style=Styles.PrimaryFlat)
vert_chart.add_series("Replica", [16.0, 24.0, 32.0, 44.0], style=Styles.SecondaryNeutral)
vert_chart.draw(xy=(5.0, 6.0))
vert_chart.draw_legend(xy=(14.0, 45.0), text_style=Styles.DarkBold.patch(text_size=10.0), orientation="horizontal")

# Right: Horizontal Stacked (orientation="horizontal", bar_mode="stack")
horiz_chart = BarChart(
    categories=["Web", "API", "DB", "Cache"],
    axis_line_style=Styles.MutedDashed,
    axis_text_style=Styles.Muted.patch(text_size=10.0),
    grid_style=Styles.MutedThin,
    width=56.0,
    height=36.0,
    orientation="horizontal",
    bar_mode="stack",
    bar_width_ratio=0.62,
    bar_r=0.8,
    title="2. Horizontal Stacked (bar_mode='stack')",
    title_style=Styles.BlackBold.patch(text_size=11.0),
)
horiz_chart.add_series("Used", [45.0, 58.0, 64.0, 38.0], style=Styles.PrimaryFlat)
horiz_chart.add_series("Buffer", [25.0, 22.0, 24.0, 32.0], style=Styles.SecondaryNeutral)
horiz_chart.configure_x_axis(min_value=0, max_value=100, tick_step=25, unit="%")
horiz_chart.draw(xy=(71.0, 6.0))
horiz_chart.draw_legend(xy=(81.0, 45.0), text_style=Styles.DarkBold.patch(text_size=10.0), orientation="horizontal")

save()
  • orientation:
    • "vertical" (default): Columns grow upward from the bottom X-axis (y_axis is the value axis, x_axis is the category axis).
    • "horizontal": Bars grow rightward from the left Y-axis (x_axis is the value axis, y_axis is the category axis).
  • bar_mode:
    • "group" (default): Side-by-side clustered bars for comparing distinct series within each category bin.
    • "stack": Accumulates series vertically or horizontally to show cumulative totals and part-to-whole breakdowns.
  • bar_r: Corner rounding radius applied strictly to the 2 outer tip corners of each bar (for stacked bars, only the outermost segment receives tip rounding while inner segment boundaries remain flush).
  • Orientation-Aware Default draw_direction:
    • When add_series(..., draw_direction=None) is called without an explicit direction, BarChart automatically selects "bottom_to_top" for orientation="vertical" (all bars grow upward from the baseline) and "left_to_right" for orientation="horizontal" (all bars grow rightward from the baseline).
    • Passing the orthogonal direction ("left_to_right" on a vertical chart, or "bottom_to_top" on a horizontal chart) reveals bars sequentially category-by-category instead of growing all bars simultaneously.

2. Quick Example: Vertical Grouped Resource Allocation

from drawlib.canvas import save, setup
from drawlib.charts.bar import BarChart
from drawlib.styles import Styles

setup(width=100, height=68)

chart = BarChart(
    categories=["Dev", "Stage", "Prod"],
    axis_line_style=Styles.MutedDashed,
    axis_text_style=Styles.Muted.patch(text_size=10.5),
    grid_style=Styles.MutedThin,
    value_text_style=Styles.BlackBold.patch(text_size=10.0),
    width=82,
    height=45,
    title="Container Resource Limits: Allocated vs Burst (vCPU)",
    title_style=Styles.BlackBold.patch(text_size=13.0),
    bar_mode="group",
    bar_r=1.0,
)
chart.add_series("Allocated", [4.0, 16.0, 64.0], style=Styles.PrimaryFlat)
chart.add_series("Burst Buffer", [2.0, 8.0, 32.0], style=Styles.SecondaryNeutral)

chart.draw(xy=(9, 7))
chart.draw_legend(xy=(24, 57), text_style=Styles.Muted.patch(text_size=10.5), orientation="horizontal")
save()

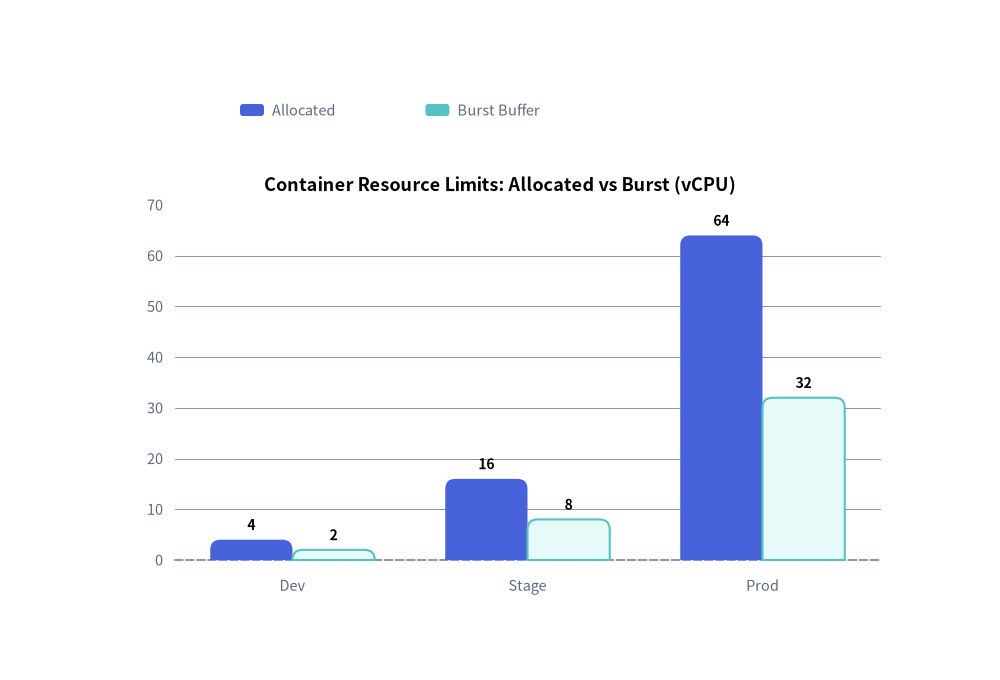

bar_2
Grouped Vertical Resource Allocation with BarChart (bar_mode='group')

3. Horizontal Bar Chart & Percentage Axis Formatting

Setting orientation="horizontal" rotates the category axis to the left Y-axis and the numerical value axis to the bottom X-axis. Combine value_format with configure_x_axis(min_value=0, max_value=100, tick_step=20, unit="%") to build clean utilization and benchmark breakdowns:

from drawlib.canvas import save, setup
from drawlib.charts.bar import BarChart
from drawlib.styles import Styles

setup(width=110, height=70)

chart = BarChart(
    axis_line_style=Styles.MutedDashed,
    categories=["Frontend", "API Gateway", "Database", "Search Index"],
    width=84.0,
    height=48.0,
    orientation="horizontal",
    bar_mode="stack",
    bar_width_ratio=0.6,
    bar_r=0.8,
    title="Cluster Node Resource Allocation (%)",
    title_style=Styles.BlackBold.patch(text_size=13.0),
    axis_text_style=Styles.Muted.patch(text_size=10.5),
    grid_style=Styles.MutedThin,
    value_text_style=Styles.DarkBold.patch(text_size=10.0),
    value_format="{:.0f}%",
)
chart.add_series("Compute (CPU)", [38.0, 48.0, 52.0, 40.0], style=Styles.PrimaryFlat)
chart.add_series("Memory Cache", [28.0, 24.0, 26.0, 30.0], style=Styles.PrimaryNeutral)
chart.add_series("Storage I/O", [16.0, 14.0, 14.0, 18.0], style=Styles.SecondaryNeutral)

chart.configure_x_axis(min_value=0, max_value=100, tick_step=20, unit="%")
chart.draw(xy=(12.0, 8.0))
chart.draw_legend(xy=(18.0, 61.0), text_style=Styles.Muted.patch(text_size=10.5), orientation="horizontal")
save()

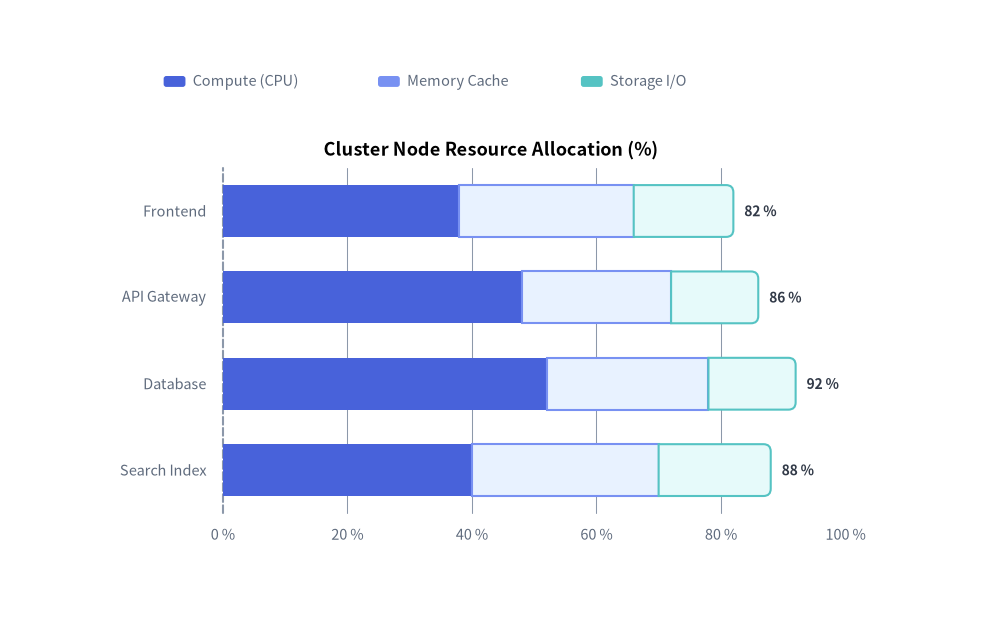

bar_3
Horizontal Stacked Resource Utilization with Custom X-Axis Ticks

4. API Reference

Constructor (BarChart)

All constructor arguments are keyword-only (*):

from drawlib.charts.bar import Axis, BarChart, DrawDirection, FormatterType, Mode, Orientation, Series

chart = BarChart(
    *,
    axis_line_style: Style,
    width: float = 60.0,
    height: float = 40.0,
    categories: list[str] | None = None,
    orientation: Orientation = "vertical",
    bar_mode: Mode = "group",
    bar_width_ratio: float = 0.7,
    bar_r: float = 0.0,
    axis_text_style: Style | None = None,
    grid_style: Style | None = None,
    value_text_style: Style | None = None,
    value_format: FormatterType = None,
    background_style: Style | None = None,
    title: str = "",
    title_style: Style | None = None,
)
Parameter Type Default Description
axis_line_style Style Required Mandatory style anchor for the coordinate baseline stroke.
width / height float 60.0 / 40.0 Total bounding box dimensions of the chart in canvas units.
categories list[str] | None None Ordered category names along the categorical axis (e.g. ["Q1", "Q2", "Q3"]).
orientation "vertical" | "horizontal" "vertical" Bar growth orientation.
bar_mode "group" | "stack" "group" Multi-series arrangement mode (Mode).
bar_width_ratio float 0.7 Fraction of each category slot occupied by bars (0.1 to 1.0).
bar_r float 0.0 Corner rounding radius applied to the 2 outer tip corners of bars.
axis_text_style Style | None None Style for tick labels and category names. If None, labels are omitted.
grid_style Style | None None Style for background value gridlines. If None, gridlines are omitted.
value_text_style Style | None None Style for numeric labels drawn outside bar tips. If None, value labels are omitted.
value_format FormatterType None Format string (e.g. "{:.1f}%") or callable Callable[[float], str] for value labels.
background_style Style | None None Style for the outer chart background card. If None, card is omitted.
title str "" Chart title text rendered at the top of the container.
title_style Style | None None Typography style for title. Required for the title to render.

Methods & Properties

  • add_series(name: str, values: list[float], style: Style, legend_text_style: Style | None = None, *, show: bool = True, draw_ratio: float = 1.0, draw_direction: DrawDirection | None = None) -> Series: Registers a data series and returns the mutable Series instance. If draw_direction is None, defaults to "bottom_to_top" for vertical charts and "left_to_right" for horizontal charts.
  • configure_y_axis(...) -> Axis / configure_x_axis(...) -> Axis: Configures axis scale ("linear" or "log"), bounds (min_value, max_value), ticks (ticks, tick_step), formatting (format, unit), and title (label). See Axes, Scales & Legends.
  • get_size() -> tuple[float, float]: Returns (width, height) of the chart container.
  • draw(xy: tuple[float, float] = (0.0, 0.0), *, width: float | None = None, height: float | None = None, scale: float = 1.0) -> None: Renders the chart anchored at its bottom-left corner xy, with optional one-call dimension overrides and uniform proportional scale.
  • draw_legend(xy: tuple[float, float], text_style: Style, orientation: Orientation = "vertical", swatch_width: float = 2.4, swatch_height: float = 1.2, item_gap: float = 4.0, *, scale: float = 1.0) -> None: Renders the decoupled series legend at xy.
  • Properties:
    • chart.series -> list[Series]: Returns a copy of registered Series objects.
    • chart.value_axis -> Axis: Returns the active numerical axis (y_axis when vertical, x_axis when horizontal).
    • chart.category_axis -> Axis: Returns the active categorical axis (x_axis when vertical, y_axis when horizontal).
    • chart.x_axis -> Axis / chart.y_axis -> Axis: Direct access to the horizontal and vertical Axis instances.
