Illustrated Documentation as Code: The Drawlib Build Engine

Drawlib unifies technical documentation and architectural illustrations under a single "Illustrated Documentation as Code" pipeline. Instead of managing out-of-sync vector files, manually exporting diagrams from third-party tools, or checking in opaque binary assets, you author declarative Python drawing blocks directly inside standard Markdown documents.

overview_1

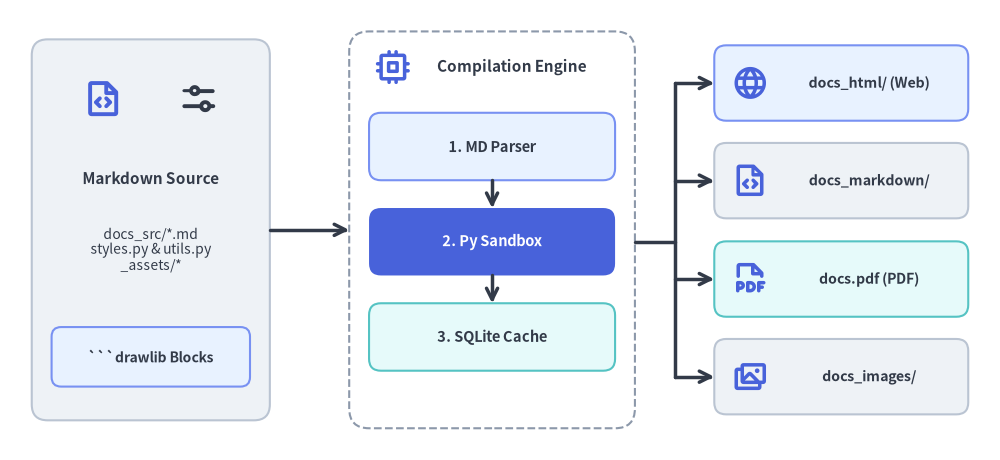

The Drawlib Documentation Compilation Pipeline and Publishing Targets
Source Code
from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.lines import line
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=126, height=58)

# Left: Markdown Source
rectangle((19, 29), width=30, height=48, style=Styles.Neutral.patch(shape_r=2.0))
phosphor.file_code((13, 45.5), width=5.2, style=Styles.PrimaryBold)
phosphor.sliders_horizontal((25, 45.5), width=5.2, style=Styles.DarkBold)
text((19, 35.5), "Markdown Source", style=Styles.DarkBold.patch(text_size=11.0))
text((19, 26.5), "docs_src/*.md\nstyles.py & utils.py\n_assets/*", style=Styles.Dark.patch(text_size=10.0))
rectangle(
    (19, 13.0),
    width=25,
    height=7.5,
    style=Styles.PrimaryNeutral.patch(shape_r=1.2),
    text="```drawlib Blocks",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)

# Center: Drawlib Compilation Pipeline Container
rectangle((62, 29), width=36, height=50, style=Styles.MutedDashed.patch(shape_r=2.5))
phosphor.cpu((49.5, 49.5), width=4.6, style=Styles.PrimaryBold)
text((64.5, 49.5), "Compilation Engine", style=Styles.DarkBold.patch(text_size=11.0))

rectangle(
    (62, 39.5),
    width=31,
    height=8.5,
    style=Styles.PrimaryNeutral.patch(shape_r=1.5),
    text="1. MD Parser",
    text_style=Styles.DarkBold.patch(text_size=10.5),
)
line((62, 35.25), (62, 31.75), arrow_head="->", style=Styles.DarkBold)

rectangle(
    (62, 27.5),
    width=31,
    height=8.5,
    style=Styles.PrimaryFlat.patch(shape_r=1.5),
    text="2. Py Sandbox",
    text_style=Styles.WhiteBold.patch(text_size=10.5),
)
line((62, 23.25), (62, 19.75), arrow_head="->", style=Styles.DarkBold)

rectangle(
    (62, 15.5),
    width=31,
    height=8.5,
    style=Styles.SecondaryNeutral.patch(shape_r=1.5),
    text="3. SQLite Cache",
    text_style=Styles.DarkBold.patch(text_size=10.5),
)

# Right: 4 Publishing Targets
targets = [
    (47.5, "docs_html/ (Web)", Styles.PrimaryNeutral, phosphor.globe),
    (35.2, "docs_markdown/", Styles.Neutral, phosphor.file_code),
    (22.8, "docs.pdf (PDF)", Styles.SecondaryNeutral, phosphor.file_pdf),
    (10.5, "docs_images/", Styles.Neutral, phosphor.images),
]
for ty, label, st, icon_fn in targets:
    rectangle((106, ty), width=32, height=9.5, style=st.patch(shape_r=1.5))
    icon_fn((94.5, ty), width=4.6, style=Styles.PrimaryBold)
    text((109.5, ty), label, style=Styles.DarkBold.patch(text_size=10.2))

# Connectors: Source -> Pipeline -> 4 Publishing Targets
line((34, 29), (44, 29), arrow_head="->", style=Styles.DarkBold)
line((80, 27.5), (85, 27.5), style=Styles.DarkBold)
line((85, 10.5), (85, 47.5), style=Styles.DarkBold)
for ty, _, _, _ in targets:
    line((85, ty), (90, ty), arrow_head="->", style=Styles.DarkBold)

save()

1. Core Principles

  1. Source of Truth (<name>_src/): You author content exclusively in source directories (e.g. docs_src/, doc_src/, slide_src/, or images_src/). Output folders (docs_html/, docs_markdown/, docs_images/, images/, etc.) are build artifacts and should never be manually modified.
  2. Deterministic Build Cache: Drawlib computes a SHA-256 hash of each embedded code block (styles.py, utils.py, and referenced local assets included). Unaltered diagrams are restored instantly from .drawlib/cache.db, enabling sub-second incremental builds across massive multi-page sites.
  3. Execution Sandbox & Isolation: The canvas lifecycle automatically clears between separate code blocks, ensuring zero visual side effects between adjacent diagrams.
  4. Target Portability: The same Markdown source document can compile simultaneously to:
    • A responsive static HTML documentation site (drawlib build html).
    • GitHub-flavored Markdown with companion images (drawlib build markdown).
    • A publication-grade vector PDF with table of contents and cover page (drawlib build pdf).
    • Extracted standalone diagram images (drawlib build image).

2. Project Starter Templates

Never construct documentation directories manually. Scaffolding them with drawlib init guarantees the correct directory layout and configuration scripts:

Template Source Directory Primary Output Typical Use Case
doc doc_src/ doc_html/, doc.pdf, doc_markdown/, doc_images/ Linear technical documents, RFCs, specifications, whitepapers, and formal reports.
site docs_src/ docs_html/, docs_markdown/ (or docs/), docs_images/ Multi-page documentation websites with sidebar navigation (navbar.md).
slide slide_src/ slide_html/, slide.pdf, slide_images/ 16:9 presentation slide decks (interactive web deck + printable vector PDF).
images (alias: image) images_src/ images/*.png (or .webp) Batch rendering standalone Python drawing scripts to image assets.
overview_2

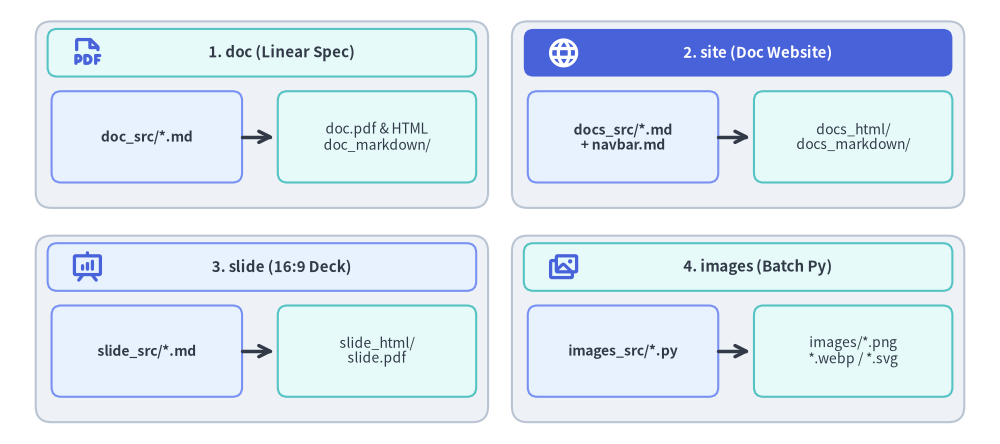

Overview of the Four Drawlib Project Starter Templates and Their Outputs
Source Code
from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.lines import line
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=126, height=56)

cards = [
    (
        33,
        41.5,
        "1. doc (Linear Spec)",
        Styles.SecondaryNeutral,
        Styles.DarkBold,
        phosphor.file_pdf,
        Styles.PrimaryBold,
        "doc_src/*.md",
        "doc.pdf & HTML\ndoc_markdown/",
    ),
    (
        93,
        41.5,
        "2. site (Doc Website)",
        Styles.PrimaryFlat,
        Styles.WhiteBold,
        phosphor.globe,
        Styles.WhiteBold,
        "docs_src/*.md\n+ navbar.md",
        "docs_html/\ndocs_markdown/",
    ),
    (
        33,
        14.5,
        "3. slide (16:9 Deck)",
        Styles.PrimaryNeutral,
        Styles.DarkBold,
        phosphor.presentation_chart,
        Styles.PrimaryBold,
        "slide_src/*.md",
        "slide_html/\nslide.pdf",
    ),
    (
        93,
        14.5,
        "4. images (Batch Py)",
        Styles.SecondaryNeutral,
        Styles.DarkBold,
        phosphor.images,
        Styles.PrimaryBold,
        "images_src/*.py",
        "images/*.png\n*.webp / *.svg",
    ),
]

for cx, cy, title, hdr_style, hdr_text_style, icon_fn, icon_st, src_text, out_text in cards:
    rectangle((cx, cy), width=57, height=23.5, style=Styles.Neutral.patch(shape_r=2.0))
    rectangle((cx, cy + 7.8), width=54, height=6.0, style=hdr_style.patch(shape_r=1.2))
    icon_fn((cx - 22.0, cy + 7.8), width=4.2, style=icon_st)
    text((cx + 2.5, cy + 7.8), title, style=hdr_text_style.patch(text_size=10.8))

    rectangle(
        (cx - 14.5, cy - 2.8),
        width=24,
        height=11.5,
        style=Styles.PrimaryNeutral.patch(shape_r=1.2),
        text=src_text,
        text_style=Styles.DarkBold.patch(text_size=10.0),
    )
    line((cx - 2.5, cy - 2.8), (cx + 1.5, cy - 2.8), arrow_head="->", style=Styles.DarkBold)
    rectangle(
        (cx + 14.5, cy - 2.8),
        width=25,
        height=11.5,
        style=Styles.SecondaryNeutral.patch(shape_r=1.2),
        text=out_text,
        text_style=Styles.Dark.patch(text_size=10.0),
    )

save()

3. Parallel Multi-Agent Authoring Across Project Templates

Because every Drawlib project separates shared configuration (styles.py, utils.py, _assets/, navbar.md) from modular content files (*.py or *.md), AI coding agents can accelerate large documentation and illustration tasks by distributing work across parallel subagents:

Project Template Parallel Subagent Unit Phase 1: Parent Orchestrator Setup Phase 2: Parallel Subagent Execution Phase 3: Parent Finalization
doc Numbered chapter file (doc_src/01_*.md, 02_*.md, ...) drawlib init doc, styles.py, utils.py, 00_cover.md, chapter outline Author assigned chapter(s) & run drawlib show ... -g -o .drawlib/scratch/0N_<fig>_grid.png Run ./doc_src/build.sh & inspect doc.pdf / doc_html/
site Topic page or section folder (docs_src/01_arch/*.md, ...) drawlib init site, styles.py, utils.py, navbar.md, index.md Author assigned page(s) & run Stage 1 + Stage 2 grid review with unique scratch filenames Run ./docs_src/build.sh, serve --check, & browser check
slide Slide file (slide_src/02_*.md, ...) or section directory drawlib init slide, styles.py, utils.py, deck story arc & slide numbering Author assigned slide(s) (::: block + ::: note) & run Stage 1 + Stage 2 grid review Run ./slide_src/build.sh & inspect slide.pdf / 1920x1080 stage
images Standalone Python script (images_src/<name>.py) drawlib init images, styles.py, utils.py, _assets/ Author assigned .py script(s) & run drawlib show ... -g -o .drawlib/scratch/<script>_grid.png Run ./images_src/build.sh & inspect images/*.png

Concurrency Guardrails for Subagents:

  1. Read-Only Shared Files: Subagents treat styles.py, utils.py, and navbar.md as read-only and edit only their assigned .md or .py files.
  2. Unique Scratch Preview Paths: Each subagent writes -g grid previews to a unique path (-o .drawlib/scratch/<unique_name>_grid.png, never a shared preview.png) so concurrent multimodal inspections never collide.
  3. Single Unified Build: Subagents only run drawlib show ... -g for their assigned diagrams; the parent agent runs ./build.sh once after all subagents finish, avoiding concurrent SQLite writes to .drawlib/cache.db.

4. Chapter Structure

Dive deeper into each builder subsystem:
