Images Project Guide (drawlib init images)

The images starter template (CLI alias: image) is designed for generating standalone illustration assets, presentation diagrams, article hero banners, and social preview cards directly from batch Python scripts.

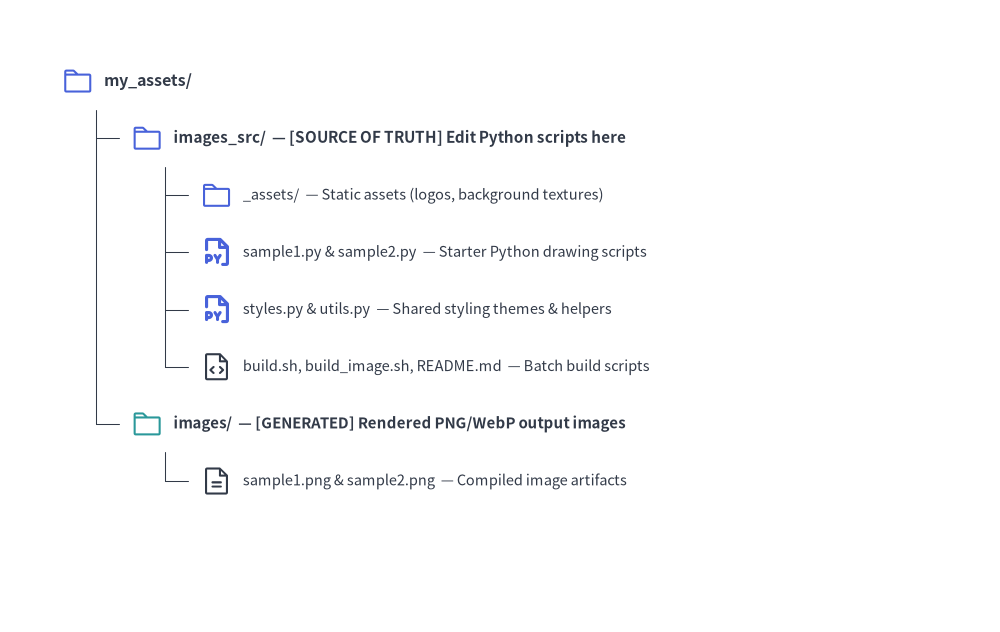

Each project separates editable Python source scripts (images_src/) from generated image artifacts (images/):

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.smartarts import TreeNode
from drawlib.styles import Styles

setup(width=98, height=62)

TreeNode.register_drawing_item(
    name="folder",
    location="before",
    padding_width=4.2,
    function=phosphor.folder,
    style=Styles.PrimaryFlat,
    args={"width": 3.2},
)
TreeNode.register_drawing_item(
    name="folder_out",
    location="before",
    padding_width=4.2,
    function=phosphor.folder,
    style=Styles.Secondary,
    args={"width": 3.2},
)
TreeNode.register_drawing_item(
    name="py",
    location="before",
    padding_width=4.2,
    function=phosphor.file_py,
    style=Styles.PrimaryBold,
    args={"width": 3.2},
)
TreeNode.register_drawing_item(
    name="code",
    location="before",
    padding_width=4.2,
    function=phosphor.file_code,
    style=Styles.Dark,
    args={"width": 3.2},
)
TreeNode.register_drawing_item(
    name="img",
    location="before",
    padding_width=4.2,
    function=phosphor.file_text,
    style=Styles.Dark,
    args={"width": 3.2},
)

root = TreeNode(
    "my_assets/",
    text_style=Styles.DarkBold.patch(text_size=11.5),
    line_style=Styles.DarkThin,
    line_horizontal_margin=3.4,
    line_horizontal_length=3.4,
    line_vertical_margin=5.6,
).set_drawing_item("folder")

src = root.add(
    "images_src/  — [SOURCE OF TRUTH] Edit Python scripts here",
    text_style=Styles.DarkBold.patch(text_size=11.0),
).set_drawing_item("folder")
src.add(
    "_assets/  — Static assets (logos, background textures)",
    text_style=Styles.Dark.patch(text_size=10.5),
).set_drawing_item("folder")
src.add(
    "sample1.py & sample2.py  — Starter Python drawing scripts",
    text_style=Styles.Dark.patch(text_size=10.5),
).set_drawing_item("py")
src.add(
    "styles.py & utils.py  — Shared styling themes & helpers",
    text_style=Styles.Dark.patch(text_size=10.5),
).set_drawing_item("py")
src.add(
    "build.sh, build_image.sh, README.md  — Batch build scripts",
    text_style=Styles.Dark.patch(text_size=10.5),
).set_drawing_item("code")

out = root.add(
    "images/  — [GENERATED] Rendered PNG/WebP output images",
    text_style=Styles.DarkBold.patch(text_size=10.8),
).set_drawing_item("folder_out")
out.add(
    "sample1.png & sample2.png  — Compiled image artifacts",
    text_style=Styles.Dark.patch(text_size=10.5),
).set_drawing_item("img")

root.draw(xy=(6, 54))
save()

1. Project Initialization

Scaffold a new images project using drawlib init:

# Scaffold standard images project in current directory (creates 'images_src/'):
drawlib init images

# Or with custom target name, theme, and language (creates 'my_assets_src/'):
drawlib init images my_assets -s google -l en

2. Directory Layout & Anatomy

Key Rules:

• Source of Truth: Always author drawing scripts in images_src/. After scaffolding, replace or remove the starter sample1.py and sample2.py files so only your desired diagrams are built.
• Never Edit images/: The images/ folder is an output artifact directory overwritten during builds.

3. Writing Drawing Scripts

In an images project, each .py file inside images_src/ is an independent drawing script. Call save() at the end of the script to output the image:

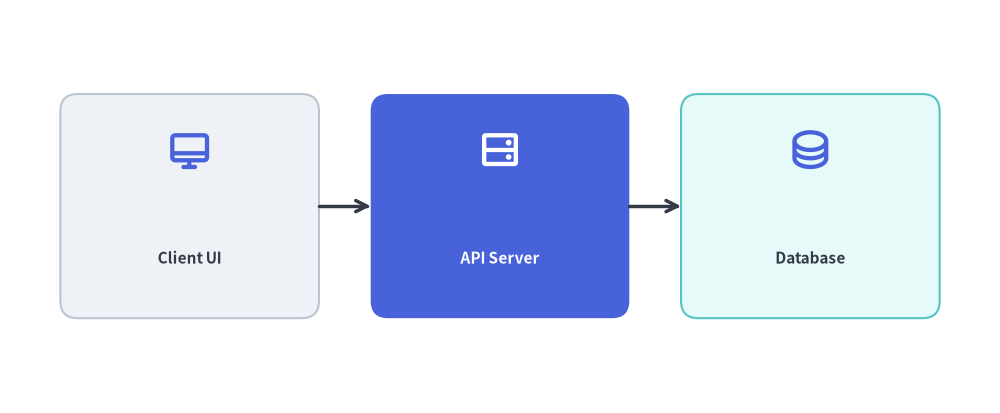

# images_src/architecture_overview.py
from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.lines import line
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=116, height=48)

# Draw components (50%+ neutral baseline + 1 primary focal point)
rectangle((22, 24), width=30, height=26, style=Styles.Neutral.patch(shape_r=2.0))
phosphor.desktop((22, 30.5), width=5.2, style=Styles.PrimaryBold)
text((22, 18.0), "Client UI", style=Styles.DarkBold.patch(text_size=11.0))

rectangle((58, 24), width=30, height=26, style=Styles.PrimaryFlat.patch(shape_r=2.0))
phosphor.hard_drives((58, 30.5), width=5.2, style=Styles.WhiteBold)
text((58, 18.0), "API Server", style=Styles.WhiteBold.patch(text_size=11.0))

rectangle((94, 24), width=30, height=26, style=Styles.SecondaryNeutral.patch(shape_r=2.0))
phosphor.database((94, 30.5), width=5.2, style=Styles.PrimaryBold)
text((94, 18.0), "Database", style=Styles.DarkBold.patch(text_size=11.0))

line((37, 24), (43, 24), arrow_head="->", style=Styles.DarkBold)
line((73, 24), (79, 24), arrow_head="->", style=Styles.DarkBold)

# Save image (defaults to <script_stem>.png or save("architecture_overview.png") in scripts)
save()

How save() Interacts with drawlib build image -o images/:

• Automatic Output Redirection: When executed via drawlib build image images_src/ -o images/, relative paths passed to save("architecture_overview.png") (or save() with no filename, which defaults to <script_stem>.png) are automatically written inside the -o images/ directory, preserving any nested subdirectory hierarchy under images_src/.
• Pre-Execution AST Duplicate Collision Check: Before running any scripts in a batch, Drawlib parses the Python AST of all target .py files to inspect their save(...) targets. If two scripts would write to the exact same output file path, the build aborts immediately before modifying disk state.

4. Building Images

Automated Build (./build_image.sh or ./build.sh)

Execute the provided build script:

./images_src/build.sh

Direct CLI Command

Alternatively, invoke the builder directly:

drawlib build image images_src/ -o images/ -s images_src/styles.py -u images_src/utils.py

Useful Build Flags:

• --grid (-g): Automatically generates companion *_grid.png images overlaid with coordinate grid lines for visual debugging.
• -f webp: Overrides output format across all scripts to modern WebP.
• --no-cache: Forces a clean re-render of all images, bypassing the SQLite hash cache (.drawlib/cache.db).

5. Parallel Multi-Agent Script Authoring

Because each .py script in images_src/ is independent, AI coding agents can generate multiple illustrations in parallel by delegating scripts across subagents:

1. Phase 1 (Parent Setup): Run drawlib init images and configure shared images_src/styles.py, images_src/utils.py, and _assets/ first.
2. Phase 2 (Parallel Subagents): Assign each subagent a disjoint script (images_src/<name>.py). Each subagent authors its script and runs a grid preview with a unique scratch filename (uv run drawlib show images_src/<name>.py -s images_src/styles.py -u images_src/utils.py -g -o .drawlib/scratch/<name>_grid.png) to verify layout without colliding with other subagents.
3. Phase 3 (Unified Batch Build): Once all subagents finish, the parent agent runs ./images_src/build.sh once to compile all scripts into images/.
