Caching Architecture & CI/CD

Drawlib uses a two-tier caching architecture to make local iterative builds instantaneous and CI/CD pipelines deterministic, fast, and offline-capable:

caching_and_cicd_1

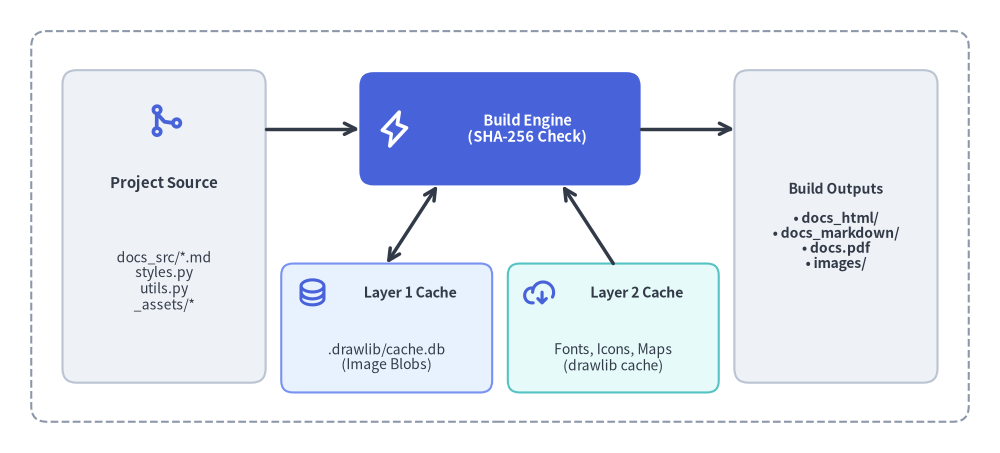

Drawlib Two-Tier Caching Architecture and CI/CD Pipeline
Source Code
from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.lines import line
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=128, height=58)

# Outer pipeline boundary
rectangle((64, 29), width=120, height=50, style=Styles.MutedDashed.patch(shape_r=2.0))

# Left: Source inputs
rectangle((21, 29), width=26, height=40, style=Styles.Neutral.patch(shape_r=1.8))
phosphor.git_merge((21, 42.5), width=4.8, style=Styles.PrimaryBold)
text((21, 34.5), "Project Source", style=Styles.DarkBold.patch(text_size=10.8))
text((21, 22.0), "docs_src/*.md\nstyles.py\nutils.py\n_assets/*", style=Styles.Dark.patch(text_size=10.0))

# Center: Drawlib Compiler (Hero focal point)
rectangle((64, 41.5), width=36, height=14.5, style=Styles.PrimaryFlat.patch(shape_r=1.8))
phosphor.lightning((50.5, 41.5), width=4.8, style=Styles.WhiteBold)
text((67.5, 41.5), "Build Engine\n(SHA-256 Check)", style=Styles.WhiteBold.patch(text_size=10.5))

# Bottom Center: Two Cache Tiers
rectangle((49.5, 16.0), width=27, height=16.5, style=Styles.PrimaryNeutral.patch(shape_r=1.5))
phosphor.database((40.0, 20.5), width=4.2, style=Styles.PrimaryBold)
text((52.5, 20.5), "Layer 1 Cache", style=Styles.DarkBold.patch(text_size=10.2))
text((49.5, 12.2), ".drawlib/cache.db\n(Image Blobs)", style=Styles.Dark.patch(text_size=10.0))

rectangle((78.5, 16.0), width=27, height=16.5, style=Styles.SecondaryNeutral.patch(shape_r=1.5))
phosphor.cloud_arrow_down((69.0, 20.5), width=4.2, style=Styles.PrimaryBold)
text((81.5, 20.5), "Layer 2 Cache", style=Styles.DarkBold.patch(text_size=10.2))
text((78.5, 12.2), "Fonts, Icons, Maps\n(drawlib cache)", style=Styles.Dark.patch(text_size=10.0))

# Right: Published Artifacts
rectangle(
    (107, 29),
    width=26,
    height=40,
    style=Styles.Neutral.patch(shape_r=1.8),
    text="Build Outputs\n\n• docs_html/\n• docs_markdown/\n• docs.pdf\n• images/",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)

# Connectors
line((34, 41.5), (46, 41.5), arrow_head="->", style=Styles.DarkBold)
line((82, 41.5), (94, 41.5), arrow_head="->", style=Styles.DarkBold)
line((56, 34.25), (49.5, 24.25), arrow_head="<->", style=Styles.DarkBold)
line((72, 34.25), (78.5, 24.25), arrow_head="<-", style=Styles.DarkBold)

save()
  1. Layer 1 — Incremental Build Cache (.drawlib/cache.db): A project-local SQLite database that caches rendered diagram binaries by SHA-256 content hash, restoring unchanged diagrams in sub-millisecond time.
  2. Layer 2 — Release Asset Cache (drawlib cache): A package cache for external font families, vector/PNG icon packs, and Natural Earth map datasets downloaded from official GitHub Releases.

1. Layer 1: SQLite Incremental Build Cache (.drawlib/cache.db)

Whenever you run drawlib build or drawlib show, Drawlib creates a local SQLite database at .drawlib/cache.db (alongside an automatic .drawlib/.gitignore containing * and .drawlib/CACHEDIR.TAG so cache binaries are never committed to Git).

1.1. What Is Included in the SHA-256 Cache Key?

Before executing any embedded drawlib block or standalone .py script, Drawlib computes a deterministic SHA-256 digest over:

  1. Drawing Code Content: The exact Python code inside the block or script.
  2. Project styles.py & utils.py: Full file contents of the active --styles and --utils scripts.
  3. Referenced Local Assets: Any local files referenced as string literals in the code (resolved relative to the Markdown file, project root, or _assets/).
  4. Execution Context: Source/target paths, output format (png, webp, svg), and presentation slide count (total_slides).

If the digest matches an entry in .drawlib/cache.db, Drawlib restores the rendered image binary directly from SQLite in < 1 ms without invoking Python or Matplotlib.

caching_and_cicd_2

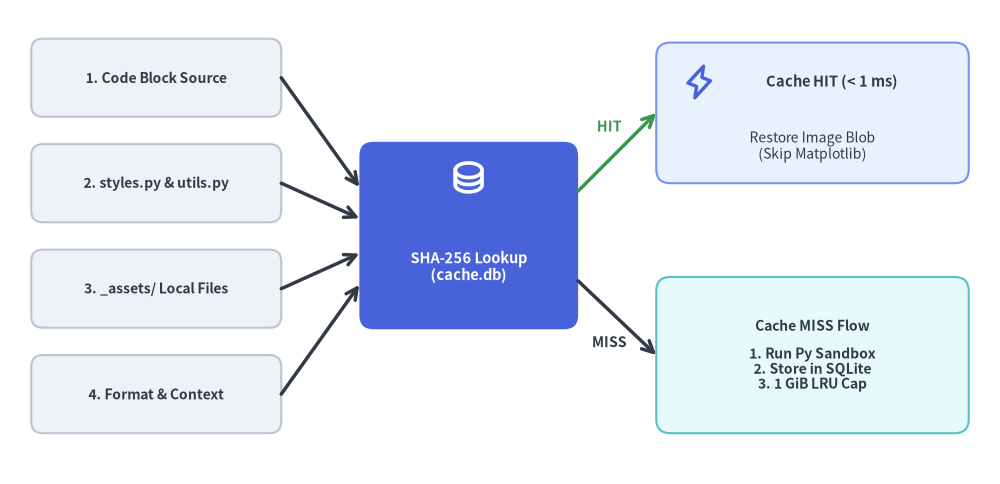

Incremental Build Cache SHA-256 Digest Computation and Hit/Miss Workflow
Source Code
from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.lines import line
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=128, height=62)

# Left Stack: 4 Input Cards
inputs = [
    (52.0, "1. Code Block Source"),
    (38.5, "2. styles.py & utils.py"),
    (25.0, "3. _assets/ Local Files"),
    (11.5, "4. Format & Context"),
]
for iy, ilabel in inputs:
    rectangle(
        (20, iy),
        width=32,
        height=10.0,
        style=Styles.Neutral.patch(shape_r=1.5),
        text=ilabel,
        text_style=Styles.DarkBold.patch(text_size=10.0),
    )

# Center Focal Card: SHA-256 Digest Lookup
rectangle((60, 31.8), width=28, height=24, style=Styles.PrimaryFlat.patch(shape_r=1.8))
phosphor.database((60, 39.2), width=4.8, style=Styles.WhiteBold)
text((60, 27.8), "SHA-256 Lookup\n(cache.db)", style=Styles.WhiteBold.patch(text_size=10.5))

# Converging arrows from 4 inputs to SHA-256 Digest Lookup
line((36, 52.0), (46, 38.0), arrow_head="->", style=Styles.DarkBold)
line((36, 38.5), (46, 34.0), arrow_head="->", style=Styles.DarkBold)
line((36, 25.0), (46, 29.5), arrow_head="->", style=Styles.DarkBold)
line((36, 11.5), (46, 25.5), arrow_head="->", style=Styles.DarkBold)

# Top Branch: Cache HIT
line((74, 37.5), (84, 47.5), arrow_head="->", style=Styles.SuccessBold)
text((78.0, 45.8), "HIT", style=Styles.SuccessBold.patch(text_size=10.2))
rectangle((104, 47.5), width=40, height=18, style=Styles.PrimaryNeutral.patch(shape_r=1.8))
phosphor.lightning((89.5, 51.5), width=4.6, style=Styles.PrimaryBold)
text((106.5, 51.5), "Cache HIT (< 1 ms)", style=Styles.DarkBold.patch(text_size=10.5))
text((104, 43.2), "Restore Image Blob\n(Skip Matplotlib)", style=Styles.Dark.patch(text_size=10.0))

# Bottom Branch: Cache MISS
line((74, 26.0), (84, 16.5), arrow_head="->", style=Styles.DarkBold)
text((78.0, 18.2), "MISS", style=Styles.DarkBold.patch(text_size=10.2))
rectangle(
    (104, 16.5),
    width=40,
    height=20,
    style=Styles.SecondaryNeutral.patch(shape_r=1.8),
    text="Cache MISS Flow\n\n1. Run Py Sandbox\n2. Store in SQLite\n3. 1 GiB LRU Cap",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)

save()

1.2. Automatic Cache Maintenance & Environment Variables

  • Library Version Invalidation: Cache tables are automatically invalidated whenever the installed drawlib or matplotlib version changes.
  • 1 GiB Size Cap: When cached image blobs exceed 1 GiB, Drawlib automatically evicts the oldest 50% of entries.
  • Custom Cache Path: Override the SQLite database location in CI/CD runners via DRAWLIB_CACHE_DB=/path/to/cache.db or DRAWLIB_CACHE_DIR=/path/to/dir.

1.3. When to Bypass or Clear Layer 1 Cache

If a drawing script imports a custom external Python module outside styles.py and utils.py, editing that external module will not alter the block's SHA-256 hash automatically. Force a fresh render using --no-cache or drawlib cache clear --images:

# Force full re-rendering for a single build or preview command:
uv run drawlib build html docs_src/ -o docs_html/ --no-cache
uv run drawlib show docs_src/index.md arch.png -g -o .drawlib/scratch/preview.png --no-cache

# Or purge all cached diagram binaries from .drawlib/cache.db:
uv run drawlib cache clear --images

2. Layer 2: Global Asset Cache (drawlib cache) & Rules Cache

To keep the core drawlib PyPI wheel lightweight, external binary assets are packaged as deterministic archives in official GitHub Releases and cached locally inside drawlib/_cached_assets/:

  • Font Packages (font_*): Western & technical families (font_roboto, font_roboto_condensed, font_roboto_mono, font_roboto_serif, font_roboto_slab, font_mono_source_code_pro, font_mono_courier, font_sans_*, font_serif_*) and multilingual CJK/regional families (font_cjk_japanese_noto_sans, font_japanese_noto_sans, font_japanese_mplus_1p, font_chinese_simplified_noto_sans, font_chinese_traditional_noto_sans, font_korean_noto_sans, font_arabic_noto_sans, font_thai_noto_sans, font_brahmic_*).
  • Icon Packages (icon_* — 34 packages): Vector font icons (icon_phosphor), official cloud provider icons (icon_gcp, icon_aws, icon_azure), 15 official domain brand packs (icon_ai, icon_business, icon_client, icon_cloud, icon_cnative, icon_code, icon_data, icon_devops, icon_facility, icon_itservice, icon_network, icon_security, icon_server, icon_social, icon_workspace), and 15 Drawlib Original 2D pastel packs (icon_original_ai..icon_original_workspace).
  • GeoMap Packages (map_*): Natural Earth vector boundaries and populated places (map_world, map_countries, map_cities).
  • AI Rules Illustration Cache (_cached_assets/rules/): Companion PNG diagrams generated on-demand by drawlib rules show <topic> or pre-built via drawlib rules build --all (cleared via drawlib rules clear).

2.1. Asset Cache CLI Commands

# Inspect all 83 font, icon, and map packages and their local cache status:
uv run drawlib cache list

# Pre-download all font, icon, and map packages (recommended for CI & offline use):
uv run drawlib cache download --all

# Pre-download only font packages or only icon packages:
uv run drawlib cache download --fonts
uv run drawlib cache download --icons

# Clear downloaded font/icon/map packages, or clear everything including SQLite image cache:
uv run drawlib cache clear
uv run drawlib cache clear --all

3. Running Drawlib in CI/CD Pipelines & Headless Containers

3.1. GitHub Actions Workflow Example

In GitHub Actions or GitLab CI, persist both the asset cache and .drawlib/cache.db across workflow runs, pre-download assets once, and run drawlib serve --check as a broken-link quality gate:

name: Build Documentation & Verify Links

on:
  push:
    branches: [main]
  pull_request:

jobs:
  docs:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4

      - name: Install uv and Python 3.12
        uses: astral-sh/setup-uv@v4
        with:
          python-version: "3.12"

      - name: Install dependencies (with optional PDF export support)
        run: |
          uv sync
          uv run playwright install --with-deps chromium

      - name: Restore Drawlib Caches
        uses: actions/cache@v4
        with:
          path: |
            .drawlib/
            ~/.cache/drawlib/
          key: drawlib-cache-${{ runner.os }}-${{ hashFiles('uv.lock') }}
          restore-keys: |
            drawlib-cache-${{ runner.os }}-

      - name: Warm Font & Icon Asset Cache
        run: uv run drawlib cache download --all

      - name: Build HTML Site, Vector PDF, and Audit Links
        run: |
          uv run drawlib build html docs_src/ -o docs_html/
          uv run drawlib build pdf docs_src/ -o docs.pdf --toc
          uv run drawlib serve docs_html/ --check

3.2. Offline & Air-Gapped Docker Containers

For air-gapped environments or production container images where outbound network requests are disabled at runtime, bake the asset cache and Chromium binary directly into the Docker image during docker build:

FROM python:3.12-slim

WORKDIR /workspace
RUN pip install --no-cache-dir "drawlib[pdf]" \
    && playwright install --with-deps chromium \
    && drawlib cache download --all

With drawlib cache download --all and playwright install --with-deps chromium executed at image build time, every font family, Phosphor/GCP icon set, GeoMap shapefile, and headless PDF renderer runs 100% offline.
