Lines & Connectors

Connectors establish communication pathways, data flow directions, and structural relationships between diagram entities. The drawlib.lines module provides 8 vector connector functions covering straight lines, smooth circular arcs, quadratic and cubic Bézier curves, multi-point orthogonal (Manhattan) polylines, filleted polylines, compound paths, and elliptical arc connectors:

lines_1

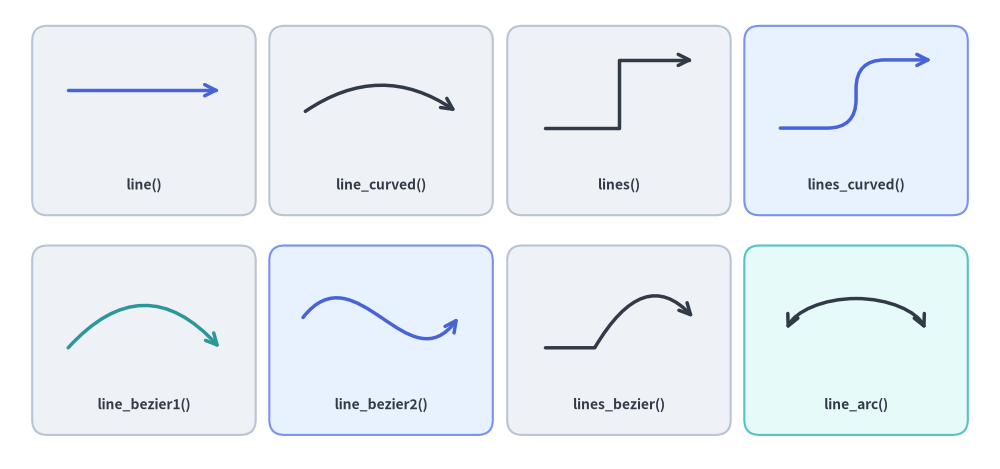

Overview of All 8 Drawlib Line and Curve Connectors
Source Code
from drawlib.canvas import save, setup
from drawlib.lines import (
    line,
    line_arc,
    line_bezier1,
    line_bezier2,
    line_curved,
    lines,
    lines_bezier,
    lines_curved,
)
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=132, height=62)

# Background cards for the 4x2 showcase grid
cols = [19, 50.3, 81.7, 113]
for c_idx, cx in enumerate(cols):
    r1_st = Styles.PrimaryNeutral if c_idx == 3 else Styles.Neutral
    r2_st = Styles.PrimaryNeutral if c_idx == 1 else (Styles.SecondaryNeutral if c_idx == 3 else Styles.Neutral)
    rectangle((cx, 46), width=29.5, height=25, style=r1_st.patch(shape_r=2))
    rectangle((cx, 17), width=29.5, height=25, style=r2_st.patch(shape_r=2))

lbl = Styles.DarkBold.patch(text_size=10.0)

# Row 1: Straight line, circular arc spline, polyline, and filleted polyline
line((9, 50), (29, 50), arrow_head="->", style=Styles.PrimaryBold)
text((19, 37.5), "line()", style=lbl)

line_curved((40, 47), (60.5, 47), bend=-0.35, arrow_head="->", style=Styles.DarkBold)
text((50.3, 37.5), "line_curved()", style=lbl)

lines([(72, 45), (81.7, 45), (81.7, 54), (91.5, 54)], arrow_head="->", style=Styles.DarkBold)
text((81.7, 37.5), "lines()", style=lbl)

lines_curved([(103, 45), (113, 45), (113, 54), (123, 54)], r=3.8, arrow_head="->", style=Styles.PrimaryBold)
text((113, 37.5), "lines_curved()", style=lbl)

# Row 2: Quadratic Bézier, cubic Bézier, compound Bézier path, and elliptical arc
line_bezier1((9, 16), (29, 16), cp=(19, 27), arrow_head="->", style=Styles.SecondaryBold)
text((19, 8.5), "line_bezier1()", style=lbl)

line_bezier2((40, 20), (60.5, 20), cp1=(47, 29), cp2=(54, 11), arrow_head="->", style=Styles.PrimaryBold)
text((50.3, 8.5), "line_bezier2()", style=lbl)

lines_bezier((72, 16), [(78.5, 16), ((85, 27), (91.5, 20))], arrow_head="->", style=Styles.DarkBold)
text((81.7, 8.5), "lines_bezier()", style=lbl)

line_arc((113, 17), width=19, height=11, angle_start=15, angle_end=165, ccw=True, arrow_head="<->", style=Styles.DarkBold)
text((113, 8.5), "line_arc()", style=lbl)

save()

1. Imports & Overview

All line and curve functions are imported from drawlib.lines:

from drawlib.lines import (
    line,          # Straight line segment between xy1 and xy2
    line_curved,   # Circular arc spline between xy1 and xy2 with scalar bend
    line_bezier1,  # Quadratic Bézier curve with 1 control point (cp)
    line_bezier2,  # Cubic Bézier curve with 2 control points (cp1, cp2)
    lines,         # Multi-point polyline through a sequence of coordinates
    lines_curved,  # Multi-point polyline with automatic corner fillet radius r
    lines_bezier,  # Multi-segment path mixing straight, quadratic, and cubic Béziers
    line_arc,      # Open circular or elliptical arc connector
)

2. Terminal Arrowheads & Line Styling (Style)

2.1. The arrow_head Parameter

All 8 functions in drawlib.lines accept the arrow_head keyword argument:

arrow_head Value Terminal Marker Behavior Description
"" or "-" No arrowheads (plain line) Plain undirected line without terminal markers (default).
"->" Forward arrowhead at end point Forward arrowhead at the destination endpoint (xy2 or final vertex).
"<-" Backward arrowhead at start point Reverse arrowhead at the starting endpoint (xy1 or initial vertex).
"<->" Bidirectional arrowheads at both ends Bidirectional arrowheads at both endpoints.

2.2. Arrowhead & Dash Pattern Attributes on Style

Line stroke appearance and arrowhead geometry are controlled via Style attributes (customized with .patch()):

Style Attribute Type Default Description
line_color Color | tuple | str Theme color Stroke color (and arrowhead color), e.g., Colors.Dark, Colors.Primary.
line_width float 1.5 (2.5 Bold, 0.75 Thin) Stroke thickness in typographical points.
line_style "solid" | "dashed" | "dotted" | "dashdot" "solid" Dash pattern of the line stroke.
line_arrow_head_fill bool False False renders an open V-notch stick arrow (->); True renders a solid filled triangle arrowhead (-|>).
line_arrow_head_scale float 20.0 Physical size multiplier for terminal arrowheads.
alpha float 1.0 Overall line and arrowhead opacity (0.0 transparent to 1.0 opaque).
from drawlib.canvas import save, setup
from drawlib.lines import line
from drawlib.shapes import rectangle
from drawlib.styles import Colors, Styles
from drawlib.text import text

setup(width=128, height=62)

# Left Panel: 4 Stroke Dash Patterns (style.line_style)
rectangle((32, 31), width=56, height=54, style=Styles.Neutral.patch(shape_r=2))
text((32, 51), "Dash Patterns (line_style)", style=Styles.DarkBold.patch(text_size=11.0))

dash_specs = [
    (41, "solid", '"solid"', Colors.Dark),
    (31, "dashed", '"dashed"', Colors.Primary),
    (21, "dotted", '"dotted"', Colors.Secondary),
    (11, "dashdot", '"dashdot"', Colors.Danger),
]
for y, pattern, label, col in dash_specs:
    text((8, y), label, style=Styles.DarkBold.patch(text_size=10.0, halign="left"))
    line(
        (29, y),
        (56, y),
        arrow_head="->",
        style=Styles.DarkBold.patch(line_style=pattern, line_color=col, line_width=2.0),
    )

# Right Panel: Arrowhead Fill & Scale (line_arrow_head_fill / line_arrow_head_scale)
rectangle((94, 31), width=60, height=54, style=Styles.PrimaryNeutral.patch(shape_r=2))
text((94, 51), "Arrowhead Fill & Scale", style=Styles.DarkBold.patch(text_size=11.0))

arrow_specs = [
    (41, "Stick (fill=False)", "->", False, 20.0, 2.0),
    (31, "Filled (fill=True)", "->", True, 20.0, 2.0),
    (21, "Two-Way (<->)", "<->", True, 20.0, 2.0),
    (11, "Large (scale=32)", "->", True, 32.0, 2.5),
]
for y, label, head, fill_flag, scale_val, width_val in arrow_specs:
    text((67, y), label, style=Styles.DarkBold.patch(text_size=10.0, halign="left"))
    line(
        (100, y),
        (120, y),
        arrow_head=head,
        style=Styles.PrimaryBold.patch(
            line_arrow_head_fill=fill_flag,
            line_arrow_head_scale=scale_val,
            line_width=width_val,
        ),
    )

save()
lines_2

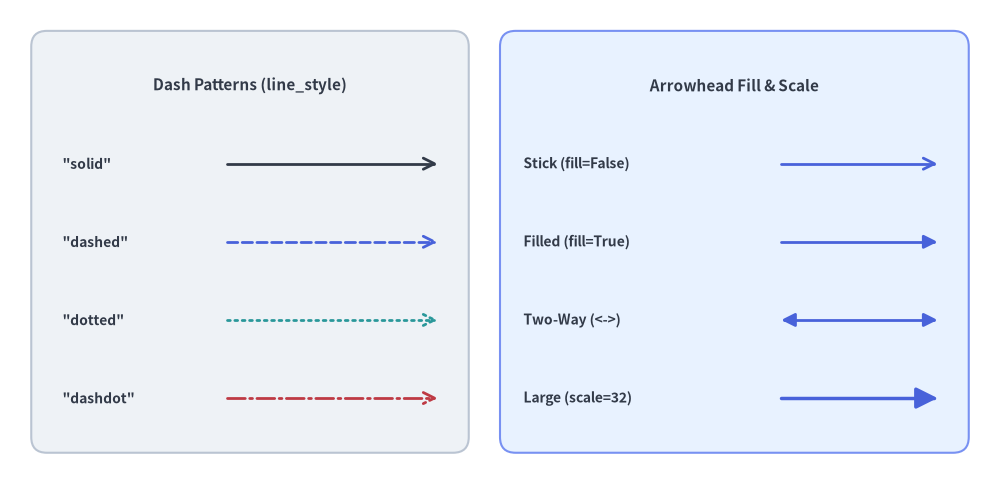

Dash Patterns (line_style), Filled Triangle Arrowheads (line_arrow_head_fill), and Scale (line_arrow_head_scale)

3. Point-to-Point Lines & Curves

3.1. Straight Line (line)

Connects two coordinates xy1 and xy2 with a direct straight segment.

line(
    xy1: tuple[float, float],
    xy2: tuple[float, float],
    *,
    style: Style,
    arrow_head: Literal["", "-", "->", "<-", "<->"] | str = "",
) -> None
Parameter Type Default Description
xy1 tuple[float, float] Required Starting point (x1, y1) in canvas coordinates.
xy2 tuple[float, float] Required Ending point (x2, y2) in canvas coordinates.
style Style Required Line style token (e.g. Styles.DarkBold, Styles.PrimaryBold).
arrow_head str "" Optional arrowhead marker ("", "-", "->", "<-", "<->").
from drawlib.canvas import save, setup
from drawlib.lines import line
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=120, height=54)

rectangle((60, 27), width=112, height=46, style=Styles.Neutral.patch(shape_r=2))

rows = [
    (42, 'arrow_head="" (Styles.DarkBold)', "", Styles.DarkBold),
    (32, 'arrow_head="->" (Styles.DarkBold)', "->", Styles.DarkBold),
    (22, 'arrow_head="<-" (Styles.PrimaryDashed)', "<-", Styles.PrimaryDashed.patch(line_width=2.0)),
    (12, 'arrow_head="<->" (Styles.DangerDotted)', "<->", Styles.DangerDotted.patch(line_width=2.0)),
]

for y, label, head, st in rows:
    text((8, y), label, style=Styles.DarkBold.patch(text_size=10.5, halign="left"))
    line((76, y), (111, y), arrow_head=head, style=st)

save()
lines_3

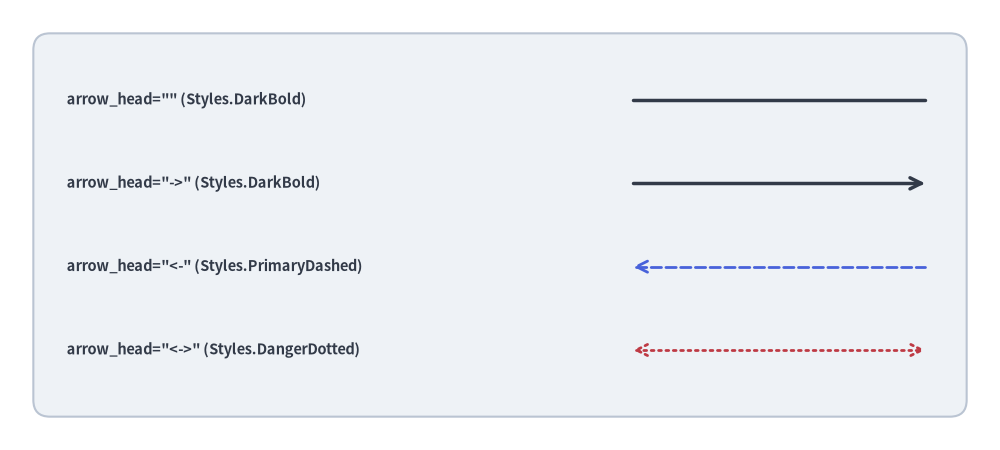

Straight Lines Across All Four arrow_head Modes and Stroke Styles

3.2. Smooth Circular Arc Spline (line_curved)

Draws a circular arc spline between xy1 and xy2 controlled by a single scalar curvature factor bend.

line_curved(
    xy1: tuple[float, float],
    xy2: tuple[float, float],
    *,
    style: Style,
    bend: float = 0,
    arrow_head: Literal["", "-", "->", "<-", "<->"] | str = "",
) -> None
Parameter Type Default Description
xy1 tuple[float, float] Required Starting coordinate (x1, y1).
xy2 tuple[float, float] Required Ending coordinate (x2, y2).
style Style Required Line style token (required keyword argument).
bend float 0 Curvature radian factor relative to travel direction xy1 -> xy2 (0 = straight).
arrow_head str "" Optional arrowhead marker ("", "-", "->", "<-", "<->").

Curvature Direction Rules (bend Relative to xy1 -> xy2)

Internally, line_curved() uses ConnectionStyle.Arc3(rad=bend), where curvature is oriented relative to an observer traveling from xy1 to xy2:

  • bend = 0 (default): Perfectly straight line segment.
  • bend < 0: Curves to the right of the travel vector xy1 -> xy2 (bows upward when drawing left-to-right from (15, 22) to (85, 22)).
  • bend > 0: Curves to the left of the travel vector xy1 -> xy2 (bows downward when drawing left-to-right from (15, 22) to (85, 22)).
  • Request-Response Symmetry Tip: If you draw a request from A -> B and a reply from B -> A using the same bend value, the reversed travel direction automatically bows the two curves in opposite directions to form a clean loop.
from drawlib.canvas import save, setup
from drawlib.lines import line_curved
from drawlib.styles import Styles
from drawlib.text import text

setup(width=110, height=44)
# Left-to-right with negative bend curves upward
line_curved((15, 22), (95, 22), bend=-0.32, arrow_head="->", style=Styles.DarkBold)
text((55, 39), "bend=-0.32 (left -> right: upward)", style=Styles.DarkBold.patch(text_size=10.5))

# Left-to-right with positive bend curves downward
line_curved((15, 22), (95, 22), bend=0.32, arrow_head="->", style=Styles.DarkBold)
text((55, 5), "bend=+0.32 (left -> right: downward)", style=Styles.Dark.patch(text_size=10.5))
save()
lines_4

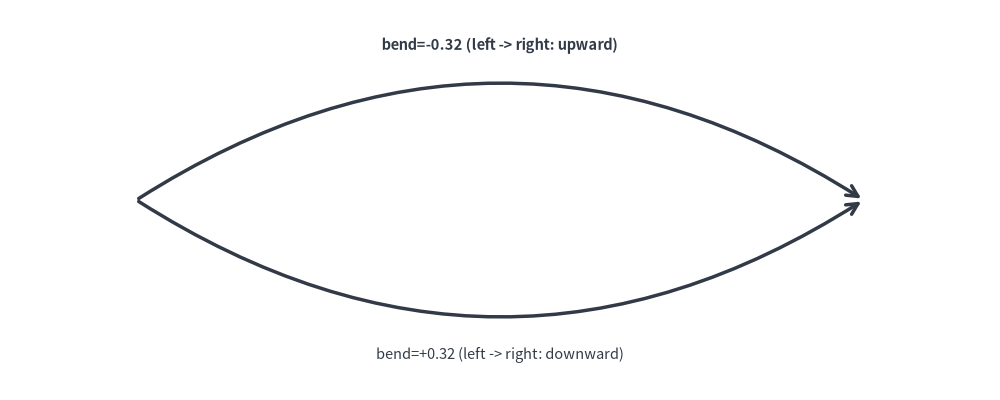

Curved Arc Lines Relative to Travel Direction xy1 -> xy2

3.3. Quadratic Bézier Curve (line_bezier1)

Connects xy1 to xy2 pulled toward a single control point cp:

line_bezier1(
    xy1: tuple[float, float],
    xy2: tuple[float, float],
    cp: tuple[float, float],
    *,
    style: Style,
    arrow_head: Literal["", "-", "->", "<-", "<->"] | str = "",
) -> None
Parameter Type Default Description
xy1 tuple[float, float] Required Starting point $P_0$.
xy2 tuple[float, float] Required Ending point $P_1$.
cp tuple[float, float] Required Quadratic control point $P_c$ defining departure and arrival tangents.
style Style Required Line style token.
arrow_head str "" Optional arrowhead marker ("", "-", "->", "<-", "<->").
from drawlib.canvas import save, setup
from drawlib.lines import line, line_bezier1
from drawlib.shapes import circle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=106, height=46)
p1, p2 = (14, 12), (92, 12)
cp = (53, 37)

# Control point tangent guides
line(p1, cp, style=Styles.MutedDashed)
line(cp, p2, style=Styles.MutedDashed)
circle(cp, radius=1.8, style=Styles.DangerFlat)
text((53, 42), "Control Point (cp)", style=Styles.DangerBold.patch(text_size=11.0))

# Quadratic Bézier curve
line_bezier1(p1, p2, cp=cp, arrow_head="->", style=Styles.SecondaryBold)
save()
lines_5

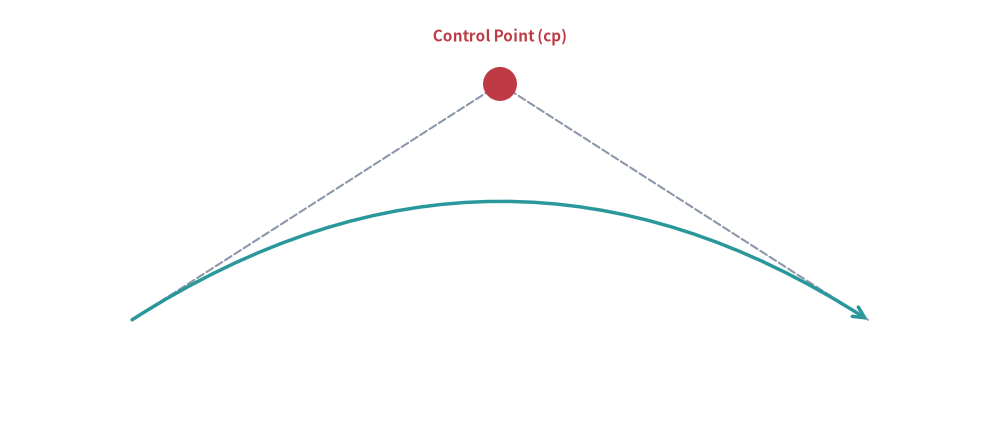

Quadratic Bézier Curve with Control Point

3.4. Cubic Bézier Curve (line_bezier2)

Connects xy1 to xy2 with two independent control points cp1 and cp2, enabling smooth inflection S-curves between parallel ports:

line_bezier2(
    xy1: tuple[float, float],
    xy2: tuple[float, float],
    cp1: tuple[float, float],
    cp2: tuple[float, float],
    *,
    style: Style,
    arrow_head: Literal["", "-", "->", "<-", "<->"] | str = "",
) -> None
Parameter Type Default Description
xy1 tuple[float, float] Required Starting point $P_0$.
xy2 tuple[float, float] Required Ending point $P_1$.
cp1 tuple[float, float] Required First control point governing departure tangent from xy1.
cp2 tuple[float, float] Required Second control point governing arrival tangent into xy2.
style Style Required Line style token.
arrow_head str "" Optional arrowhead marker ("", "-", "->", "<-", "<->").
from drawlib.canvas import save, setup
from drawlib.lines import line, line_bezier2
from drawlib.shapes import circle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=106, height=48)
p1, p2 = (14, 24), (92, 24)
cp1, cp2 = (37, 40), (69, 8)

# Tangent guides for both control points
line(p1, cp1, style=Styles.MutedDashed)
line(p2, cp2, style=Styles.MutedDashed)
circle(cp1, radius=1.8, style=Styles.DangerFlat)
text((37, 44.5), "cp1", style=Styles.DangerBold.patch(text_size=11.0))
circle(cp2, radius=1.8, style=Styles.DangerFlat)
text((69, 3.5), "cp2", style=Styles.DangerBold.patch(text_size=11.0))

# Cubic Bézier S-curve
line_bezier2(p1, p2, cp1=cp1, cp2=cp2, arrow_head="->", style=Styles.PrimaryBold)
save()
lines_6

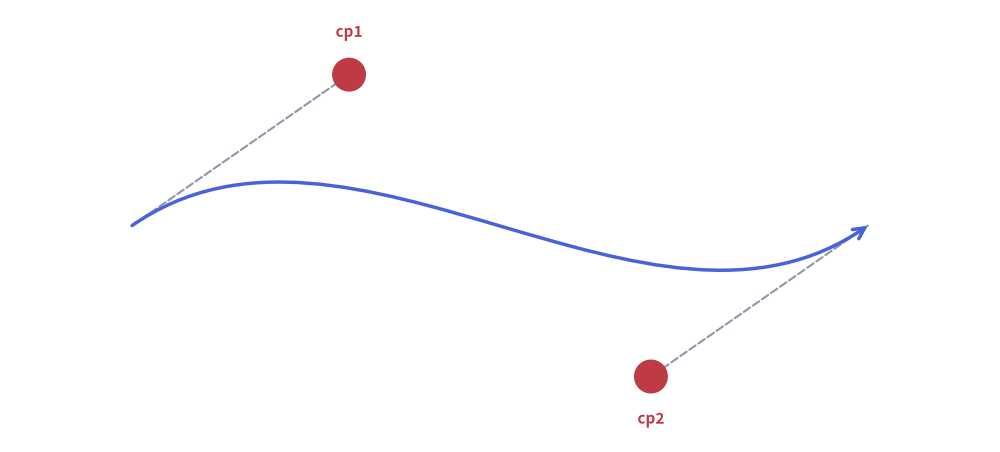

Cubic Bézier S-Curve with Two Control Points

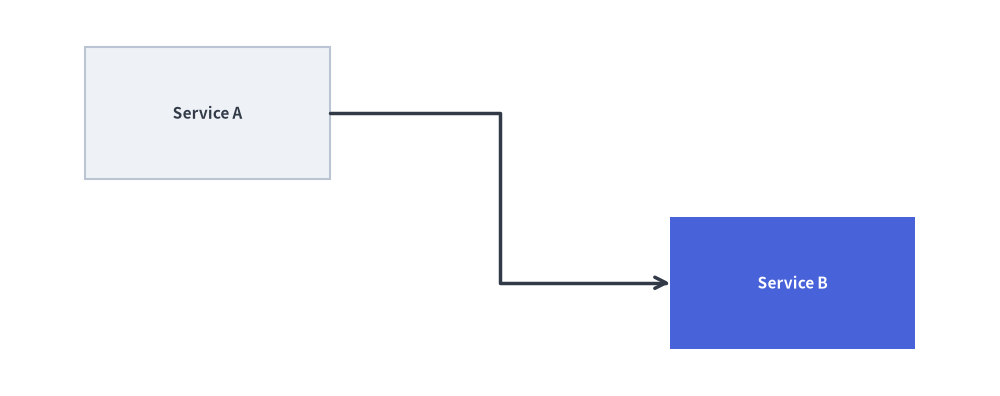

4. Multi-Point & Orthogonal Routing (lines)

The lines() function connects an ordered sequence of two or more coordinates [(x0, y0), (x1, y1), ...] with straight segments, automatically pruning consecutive duplicate coordinates.

lines(
    xys: list[tuple[float, float]],
    *,
    style: Style,
    arrow_head: Literal["", "-", "->", "<-", "<->"] | str = "",
) -> None
Parameter Type Default Description
xys list[tuple[float, float]] Required Ordered sequence of 2 or more vertices [(x0, y0), (x1, y1), ...].
style Style Required Line style token.
arrow_head str "" Terminal arrowhead marker placed at the start/end of the polyline.

In software architectures and circuit schematics, orthogonal (Manhattan) routing is standard for clean, non-overlapping bus lines:

4.1. L-Routing (Single 90° Turn)

Connects two entities horizontally first, then vertically:

from drawlib.canvas import save, setup
from drawlib.lines import lines
from drawlib.shapes import rectangle
from drawlib.styles import Styles

setup(width=106, height=42)
rectangle((22, 29), width=26, height=14, style=Styles.Neutral, text="Client", text_style=Styles.DarkBold.patch(text_size=11.0))
rectangle((84, 13), width=26, height=14, style=Styles.PrimaryFlat, text="Worker", text_style=Styles.WhiteBold.patch(text_size=11.0))

# L-shaped connection: horizontal from Client, then downward to Worker
lines([(35, 29), (84, 29), (84, 20)], arrow_head="->", style=Styles.DarkBold)
save()
lines_7

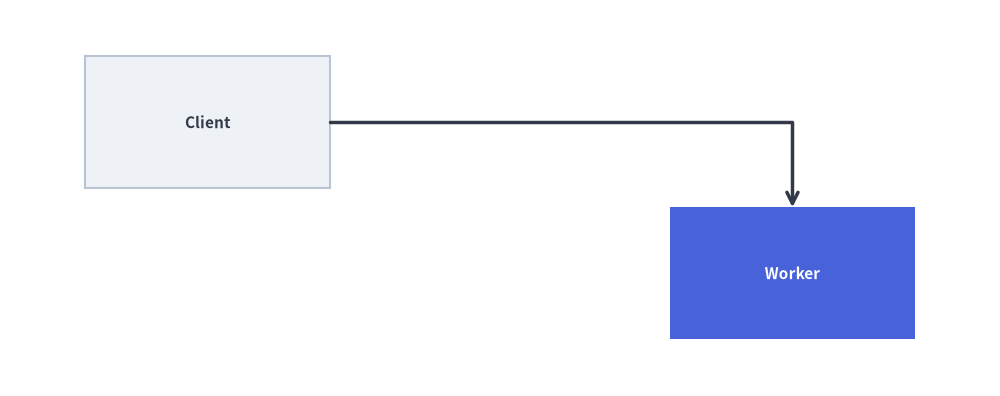

Orthogonal L-Routing Between Two Services

4.2. Z-Routing / Dogleg (Two 90° Turns)

Connects two offset components across a shared mid-channel $x_{\text{mid}}$:

from drawlib.canvas import save, setup
from drawlib.lines import lines
from drawlib.shapes import rectangle
from drawlib.styles import Styles

setup(width=106, height=42)
rectangle((22, 30), width=26, height=14, style=Styles.Neutral, text="Service A", text_style=Styles.DarkBold.patch(text_size=11.0))
rectangle((84, 12), width=26, height=14, style=Styles.PrimaryFlat, text="Service B", text_style=Styles.WhiteBold.patch(text_size=11.0))

# Z-shaped dogleg connection across midpoint x_mid = 53
x_mid = 53
lines([(35, 30), (x_mid, 30), (x_mid, 12), (71, 12)], arrow_head="->", style=Styles.DarkBold)
save()
lines_8
Orthogonal Z-Routing (Dogleg) Across a Shared Midpoint

5. Advanced Multi-Segment Curves & Arc Connectors

5.1. Filleted Multi-Point Polyline (lines_curved)

lines_curved() accepts the same vertex list xys as lines(), plus a corner fillet radius r. Every interior corner vertex $P_i$ is automatically replaced by a smooth quadratic Bézier turn of radius r.

lines_curved(
    xys: list[tuple[float, float]],
    r: float,
    *,
    style: Style,
    arrow_head: Literal["", "-", "->", "<-", "<->"] | str = "",
) -> None
Parameter Type Default Description
xys list[tuple[float, float]] Required Sequence of polyline vertices [(x0, y0), (x1, y1), ...].
r float Required Corner fillet radius in canvas units ($r > 0$).
style Style Required Line style token.
arrow_head str "" Terminal arrowhead marker ("", "-", "->", "<-", "<->").

[!TIP] Fillet Radius Constraint: Keep the fillet radius smaller than half the shortest segment length ($r < 0.5 \min_i |P_{i+1} - P_i|$) so adjacent corner fillets have straight runway segments between them (internally, Drawlib clamps the fillet ratio to 0.5 of each segment).

from drawlib.canvas import save, setup
from drawlib.lines import lines_curved
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=120, height=52)

rectangle((20, 38), width=26, height=14, style=Styles.Neutral.patch(shape_r=2), text="API Ingress", text_style=Styles.DarkBold.patch(text_size=10.5))
rectangle((60, 26), width=24, height=14, style=Styles.Neutral.patch(shape_r=2), text="Firewall", text_style=Styles.DarkBold.patch(text_size=10.5))
rectangle((100, 14), width=26, height=14, style=Styles.PrimaryFlat.patch(shape_r=2), text="Core DB", text_style=Styles.WhiteBold.patch(text_size=10.5))

# Route around the central Firewall box with r=6.0 rounded corners
waypoints = [(33, 38), (60, 38), (60, 44), (100, 44), (100, 21)]
lines_curved(waypoints, r=6.0, arrow_head="->", style=Styles.PrimaryBold)
text((80, 48), "lines_curved(..., r=6.0)", style=Styles.DarkBold.patch(text_size=10.5))

# Bottom return path with smaller fillet radius r=4.0
return_pts = [(87, 14), (20, 14), (20, 31)]
lines_curved(return_pts, r=4.0, arrow_head="->", style=Styles.MutedDashed)
text((53, 8.5), "Async Audit Trail (r=4.0)", style=Styles.DarkBold.patch(text_size=10.0))

save()
lines_9

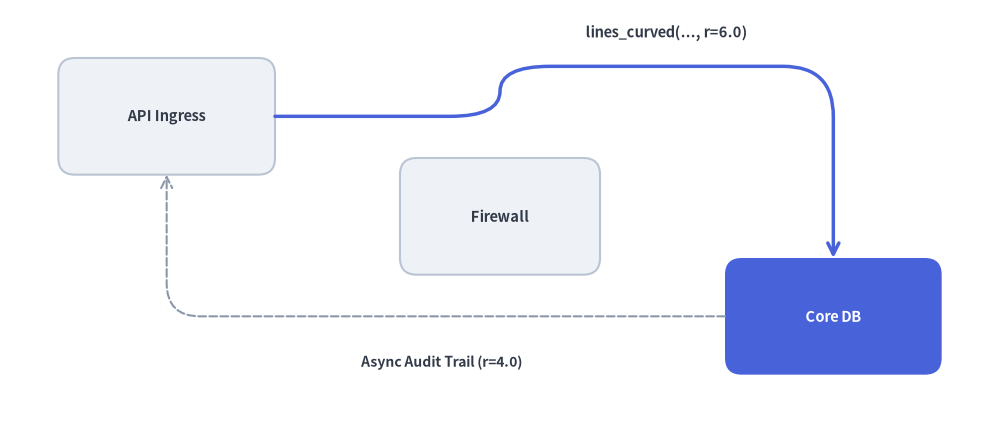

Rounded Manhattan Routing with lines_curved(xys, r)

5.2. Compound Multi-Segment Bézier Path (lines_bezier)

lines_bezier() builds a continuous single-artist vector path starting at xy and chaining any combination of straight segments, quadratic Bézier curves, and cubic Bézier curves defined in path_points:

lines_bezier(
    xy: tuple[float, float],
    path_points: list[
        tuple[float, float]
        | tuple[tuple[float, float], tuple[float, float]]
        | tuple[tuple[float, float], tuple[float, float], tuple[float, float]]
    ],
    *,
    style: Style,
    arrow_head: Literal["", "-", "->", "<-", "<->"] | str = "",
) -> None
Parameter / path_points Element Tuple Structure Path Segment Behavior
xy (x0, y0) Initial starting coordinate (Path.MOVETO).
Straight Segment (x, y) Straight line to (x, y) (Path.LINETO).
Quadratic Bézier Segment ((cp_x, cp_y), (x, y)) 1-control-point curve to (x, y) via cp (Path.CURVE3).
Cubic Bézier Segment ((cp1_x, cp1_y), (cp2_x, cp2_y), (x, y)) 2-control-point curve to (x, y) via cp1, cp2 (Path.CURVE4).
from drawlib.canvas import save, setup
from drawlib.lines import lines_bezier
from drawlib.shapes import circle, rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=124, height=52)

circle((16, 16), radius=8.5, style=Styles.Neutral, text="Source", text_style=Styles.DarkBold.patch(text_size=10.0))
rectangle((106, 36), width=24, height=14, style=Styles.PrimaryFlat.patch(shape_r=2), text="Sink", text_style=Styles.WhiteBold.patch(text_size=11.0))

# Compound path: straight run -> cubic S-curve -> straight run -> quadratic turn
compound_points = [
    (40, 16),                                  # 1. Straight segment to (40, 16)
    ((53, 16), (53, 36), (66, 36)),            # 2. Cubic S-curve to (66, 36)
    (82, 36),                                  # 3. Straight segment to (82, 36)
    ((88, 44), (94, 36)),                      # 4. Quadratic hop into Sink port
]

lines_bezier(
    xy=(24.5, 16),
    path_points=compound_points,
    arrow_head="->",
    style=Styles.PrimaryBold.patch(line_arrow_head_fill=True),
)

text((33, 10.5), "1. Straight", style=Styles.DarkBold.patch(text_size=10.0))
text((42, 31), "2. Cubic S-Curve", style=Styles.DarkBold.patch(text_size=10.0))
text((74, 30.5), "3. Straight", style=Styles.DarkBold.patch(text_size=10.0))
text((88, 45.5), "4. Quadratic", style=Styles.DarkBold.patch(text_size=10.0))

save()
lines_10

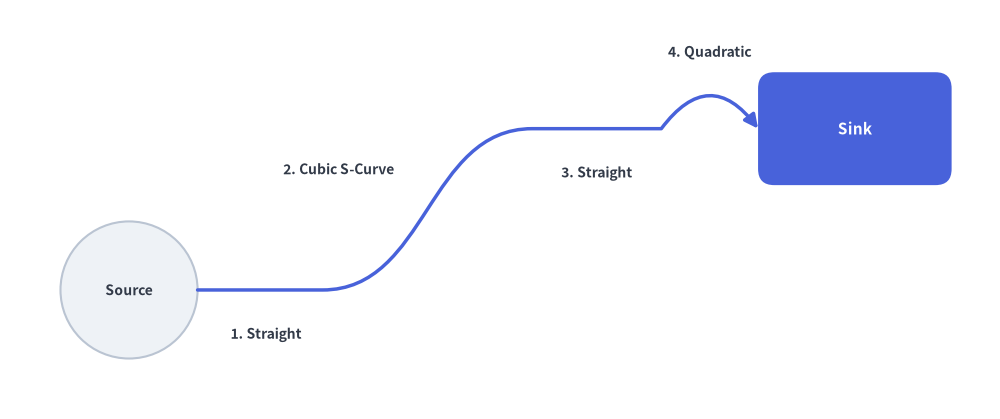

Compound Path Combining Straight, Cubic S-Curve, and Quadratic Segments via lines_bezier()

5.3. Elliptical & Circular Arc Connector (line_arc)

line_arc() renders an open vector stroke along the perimeter of an ellipse or circle centered at xy. It is ideal for state-machine self-loops, retry indicators, and circular feedback arrows.

line_arc(
    xy: tuple[float, float],
    width: float,
    height: float,
    *,
    style: Style,
    angle_start: float = 0,
    angle_end: float = 180,
    angle: float = 0,
    arrow_head: Literal["", "-", "->", "<-", "<->"] | str = "",
    ccw: bool = True,
) -> None
Parameter Type Default Description
xy tuple[float, float] Required Center coordinate (cx, cy) of the virtual ellipse.
width float Required Full horizontal diameter ($2 R_x$) of the ellipse (width == height for a circle).
height float Required Full vertical diameter ($2 R_y$) of the ellipse.
style Style Required Line style token.
angle_start float 0 Starting angle in degrees ($0^\circ$ = 3 o'clock, $90^\circ$ = 12 o'clock, $180^\circ$ = 9 o'clock, $270^\circ$ = 6 o'clock).
angle_end float 180 Ending angle in degrees.
angle float 0 Counter-clockwise rotation of the entire ellipse frame in degrees around xy.
arrow_head str "" Terminal arrowhead marker ("", "-", "->", "<-", "<->").
ccw bool True Sweep direction from angle_start to angle_end (True = counter-clockwise, False = clockwise).
from drawlib.canvas import save, setup
from drawlib.lines import line, line_arc
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=120, height=58)

# Nodes
rectangle((32, 26), width=28, height=14, style=Styles.PrimaryFlat.patch(shape_r=2), text="Queue Worker", text_style=Styles.WhiteBold.patch(text_size=10.5))
rectangle((88, 26), width=28, height=14, style=Styles.SecondaryNeutral.patch(shape_r=2), text="Payment API", text_style=Styles.DarkBold.patch(text_size=10.5))

# Forward request
line((46, 26), (74, 26), arrow_head="->", style=Styles.DarkBold)

# 1. Clockwise self-loop retry arc above Queue Worker (ccw=False)
line_arc(
    xy=(32, 33),
    width=14,
    height=14,
    angle_start=200,
    angle_end=340,
    ccw=False,
    arrow_head="->",
    style=Styles.DarkBold,
)
text((32, 45.5), "Self-Loop Retry (ccw=False)", style=Styles.DarkBold.patch(text_size=10.5))

# 2. Clockwise elliptical feedback loop underneath (0° -> 180°, ccw=False)
line_arc(
    xy=(60, 20),
    width=56,
    height=18,
    angle_start=0,
    angle_end=180,
    ccw=False,
    arrow_head="->",
    style=Styles.MutedDashed.patch(line_width=1.8),
)
text((60, 5.5), "Backpressure / Rate-Limit Feedback", style=Styles.DarkBold.patch(text_size=10.5))

save()
lines_11

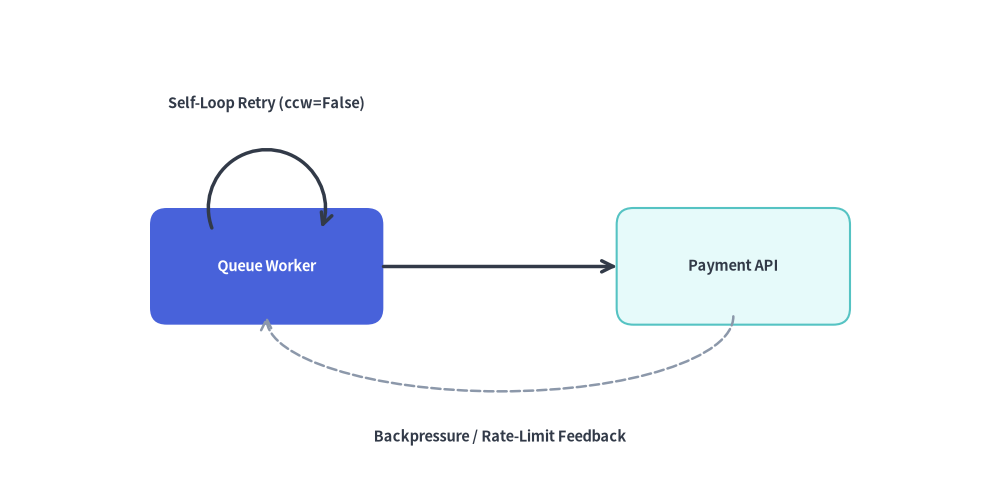

Self-Loop Retry and Elliptical Feedback Arcs with line_arc()

[!NOTE] For automated orthogonal routing with automatic bounding-box clipping and label alignment, consider using high-level Architecture Diagrams or Flow Diagrams.
