GridLayout

The GridLayout component positions cards and rectangular blocks across a uniform or flexible column/row matrix. It supports multi-column and multi-row cell spanning, outer container borders, and proportional scaling—making it ideal for layered system architectures, service matrices, and executive dashboard layouts.

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.lines import line
from drawlib.shapes import circle
from drawlib.smartarts import GridLayout
from drawlib.styles import Styles
from drawlib.text import text

setup(width=126, height=62)

grid = GridLayout(
    num_column=3,
    num_row=3,
    style=Styles.Neutral.patch(shape_r=1.2),
    text_style=Styles.DarkBold.patch(text_size=10.0),
)

# Row 0 (Bottom Row)
grid.add(position=(0, 0), width=1, height=1, text="pos=(0, 0)\nw=1, h=1", style=Styles.PrimaryNeutral.patch(shape_r=1.2))
grid.add(position=(1, 0), width=1, height=1, text="pos=(1, 0)\nw=1, h=1")
grid.add(position=(2, 0), width=1, height=1, text="pos=(2, 0)\nw=1, h=1")

# Row 1 (Middle Row) & Spanned Cell across Columns 1..2, Rows 1..2
grid.add(position=(0, 1), width=1, height=1, text="pos=(0, 1)\nw=1, h=1")
grid.add(
    position=(1, 1),
    width=2,
    height=2,
    text="\nSpanned Cell: pos=(1, 1), w=2, h=2\n(Covers cols 1..2, rows 1..2)",
    style=Styles.PrimaryFlat.patch(shape_r=1.2),
    text_style=Styles.WhiteBold.patch(text_size=10.0),
)

# Row 2 (Top Row, Column 0)
grid.add(position=(0, 2), width=1, height=1, text="pos=(0, 2)\nw=1, h=1", style=Styles.SecondaryNeutral.patch(shape_r=1.2))

grid.draw(
    xy=(24.0, 11.0),
    width=96.0,
    height=41.0,
    margin=1.8,
    outer_style=Styles.MutedDashed.patch(shape_r=1.8),
)

# Icon inside the spanned hero cell
phosphor.activity(xy=(85.5, 42.5), width=4.2, style=Styles.White)

# Axis arrows and anchor dot at bottom-left xy=(24, 11)
line((42.0, 6.0), (120.0, 6.0), arrow_head="->", style=Styles.PrimaryBold)
text((81.0, 2.5), "Column Index (col = 0 → 2, +x Rightward)", style=Styles.PrimaryBold.patch(text_size=10.0))

line((18.5, 11.0), (18.5, 52.0), arrow_head="->", style=Styles.PrimaryBold)
text((9.5, 31.5), "Row Index\n(row = 0 → 2)\n+y Upward", style=Styles.PrimaryBold.patch(text_size=10.0))

circle((24.0, 11.0), radius=1.2, style=Styles.DangerFlat)
text((24.0, 6.0), "xy=(24, 11)", style=Styles.DangerBold.patch(text_size=10.0))

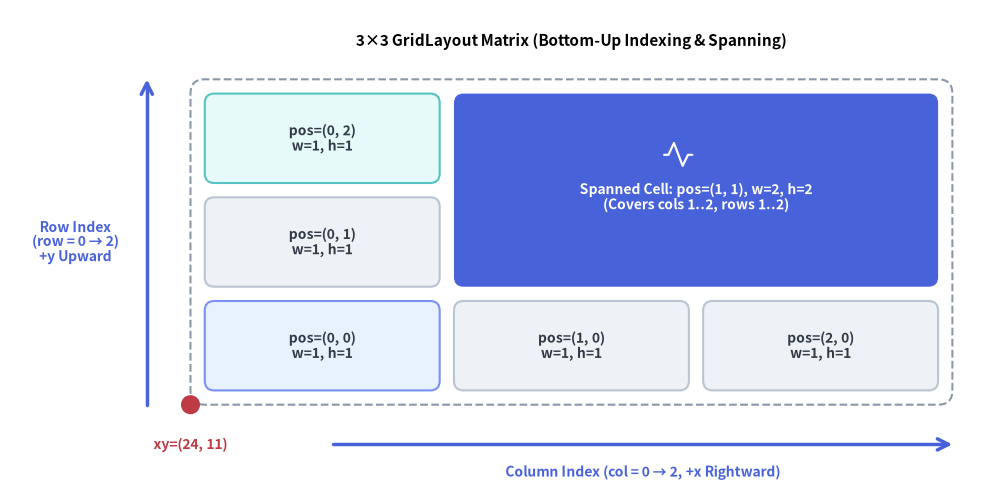

text((72.0, 56.8), "3×3 GridLayout Matrix (Bottom-Up Indexing & Spanning)", style=Styles.BlackBold.patch(text_size=11.0))

save()

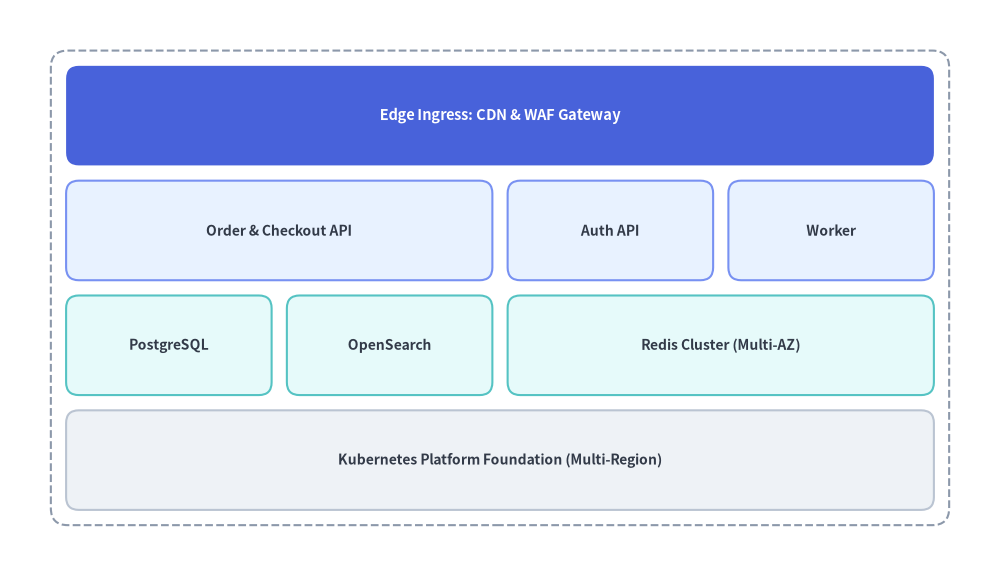

1. Multi-Span Architecture & Dashboard Layout (draw)

In standard mode (grid.draw(...)), GridLayout divides the total width and height evenly across num_column columns and num_row rows with a uniform margin gutter between cells. If outer_style is provided, an outer container frame is drawn with an inner margin around the perimeter.

from drawlib.canvas import save, setup
from drawlib.smartarts import GridLayout
from drawlib.styles import Styles

setup(width=118, height=68)

grid = GridLayout(
    num_column=4,
    num_row=4,
    style=Styles.Neutral.patch(shape_r=1.5),
    text_style=Styles.DarkBold.patch(text_size=10.0),
)

# Row 3 (Top): Edge Ingress spanning all 4 columns (Hero focal layer)
grid.add(
    position=(0, 3),
    width=4,
    height=1,
    text="Edge Ingress: CDN & WAF Gateway",
    style=Styles.PrimaryFlat.patch(shape_r=1.5),
    text_style=Styles.WhiteBold.patch(text_size=10.5),
)

# Row 2: Application Services Layer
grid.add(position=(0, 2), width=2, height=1, text="Order & Checkout API", style=Styles.PrimaryNeutral.patch(shape_r=1.5))
grid.add(position=(2, 2), width=1, height=1, text="Auth API", style=Styles.PrimaryNeutral.patch(shape_r=1.5))
grid.add(position=(3, 2), width=1, height=1, text="Worker", style=Styles.PrimaryNeutral.patch(shape_r=1.5))

# Row 1: Persistence & Caching Tier
grid.add(position=(0, 1), width=1, height=1, text="PostgreSQL", style=Styles.SecondaryNeutral.patch(shape_r=1.5))
grid.add(position=(1, 1), width=1, height=1, text="OpenSearch", style=Styles.SecondaryNeutral.patch(shape_r=1.5))
grid.add(position=(2, 1), width=2, height=1, text="Redis Cluster (Multi-AZ)", style=Styles.SecondaryNeutral.patch(shape_r=1.5))

# Row 0 (Bottom): Shared Infrastructure Foundation
grid.add(
    position=(0, 0),
    width=4,
    height=1,
    text="Kubernetes Platform Foundation (Multi-Region)",
    style=Styles.Neutral.patch(shape_r=1.5),
)

grid.draw(
    xy=(6, 6),
    width=106,
    height=56,
    margin=1.8,
    outer_style=Styles.MutedDashed.patch(shape_r=2.0),
)
save()

2. Flexible Grid Sizing & Custom Cell Overlays (draw_flexible)

When columns or rows require asymmetric proportions (such as a narrow sidebar next to a wide content area, or a compact header row), use grid.draw_flexible(...) with explicit column_widths, column_margins, row_heights, and row_margins. Because the cell positions are deterministic from xy, you can also overlay standard icons and shapes inside any cell.

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.smartarts import GridLayout
from drawlib.styles import Styles

setup(width=116, height=62)

grid = GridLayout(
    num_column=3,
    num_row=3,
    style=Styles.Neutral.patch(shape_r=1.5),
    text_style=Styles.DarkBold.patch(text_size=10.0),
)

# Top Header (Row 2, spanning 3 columns)
grid.add(
    position=(0, 2),
    width=3,
    height=1,
    text="Observability Control Plane",
    style=Styles.PrimaryFlat.patch(shape_r=1.5),
    text_style=Styles.WhiteBold.patch(text_size=11.0),
)

# Left Navigation Sidebar (Column 0, spanning Rows 0..1)
grid.add(
    position=(0, 0),
    width=1,
    height=2,
    text="Routing\n&\nPolicies",
    style=Styles.PrimaryNeutral.patch(shape_r=1.5),
)

# Main Content Cards (Columns 1..2, Rows 0..1)
grid.add(position=(1, 1), width=1, height=1, text="      Metrics Store", style=Styles.Neutral.patch(shape_r=1.5))
grid.add(position=(2, 1), width=1, height=1, text="      Trace Collector", style=Styles.Neutral.patch(shape_r=1.5))
grid.add(
    position=(1, 0),
    width=2,
    height=1,
    text="      Alerting & Incident Automation Engine",
    style=Styles.SecondaryNeutral.patch(shape_r=1.5),
)

# Render with custom column widths [24, 38, 38] and row heights [16, 16, 11]
grid.draw_flexible(
    xy=(4, 5),
    column_widths=[24.0, 38.0, 38.0],
    column_margins=[2.0, 2.0, 2.0, 2.0],
    row_heights=[16.0, 16.0, 11.0],
    row_margins=[2.0, 2.0, 2.0, 2.0],
    outer_style=Styles.MutedDashed.patch(shape_r=2.0),
)

# Overlay Phosphor icons inside the metric/trace/alert cells using deterministic coordinates
phosphor.chart_bar(xy=(36, 33), width=4.0, style=Styles.PrimaryFlat)
phosphor.activity(xy=(76, 33), width=4.0, style=Styles.PrimaryFlat)
phosphor.bell_ringing(xy=(40, 15), width=4.0, style=Styles.DarkBold)
save()

3. Coordinate & Indexing Rules

As illustrated in the opening diagram at the top of this page:

• Bottom-Left Anchor (x, y): The xy coordinate passed to draw() or draw_flexible() specifies the bottom-left corner of the overall grid.
• Zero-Indexed Bottom-Up Rows:
  • column_start = 0 is the left-most column, increasing rightward (0 to num_column - 1).
  • row_start = 0 is the bottom-most row, increasing upward (0 to num_row - 1).
• Cell Spanning: grid.add(position=(col, row), width=w, height=h) spans w columns rightward (col through col + w - 1) and h rows upward (row through row + h - 1).

4. API Reference

Constructor

GridLayout(
    *,
    num_column: int,
    num_row: int,
    style: Style,
    text_style: Style,
)

Methods & Properties

• add(position: tuple[int, int], width: int, height: int, *, style: Style | None = None, text: str = "", text_style: Style | None = None, show: bool = True) -> GridItem: Registers a grid card at position=(column_start, row_start) spanning width columns and height rows. Returns a mutable GridItem (position, width, height, style, text, text_style, show). Setting show=False hides the cell while keeping the matrix layout intact.
• grid.items -> list[GridItem]: Returns the list of all registered GridItem instances (position: tuple[int, int], width: int, height: int, style: Style, text: str, text_style: Style, show: bool), allowing deferred mutation before or between draw() calls.
• draw(xy: tuple[float, float], width: float, height: float, margin: float, outer_style: Style | None = None, scale: float = 1.0) -> None: Renders the grid with equal column widths and equal row heights separated by margin. If outer_style is provided, draws an outer container rectangle and adds margin padding around the outer perimeter.
• draw_flexible(xy: tuple[float, float], column_widths: list[float], column_margins: list[float], row_heights: list[float], row_margins: list[float], outer_style: Style | None = None, scale: float = 1.0) -> None: Renders the grid using explicit column widths (len == num_column), column margins (len == num_column + 1), row heights (len == num_row), and row margins (len == num_row + 1).
