MindMap Component

The MindMapNode component renders multi-directional, radial mindmaps and hierarchical feature maps centered around a central root topic. Branches can project to the left, right, top, or bottom, with automatic elbow connector routing.

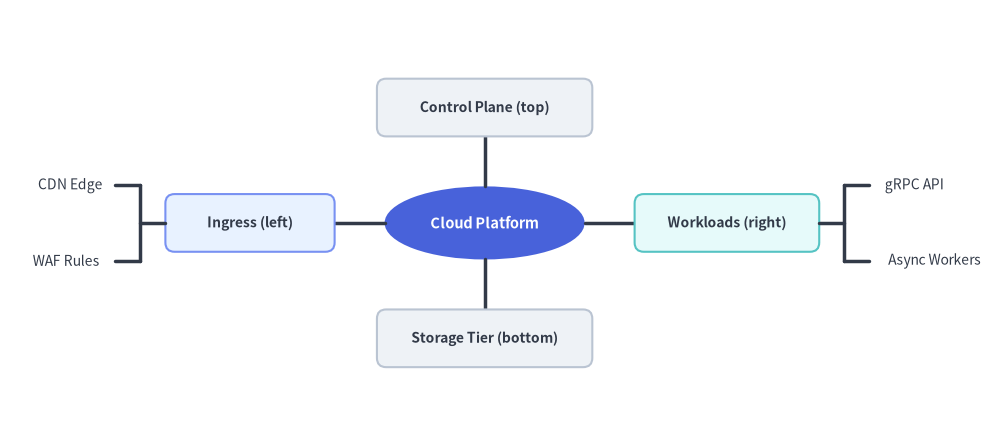

mindmap_1
Overview of MindMapNode: Multi-Directional Radial Branching (left, right, top, bottom)
Source Code
from drawlib.canvas import save, setup
from drawlib.smartarts import MindMapNode
from drawlib.styles import Styles

setup(width=130, height=58)

root = MindMapNode(
    "Cloud Platform",
    shape="ellipse",
    width=26,
    height=9.5,
    style=Styles.PrimaryFlat,
    text_style=Styles.WhiteBold.patch(text_size=10.5),
    line_style=Styles.DarkBold,
    line_length=6.5,
    horizontal_margin=3.5,
    vertical_margin=3.8,
    children=[
        # Left Branch (shape="rectangle" + leaf shape="none")
        MindMapNode(
            "Ingress (left)",
            branch="left",
            shape="rectangle",
            width=22,
            height=7.5,
            style=Styles.PrimaryNeutral.patch(shape_r=1.2),
            text_style=Styles.DarkBold.patch(text_size=10.0),
            children=[
                MindMapNode("CDN Edge", shape="none", text_style=Styles.Dark.patch(text_size=10.0)),
                MindMapNode("WAF Rules", shape="none", text_style=Styles.Dark.patch(text_size=10.0)),
            ],
        ),
        # Right Branch (shape="rectangle" + leaf shape="none")
        MindMapNode(
            "Workloads (right)",
            branch="right",
            shape="rectangle",
            width=24,
            height=7.5,
            style=Styles.SecondaryNeutral.patch(shape_r=1.2),
            text_style=Styles.DarkBold.patch(text_size=10.0),
            children=[
                MindMapNode("gRPC API", shape="none", text_style=Styles.Dark.patch(text_size=10.0)),
                MindMapNode("Async Workers", shape="none", text_style=Styles.Dark.patch(text_size=10.0)),
            ],
        ),
        # Top Branch (branch="top")
        MindMapNode(
            "Control Plane (top)",
            branch="top",
            shape="rectangle",
            width=28,
            height=7.5,
            style=Styles.Neutral.patch(shape_r=1.2),
            text_style=Styles.DarkBold.patch(text_size=10.0),
        ),
        # Bottom Branch (branch="bottom")
        MindMapNode(
            "Storage Tier (bottom)",
            branch="bottom",
            shape="rectangle",
            width=28,
            height=7.5,
            style=Styles.Neutral.patch(shape_r=1.2),
            text_style=Styles.DarkBold.patch(text_size=10.0),
        ),
    ],
)

root.draw(xy=(63, 29))
save()

1. Quick Example: Architecture Topology Map

from drawlib.canvas import setup
from drawlib.smartarts import MindMapNode
from drawlib.styles import Styles

setup(width=130, height=40)

root = MindMapNode(
    "API Gateway",
    shape="ellipse",
    width=26,
    height=11,
    style=Styles.PrimaryFlat,
    text_style=Styles.WhiteBold.patch(text_size=11.0),
    line_style=Styles.DarkBold,
    line_length=7.5,
    horizontal_margin=4.0,
    vertical_margin=4.0,
    children=[
        MindMapNode(
            "Clients", branch="left", shape="rectangle", width=20, height=8, style=Styles.Neutral,
            text_style=Styles.DarkBold.patch(text_size=10.5),
            children=[
                MindMapNode("Web Browser", shape="none", text_style=Styles.Dark.patch(text_size=10.0)),
                MindMapNode("Mobile App", shape="none", text_style=Styles.Dark.patch(text_size=10.0)),
            ],
        ),
        MindMapNode(
            "Services", branch="right", shape="rectangle", width=20, height=8, style=Styles.SecondaryNeutral,
            text_style=Styles.DarkBold.patch(text_size=10.5),
            children=[
                MindMapNode("Auth Service", shape="none", text_style=Styles.Dark.patch(text_size=10.0)),
                MindMapNode("Order Service", shape="none", text_style=Styles.Dark.patch(text_size=10.0)),
            ],
        ),
    ],
)

root.draw(xy=(62, 20))

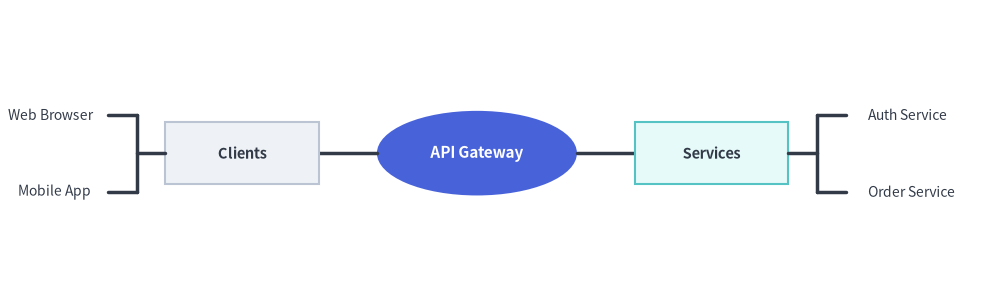

mindmap_2
System Architecture Breakdown with MindMap

2. Imperative Construction (.add()) & Top-Down Hierarchy (branch="bottom", xy_shift)

Instead of passing nested children=[...] lists to the constructor, you can construct mindmaps and organization trees imperatively with parent.add(text, ...) -> MindMapNode. When calling root.draw(xy, branch="bottom"), all branches default to flowing top-down (-y). You can also fine-tune any node's placement relative to its auto-calculated position using xy_shift=(dx, dy).

from drawlib.canvas import save, setup
from drawlib.smartarts import MindMapNode
from drawlib.styles import Styles

setup(width=130, height=54)

root = MindMapNode(
    "Platform Engineering",
    shape="rectangle",
    width=34,
    height=9.5,
    style=Styles.PrimaryFlat.patch(shape_r=1.5),
    text_style=Styles.WhiteBold.patch(text_size=11.0),
    line_style=Styles.DarkBold,
    line_length=8.5,
    horizontal_margin=4.0,
    vertical_margin=3.5,
)

# 1. Left Subtree: Cloud Infrastructure
infra = root.add(
    "Cloud Infra",
    width=26,
    height=8.5,
    style=Styles.PrimaryNeutral.patch(shape_r=1.2),
    text_style=Styles.DarkBold.patch(text_size=10.5),
)
infra.add("EKS Clusters", shape="none", text_style=Styles.Dark.patch(text_size=10.0))
infra.add("Terraform IaC", shape="none", text_style=Styles.Dark.patch(text_size=10.0))

# 2. Center Subtree: Developer Experience (nudged slightly downward with xy_shift)
devex = root.add(
    "Developer Experience",
    width=31,
    height=8.5,
    style=Styles.SecondaryNeutral.patch(shape_r=1.2),
    text_style=Styles.DarkBold.patch(text_size=10.5),
    xy_shift=(0.0, -1.5),
)
devex.add("CI/CD Runners", shape="none", text_style=Styles.Dark.patch(text_size=10.0))
devex.add("Preview Envs", shape="none", text_style=Styles.Dark.patch(text_size=10.0))

# 3. Right Subtree: Security & SRE
sec = root.add(
    "Security & SRE",
    width=26,
    height=8.5,
    style=Styles.Neutral.patch(shape_r=1.2),
    text_style=Styles.DarkBold.patch(text_size=10.5),
)
sec.add("Zero-Trust Mesh", shape="none", text_style=Styles.Dark.patch(text_size=10.0))
sec.add("SLOs & Paging", shape="none", text_style=Styles.Dark.patch(text_size=10.0))

# Default branch direction in draw() is "bottom" (top-down org chart layout)
root.draw(xy=(65, 44), branch="bottom")
save()

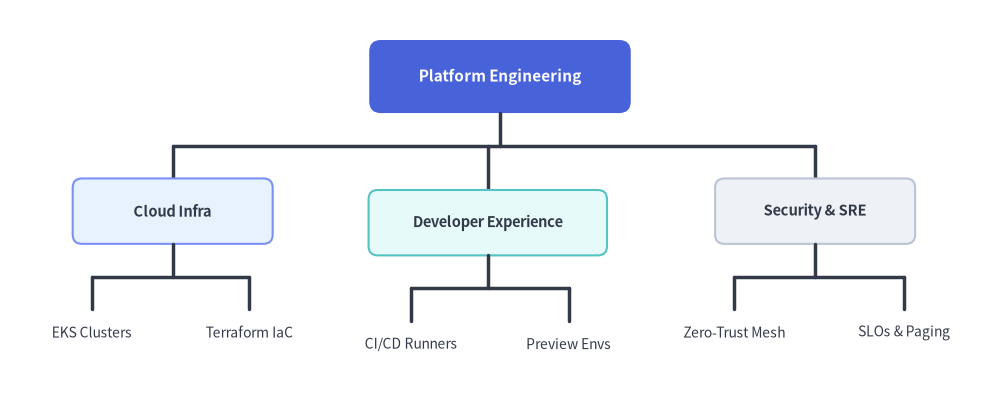

mindmap_3
Imperative MindMapNode Construction with Top-Down Branching (branch='bottom') and xy_shift

3. Geometry, Cascading & Layout Mechanics

  • Center Anchor (cx, cy): The coordinate passed to root.draw(xy=...) anchors the exact center of the root node.
  • Root Mandatory Parameters: The root MindMapNode must be initialized with style, text_style, and line_style (otherwise root.draw() raises a ValueError). If omitted on the root, shape defaults to "rectangle", width to 20.0, height to 8.0, horizontal_margin to 4.0, vertical_margin to 4.0, and line_length to 10.0. All descendant nodes inherit any unassigned style, shape, width/height, or spacing parameter from their parent.
  • Directional Branching (branch):
    • "bottom" (default in root.draw()): Sub-branches extend downward (-y), ideal for top-down org charts and WBS trees.
    • "top": Sub-branches extend upward (+y).
    • "right": Sub-branches extend rightward (+x).
    • "left": Sub-branches extend leftward (-x).
    • You can mix directions on the same root by setting branch="left", "right", "top", or "bottom" on individual child nodes.
  • Node Shapes & Automatic Text Sizing (shape, width, height):
    • "rectangle": Rectangular box with optional corner rounding (style.shape_r).
    • "ellipse": Pill / ellipse container.
    • "none": Clean borderless text label. When shape="none" and width=None / height=None, MindMapNode automatically measures the text width and height from text_style.text_size (including CJK wide-character compensation) so sibling labels never overlap.
  • Layout & Spacing Parameters:
    • horizontal_margin: Horizontal gap between sibling subtrees when branching "bottom" or "top".
    • vertical_margin: Vertical gap between sibling subtrees when branching "left" or "right".
    • line_length: Orthogonal connector distance between parent and child hierarchy levels (with the right-angled fork junction placed at line_length / 2).
    • xy_shift: Optional (dx, dy) coordinate offset applied after automatic layout to fine-tune a node's position.

4. API Reference

Constructor (MindMapNode)

MindMapNode(
    text: str,
    *,
    branch: Literal["bottom", "top", "left", "right"] | None = None,
    shape: Literal["rectangle", "ellipse", "none"] | None = None,
    width: float | None = None,
    height: float | None = None,
    style: Style | None = None,
    text_style: Style | None = None,
    line_style: Style | None = None,
    horizontal_margin: float | None = None,
    vertical_margin: float | None = None,
    line_length: float | None = None,
    xy_shift: tuple[float, float] | None = None,
    children: list[MindMapNode] | None = None,
    show: bool = True,
)
Parameter Type Default Description
text str (Required) Text content displayed in this node.
branch Literal["bottom", "top", "left", "right"] | None None Branch direction for this node/subtree (inherits parent or draw(branch=...) default if None).
shape Literal["rectangle", "ellipse", "none"] | None None Node shape (root defaults to "rectangle" if None; children inherit parent shape).
width float | None None Node width (root defaults to 20.0; auto-sized from text when shape="none" and width=None).
height float | None None Node height (root defaults to 8.0; auto-sized from text when shape="none" and height=None).
style Style | None None Node shape style (required on root; inherited by children if None).
text_style Style | None None Node text style (required on root; inherited by children if None).
line_style Style | None None Connector line style (required on root; inherited by children if None).
horizontal_margin float | None None Horizontal gap between sibling subtrees (root defaults to 4.0).
vertical_margin float | None None Vertical gap between sibling subtrees (root defaults to 4.0).
line_length float | None None Connector span between parent and child levels (root defaults to 10.0).
xy_shift tuple[float, float] | None None Optional (dx, dy) offset applied to this node after two-pass layout calculation.
children list[MindMapNode] | None None Initial list of child MindMapNode instances.
show bool True Whether to render this node and its connectors (preserves subtree layout bounding boxes when False).

Adding Child Nodes (.add())

node.add(
    text: str,
    *,
    branch: Literal["bottom", "top", "left", "right"] | None = None,
    shape: Literal["rectangle", "ellipse", "none"] | None = None,
    width: float | None = None,
    height: float | None = None,
    style: Style | None = None,
    text_style: Style | None = None,
    line_style: Style | None = None,
    horizontal_margin: float | None = None,
    vertical_margin: float | None = None,
    line_length: float | None = None,
    xy_shift: tuple[float, float] | None = None,
    show: bool = True,
) -> MindMapNode

Creates a new child MindMapNode from text: str (note: .add() takes a string text, not a MindMapNode instance), appends it to node.children, and returns the newly created child MindMapNode.

Drawing & Mutable Properties

root.draw(
    xy: tuple[float, float],
    branch: Literal["bottom", "top", "left", "right"] = "bottom",
    scale: float = 1.0,
) -> None
  • xy: Center coordinate (cx, cy) of the root node.
  • branch: Fallback branch direction ("bottom", "top", "left", "right", default "bottom") used when root.branch is None.
  • scale: Proportional scale factor around xy (> 0, default 1.0).
  • Mutable Node Properties:
    • node.text: str
    • node.branch: Literal["bottom", "top", "left", "right"] | None
    • node.shape: Literal["rectangle", "ellipse", "none"] | None
    • node.width: float | None
    • node.height: float | None
    • node.style: Style | None
    • node.text_style: Style | None
    • node.line_style: Style | None
    • node.children -> list[MindMapNode]
    • node.show: bool
