AreaChart: Overlapping & Stacked Quantitative Volumes

AreaChart (drawlib.charts.area) visualizes cumulative volumes, capacity distributions, and continuous trends over categorical intervals or time periods. By filling the geometric area between data series contours and the baseline ($Y=0$), it highlights both the total volume and individual series contributions.

1. Overview & Key Modes

area_1

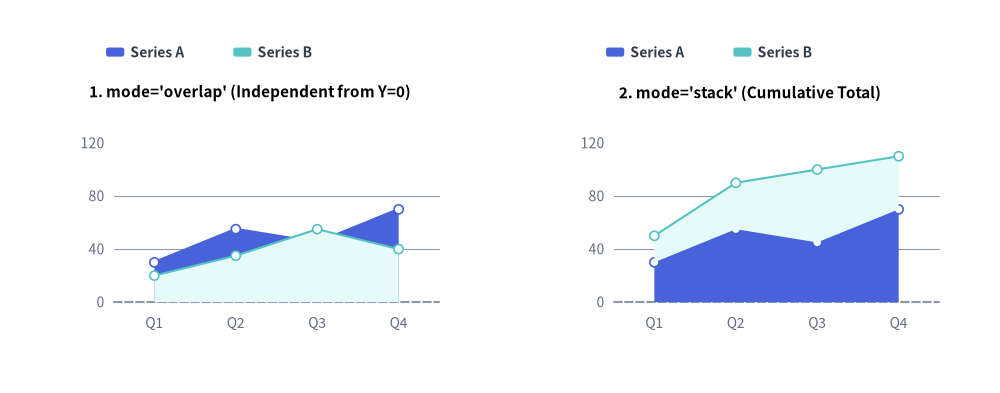

AreaChart Modes: Overlapping Series (overlap) vs. Cumulative Stacked (stack)
Source Code
from drawlib.canvas import save, setup
from drawlib.charts.area import AreaChart
from drawlib.styles import Styles

setup(width=132, height=52)

categories = ["Q1", "Q2", "Q3", "Q4"]
series_a = [30.0, 55.0, 45.0, 70.0]
series_b = [20.0, 35.0, 55.0, 40.0]

# Left: mode="overlap" (Independent from Y=0)
overlap_chart = AreaChart(
    axis_line_style=Styles.MutedDashed,
    categories=categories,
    axis_text_style=Styles.Muted.patch(text_size=10.0),
    grid_style=Styles.MutedThin,
    width=56.0,
    height=36.0,
    title="1. mode='overlap' (Independent from Y=0)",
    title_style=Styles.BlackBold.patch(text_size=11.0),
    mode="overlap",
    fill_alpha=0.35,
    show_points=True,
    point_shape="circle",
    point_size=0.6,
)
overlap_chart.add_series("Series A", series_a, style=Styles.PrimaryFlat)
overlap_chart.add_series("Series B", series_b, style=Styles.SecondaryNeutral, line_style="dashed")
overlap_chart.configure_y_axis(min_value=0, max_value=120, tick_step=40)
overlap_chart.draw(xy=(5.0, 6.0))
overlap_chart.draw_legend(xy=(14.0, 45.0), text_style=Styles.DarkBold.patch(text_size=10.0), orientation="horizontal")

# Right: mode="stack" (Cumulative Total)
stack_chart = AreaChart(
    axis_line_style=Styles.MutedDashed,
    categories=categories,
    axis_text_style=Styles.Muted.patch(text_size=10.0),
    grid_style=Styles.MutedThin,
    width=56.0,
    height=36.0,
    title="2. mode='stack' (Cumulative Total)",
    title_style=Styles.BlackBold.patch(text_size=11.0),
    mode="stack",
    fill_alpha=0.65,
    show_points=True,
    point_shape="circle",
    point_size=0.6,
)
stack_chart.add_series("Series A", series_a, style=Styles.PrimaryFlat)
stack_chart.add_series("Series B", series_b, style=Styles.SecondaryNeutral)
stack_chart.configure_y_axis(min_value=0, max_value=120, tick_step=40)
stack_chart.draw(xy=(71.0, 6.0))
stack_chart.draw_legend(xy=(80.0, 45.0), text_style=Styles.DarkBold.patch(text_size=10.0), orientation="horizontal")

save()

Area charts support two core operational modes:

  • mode="overlap" (default): Each series polygon starts at the baseline ($Y=0$) and overlaps with preceding series. Use a semi-transparent opacity (fill_alpha=0.25 to 0.45) or per-series fill_alpha overrides so underlying curves remain clearly visible.
  • mode="stack": Each series rests directly on top of the preceding one, showing cumulative totals (e.g., total gross revenue broken down by product line).

2. Cumulative Stacked Area Chart

Stacked area charts (mode="stack") are ideal for displaying aggregate metrics and showing the proportional contribution of each stream over time:

from drawlib.canvas import save, setup
from drawlib.charts.area import AreaChart
from drawlib.styles import Styles

setup(width=102, height=74)

chart = AreaChart(
    axis_line_style=Styles.MutedDashed,
    categories=["2021", "2022", "2023", "2024", "2025"],
    axis_text_style=Styles.Muted.patch(text_size=10.5),
    grid_style=Styles.MutedThin,
    width=82.0,
    height=52.0,
    title="Cumulative Revenue Streams",
    title_style=Styles.BlackBold.patch(text_size=13.0),
    mode="stack",
    fill_alpha=0.65,
)
chart.add_series("Enterprise Cloud", [40.0, 70.0, 110.0, 160.0, 225.0], style=Styles.PrimaryFlat)
chart.add_series("SaaS Products", [25.0, 38.0, 52.0, 68.0, 85.0], style=Styles.PrimaryNeutral)
chart.add_series("Support & Advisory", [15.0, 18.0, 22.0, 24.0, 26.0], style=Styles.SecondaryNeutral)

chart.configure_y_axis(unit="M$", label="Gross Revenue (USD Millions)")
chart.draw(xy=(10.0, 10.0))
chart.draw_legend(xy=(14.0, 65.0), text_style=Styles.Muted.patch(text_size=10.0), orientation="horizontal")
save()
area_2

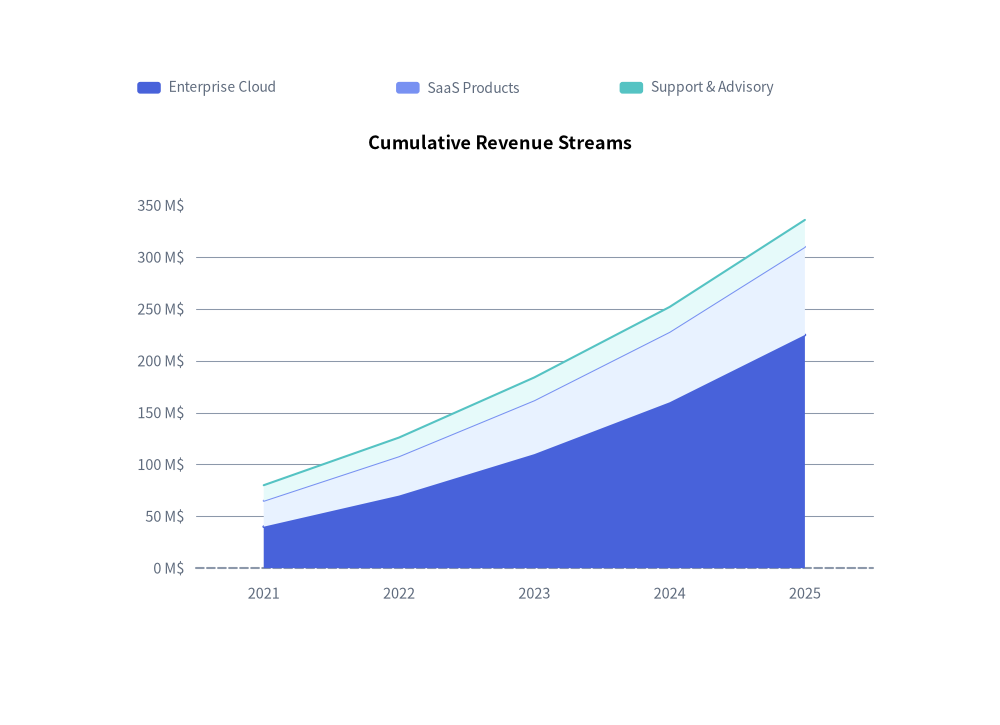

Cumulative Stacked Revenue Streams

3. Smooth Overlapping Area Chart with Per-Series Alpha & Stroke Styles

When comparing independent metrics that share the same scale (such as network ingress and egress traffic), combine mode="overlap" and smooth=True with per-series fill_alpha, line_style, and vertex markers (show_points=True):

from drawlib.canvas import save, setup
from drawlib.charts.area import AreaChart
from drawlib.styles import Colors, Style, Styles

setup(width=102, height=72)

chart = AreaChart(
    axis_line_style=Styles.MutedDashed,
    categories=["02:00", "06:00", "10:00", "14:00", "18:00", "22:00"],
    axis_text_style=Styles.Muted.patch(text_size=10.5),
    grid_style=Styles.MutedThin,
    width=82.0,
    height=50.0,
    title="Ingress vs Egress Gateway Traffic (Smooth Spline)",
    title_style=Styles.BlackBold.patch(text_size=13.0),
    mode="overlap",
    fill_alpha=0.35,
    smooth=True,
    show_points=True,
    point_shape="circle",
    point_size=0.65,
)
chart.add_series(
    "Ingress Traffic",
    [120.0, 180.0, 650.0, 920.0, 780.0, 310.0],
    style=Style(line_color=Colors.Primary),
    fill_alpha=0.32,
    line_width=2.2,
)
chart.add_series(
    "Egress Traffic",
    [80.0, 110.0, 420.0, 610.0, 530.0, 220.0],
    style=Style(line_color=Colors.Secondary),
    fill_alpha=0.22,
    line_width=2.0,
    line_style="dashed",
    point_shape="square",
)

chart.configure_y_axis(unit="Gbps", label="Throughput (Gbps)")
chart.draw(xy=(10.0, 10.0))
chart.draw_legend(xy=(24.0, 63.0), text_style=Styles.Muted.patch(text_size=10.5), orientation="horizontal")
save()
area_3

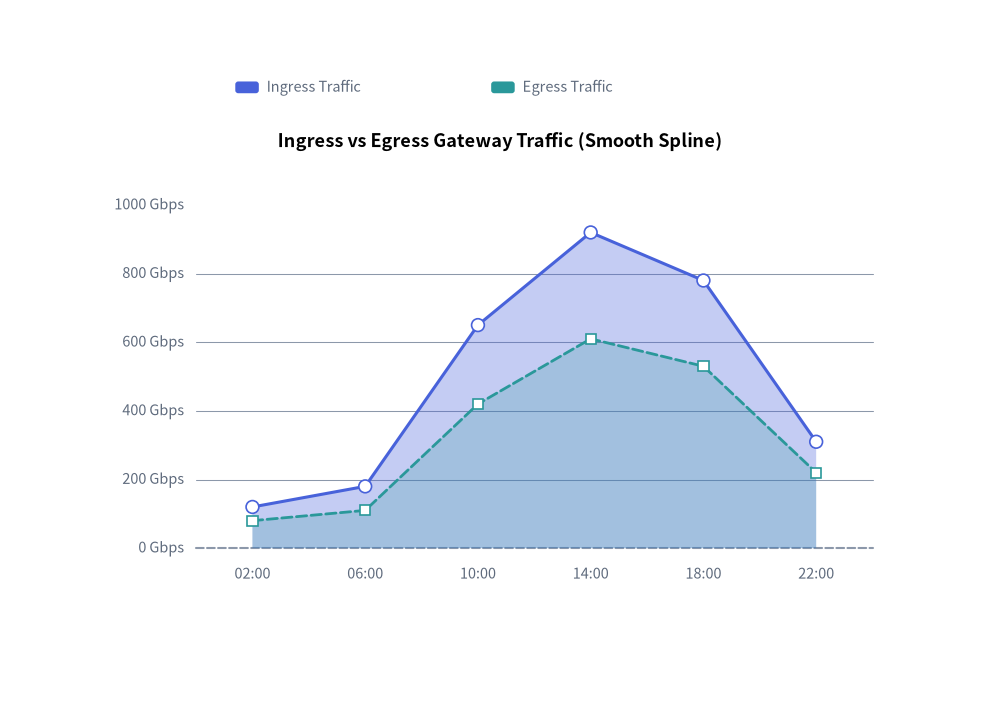

Smooth Overlapping Gateway Traffic with Per-Series fill_alpha and line_style

4. API Reference

Constructor (AreaChart)

All constructor arguments are keyword-only (*):

from drawlib.charts.area import AreaChart, Axis, DrawDirection, FormatterType, Mode, Series

chart = AreaChart(
    *,
    axis_line_style: Style,
    categories: list[str],
    width: float = 80.0,
    height: float = 50.0,
    mode: Mode = "overlap",
    fill_alpha: float = 0.35,
    show_points: bool = False,
    point_shape: PointShape = "none",
    point_size: float = 1.0,
    smooth: bool = False,
    axis_text_style: Style | None = None,
    grid_style: Style | None = None,
    value_text_style: Style | None = None,
    background_style: Style | None = None,
    title: str = "",
    title_style: Style | None = None,
)
Parameter Type Default Description
axis_line_style Style Required Mandatory style anchor for the coordinate baseline stroke.
categories list[str] Required Ordered category labels along the horizontal X-axis.
width / height float 80.0 / 50.0 Total bounding box dimensions of the chart in canvas units.
mode "overlap" | "stack" "overlap" Area polygon composition mode (Mode).
fill_alpha float 0.35 Default transparency opacity for area fill polygons (0.0 to 1.0).
show_points bool False Whether to render markers along the upper boundary contour.
point_shape "circle" | "square" | "none" "none" Default marker shape at data vertices when show_points=True.
point_size float 1.0 Default marker radius (or half-width for squares) in canvas units.
smooth bool False When True, interpolates smooth curved top contours and filled polygons.
axis_text_style Style | None None Style for Y-axis tick labels and X-axis category names. If None, labels are omitted.
grid_style Style | None None Style for horizontal Y-axis gridlines. If None, gridlines are omitted.
value_text_style Style | None None Style for numeric labels drawn above vertex markers (when show_points=True and point_shape != "none").
background_style Style | None None Style for the outer chart background card. If None, card is omitted.
title str "" Chart title text rendered at the top of the container.
title_style Style | None None Typography style for title. Required for the title to render.

Methods & Properties

  • add_series(name: str, values: list[float], style: Style, fill_alpha: float | None = None, line_width: float = 2.0, line_style: LineStyle = "solid", point_shape: PointShape | None = None, point_size: float | None = None, legend_text_style: Style | None = None, *, show: bool = True, draw_ratio: float = 1.0, draw_direction: DrawDirection = "left_to_right") -> Series: Registers an area series and returns the mutable Series instance.
    • fill_alpha: Per-series polygon fill opacity override (inherits chart.fill_alpha when None).
    • line_width / line_style: Controls the upper boundary contour stroke ("solid", "dashed", "dotted", "dashdot").
    • point_shape / point_size: Per-series vertex marker overrides ("circle", "square", "none").
    • legend_text_style: Optional custom Style for this series label in draw_legend().
    • show, draw_ratio, draw_direction: Lifecycle visibility and partial spatial rendering controls ("left_to_right" sweeps horizontally; "bottom_to_top" rises vertically from the baseline or lower stack boundary).
  • configure_y_axis(...) -> Axis / configure_x_axis(...) -> Axis: Configures the vertical value axis or horizontal category axis. See Axes, Scales & Legends.
  • get_size() -> tuple[float, float]: Returns (width, height) of the chart container.
  • draw(xy: tuple[float, float] = (0.0, 0.0), *, width: float | None = None, height: float | None = None, scale: float = 1.0) -> None: Renders the chart anchored at bottom-left xy, with optional temporary size overrides and proportional scale.
  • draw_legend(xy: tuple[float, float], text_style: Style, orientation: Literal["vertical", "horizontal"] = "vertical", swatch_width: float = 2.4, swatch_height: float = 1.2, item_gap: float = 4.0, *, scale: float = 1.0) -> None: Renders the decoupled series legend at xy.
  • Properties:
    • chart.series -> list[Series]: Returns a copy of registered Series objects.
    • chart.x_axis -> Axis / chart.y_axis -> Axis: Direct access to the horizontal and vertical Axis instances.
