Table Component

The Table component renders 2D tabular data, comparison matrices, and database schemas. It provides fine-grained styling control over borders, headers, alternating even/odd row backgrounds, and specific cell highlights.

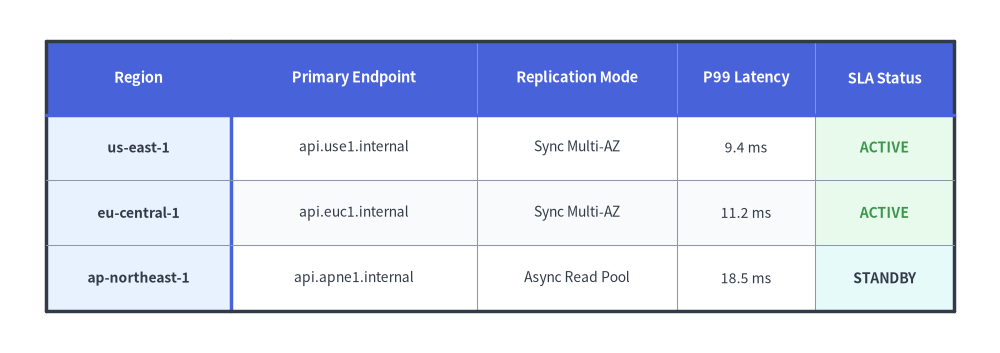

table_1
Overview of Table: Styled Data Grids, Header Bands, and Custom Borders
Source Code
from drawlib.canvas import save, setup
from drawlib.smartarts import Table
from drawlib.styles import Colors, Styles

setup(width=130, height=46)

t = Table(
    cell_style=Styles.White,
    text_style=Styles.Dark.patch(text_size=10.0),
    header_cell_style=Styles.PrimaryFlat,
    header_text_style=Styles.WhiteBold.patch(text_size=10.5),
    border_style=Styles.MutedThin,
    has_header=True,
)

t.set_style_cell_evenodd(
    even_color=Colors.Muted1,
    even_text_style=Styles.Dark.patch(text_size=10.0),
    odd_color=Colors.White,
    odd_text_style=Styles.Dark.patch(text_size=10.0),
)
t.set_style_cell_rowheader(
    background_color=Colors.Primary1,
    text_style=Styles.DarkBold.patch(text_size=10.0, halign="left"),
)
t.set_style_cell_header(
    background_color=Colors.Primary,
    text_style=Styles.WhiteBold.patch(text_size=10.5),
)
t.set_style_cell(
    background_color=Colors.Success1,
    text_style=Styles.SuccessBold.patch(text_size=10.0),
    rows=[1, 2],
    columns=[4],
)
t.set_style_cell(
    background_color=Colors.Secondary1,
    text_style=Styles.DarkBold.patch(text_size=10.0),
    rows=[3],
    columns=[4],
)
t.set_style_border(
    top=Styles.DarkBold,
    top2=Styles.PrimaryBold,
    bottom=Styles.DarkBold,
    left=Styles.DarkBold,
    left2=Styles.PrimaryBold,
    right=Styles.DarkBold,
    between_columns=Styles.MutedThin,
    between_rows=Styles.MutedThin,
)

data = [
    ["Region", "Primary Endpoint", "Replication Mode", "P99 Latency", "SLA Status"],
    ["us-east-1", "api.use1.internal", "Sync Multi-AZ", "9.4 ms", "ACTIVE"],
    ["eu-central-1", "api.euc1.internal", "Sync Multi-AZ", "11.2 ms", "ACTIVE"],
    ["ap-northeast-1", "api.apne1.internal", "Async Read Pool", "18.5 ms", "STANDBY"],
]

t.draw_flexible(
    xy=(6, 40.5),
    column_widths=[24.0, 32.0, 26.0, 18.0, 18.0],
    row_heights=[9.5, 8.5, 8.5, 8.5],
    data=data,
)
save()

1. Quick Example: Service SLA & Status Matrix

from drawlib.canvas import setup
from drawlib.smartarts import Table
from drawlib.styles import Colors, Styles

setup(width=118, height=50)

table = Table(
    cell_style=Styles.White,
    text_style=Styles.Dark.patch(text_size=10.5),
    header_cell_style=Styles.PrimaryFlat,
    header_text_style=Styles.WhiteBold.patch(text_size=11.0),
    border_style=Styles.DarkThin,
)

# Custom even/odd row styling using semantic tokens
table.set_style_cell_evenodd(
    even_color=Colors.Muted1,
    even_text_style=Styles.Dark.patch(text_size=10.5),
    odd_color=Colors.White,
    odd_text_style=Styles.Dark.patch(text_size=10.5),
)
table.set_style_cell_header(
    background_color=Colors.Primary,
    text_style=Styles.WhiteBold.patch(text_size=11.0),
)

# SLA highlight on HEALTHY rows using Success tint
table.set_style_cell(
    background_color=Colors.Success1,
    text_style=Styles.SuccessBold.patch(text_size=10.5),
    rows=[1, 2],
    columns=[3],
)

# SLA highlight on DEGRADED row using Danger tint
table.set_style_cell(
    background_color=Colors.Danger1,
    text_style=Styles.DangerBold.patch(text_size=10.5),
    rows=[3],
    columns=[3],
)

data = [
    ["Service Name", "Protocol", "P99 Latency", "Status"],
    ["Auth Gateway", "gRPC / HTTPS", "12 ms", "HEALTHY"],
    ["Order Service", "gRPC", "8 ms", "HEALTHY"],
    ["Payment Broker", "HTTPS", "45 ms", "DEGRADED"],
]

table.draw(xy=(6, 45), width=106, height=40, data=data)

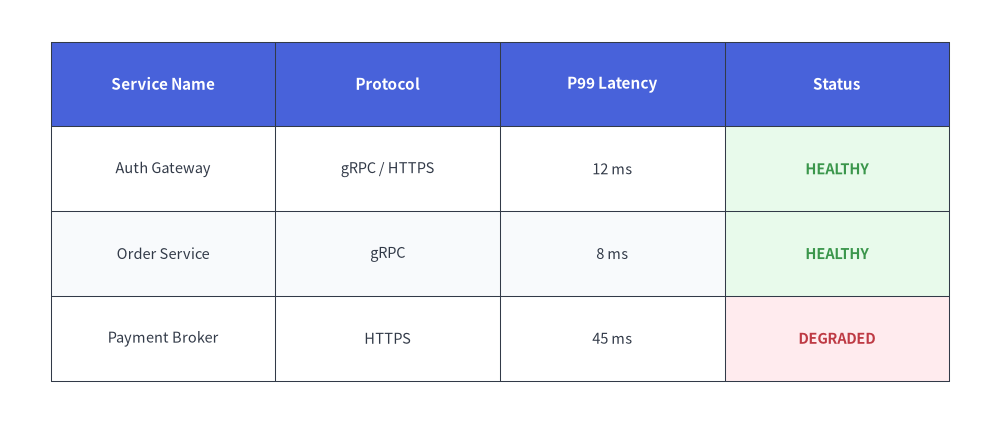

table_2
Service Status Matrix with Table

2. Flexible Column/Row Sizing, Row Headers & Custom Borders (draw_flexible)

When columns have different content lengths (such as a wide description column next to compact numeric metrics), use table.draw_flexible(xy, column_widths=[...], row_heights=[...], data=...). You can style both the top header row and left row-header column simultaneously with set_style_cell_headers(...) (or independently with set_style_cell_rowheader(...)), customize per-column text styles (set_style_cell(..., columns=[...], text_style=Styles.Dark.patch(halign="left"|"right"))), and place accented divider lines after row 0 (top2) and column 0 (left2) via set_style_border(...).

from drawlib.canvas import save, setup
from drawlib.smartarts import Table
from drawlib.styles import Colors, Styles

setup(width=124, height=58)

table = Table(
    cell_style=Styles.White,
    text_style=Styles.Dark.patch(text_size=10.0),
    header_cell_style=Styles.PrimaryFlat,
    header_text_style=Styles.WhiteBold.patch(text_size=10.5),
    border_style=Styles.MutedThin,
    has_header=True,
)

# Zebra-stripe data rows first
table.set_style_cell_evenodd(
    even_color=Colors.Muted1,
    even_text_style=Styles.Dark.patch(text_size=10.0),
    odd_color=Colors.White,
    odd_text_style=Styles.Dark.patch(text_size=10.0),
)

# Left-aligned workload profile column and right-aligned numeric columns
table.set_style_cell(
    background_color=Colors.White,
    text_style=Styles.Dark.patch(text_size=10.0, halign="left"),
    rows=[1, 2, 3],
    columns=[1],
)
table.set_style_cell(
    background_color=Colors.White,
    text_style=Styles.Dark.patch(text_size=10.0, halign="right"),
    rows=[1, 2, 3],
    columns=[2, 3],
)
# Highlight the Enterprise row with right-aligned numeric metrics
table.set_style_cell(
    background_color=Colors.Secondary1,
    text_style=Styles.DarkBold.patch(text_size=10.0, halign="left"),
    rows=[4],
    columns=[1],
)
table.set_style_cell(
    background_color=Colors.Secondary1,
    text_style=Styles.DarkBold.patch(text_size=10.0, halign="right"),
    rows=[4],
    columns=[2, 3],
)

# Style both row 0 and column 0 headers, then refine row-header column 0 and top header row 0
table.set_style_cell_headers(
    background_color=Colors.Primary1,
    text_style=Styles.DarkBold.patch(text_size=10.0),
)
table.set_style_cell_rowheader(
    background_color=Colors.Primary1,
    text_style=Styles.DarkBold.patch(text_size=10.0, halign="left"),
)
table.set_style_cell_header(
    background_color=Colors.Primary,
    text_style=Styles.WhiteBold.patch(text_size=10.5),
)

# Emphasize outer perimeter plus header dividers (top2 beneath row 0, left2 right of column 0)
table.set_style_border(
    top=Styles.DarkBold,
    top2=Styles.PrimaryBold,
    bottom=Styles.DarkBold,
    left=Styles.DarkBold,
    left2=Styles.PrimaryBold,
    right=Styles.DarkBold,
    between_columns=Styles.MutedThin,
    between_rows=Styles.MutedThin,
)

quota_data = [
    ["Tier", "Workload Profile", "vCPU Limit", "Monthly Cost"],
    ["Starter", "Dev & Sandbox Pods", "2 vCPU", "$24 / mo"],
    ["Growth", "Standard Production API", "8 vCPU", "$120 / mo"],
    ["Scale", "High-Throughput Mesh", "32 vCPU", "$480 / mo"],
    ["Enterprise", "Dedicated Isolated Nodes", "128 vCPU", "$1,850 / mo"],
]

table.draw_flexible(
    xy=(6, 52.5),
    column_widths=[24.0, 42.0, 23.0, 23.0],
    row_heights=[10.5, 9.0, 9.0, 9.0, 9.0],
    data=quota_data,
)
save()

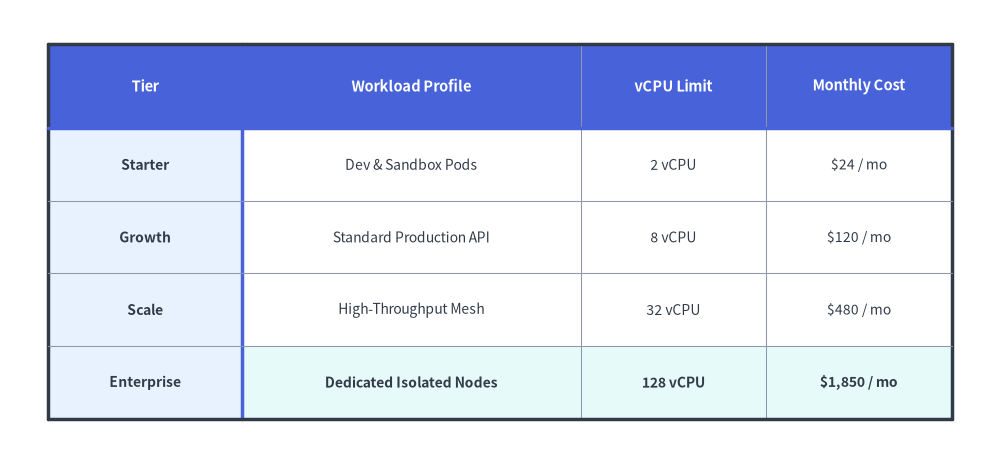

table_3
Flexible Column/Row Sizing, Row Headers, and Custom Borders (top2, left2)

3. Geometry, Data Matrix & Coordinate Mechanics

  • Top-Left Anchor (x, y): The coordinate passed to draw(xy=...) or draw_flexible(xy=...) specifies the top-left corner of the first table cell (row=0, col=0).
  • Downward & Rightward Flow: Rows step downward (y - row_height), while columns step rightward (x + col_width).
  • 2D Data Matrix (data): Passed as list[list[Any]] (all cell values are converted with str(...)). When has_header=True (default), row 0 is automatically styled using header_cell_style and header_text_style.
  • Order-Dependent Style Layering: Cell styling calls (set_style_cell_evenodd, set_style_cell_headers, set_style_cell_rowheader, set_style_cell_header, set_style_cell) are recorded in order and applied sequentially at draw() time. Call broad rules (such as set_style_cell_evenodd) first, and specific row/column overrides afterward.

4. API Reference

Constructor (Table)

Table(
    *,
    cell_style: Style,
    text_style: Style,
    header_cell_style: Style,
    header_text_style: Style,
    border_style: Style,
    has_header: bool = True,
)
Parameter Type Default Description
cell_style Style (Required) Default cell style (uses shape_fill_color for cell background).
text_style Style (Required) Default text style for data cell contents.
header_cell_style Style (Required) Default cell style for the header row (row 0).
header_text_style Style (Required) Default text style for the header row (row 0).
border_style Style (Required) Default line style applied to table borders and grid lines.
has_header bool True Whether row 0 is automatically styled as a header row on initialization.

Cell & Text Styling Methods

  • set_style_cell_headers(background_color: ColorType, text_style: Style) -> None: Applies background_color and text_style to both the column header row (row 0) and the row header column (column 0).
  • set_style_cell_header(background_color: ColorType, text_style: Style) -> None: Applies background_color and text_style exclusively to the top column header row (row 0).
  • set_style_cell_rowheader(background_color: ColorType, text_style: Style) -> None: Applies background_color and text_style exclusively to the left row header column (column 0).
  • set_style_cell_evenodd(even_color: ColorType, even_text_style: Style, odd_color: ColorType, odd_text_style: Style) -> None: Applies alternating zebra-stripe background colors and text styles to even (0, 2, 4, ...) and odd (1, 3, 5, ...) row indices.
  • set_style_cell(background_color: ColorType, text_style: Style, rows: list[int] | None = None, columns: list[int] | None = None) -> None: Applies background_color and text_style to the intersection of 0-indexed rows and columns (None targets all rows or all columns). Use this to customize per-column or per-cell typography and alignment (text_style=Styles.Dark.patch(halign="left"|"right")).
  • reset_styles() -> None: Clears all custom cell and border style overrides and restores the initial constructor styles.

Border Styling Method

table.set_style_border(
    top: Style | None = None,
    top2: Style | None = None,
    bottom: Style | None = None,
    left: Style | None = None,
    left2: Style | None = None,
    right: Style | None = None,
    between_columns: Style | None = None,
    between_rows: Style | None = None,
) -> None
Parameter Type Default Description
top, bottom, left, right Style | None None Outer perimeter border line styles.
top2 Style | None None Horizontal divider line directly beneath the header row (between row 0 and row 1).
left2 Style | None None Vertical divider line directly to the right of the row-header column (between column 0 and column 1).
between_columns Style | None None Vertical separator lines between inner columns.
between_rows Style | None None Horizontal separator lines between inner rows.

Drawing Methods (draw & draw_flexible)

  • draw(xy: tuple[float, float], width: float, height: float, data: list[list[Any]], scale: float = 1.0) -> None: Renders the table anchored at top-left xy with uniform column widths (width / num_cols) and uniform row heights (height / num_rows), scaled proportionally by scale.
  • draw_flexible(xy: tuple[float, float], column_widths: list[float], row_heights: list[float], data: list[list[Any]], scale: float = 1.0) -> None: Renders the table anchored at top-left xy using explicit per-column widths (len(column_widths) == len(data[0])) and per-row heights (len(row_heights) == len(data)), scaled proportionally by scale.
