Animations Overview (APNG & WebP)

Drawlib provides native support for generating multi-frame animations in both Animated Portable Network Graphics (APNG) and Animated WebP formats.
Animations empower developers and AI coding agents to create clean, high-framerate, multi-step architectural illustrations, data visualizations, and interactive walkthroughs using declarative Python code.

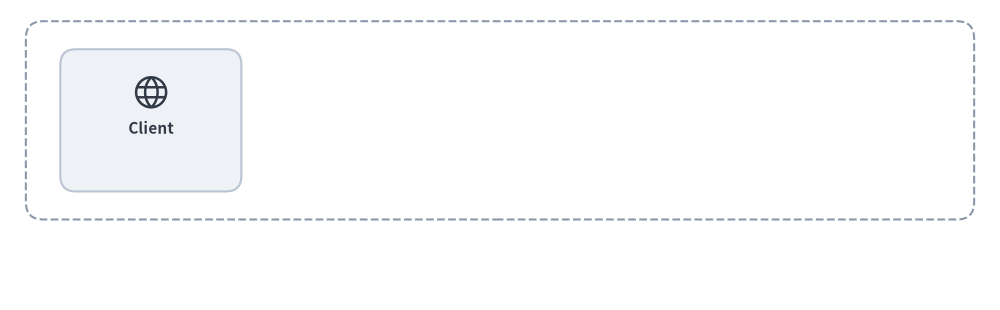

overview_1
Step-by-Step Architecture Reveal
Source Code
from drawlib.anim import Animation
from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.lines import line
from drawlib.shapes import rectangle
from drawlib.styles import Styles

setup(width=116, height=36)
anim = Animation(fps=1.0, loop=0)

# Step 1: Base Client
with anim.frame(clear=True, duration=0.9):
    rectangle((58, 22.0), width=110, height=23, style=Styles.MutedDashed.patch(shape_r=2.0))
    rectangle(
        (17.5, 22.0),
        width=21,
        height=16.5,
        style=Styles.Neutral.patch(shape_r=1.8),
        text="\nClient",
        text_style=Styles.DarkBold.patch(text_size=11.0),
    )
    phosphor.globe((17.5, 25.3), width=4.6, style=Styles.Dark)

# Step 2: Gateway appears (Hero focal node)
with anim.frame(clear=False, duration=0.9):
    rectangle(
        (44.5, 22.0),
        width=21,
        height=16.5,
        style=Styles.PrimaryFlat.patch(shape_r=1.8),
        text="\nGateway",
        text_style=Styles.WhiteBold.patch(text_size=11.0),
    )
    phosphor.shield_check((44.5, 25.3), width=4.6, style=Styles.White)
    line((28.0, 22.0), (34.0, 22.0), arrow_head="->", style=Styles.DarkBold)

# Step 3: Compute Service appears
with anim.frame(clear=False, duration=0.9):
    rectangle(
        (71.5, 22.0),
        width=21,
        height=16.5,
        style=Styles.PrimaryNeutral.patch(shape_r=1.8),
        text="\nCompute",
        text_style=Styles.DarkBold.patch(text_size=11.0),
    )
    phosphor.cpu((71.5, 25.3), width=4.6, style=Styles.Primary)
    line((55.0, 22.0), (61.0, 22.0), arrow_head="->", style=Styles.DarkBold)

# Step 4: Database & Completed State (Held for 2.5 seconds before looping)
with anim.frame(clear=False, duration=2.5):
    rectangle(
        (98.5, 22.0),
        width=21,
        height=16.5,
        style=Styles.SecondaryNeutral.patch(shape_r=1.8),
        text="\nDatabase",
        text_style=Styles.DarkBold.patch(text_size=11.0),
    )
    phosphor.database((98.5, 25.3), width=4.6, style=Styles.Secondary)
    line((82.0, 22.0), (88.0, 22.0), arrow_head="->", style=Styles.DarkBold)
    rectangle(
        (58, 5.2),
        width=58,
        height=6.0,
        style=Styles.PrimaryNeutral.patch(shape_r=1.5),
        text="Architecture Completed",
        text_style=Styles.DarkBold.patch(text_size=11.0),
    )

save()

1. Supported Animation Formats

Format Extension Primary Advantage Best Use Cases
APNG .png, .apng Universal Compatibility: Renders natively in all modern web browsers and GitHub Markdown previews. Safe static fallback to Frame 1 in PDF compilers and legacy viewers. GitHub READMEs, markdown documentation, printable technical documents.
Animated WebP .webp Ultra-Compact File Size: Typically ~50% smaller than APNG with lossless quality. Web-hosted documentation sites, high-performance web applications, mobile platforms.

2. Imports & Canvas Lifecycle

All animation functionality is centered around the Animation class in drawlib.anim:

from drawlib.anim import Animation
from drawlib.canvas import save, setup
from drawlib.shapes import circle, rectangle
from drawlib.styles import Styles

Automatic Canvas Coordination & Saving (save())

When an Animation instance is initialized, it automatically registers itself with the active Drawlib canvas (canvas._active_animation). Calling standard save() captures all accumulated frames into an animated file without requiring separate export methods:

anim = Animation(fps=10.0)

with anim.frame():
    circle((50, 50), radius=10, style=Styles.Primary)

# Saves as APNG (.png or .apng):
save("animation.png")
save("animation.apng")

# Saves as Animated WebP (.webp):
save("animation.webp")

# Or specify format explicitly ("webp", "png", or "apng"):
save("pipeline", format="webp")

Note: Animations are raster frame sequences and cannot be exported as SVG. Calling save("out.svg") or save("out", format="svg") while an Animation is active raises a ValueError. Calling save() when zero frames have been captured also raises a ValueError.

3. The Animation Class API

3.1. Initialization & Read-Only Properties

anim = Animation(
    fps: float | None = None,
    frame_rate: float | None = None,
    loop: int = 0,
)
Parameter / Property Type Default Description
fps float | None 10.0 Target playback frame rate in frames per second (e.g. 10.0 means 10 fps). Must be > 0.
frame_rate float | None 10.0 Alias for fps. If both are specified, fps takes precedence.
loop int 0 Number of animation loops (>= 0). 0 means continuous infinite looping.
anim.fps float (read-only) — Returns the active playback frame rate in frames per second.
anim.frame_rate float (read-only) — Read-only alias for anim.fps.

4. Defining Frames

4.1. Context Manager: with anim.frame() (Recommended)

The with anim.frame() context manager clears the canvas at the start of the block (when clear=True) and captures the rendered frame at the end of the block:

with anim.frame(
    duration: float | None = None,
    clear: bool = True,
):
    # Standard Drawlib drawing calls
    circle((50, 50), radius=10, style=Styles.Primary)
Parameter Type Default Description
duration float | None None Display duration for this frame in seconds (e.g. 1.5 for 1.5 seconds). If None, defaults to 1 / fps (e.g. 0.1s for 10fps).
clear bool True Whether to clear existing canvas shapes before drawing this frame. Defaults to True.

4.2. Imperative Method: anim.add_frame()

For procedural code where context managers are less convenient:

circle((x, y), radius=5, style=Styles.Primary)
anim.add_frame(duration=0.5, clear=True)

5. Two Standard Animation Loop Idioms

When animating technical illustrations, prefer clear=True (default per-frame redraw) over clear=False whenever elements move, change styles, or toggle highlights. Drawlib's unified component lifecycle (add() -> draw()) provides two clean loop patterns depending on the module:

Target Module Recommended Loop Pattern Guide
Primitives (shapes, lines, text, icons, styles) Pattern A: In-Frame Build
Compute per-frame coordinates (get_intermediate_points, get_intermediate_paths) or interpolated colors (get_intermediate_colors) and draw inside with anim.frame():.		 Animating Primitives & Colors
SmartArts (ChevronProcess, Table, TreeNode, etc.) Pattern B: Pre-Build & Mutate (or Pattern A)
Register items once via item = comp.add(...) and mutate item.show, item.style, item.text_style, or item.text before draw(..., scale=1.0). Hidden items still reserve layout slots.		 Animating SmartArts
Charts (BarChart, LineChart, PieChart, GanttChart, etc.) Pattern B: Pre-Build & Mutate
Register series/slices/tasks once outside the loop (s = chart.add_series(...)), then mutate s.show, s.draw_ratio, s.draw_direction, or s.style inside with anim.frame(): before chart.draw(). Auto-scales remain 100% locked.		 Animating Charts
Technical Diagrams (FlowDiagram, ArchitectureDiagram, SequenceDiagram, etc.) Pattern B: Pre-Build & Mutate
Build topology once outside the loop, then mutate .show (auto-hides incident edges and dangling Junction wires), .style, .text_style, or .set_label() and call draw(xy, scale) in each frame.		 Animating Technical Diagrams
Auto-Layout Graphs (ArchitectureGraph, LayerGraph, TreeGraph, etc.) Pattern B: Solve Once (get_layout()) & Mutate / Animate
Call layout = g.get_layout() once outside the loop to lock 100% of coordinates, then either mutate .show / .style on ArchitectureDiagram / FlowDiagram items placed at layout coordinates, or render shapes/lines and animate packets along edge_layout.points.		 Animating Auto-Layout Graphs

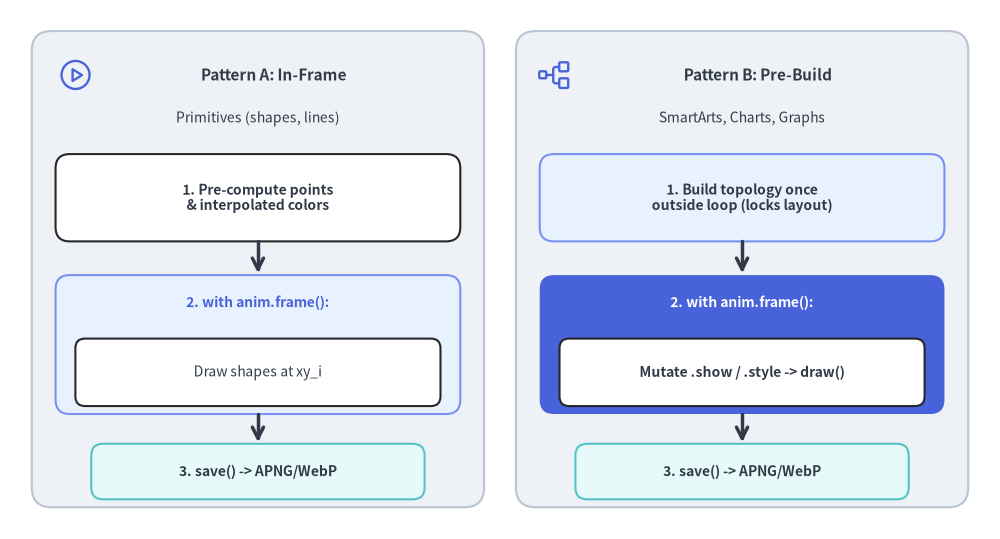

overview_2
Pattern A (In-Frame Build) vs. Pattern B (Pre-Build Outside Loop & Mutate Inside Frame)
Source Code
from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.lines import line
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=126, height=68)

# Left Panel: Pattern A (In-Frame Build)
rectangle((32.5, 34.0), width=57, height=60, style=Styles.Neutral.patch(shape_r=2.5))
phosphor.play_circle((9.5, 58.5), width=4.6, style=Styles.Primary)
text((34.5, 58.5), "Pattern A: In-Frame", style=Styles.DarkBold.patch(text_size=11.0))
text((32.5, 53.0), "Primitives (shapes, lines)", style=Styles.Dark.patch(text_size=10.0))

rectangle((32.5, 43.0), width=51, height=11.0, style=Styles.White.patch(shape_r=1.8))
text((32.5, 43.0), "1. Pre-compute points\n& interpolated colors", style=Styles.DarkBold.patch(text_size=10.0))

line((32.5, 37.5), (32.5, 33.5), arrow_head="->", style=Styles.DarkBold)

rectangle((32.5, 24.5), width=51, height=17.5, style=Styles.PrimaryNeutral.patch(shape_r=1.8))
text((32.5, 29.8), "2. with anim.frame():", style=Styles.PrimaryBold.patch(text_size=10.0))
rectangle((32.5, 21.0), width=46, height=8.5, style=Styles.White.patch(shape_r=1.2))
text((32.5, 21.0), "Draw shapes at xy_i", style=Styles.Dark.patch(text_size=10.0))

line((32.5, 15.7), (32.5, 12.2), arrow_head="->", style=Styles.DarkBold)

rectangle((32.5, 8.5), width=42, height=7.0, style=Styles.SecondaryNeutral.patch(shape_r=1.5))
text((32.5, 8.5), "3. save() -> APNG/WebP", style=Styles.DarkBold.patch(text_size=10.0))

# Right Panel: Pattern B (Pre-Build & Mutate)
rectangle((93.5, 34.0), width=57, height=60, style=Styles.Neutral.patch(shape_r=2.5))
phosphor.tree_structure((70.0, 58.5), width=4.6, style=Styles.Primary)
text((95.5, 58.5), "Pattern B: Pre-Build", style=Styles.DarkBold.patch(text_size=11.0))
text((93.5, 53.0), "SmartArts, Charts, Graphs", style=Styles.Dark.patch(text_size=10.0))

rectangle((93.5, 43.0), width=51, height=11.0, style=Styles.PrimaryNeutral.patch(shape_r=1.8))
text((93.5, 43.0), "1. Build topology once\noutside loop (locks layout)", style=Styles.DarkBold.patch(text_size=10.0))

line((93.5, 37.5), (93.5, 33.5), arrow_head="->", style=Styles.DarkBold)

rectangle((93.5, 24.5), width=51, height=17.5, style=Styles.PrimaryFlat.patch(shape_r=1.8))
text((93.5, 29.8), "2. with anim.frame():", style=Styles.WhiteBold.patch(text_size=10.0))
rectangle((93.5, 21.0), width=46, height=8.5, style=Styles.White.patch(shape_r=1.2))
text((93.5, 21.0), "Mutate .show / .style -> draw()", style=Styles.DarkBold.patch(text_size=10.0))

line((93.5, 15.7), (93.5, 12.2), arrow_head="->", style=Styles.DarkBold)

rectangle((93.5, 8.5), width=42, height=7.0, style=Styles.SecondaryNeutral.patch(shape_r=1.5))
text((93.5, 8.5), "3. save() -> APNG/WebP", style=Styles.DarkBold.patch(text_size=10.0))

save()

6. Design Principles & Recommended fps / Frame duration Strategy

Animation Type Recommended fps Frame duration Strategy Final Hold duration
Continuous Motion / Transitions (moving packets, growing chart series via draw_ratio, color fades, camera pan/zoom) fps=8.0 – 12.0 0.08s – 0.14s per motion frame (or default 1 / fps) duration=2.0 – 3.0
Step-by-Step Architectural Walkthrough (revealing pipeline stages, chart series, or diagram/graph nodes one by one) fps=1.0 – 2.0 0.6s – 1.0s per step duration=2.5 – 3.0
  1. Poster Frame Principle (Static & PDF Compatibility): Standard image viewers and vector PDF exports render Frame 1 as a static fallback image. Never leave Frame 1 completely blank—always show the baseline container or initial node on Frame 1.
  2. Hold the Final Completed Frame: To give readers time to absorb the completed diagram before the loop restarts, set an extended duration (2.0 to 3.0 seconds) on the final frame.
  3. Embedded Markdown Blocks: Any drawlib block that initializes Animation() automatically outputs an animated .png (APNG) or .webp file during drawlib build.
  4. Built-in Lossless Compression:
    • APNG (.png / .apng): Automatically crops sub-frame delta bounding boxes and applies maximum Zlib (compress_level=9) + Huffman (optimize=True) compression.
    • Animated WebP (.webp): Encodes with lossless sub-frame minimization (lossless=True, minimize_size=True), typically ~50% smaller than APNG.

7. Interactive Playback Control in Presentation Slides (slide)

In 16:9 presentation slide decks (drawlib init slide), animated .png (APNG) and .webp blocks can be controlled interactively via <canvas> playback options on the drawlib fence:

```drawlib file=pipeline.webp anim_trigger=click anim_loop=once anim_pause=(2, 4)
from drawlib.anim import Animation
...
```
Option Values Default Description
anim-trigger auto | click auto auto starts playback as soon as the slide appears; click holds on Frame 0 (READY) until the presenter clicks the diagram.
anim-loop once | infinite infinite (once when anim-pause is set) once stops on the final frame (ENDED, click to replay from Frame 0); infinite loops continuously.
anim-pause Comma-separated 0-based frame indices (e.g. 2,4) None Pauses playback (PAUSED) immediately upon rendering each listed frame index. Clicking the diagram resumes playback from frame + 1 until the next pause point or end.

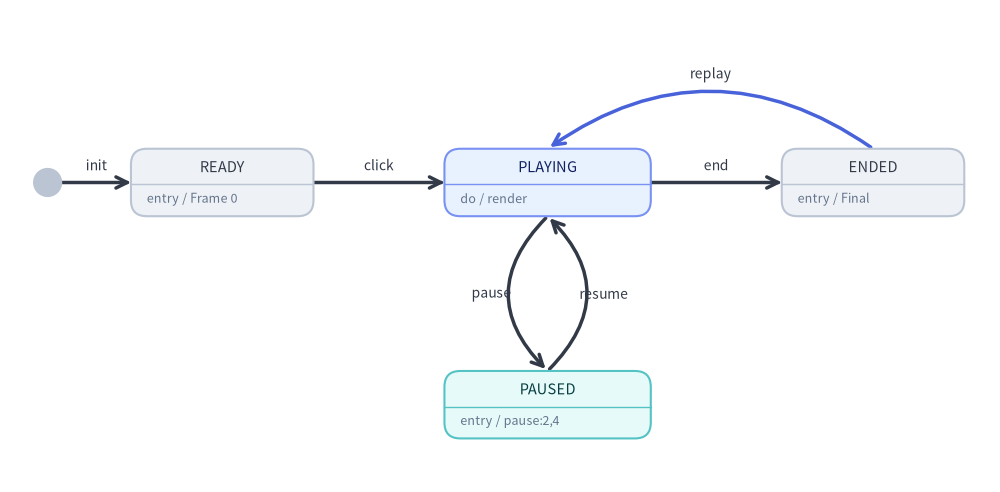

overview_3
Interactive Slide Animation Playback State Machine (READY, PLAYING, PAUSED, ENDED)
Source Code
from drawlib.canvas import save, setup
from drawlib.diagrams.state import InitialState, State, StateDiagram
from drawlib.styles import Styles

setup(width=126, height=62)

sd = StateDiagram(
    node_style=Styles.Neutral.patch(text_size=10.5),
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=10.0),
)

init = sd.add(InitialState(), xy=(6.0, 39.0))
ready = sd.add(
    State("READY", shape="box", entry="Frame 0", width=23.0, style=Styles.Neutral.patch(text_size=10.5)),
    xy=(28.0, 39.0),
)
playing = sd.add(
    State("PLAYING", shape="box", do="render", width=26.0, style=Styles.PrimaryNeutral.patch(text_size=10.5)),
    xy=(69.0, 39.0),
)
paused = sd.add(
    State("PAUSED", shape="box", entry="pause:2,4", width=26.0, style=Styles.SecondaryNeutral.patch(text_size=10.5)),
    xy=(69.0, 11.0),
)
ended = sd.add(
    State("ENDED", shape="box", entry="Final", width=23.0, style=Styles.Neutral.patch(text_size=10.5)),
    xy=(110.0, 39.0),
)

sd.connect(init, ready, label="init")
sd.connect(ready, playing, label="click")
sd.connect(
    playing,
    paused,
    label="pause",
    bend=0.5,
    start_side="bottom_left",
    end_side="top_left",
)
sd.connect(
    paused,
    playing,
    label="resume",
    bend=0.5,
    start_side="top_right",
    end_side="bottom_right",
)
sd.connect(playing, ended, label="end")
sd.connect(
    ended,
    playing,
    label="replay",
    bend=0.35,
    start_side="top",
    end_side="top",
    style=Styles.PrimaryBold,
)

sd.draw()
save()
