Slide Stage Layout & API

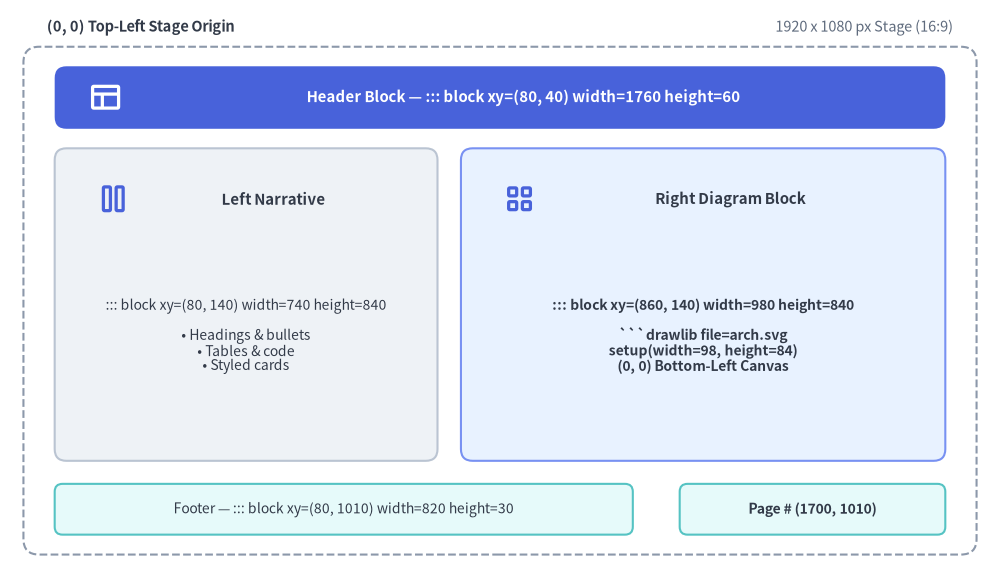

When authoring 16:9 widescreen presentation decks (drawlib init slide), Drawlib provides a precision 1920 × 1080 pixel virtual stage (::: block, ::: note), built-in layout patterns, inline vector SVG font bundling, and the programmatic drawlib.slide Python runtime API (current_slide, SlideContext, BoundingBox, build_slide). (For initializing and building a slide deck project, see Slide Deck Project Guide.)

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=128, height=74)

# Outer 1920x1080 Stage Frame
rectangle((64, 35.5), width=122, height=65, style=Styles.MutedDashed.patch(shape_r=2.0))
text((6, 70.5), "(0, 0) Top-Left Stage Origin", style=Styles.DarkBold.patch(text_size=10.5, halign="left"))
text((122, 70.5), "1920 x 1080 px Stage (16:9)", style=Styles.Muted.patch(text_size=10.5, halign="right"))

# Header Zone: ::: block xy=(80, 40) width=1760 height=60
rectangle((64, 61.5), width=114, height=8.0, style=Styles.PrimaryFlat.patch(shape_r=1.5))
phosphor.layout((13.5, 61.5), width=4.4, style=Styles.WhiteBold)
text((67.0, 61.5), "Header Block — ::: block xy=(80, 40) width=1760 height=60", style=Styles.WhiteBold.patch(text_size=10.8))

# Left Narrative Column: ::: block xy=(80, 140) width=740 height=840
rectangle((31.5, 35.0), width=49, height=40, style=Styles.Neutral.patch(shape_r=1.5))
phosphor.columns((14.5, 48.5), width=4.4, style=Styles.PrimaryBold)
text((35.0, 48.5), "Left Narrative", style=Styles.DarkBold.patch(text_size=10.8))
text(
    (31.5, 31.0),
    "::: block xy=(80, 140) width=740 height=840\n\n• Headings & bullets\n• Tables & code\n• Styled cards",
    style=Styles.Dark.patch(text_size=10.0),
)

# Right Diagram Column: ::: block xy=(860, 140) width=980 height=840
rectangle((90.0, 35.0), width=62, height=40, style=Styles.PrimaryNeutral.patch(shape_r=1.5))
phosphor.squares_four((66.5, 48.5), width=4.4, style=Styles.PrimaryBold)
text((93.5, 48.5), "Right Diagram Block", style=Styles.DarkBold.patch(text_size=10.8))
text(
    (90.0, 31.0),
    "::: block xy=(860, 140) width=980 height=840\n\n```drawlib file=arch.svg\nsetup(width=98, height=84)\n(0, 0) Bottom-Left Canvas",
    style=Styles.DarkBold.patch(text_size=10.0),
)

# Footer & Page Counter Blocks
rectangle(
    (44, 8.8),
    width=74,
    height=6.5,
    style=Styles.SecondaryNeutral.patch(shape_r=1.0),
    text="Footer — ::: block xy=(80, 1010) width=820 height=30",
    text_style=Styles.Dark.patch(text_size=10.0),
)
rectangle(
    (104, 8.8),
    width=34,
    height=6.5,
    style=Styles.SecondaryNeutral.patch(shape_r=1.0),
    text="Page # (1700, 1010)",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)

save()

1. Dual Coordinate Systems: 1920×1080 Stage vs. Drawlib Canvas

Two coordinate systems work together on every slide:

1. Slide Stage (::: block xy=(x, y) width=W height=H) — Top-Left Origin (0, 0):
   • Every slide renders on a fixed 1920 × 1080 pixel widescreen stage (16:9 aspect ratio) that automatically scales to fit the browser viewport or PDF page.
   • Container blocks (::: block) are positioned in CSS stage pixels where (0, 0) is the top-left corner:
     • x increases rightward (0 → 1920).
     • y increases downward (0 → 1080).
   • Standard Safe Content Zone: Keep primary text and diagrams inside x: 80..1840 (width=1760) and y: 140..980 (height=840), reserving y: 40..100 for the slide header and y: 1010..1040 for the footer and page counter.
2. Drawlib Canvas (drawlib Python block) — Bottom-Left Origin (0, 0):
   • Inside any drawlib code block, setup(width=W, height=H) defines a mathematical Cartesian canvas where (0, 0) is the bottom-left corner:
     • x increases rightward (0 → W).
     • y increases upward (0 → H).

1.1. Golden Rule: Match setup(width, height) Aspect Ratio to Block width & height

Always set setup(width=W, height=H) proportional to the enclosing ::: block xy=(x, y) width=W height=H pixel dimensions (typically dividing pixel width and height by 10 or 20):

2. Stage Container Block Syntax (::: block & ::: note)

Slide Markdown files use pure Markdown without YAML frontmatter (---). Every visual element on a slide is placed inside one or more ::: block containers using Python keyword-argument style (key=value):

::: block xy=(x, y) width=W height=H [options...]
<Markdown content or ```drawlib code fence>
:::

If a slide file contains no ::: block tags at all, Drawlib automatically wraps the slide content in the default content zone ::: block xy=(80, 140) width=1760 height=840. Similarly, if xy, width, or height are omitted on a ::: block header, they default to xy=(80, 140), width=1760, and height=840.

2.1. Complete ::: block Options Reference

2.2. Speaker Notes (::: note)

Add presenter notes anywhere inside a slide Markdown file using ::: note. Speaker notes are stripped from the visible slide stage and compiled into <aside class="slide-notes" hidden> for the synchronized dual-window Presenter View (P or S key):

::: note
- Emphasize that **SQLite hash caching** restores unchanged diagrams in **< 1ms**.
- Press `A` or click **Play Animation** to step through the pipeline animation.
:::

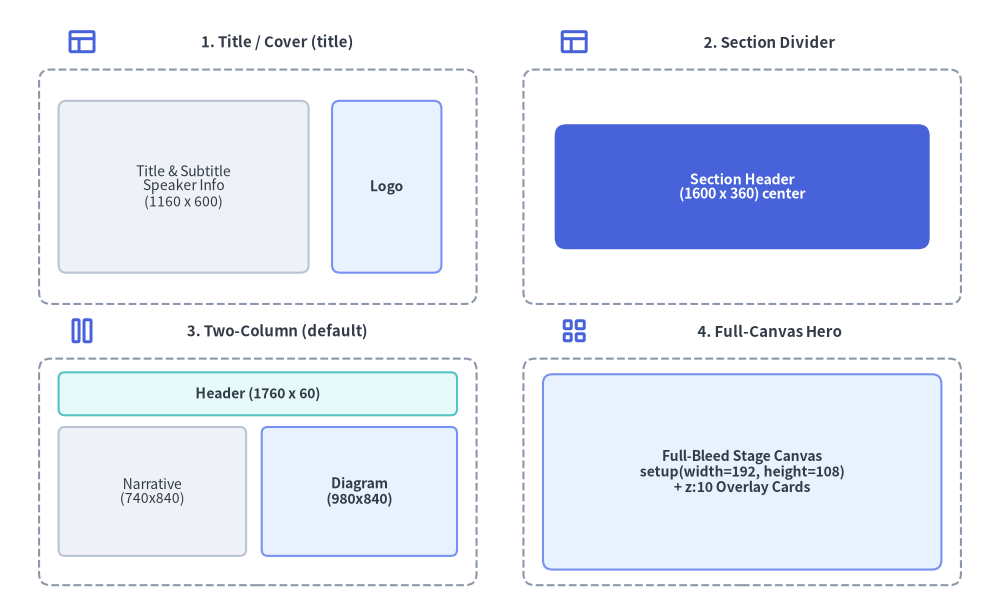

3. Built-In Slide Layout Patterns & Templates

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=128, height=76)

# 1. Top-Left: Title / Cover Slide (title)
phosphor.layout((10.5, 70.5), width=4.0, style=Styles.PrimaryBold)
text((35.5, 70.5), "1. Title / Cover (title)", style=Styles.DarkBold.patch(text_size=10.8))
rectangle((33, 52), width=56, height=30, style=Styles.MutedDashed.patch(shape_r=1.5))
rectangle(
    (23.5, 52),
    width=32,
    height=22,
    style=Styles.Neutral.patch(shape_r=1.0),
    text="Title & Subtitle\nSpeaker Info\n(1160 x 600)",
    text_style=Styles.Dark.patch(text_size=10.0),
)
rectangle(
    (49.5, 52),
    width=14,
    height=22,
    style=Styles.PrimaryNeutral.patch(shape_r=1.0),
    text="Logo",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)

# 2. Top-Right: Section Divider / Closing (section)
phosphor.layout((73.5, 70.5), width=4.0, style=Styles.PrimaryBold)
text((98.5, 70.5), "2. Section Divider", style=Styles.DarkBold.patch(text_size=10.8))
rectangle((95, 52), width=56, height=30, style=Styles.MutedDashed.patch(shape_r=1.5))
rectangle(
    (95, 52),
    width=48,
    height=16,
    style=Styles.PrimaryFlat.patch(shape_r=1.5),
    text="Section Header\n(1600 x 360) center",
    text_style=Styles.WhiteBold.patch(text_size=10.2),
)

# 3. Bottom-Left: Two-Column Split (default)
phosphor.columns((10.5, 33.5), width=4.0, style=Styles.PrimaryBold)
text((35.5, 33.5), "3. Two-Column (default)", style=Styles.DarkBold.patch(text_size=10.8))
rectangle((33, 15.5), width=56, height=29, style=Styles.MutedDashed.patch(shape_r=1.5))
rectangle(
    (33, 25.5),
    width=51,
    height=5.5,
    style=Styles.SecondaryNeutral.patch(shape_r=0.8),
    text="Header (1760 x 60)",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)
rectangle(
    (19.5, 13.0),
    width=24,
    height=16.5,
    style=Styles.Neutral.patch(shape_r=0.8),
    text="Narrative\n(740x840)",
    text_style=Styles.Dark.patch(text_size=10.0),
)
rectangle(
    (46.0, 13.0),
    width=25,
    height=16.5,
    style=Styles.PrimaryNeutral.patch(shape_r=0.8),
    text="Diagram\n(980x840)",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)

# 4. Bottom-Right: Full-Canvas Hero ((0,0)-(1920,1080))
phosphor.squares_four((73.5, 33.5), width=4.0, style=Styles.PrimaryBold)
text((98.5, 33.5), "4. Full-Canvas Hero", style=Styles.DarkBold.patch(text_size=10.8))
rectangle((95, 15.5), width=56, height=29, style=Styles.MutedDashed.patch(shape_r=1.5))
rectangle(
    (95, 15.5),
    width=51,
    height=25,
    style=Styles.PrimaryNeutral.patch(shape_r=1.2),
    text="Full-Bleed Stage Canvas\nsetup(width=192, height=108)\n+ z:10 Overlay Cards",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)

save()

3.1. Title / Cover Slide (title)

Places the main title, subtitle, and speaker metadata on the left and a hero illustration or logo on the right:

::: block xy=(160, 240) width=1160 height=600
# Presentation Title
## Subtitle or Core Value Proposition

Brief one-line summary of the presentation topic

---

**Speaker Name** | Role / Organization
*October 2026*
:::

::: block xy=(1360, 260) width=400 height=480
![Hero Logo](_assets/logo.png)
:::

3.2. Section Header / Chapter Divider Slide (draw_section_header)

Use from drawlib.slide import draw_section_header inside a full-bleed ::: block xy=(0, 0) width=1920 height=1080 block (01_section.md) with one of four layout patterns (variant="split", "centered", "banner", or "minimal"):

::: block xy=(0, 0) width=1920 height=1080
```drawlib file=section_cover.svg
from drawlib.slide import draw_section_header

draw_section_header(
    2,
    "Distributed Storage Engine",
    "Consensus, Replication & Recovery Workflows",
    [
        "Raft Consensus & Leader Election",
        "Quorum Write Path & WAL Durability",
        "Automated Shard Rebalancing",
    ],
    total_sections=4,
    variant="split",
)
```
:::

3.3. Default Content & Two-Column Split (default)

Combines a standard header ((80, 40) (1760, 60)), footer ((80, 1010) (820, 30)), page counter ((1700, 1010) (140, 30)), left narrative column ((80, 140) (740, 840)), and right diagram column ((860, 140) (980, 840)):

::: block xy=(1700, 1010) width=140 height=30
```drawlib file=page.svg
from drawlib.slide import draw_page_number

draw_page_number()
```
:::

::: block xy=(80, 40) width=1760 height=60
# Cloud Microservices Topology
:::

::: block xy=(80, 140) width=740 height=840
## Key Architectural Decisions

- **API Gateway**: Centralized TLS termination and rate limiting
- **Service Mesh**: mTLS zero-trust east-west communication
- **Event Streaming**: Asynchronous decoupling via Pub/Sub
:::

::: block xy=(860, 140) width=980 height=840
```drawlib file=arch_topology.svg
from drawlib.canvas import clear, save, setup
from drawlib.shapes import rectangle
from drawlib.styles import Styles

clear()
setup(width=98, height=84)
rectangle((49, 42), width=80, height=60, style=Styles.Neutral, text="Architecture Diagram")
save()
```
:::

::: block xy=(80, 1010) width=820 height=30 font_size=14px
*Deck Footer / Presentation Title*
:::

3.4. Full-Canvas Hero Slide (xy=(0, 0) width=1920 height=1080)

Use a single xy=(0, 0) width=1920 height=1080 block with setup(width=192, height=108) and z_index=10 overlays when you want to draw the entire 16:9 slide as a unified vector canvas.

4. Inline Vector .svg vs. Animated .png / .webp in Slides

5. Programmatic drawlib.slide Python API

All slide runtime helpers, stage/page helpers, geometry models, and compilation functions are exported by drawlib.slide:

from drawlib.slide import (
    BoundingBox,
    SlideContext,
    build_slide,
    current_slide,
    draw_page_number,
    draw_section_header,
)

5.1. current_slide, SlideContext, and BoundingBox Reference

During build_slide(), Drawlib binds SlideContext(index=idx, total=N) before executing each slide's drawlib blocks (defaulting safely to 1 / 1 when run standalone):

from drawlib.slide import draw_page_number, draw_section_header

# 1. Bottom-right page counter badge (::: block xy=(1700, 1010) width=140 height=30)
draw_page_number()

# 2. Full-bleed 16:9 section header slide (::: block xy=(0, 0) width=1920 height=1080)
draw_section_header(
    1,
    "Architecture Overview",
    "Core Engine, SmartArts & Auto-Layout Graphs",
    ["Coordinate Geometry", "Semantic Design Tokens", "High-Level Components"],
    total_sections=4,
    variant="split",  # "split" | "centered" | "banner" | "minimal"
)

5.2. Compiling Slides Programmatically (build_slide)

from drawlib.slide import build_slide

index_html_path = build_slide(
    input_dir="slide_src",
    output_dir="slide_html",
    title="System Architecture Deck",
    theme="google",
    image_format="svg",
    styles_path="slide_src/styles.py",
    utils_path="slide_src/utils.py",
    no_cache=False,
)
