The Autonomous Multimodal Visual Feedback Loop

A key strength of modern AI coding assistants equipped with vision tools (such as Claude 3.5 Sonnet, Gemini 1.5 Pro, and GPT-4o) is the ability to visually inspect their own drawings before presenting them to the user.

Drawlib is engineered specifically to empower this autonomous self-correction loop.

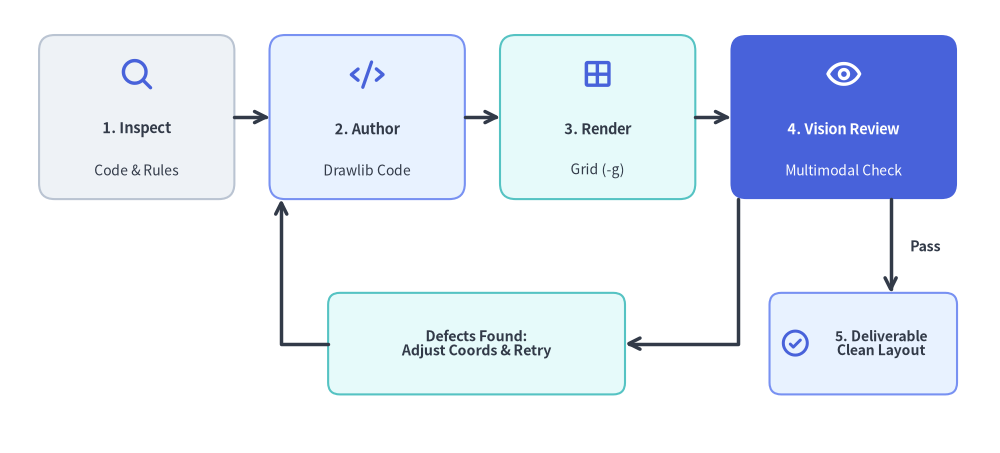

multimodal_feedback_loop_1
The Autonomous Multimodal AI Visual Self-Correction Loop
Source Code
from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.lines import line, lines
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=128, height=58)

# Top Row: Stages 1 to 4
stages = [
    (17.5, "1. Inspect", "Code & Rules", Styles.Neutral, Styles.DarkBold, Styles.Dark, phosphor.magnifying_glass, Styles.PrimaryBold),
    (47.0, "2. Author", "Drawlib Code", Styles.PrimaryNeutral, Styles.DarkBold, Styles.Dark, phosphor.code, Styles.PrimaryBold),
    (76.5, "3. Render", "Grid (-g)", Styles.SecondaryNeutral, Styles.DarkBold, Styles.Dark, phosphor.grid_four, Styles.PrimaryBold),
    (108.0, "4. Vision Review", "Multimodal Check", Styles.PrimaryFlat, Styles.WhiteBold, Styles.White, phosphor.eye, Styles.WhiteBold),
]
for sx, title, sub, st, tst, sub_st, icon_fn, icon_st in stages:
    w = 29 if sx > 100 else 25
    rectangle((sx, 43.0), width=w, height=21, style=st.patch(shape_r=2.0))
    icon_fn((sx, 48.5), width=4.6, style=icon_st)
    text((sx, 41.5), title, style=tst.patch(text_size=10.5))
    text((sx, 36.2), sub, style=sub_st.patch(text_size=10.0))

# Forward Connectors (1 -> 2 -> 3 -> 4)
line((30.0, 43.0), (34.5, 43.0), arrow_head="->", style=Styles.DarkBold)
line((59.5, 43.0), (64.0, 43.0), arrow_head="->", style=Styles.DarkBold)
line((89.0, 43.0), (93.5, 43.0), arrow_head="->", style=Styles.DarkBold)

# Decision Branch A: Defects Found -> Loop Back to Step 2
rectangle(
    (61.0, 14.0),
    width=38,
    height=13,
    style=Styles.SecondaryNeutral.patch(shape_r=1.5),
    text="Defects Found:\nAdjust Coords & Retry",
    text_style=Styles.DarkBold.patch(text_size=10.2),
)
lines([(94.5, 32.5), (94.5, 14.0), (80.0, 14.0)], arrow_head="->", style=Styles.DarkBold)
lines([(42.0, 14.0), (36.0, 14.0), (36.0, 32.5)], arrow_head="->", style=Styles.DarkBold)

# Decision Branch B: Pass -> Step 5 Final Deliverable
rectangle((110.5, 14.0), width=24, height=13, style=Styles.PrimaryNeutral.patch(shape_r=1.5))
phosphor.check_circle((101.8, 14.0), width=4.0, style=Styles.PrimaryBold)
text((112.8, 14.0), "5. Deliverable\nClean Layout", style=Styles.DarkBold.patch(text_size=10.0))
line((114.0, 32.5), (114.0, 20.5), arrow_head="->", style=Styles.DarkBold)
text((116.5, 26.5), "Pass", style=Styles.DarkBold.patch(text_size=10.2, halign="left"))

save()

1. The Autonomous Feedback Cycle

Stage 1: Inspect Context

Rather than imagining an architecture from thin air, the agent inspects real repository source code (models.py, API routes, microservice configurations).

Stage 2: Prototype in Isolated Scratch Space (.drawlib/scratch/)

The agent drafts the drawing prototype code in an isolated scratch file (.drawlib/scratch/test_diagram.py) or tests a specific block instead of altering production assets blindly. Do NOT pollute the project root; ensure .drawlib/ is in .gitignore.

Stage 3: Headless Render with Coordinate Grid (-g)

The agent executes drawlib show with the -g flag to render the diagram overlaid with coordinate axes, tick marks, and numeric coordinate labels (targeting embedded Markdown blocks by their explicit file: name rather than fragile numeric index):

# Render an embedded Markdown block by explicit filename with coordinate grid (Recommended):
uv run drawlib show docs_src/architecture.md service_mesh.png -g -o .drawlib/scratch/preview.png

# Or render a standalone Python script with coordinate grid:
uv run drawlib show .drawlib/scratch/test_diagram.py -g -o .drawlib/scratch/test_diagram.png

Stage 4: Multimodal Inspection

Using vision inspection tools (such as view_file or an image viewer), the agent examines the rendered output for five common visual defects:

  1. Text Overflow & Clipping: Did a long service name or method label spill outside its enclosing box?
  2. Line & Arrow Overlaps: Are orthogonal lines colliding awkwardly, or are arrowheads obscured by shapes?
  3. Canvas Margin Starvation: Are outermost elements pushed right up against the canvas boundary with zero padding?
  4. Color Contrast: Is dark text placed over dark shape fills, or light text on pale backgrounds?
  5. Color Overuse (Rainbow Chaos): Are all boxes colored with saturated fills? Ground 50%+ of nodes in calm neutral or tinted-neutral styles (Styles.Neutral, Styles.NeutralFlat, Styles.PrimaryNeutral, Styles.SecondaryNeutral) and reserve saturated hero fills (Styles.PrimaryFlat) for 1–2 key focal points.

Stage 5: Iterative Refinement

Because the coordinate grid directly reveals the exact (x, y) location of every visual defect, the agent can adjust coordinates deterministically (e.g. "Move box X from 45.0 to 52.0 to eliminate overlap") rather than guessing.

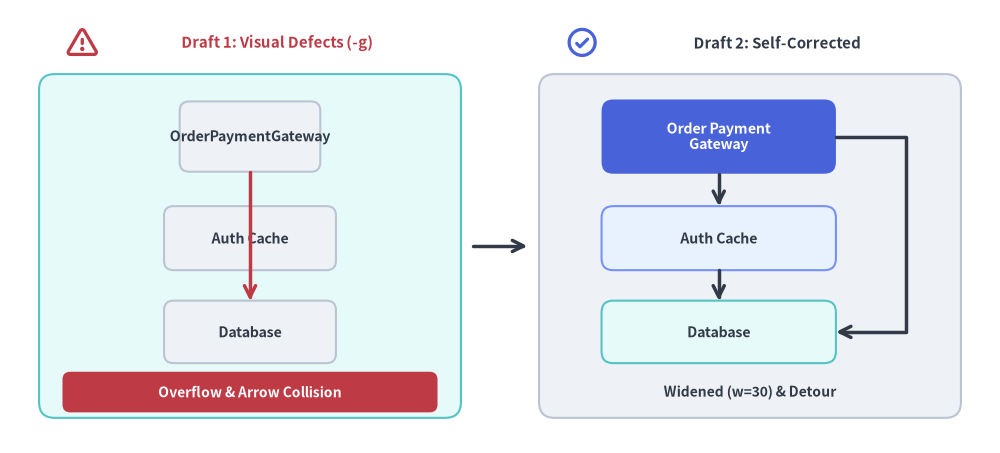

multimodal_feedback_loop_2
Before vs. After Multimodal Self-Correction Using the Coordinate Grid (-g)
Source Code
from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.lines import line, lines
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=128, height=58)

# Left Panel: Draft 1 with Visual Defects
phosphor.warning((10.5, 52.5), width=4.4, style=Styles.DangerBold)
text((35.5, 52.5), "Draft 1: Visual Defects (-g)", style=Styles.DangerBold.patch(text_size=10.8))
rectangle((32, 26.5), width=54, height=44, style=Styles.SecondaryNeutral.patch(shape_r=2.0))

# Narrow box (width=18) causing label overflow
rectangle(
    (32, 40.5),
    width=18,
    height=9.0,
    style=Styles.Neutral.patch(shape_r=1.2),
    text="OrderPaymentGateway",
    text_style=Styles.DarkBold.patch(text_size=10.2),
)
rectangle(
    (32, 27.5),
    width=22,
    height=8.2,
    style=Styles.Neutral.patch(shape_r=1.2),
    text="Auth Cache",
    text_style=Styles.DarkBold.patch(text_size=10.2),
)
rectangle(
    (32, 15.5),
    width=22,
    height=8.0,
    style=Styles.Neutral.patch(shape_r=1.2),
    text="Database",
    text_style=Styles.DarkBold.patch(text_size=10.2),
)
# Colliding arrow cutting straight through intermediate node
line((32, 36.0), (32, 19.5), arrow_head="->", style=Styles.DangerBold)

rectangle(
    (32, 7.8),
    width=48,
    height=5.2,
    style=Styles.DangerFlat.patch(shape_r=1.0),
    text="Overflow & Arrow Collision",
    text_style=Styles.WhiteBold.patch(text_size=10.0),
)

# Center Transition Arrow
line((60.5, 26.5), (67.5, 26.5), arrow_head="->", style=Styles.DarkBold)

# Right Panel: Draft 2 Self-Corrected
phosphor.check_circle((74.5, 52.5), width=4.4, style=Styles.PrimaryBold)
text((99.5, 52.5), "Draft 2: Self-Corrected", style=Styles.DarkBold.patch(text_size=10.8))
rectangle((96, 26.5), width=54, height=44, style=Styles.Neutral.patch(shape_r=2.0))

rectangle(
    (92, 40.5),
    width=30,
    height=9.5,
    style=Styles.PrimaryFlat.patch(shape_r=1.5),
    text="Order Payment\nGateway",
    text_style=Styles.WhiteBold.patch(text_size=10.2),
)
rectangle(
    (92, 27.5),
    width=30,
    height=8.2,
    style=Styles.PrimaryNeutral.patch(shape_r=1.5),
    text="Auth Cache",
    text_style=Styles.DarkBold.patch(text_size=10.2),
)
rectangle(
    (92, 15.5),
    width=30,
    height=8.0,
    style=Styles.SecondaryNeutral.patch(shape_r=1.5),
    text="Database",
    text_style=Styles.DarkBold.patch(text_size=10.2),
)

# Clean step connectors & orthogonal detour routing around intermediate node
line((92, 35.75), (92, 31.6), arrow_head="->", style=Styles.DarkBold)
line((92, 23.4), (92, 19.5), arrow_head="->", style=Styles.DarkBold)
lines([(107, 40.5), (116, 40.5), (116, 15.5), (107, 15.5)], arrow_head="->", style=Styles.DarkBold)

text((96, 7.8), "Widened (w=30) & Detour", style=Styles.DarkBold.patch(text_size=10.0))

save()

Stage 6: Macro-Page Browser HTML Verification (1280×920 Viewport)

For illustrated documentation (docs_src/ or doc_src/), inspecting a standalone PNG in isolation is not enough—a diagram rendered at 1000px can still appear unreadable in HTML if capped by a narrow pixel width (600px) or authored with text_size=8.0. Before delivering, the agent compiles the HTML site (./docs_src/build.sh), validates links (uv run drawlib serve docs_html/ --check), and inspects a 1280×920 headless Chromium screenshot of the rendered HTML page to verify:

  1. Above-the-Fold Top Hero (Lines 5–15, fold-code): The # Title, lead paragraph, and complete Top Hero diagram are visible immediately without scrolling.
  2. Prose-to-Diagram Font Harmony (720pt Canvas Law): Because Drawlib maps every canvas width to 720pt ($\text{CSS px} = \text{text_size} \times \text{Width} / 720$), omitting narrow px width caps and keeping text_size >= 10.0 ensures diagram labels match 16px HTML body prose.

Tip: Run uv run drawlib rules show review-guide for the complete 3-Stage Autonomous Review & Self-Correction manual, including the Center vs. Bottom-Left coordinate anchor reference table.

2. Visual Self-Repair Checklist

When performing a multimodal self-review, check off each item in this matrix:

Verification Area Common Visual Flaw Deterministic Fix
HTML Typography (720pt Law) Diagram labels look tiny next to 16px HTML prose Omit narrow pixel widths (500px/600px) on fences, set text_size >= 10.0 (standard 10.5–12.0), and widen boxes by 20%–30%.
Above-the-Fold Hero Reader sees only a wall of text or a 50-line code block on page load Place the first diagram at Lines 5–15 using fold-code and combine phosphor/gcp icons with SmartArts/Diagrams.
Anchor Semantics Table, BarChart, or FlowDiagram shifted off-center to the right Remember shapes/text/icons use Center (cx, cy), whereas SmartArts/Charts/Diagrams/Graphs use Bottom-Left (x0, y0) (x0 = (W - width) / 2).
Canvas Padding Outer nodes or labels touching canvas perimeter Increase canvas dimensions in setup(width=..., height=...) or inset outer shapes by at least 4–8 units from all edges.
Node Alignment Jagged, slightly crooked horizontal or vertical connection lines Ensure horizontally aligned nodes share the exact same y coordinate and vertically stacked nodes share the exact same x coordinate.
Label Breathing Room Multi-line text touching or overflowing card borders Increase box width / height or insert explicit \n line breaks.
Arrowheads & Edge Labels Arrowhead clipped inside target node, or parallel edge labels colliding Add padding=1.5 or 2.0 on connectors, route return paths onto distinct sides (from_side="bottom", to_side="bottom"), or use label_offset=(dx, dy).
50%+ Neutral Baseline Confusing multi-color "rainbow" diagram where every node competes for attention Ground 50%+ of shapes in calm neutral styles (Styles.Neutral, Styles.PrimaryNeutral, Styles.SecondaryNeutral), use Styles.MutedDashed for boundary containers, and reserve saturated hero fills (Styles.PrimaryFlat) for 1–2 focal components.
Text Luminance Contrast Dark text over dark Flat fill or white text over light Neutral fill Always pair saturated Flat fills (Styles.PrimaryFlat, Styles.DangerFlat) with text_style=Styles.WhiteBold, and light Neutral fills with Styles.DarkBold or Styles.Dark.
