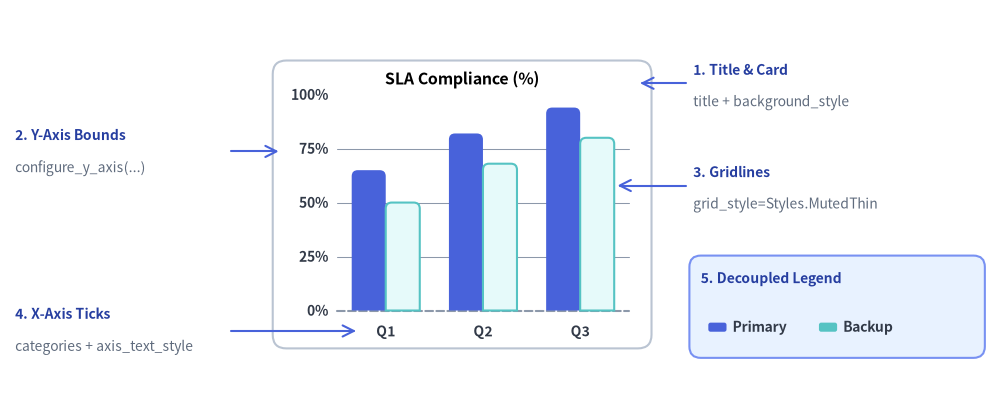

Axes, Scales & Legends

All Cartesian charts (BarChart, LineChart, AreaChart, ScatterChart) and multi-series/slice charts (PieChart, RadarChart) share a unified foundation for coordinate axis scaling, tick and unit formatting, decoupled legend placement, and bounding-box measurement.

Every visual axis element follows Drawlib's presence-based styling model, giving you independent control over domain bounds, gridlines, tick formatters, and legend coordinates.

from drawlib.canvas import save, setup
from drawlib.charts.bar import BarChart
from drawlib.lines import line
from drawlib.shapes import rectangle
from drawlib.styles import Colors, Styles
from drawlib.text import text

setup(width=132, height=54)

chart = BarChart(
    categories=["Q1", "Q2", "Q3"],
    axis_line_style=Styles.MutedDashed,
    axis_text_style=Styles.DarkBold.patch(text_size=10.0),
    grid_style=Styles.MutedThin,
    background_style=Styles.Neutral.patch(shape_r=1.8, shape_fill_color=Colors.White, shape_line_color=Colors.Gray4),
    width=50.0,
    height=38.0,
    title="SLA Compliance (%)",
    title_style=Styles.BlackBold.patch(text_size=11.5),
    bar_mode="group",
    bar_r=0.8,
)
chart.add_series("Primary", [65.0, 82.0, 94.0], style=Styles.PrimaryFlat)
chart.add_series("Backup", [50.0, 68.0, 80.0], style=Styles.SecondaryNeutral)
chart.configure_y_axis(min_value=0, max_value=100, tick_step=25, format="{:.0f}%")
chart.draw(xy=(36.0, 8.0))

callout_title = Styles.DarkBold.patch(text_size=10.0, halign="left", text_color=Colors.Primary5)
callout_sub = Styles.Muted.patch(text_size=10.0, halign="left")
arrow_style = Styles.Primary.patch(shape_line_width=1.2)

# 1. Title & Background Card (Top-Right Callout)
line((90.5, 43.0), (84.5, 43.0), arrow_head="->", style=arrow_style)
text((91.5, 44.8), "1. Title & Card", style=callout_title)
text((91.5, 40.5), "title + background_style", style=callout_sub)

# 2. Y-Axis Bounds & Format (Top-Left Callout)
line((30.5, 34.0), (36.8, 34.0), arrow_head="->", style=arrow_style)
text((2.0, 36.2), "2. Y-Axis Bounds", style=callout_title)
text((2.0, 31.8), "configure_y_axis(...)", style=callout_sub)

# 3. Horizontal Gridlines (Middle-Right Callout)
line((90.5, 29.5), (81.5, 29.5), arrow_head="->", style=arrow_style)
text((91.5, 31.3), "3. Gridlines", style=callout_title)
text((91.5, 27.0), "grid_style=Styles.MutedThin", style=callout_sub)

# 4. X-Axis Category Ticks (Bottom-Left Callout)
line((30.5, 10.3), (47.0, 10.3), arrow_head="->", style=arrow_style)
text((2.0, 12.6), "4. X-Axis Ticks", style=callout_title)
text((2.0, 8.2), "categories + axis_text_style", style=callout_sub)

# 5. Decoupled Legend (Bottom-Right Box & Callout)
rectangle((110.5, 13.5), width=39.0, height=13.5, style=Styles.PrimaryNeutral.patch(shape_r=1.5))
text((92.5, 17.2), "5. Decoupled Legend", style=callout_title)
chart.draw_legend(
    xy=(93.5, 10.8),
    text_style=Styles.DarkBold.patch(text_size=10.0),
    orientation="horizontal",
    swatch_width=2.4,
    swatch_height=1.2,
    item_gap=3.0,
)

save()

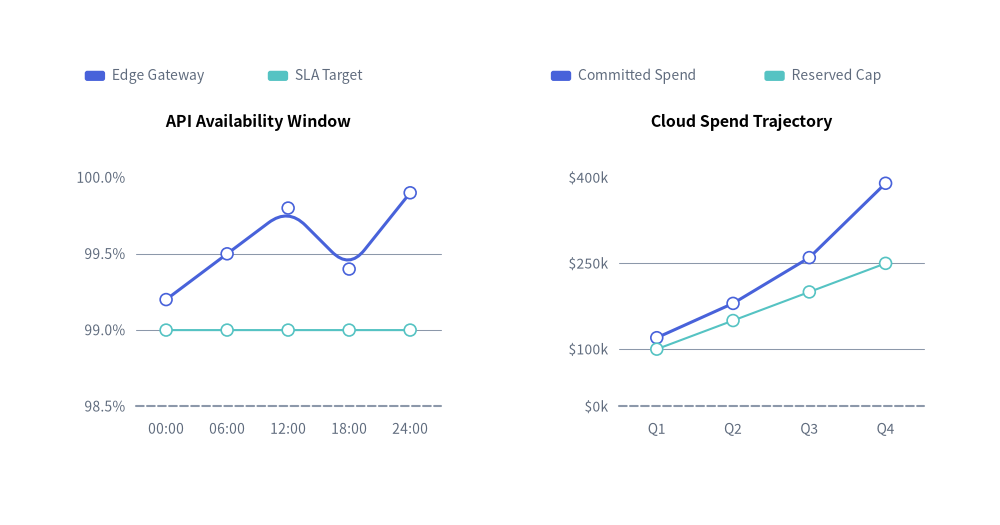

1. Custom Axis Bounds, Tick Steps & Value Formatting

Cartesian charts expose chart.configure_x_axis(...) and chart.configure_y_axis(...) (backed by the Axis model) to customize domain bounds (min_value, max_value), explicit ticks (ticks or tick_step), format strings or callables (format), unit suffixes (unit), and axis titles (label).

from drawlib.canvas import save, setup
from drawlib.charts.line import LineChart
from drawlib.styles import Styles

setup(width=118, height=62)

# Left Chart: Explicit tick_step, format string, and unit suffix
sla_chart = LineChart(
    axis_line_style=Styles.MutedDashed,
    categories=["00:00", "06:00", "12:00", "18:00", "24:00"],
    axis_text_style=Styles.Muted.patch(text_size=10.0),
    grid_style=Styles.MutedThin,
    width=49.0,
    height=42.0,
    title="API Availability Window",
    title_style=Styles.BlackBold.patch(text_size=11.5),
    smooth=True,
    show_points=True,
)
sla_chart.add_series("Edge Gateway", [99.2, 99.5, 99.8, 99.4, 99.9], style=Styles.PrimaryFlat, line_width=2.2)
sla_chart.add_series("SLA Target", [99.0, 99.0, 99.0, 99.0, 99.0], style=Styles.SecondaryNeutral, line_style="dashed")

sla_chart.configure_y_axis(
    min_value=98.5,
    max_value=100.0,
    tick_step=0.5,
    format="{:.1f}%",
    label="Uptime (%)",
)
sla_chart.draw(xy=(6.0, 8.0))
sla_chart.draw_legend(xy=(10.0, 53.0), text_style=Styles.Muted.patch(text_size=10.0), orientation="horizontal")

# Right Chart: Custom callable formatter and explicit ticks list
cost_chart = LineChart(
    axis_line_style=Styles.MutedDashed,
    categories=["Q1", "Q2", "Q3", "Q4"],
    axis_text_style=Styles.Muted.patch(text_size=10.0),
    grid_style=Styles.MutedThin,
    width=49.0,
    height=42.0,
    title="Cloud Spend Trajectory",
    title_style=Styles.BlackBold.patch(text_size=11.5),
    show_points=True,
)
cost_chart.add_series("Committed Spend", [120, 180, 260, 390], style=Styles.PrimaryFlat, line_width=2.2)
cost_chart.add_series("Reserved Cap", [100, 150, 200, 250], style=Styles.SecondaryNeutral, line_style="dotted")

cost_chart.configure_y_axis(
    ticks=[0, 100, 250, 400],
    format=lambda v: f"${v:,.0f}k",
    label="Quarterly Cost (USD)",
)
cost_chart.draw(xy=(63.0, 8.0))
cost_chart.draw_legend(xy=(65.0, 53.0), text_style=Styles.Muted.patch(text_size=10.0), orientation="horizontal")
save()

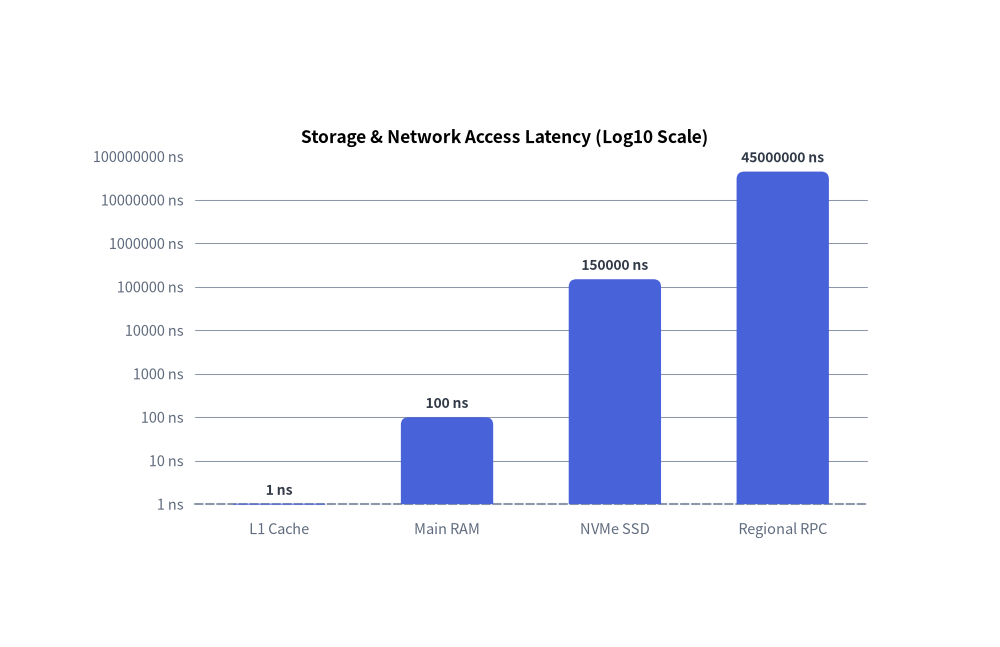

2. Linear ("Nice Numbers") vs. Logarithmic (scale="log") Scaling

Each Axis supports two scaling engines via scale:

• scale="linear" (default): Uses the Nice Numbers algorithm to automatically select human-readable step intervals ($1, 2, 5 \times 10^k$) across the data range when tick_step and ticks are omitted.
• scale="log": Maps positive values onto a base-10 logarithmic axis ($\log_{10}$). Bounds automatically snap to powers of 10 ($10^0, 10^1, 10^2, \dots$), and intermediate ticks ($1, 2, 5 \times 10^k$) are generated automatically when the span covers $\le 2$ orders of magnitude.

from drawlib.canvas import save, setup
from drawlib.charts.bar import BarChart
from drawlib.styles import Styles

setup(width=105, height=68)

chart = BarChart(
    axis_line_style=Styles.MutedDashed,
    categories=["L1 Cache", "Main RAM", "NVMe SSD", "Regional RPC"],
    axis_text_style=Styles.Muted.patch(text_size=10.5),
    grid_style=Styles.MutedThin,
    value_text_style=Styles.DarkBold.patch(text_size=10.0),
    value_format="{:g} ns",
    width=82.0,
    height=46.0,
    title="Storage & Network Access Latency (Log10 Scale)",
    title_style=Styles.BlackBold.patch(text_size=12.5),
    bar_width_ratio=0.55,
    bar_r=0.8,
)
chart.add_series("Median Read Latency", [1.0, 100.0, 150000.0, 45000000.0], style=Styles.PrimaryFlat)

chart.configure_y_axis(
    scale="log",
    unit="ns",
    label="Access Time in Nanoseconds (log10)",
)
chart.draw(xy=(12.0, 10.0))
save()

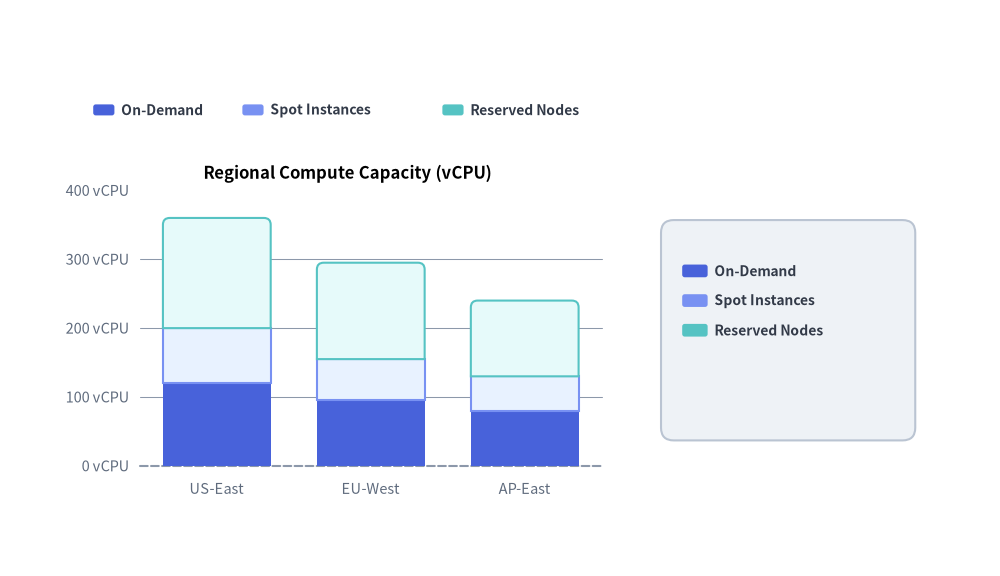

3. Decoupled Legends (draw_legend) & Bounding Sizing (get_size)

Instead of hardcoding legends inside a rigid chart box, Drawlib decouples legend rendering via chart.draw_legend(...). You can place horizontal or vertical legends anywhere on the canvas, customize swatch_width, swatch_height, and item_gap, and query chart.get_size() -> (width, height) to align legends or surrounding cards relative to the chart's dimensions.

from drawlib.canvas import save, setup
from drawlib.charts.bar import BarChart
from drawlib.shapes import rectangle
from drawlib.styles import Styles

setup(width=118, height=68)

chart = BarChart(
    categories=["US-East", "EU-West", "AP-East"],
    axis_line_style=Styles.MutedDashed,
    axis_text_style=Styles.Muted.patch(text_size=10.5),
    grid_style=Styles.MutedThin,
    width=66.0,
    height=42.0,
    title="Regional Compute Capacity (vCPU)",
    title_style=Styles.BlackBold.patch(text_size=12.0),
    bar_mode="stack",
    bar_r=0.8,
)
chart.add_series("On-Demand", [120, 95, 80], style=Styles.PrimaryFlat)
chart.add_series("Spot Instances", [80, 60, 50], style=Styles.PrimaryNeutral)
chart.add_series("Reserved Nodes", [160, 140, 110], style=Styles.SecondaryNeutral)
chart.configure_y_axis(unit="vCPU")

chart_x, chart_y = 8.0, 8.0
chart.draw(xy=(chart_x, chart_y))

# 1. Horizontal Legend placed above the chart plot area
chart.draw_legend(
    xy=(11.0, 55.0),
    orientation="horizontal",
    item_gap=3.5,
    swatch_width=2.5,
    swatch_height=1.3,
    text_style=Styles.DarkBold.patch(text_size=10.0),
)

# 2. Vertical Legend inside a Sidebar Card aligned via chart.get_size()
chart_w, chart_h = chart.get_size()
legend_card_cx = chart_x + chart_w + 19.0
rectangle(
    xy=(legend_card_cx, chart_y + chart_h / 2.0),
    width=30.0,
    height=26.0,
    style=Styles.Neutral.patch(shape_r=1.5),
)

chart.draw_legend(
    xy=(legend_card_cx - 12.5, chart_y + chart_h / 2.0 + 7.0),
    text_style=Styles.DarkBold.patch(text_size=10.0),
    orientation="vertical",
    swatch_width=3.0,
    swatch_height=1.5,
)
save()

4. API Reference

Axis Configuration (configure_x_axis / configure_y_axis & Axis)

Available on BarChart, LineChart, AreaChart, and ScatterChart (returns the underlying Axis instance):

chart.configure_x_axis(
    scale: Literal["linear", "log"] | None = None,
    min_value: float | None = None,
    max_value: float | None = None,
    ticks: list[float] | None = None,
    tick_step: float | None = None,
    format: str | Callable[[float], str] | None = None,
    unit: str | None = None,
    label: str | None = None,
    show_grid: bool | None = None,
    grid_style: Style | None = None,
    show_axis_line: bool | None = None,
    line_style: Style | None = None,
    show_ticks: bool | None = None,
    tick_label_style: Style | None = None,
) -> Axis

(Identical parameters are accepted by chart.configure_y_axis(...). The underlying Axis(...) constructor and axis.configure(...) method also accept label_style: Style | None = None).

Direct Axis Property Access & Axis.format_value(val)

In addition to configure_x_axis() and configure_y_axis(), you can inspect or mutate the underlying Axis objects directly via properties:

• chart.x_axis -> Axis and chart.y_axis -> Axis: Direct access to the horizontal and vertical Axis instances on BarChart, LineChart, AreaChart, and ScatterChart.
• bar_chart.value_axis -> Axis: Orientation-aware property on BarChart that returns y_axis when orientation == "vertical" and x_axis when orientation == "horizontal".
• bar_chart.category_axis -> Axis: Orientation-aware property on BarChart that returns x_axis when orientation == "vertical" and y_axis when orientation == "horizontal".
• axis.format_value(value: float) -> str: Formats any numeric value into a display string using the axis's configured format string/callable and unit suffix (automatically rounding near-integers when format=None).

# Orientation-independent configuration on BarChart + custom label_style and format_value()
chart.value_axis.configure(min_value=0, max_value=100, unit="%", label="Utilization", label_style=Styles.DarkBold)
formatted = chart.value_axis.format_value(85.0)  # -> "85 %"

Radial Axis Configuration (RadarChart): RadarChart provides chart.configure_axis(*, min_value=None, max_value=None, levels=None, scale_format=None) -> RadarChart to configure concentric spoke rings.

Decoupled Legend Rendering (draw_legend)

Available on BarChart, LineChart, AreaChart, PieChart, RadarChart, and ScatterChart:

chart.draw_legend(
    xy: tuple[float, float],
    text_style: Style,
    orientation: Literal["vertical", "horizontal"] = "vertical",
    swatch_width: float = 2.4,
    swatch_height: float = 1.2,
    item_gap: float = 4.0,
    *,
    scale: float = 1.0,
) -> None

• Coordinate Anchor xy: For orientation="vertical", xy is the top-left starting point (items step downward). For orientation="horizontal", xy is the middle-left starting point (items flow rightward separated by item_gap).
• Per-Item Styling & Visibility: Each add_series(...) or add_slice(...) call accepts legend_text_style: Style | None = None and show: bool = True. If an element has show=False, its legend entry is automatically hidden while preserving horizontal layout spacing.

Layout Sizing (get_size)

Available on all 7 chart classes (BarChart, LineChart, AreaChart, PieChart, RadarChart, ScatterChart, GanttChart):

width, height = chart.get_size()

Returns the unscaled (width, height) bounding box dimensions of the chart in canvas units.
