Animating Auto-Layout Graphs

All 5 declarative auto-layout graph solvers in drawlib.graph (ArchitectureGraph, LayerGraph, TreeGraph, RadialGraph, and GridGraph) are pure coordinate & layout calculators that pair naturally with Pattern B (Solve Once via get_layout() & Mutate / Animate):

from drawlib.anim import Animation
from drawlib.canvas import save, setup
from drawlib.graph import TreeGraph
from drawlib.icons import phosphor
from drawlib.lines import lines
from drawlib.shapes import rectangle
from drawlib.styles import Styles

setup(width=124, height=52)
anim = Animation(fps=2.0)

# 1. Declare full tree topology once & lock 100% of coordinates via get_layout()
g = TreeGraph(
    root="gw",
    direction="LR",
    default_node_width=26.0,
    default_node_height=12.5,
)
g.node("gw")
g.child("gw", "auth")
g.child("gw", "bill")
g.child("auth", "cache")
g.child("bill", "ledger")

layout = g.get_layout(margin=5.0)

node_meta = {
    "gw": ("\nAPI Gateway", Styles.PrimaryNeutral, phosphor.shield_check),
    "auth": ("\nAuth Service", Styles.PrimaryNeutral, phosphor.lock_key),
    "bill": ("\nBilling API", Styles.SecondaryNeutral, phosphor.credit_card),
    "cache": ("\nToken Cache", Styles.Neutral, phosphor.lightning),
    "ledger": ("\nLedger DB", Styles.Neutral, phosphor.database),
}


def draw_step(visible: set[str], focal: str) -> None:
    for e in layout.edges:
        if e.src in visible and e.dst in visible:
            lines(e.points, arrow_head="->", style=Styles.DarkBold)
    for nid in visible:
        label, base_st, icon_fn = node_meta[nid]
        nl = layout[nid]
        is_focal = nid == focal
        box_st = Styles.PrimaryFlat if is_focal else base_st
        txt_st = (Styles.WhiteBold if is_focal else Styles.DarkBold).patch(text_size=10.5)
        ic_st = Styles.White if is_focal else Styles.PrimaryFlat
        rectangle(nl.xy, width=nl.width, height=nl.height, style=box_st, text=label, text_style=txt_st)
        icon_fn((nl.x, nl.y + 2.4), width=4.2, style=ic_st)

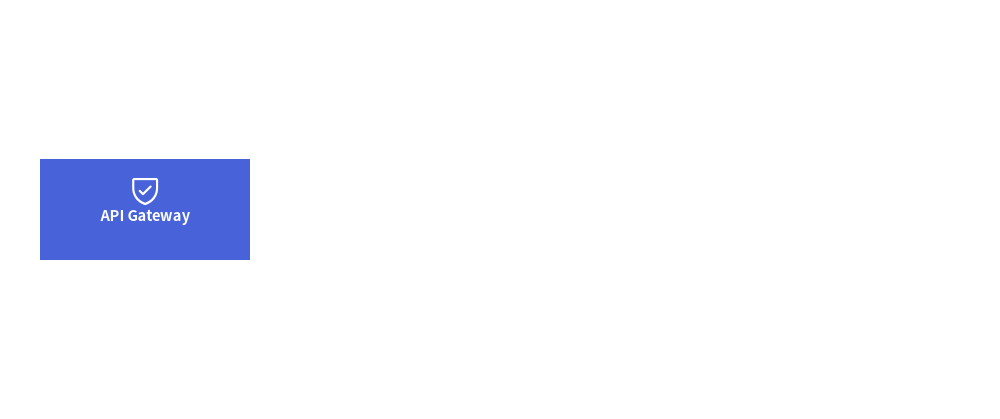

# Frame 1: Root node at its final auto-solved position
with anim.frame(duration=0.7):
    draw_step({"gw"}, focal="gw")

# Frame 2: Reveal Tier 1 services (Auth Service highlighted)
with anim.frame(duration=0.7):
    draw_step({"gw", "auth", "bill"}, focal="auth")

# Frame 3: Reveal Leaf data stores (Ledger DB highlighted)
with anim.frame(duration=0.7):
    draw_step({"gw", "auth", "bill", "cache", "ledger"}, focal="ledger")

# Frame 4: Settled full hierarchy with Root Gateway as focal node
with anim.frame(duration=2.5):
    draw_step({"gw", "auth", "bill", "cache", "ledger"}, focal="gw")

save()

1. Solve Full Topology Once (layout = g.get_layout()): Register all nodes (g.node()), clusters (g.cluster() / g.group()), and edges (g.edge()) once before the animation loop and call layout = g.get_layout(margin=...).
2. Mutate Diagram Items or Animate Along edge_layout.points:
   • Option 1 (drawlib.diagrams): Place ArchitectureDiagram or FlowDiagram nodes/groups at layout coordinates (nl.xy, nl.local_xy, cl.bottom_left) once outside the loop, then mutate .show and .style / .card_style inside with anim.frame(): before calling d.draw().
   • Option 2 (drawlib.shapes & drawlib.lines): Render visible nodes (layout[id].xy) and polylines (edge_layout.points), or animate data packets along edge_layout.points using get_intermediate_path_points().

(For coordinate-controlled diagrams in drawlib.diagrams, see Animating Technical Diagrams.)

1. Deterministic Layout Locking (layout = g.get_layout())

A core challenge when animating auto-layout graphs in traditional tools is layout jumping: adding a node on Frame 2 causes the layout engine to recompute all positions and shift Frame 1's nodes unpredictably.

Drawlib eliminates layout jumping by decoupling coordinate solving (g.get_layout()) from per-frame rendering:

• Calling layout = g.get_layout(width=None, height=None, margin=10.0) once outside the animation loop solves and locks every node center (layout[id].xy / .local_xy), cluster bounding box (layout[cid].bottom_left / .size), and orthogonal edge trajectory (edge_layout.points) across the entire topology.
• When rendered with FlowDiagram or ArchitectureDiagram, setting node.show = False skips the hidden node and automatically hides any edges connected to that node, so edges appear cleanly as soon as both endpoint nodes become visible.

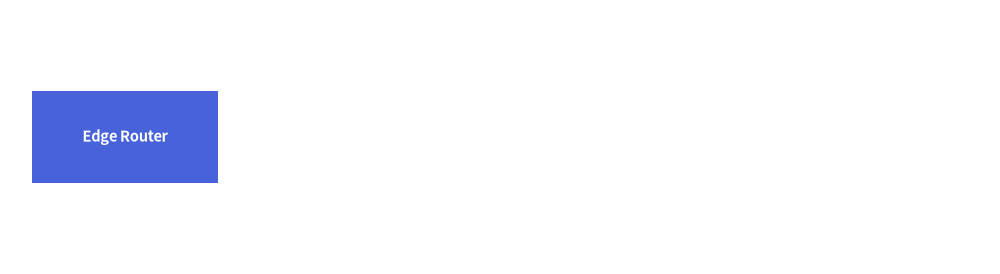

2. Step-by-Step Pipeline Reveal (LayerGraph + FlowDiagram)

After solving horizontal rank coordinates once with LayerGraph.get_layout(), place Process nodes into a FlowDiagram at xy=layout[nid].xy. Toggling fn.show = (i <= step) and updating fn.style inside the frame loop reveals each pipeline rank sequentially while keeping the horizontal layout locked:

from drawlib.anim import Animation
from drawlib.canvas import save, setup
from drawlib.diagrams.flow import FlowDiagram, Process
from drawlib.graph import LayerGraph
from drawlib.styles import Styles

setup(width=124, height=34)
anim = Animation(fps=1.5)

# Step 1: Solve pipeline coordinates once via LayerGraph.get_layout()
g = LayerGraph(
    direction="LR",
    rank_sep=8.0,
    default_node_width=23.0,
    default_node_height=11.5,
)
stages = [
    ("edge", "Edge Router", 0),
    ("auth", "Auth Guard", 1),
    ("core", "Core API", 2),
    ("db", "Primary DB", 3),
]
for nid, _, layer_idx in stages:
    g.node(nid, layer=layer_idx)

g.edge("edge", "auth")
g.edge("auth", "core")
g.edge("core", "db")

layout = g.get_layout(margin=5.0)

# Step 2: Register Process nodes at locked layout[nid].xy coordinates
fd = FlowDiagram(
    node_style=Styles.PrimaryNeutral.patch(text_size=10.5),
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=10.0),
)
flow_nodes = []
for nid, label, _ in stages:
    nl = layout[nid]
    flow_nodes.append(fd.add(Process(label, width=nl.width, height=nl.height), xy=nl.xy))

for i in range(len(flow_nodes) - 1):
    fd.connect(flow_nodes[i], flow_nodes[i + 1])

# Step 3: Reveal stages one by one without layout jumping
for step in range(len(flow_nodes)):
    for i, fn in enumerate(flow_nodes):
        fn.show = (i <= step)
        fn.style = Styles.PrimaryFlat if i == step else Styles.PrimaryNeutral
        fn.text_style = (Styles.WhiteBold if i == step else Styles.DarkBold).patch(text_size=10.5)

    is_last = (step == len(flow_nodes) - 1)
    with anim.frame(duration=2.5 if is_last else 0.8):
        fd.draw()

save()

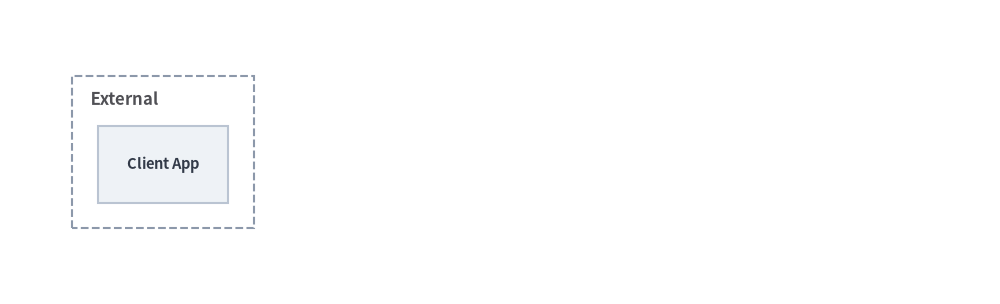

3. Progressive Cluster & Edge Reveal (ArchitectureGraph + ArchitectureDiagram)

With ArchitectureGraph, calling layout = g.get_layout() computes both outer container bounding boxes (cl.bottom_left, cl.width, cl.height) and relative child node coordinates (nl.local_xy). Populating an ArchitectureDiagram with those locked coordinates lets you progressively reveal cloud zones (group.show), service nodes (node.show), and active request paths (edge.style):

from drawlib.anim import Animation
from drawlib.canvas import save, setup
from drawlib.diagrams.architecture import ArchitectureDiagram, Node, NodeGroup
from drawlib.graph import ArchitectureGraph
from drawlib.styles import Styles

setup(width=138, height=42)
anim = Animation(fps=1.5)

# Step 1: Solve multi-zone container and node coordinates once
g = ArchitectureGraph(
    direction="LR",
    container_sep=6.0,
    default_node_width=18.0,
    default_node_height=10.5,
)
g.cluster("ext", ["client"], pos="left", padding=3.5)
g.node("client")

g.cluster("app", ["gw", "worker"], pos="center", padding=4.0)
g.node("gw")
g.node("worker")

g.cluster("data", ["db"], pos="right", padding=3.5)
g.node("db")

g.edge("client", "gw")
g.edge("gw", "worker")
g.edge("worker", "db")

layout = g.get_layout()

# Step 2: Populate ArchitectureDiagram at solved layout coordinates
d = ArchitectureDiagram(
    node_style=Styles.PrimaryFlat,
    node_text_style=Styles.DarkBold.patch(text_size=10.5),
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=10.0),
    node_card_style=Styles.Neutral,
)


def make_group(cid: str, title: str, *, show: bool = True) -> NodeGroup:
    cl = layout.clusters[cid]
    return d.add(
        NodeGroup(title=title, width=cl.width, height=cl.height, style=Styles.MutedDashed, show=show),
        xy=cl.bottom_left,
    )


def make_node(grp: NodeGroup, nid: str, label: str, card_st, txt_st, *, show: bool = True) -> Node:
    nl = layout[nid]
    return grp.add(
        Node(
            label,
            width=nl.width,
            height=nl.height,
            card_style=card_st,
            text_style=txt_st.patch(text_size=10.5),
            show=show,
        ),
        xy=nl.local_xy,
    )


c_ext = make_group("ext", "External", show=True)
n_client = make_node(c_ext, "client", "Client App", Styles.Neutral, Styles.DarkBold, show=True)

c_app = make_group("app", "Compute VPC", show=False)
n_gw = make_node(c_app, "gw", "API Gateway", Styles.PrimaryFlat, Styles.WhiteBold, show=False)
n_worker = make_node(c_app, "worker", "Task Worker", Styles.PrimaryNeutral, Styles.DarkBold, show=False)

c_data = make_group("data", "Data Tier", show=False)
n_db = make_node(c_data, "db", "Primary DB", Styles.SecondaryNeutral, Styles.DarkBold, show=False)

e1 = d.connect(n_client, n_gw, label="HTTPS")
e2 = d.connect(n_gw, n_worker, label="Queue")
e3 = d.connect(n_worker, n_db, label="Write")

# Frame 1: External Client entry point
with anim.frame(duration=0.8):
    d.draw()

# Frame 2: Reveal Compute VPC & API Gateway with active incoming edge
c_app.show = True
n_gw.show = True
e1.style = Styles.PrimaryBold
with anim.frame(duration=0.8):
    d.draw()

# Frame 3: Reveal Task Worker inside Compute VPC
e1.style = Styles.DarkBold
n_gw.card_style = Styles.PrimaryNeutral
n_gw.text_style = Styles.DarkBold.patch(text_size=10.5)
n_worker.show = True
n_worker.card_style = Styles.PrimaryFlat
n_worker.text_style = Styles.WhiteBold.patch(text_size=10.5)
e2.style = Styles.PrimaryBold
with anim.frame(duration=0.8):
    d.draw()

# Frame 4: Reveal Data Tier and complete architecture (hold final frame)
e2.style = Styles.DarkBold
n_worker.card_style = Styles.PrimaryNeutral
n_worker.text_style = Styles.DarkBold.patch(text_size=10.5)
c_data.show = True
n_db.show = True
n_gw.card_style = Styles.PrimaryFlat
n_gw.text_style = Styles.WhiteBold.patch(text_size=10.5)
e3.style = Styles.PrimaryBold
with anim.frame(duration=2.5):
    d.draw()

save()

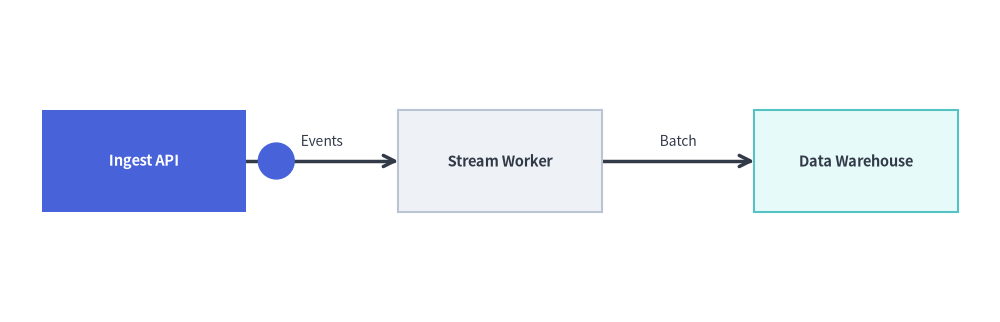

4. Animating Packets Along Auto-Routed Edges (g.get_layout() & edge_layout.points)

Every EdgeLayout in layout.edges exposes edge_layout.points: list[tuple[float, float]] ([src_port, *waypoints, dst_port]), representing the complete auto-routed polyline trajectory between node borders.

Pass edge_layout.points to get_intermediate_path_points(edge_layout.points, num=..., include_ends=True) to animate a data packet (circle) traveling smoothly along an auto-routed graph edge:

from drawlib.anim import Animation
from drawlib.canvas import save, setup
from drawlib.graph import LayerGraph
from drawlib.lines import lines
from drawlib.math import get_intermediate_path_points
from drawlib.shapes import circle, rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=118, height=38)
anim = Animation(fps=10.0)

g = LayerGraph(
    direction="LR",
    default_node_width=24.0,
    default_node_height=12.0,
)
g.node("ingest", layer=0)
g.node("worker", layer=1)
g.node("store", layer=2)
g.edge("ingest", "worker")
g.edge("worker", "store")

# 1. Solve layout once to inspect auto-routed edge polylines
layout = g.get_layout(margin=5.0)
pts_e0 = get_intermediate_path_points(layout.edges[0].points, num=4, include_ends=False)
pts_e1 = get_intermediate_path_points(layout.edges[1].points, num=4, include_ends=False)

edge_labels = {("ingest", "worker"): "Events", ("worker", "store"): "Batch"}
base_nodes = [
    ("ingest", "Ingest API", Styles.PrimaryNeutral),
    ("worker", "Stream Worker", Styles.Neutral),
    ("store", "Data Warehouse", Styles.SecondaryNeutral),
]


def draw_pipeline(active_id: str | None = None) -> None:
    for e in layout.edges:
        lines(e.points, arrow_head="->", style=Styles.DarkBold)
        lbl = edge_labels[(e.src, e.dst)]
        text((e.mid_xy[0], e.mid_xy[1] + 2.4), lbl, style=Styles.Dark.patch(text_size=10.0))
    for nid, label, base_st in base_nodes:
        nl = layout[nid]
        is_active = nid == active_id
        st = Styles.PrimaryFlat if is_active else base_st
        tst = (Styles.WhiteBold if is_active else Styles.DarkBold).patch(text_size=10.5)
        rectangle(nl.xy, width=nl.width, height=nl.height, style=st, text=label, text_style=tst)


# 2. Hop 1: Packet travels along layout.edges[0].points
for pkt_xy in pts_e0:
    with anim.frame(duration=0.12):
        draw_pipeline(active_id="ingest")
        circle(pkt_xy, radius=2.2, style=Styles.PrimaryFlat)

# 3. Hop 2: Highlight worker and move packet along layout.edges[1].points
for pkt_xy in pts_e1:
    with anim.frame(duration=0.12):
        draw_pipeline(active_id="worker")
        circle(pkt_xy, radius=2.2, style=Styles.PrimaryFlat)

# 4. Final settled frame: Data Warehouse active
with anim.frame(duration=2.2):
    draw_pipeline(active_id="store")

save()
