SourceCode

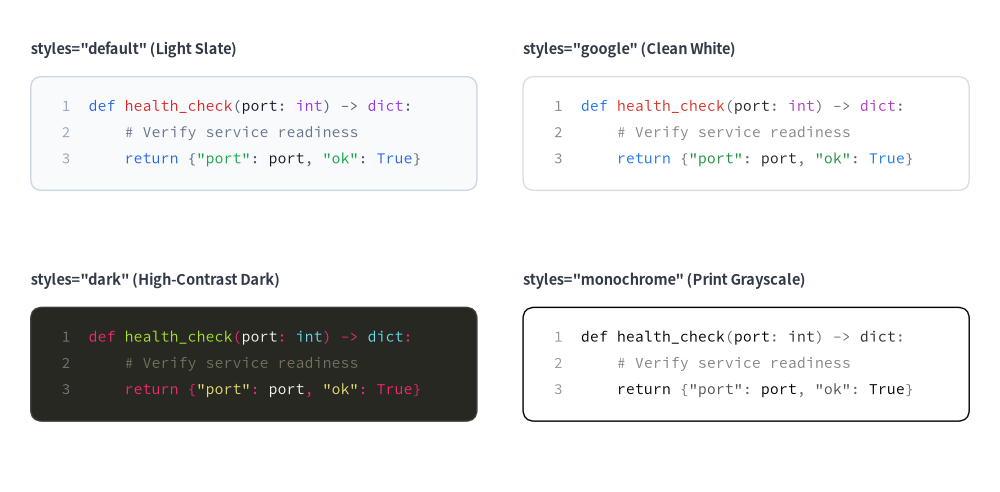

The SourceCode component renders syntax-highlighted source code snippets directly onto the Drawlib canvas as crisp vector shapes and typography powered by Pygments. It supports built-in syntax themes, optional line-number gutters, CJK monospace fonts, and custom token color overrides.

from drawlib.canvas import save, setup
from drawlib.smartarts import SourceCode, SourceCodeStyles
from drawlib.styles import Styles
from drawlib.text import text

setup(width=130, height=64)

snippet = """def health_check(port: int) -> dict:
    # Verify service readiness
    return {"port": port, "ok": True}"""

themes = [
    ("default", (4, 54), 'styles="default" (Light Slate)'),
    ("google", (68, 54), 'styles="google" (Clean White)'),
    ("dark", (4, 24), 'styles="dark" (High-Contrast Dark)'),
    ("monochrome", (68, 24), 'styles="monochrome" (Print Grayscale)'),
]

for theme_name, (x, y), label in themes:
    text((x, y + 3.5), label, style=Styles.DarkBold.patch(text_size=10.5, halign="left"))
    sc_styles = SourceCodeStyles.get(theme_name, font_lang="en", text_size=10.5)
    SourceCode.draw(
        xy=(x, y),
        width=58,
        code=snippet,
        styles=sc_styles,
        code_lang="python",
        show_linenum=True,
    )

save()

Looking for speech bubbles & callouts? The bubblespeech() primitive is documented in Callouts, Badges & Status.

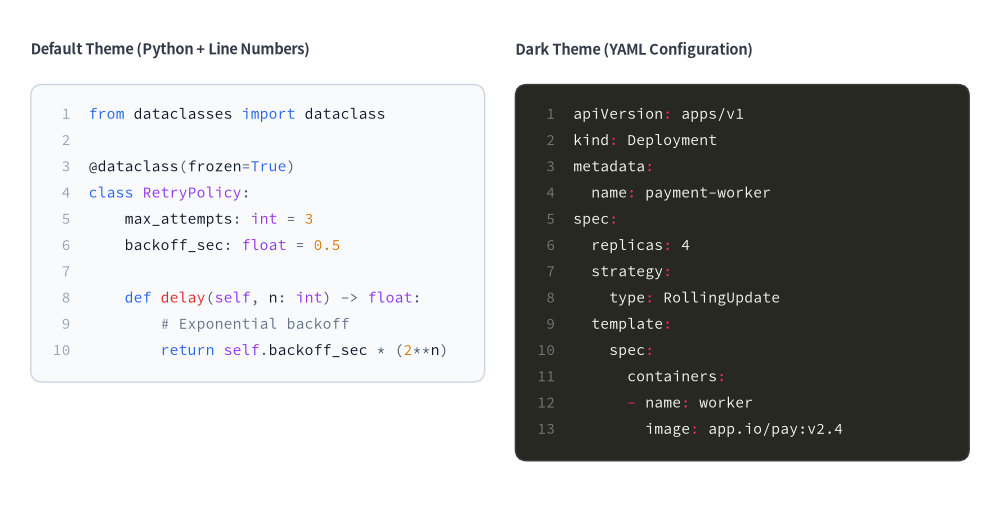

1. Syntax-Highlighted Code with Line Numbers (SourceCode.draw)

SourceCode.draw(...) (or its function alias sourcecode(...)) renders a syntax-highlighted code block anchored at its top-left corner xy=(x, y). You configure token colors, container styles, font size, and CJK language fonts using SourceCodeStyles.get(...).

from drawlib.canvas import save, setup
from drawlib.smartarts import SourceCode, SourceCodeStyles
from drawlib.styles import Styles
from drawlib.text import text

setup(width=130, height=68)

# 1. Left: Default Light Theme with Python Code
text((4, 61.5), "Default Theme (Python + Line Numbers)", style=Styles.DarkBold.patch(text_size=10.5, halign="left"))

py_code = """from dataclasses import dataclass

@dataclass(frozen=True)
class RetryPolicy:
    max_attempts: int = 3
    backoff_sec: float = 0.5

    def delay(self, n: int) -> float:
        # Exponential backoff
        return self.backoff_sec * (2**n)"""

light_styles = SourceCodeStyles.get("default", font_lang="en", text_size=10.5)
SourceCode.draw(
    xy=(4, 57),
    width=59,
    code=py_code,
    styles=light_styles,
    code_lang="python",
    show_linenum=True,
)

# 2. Right: Dark Theme with Kubernetes YAML Config
text((67, 61.5), "Dark Theme (YAML Configuration)", style=Styles.DarkBold.patch(text_size=10.5, halign="left"))

yaml_code = """apiVersion: apps/v1
kind: Deployment
metadata:
  name: payment-worker
spec:
  replicas: 4
  strategy:
    type: RollingUpdate
  template:
    spec:
      containers:
      - name: worker
        image: app.io/pay:v2.4"""

dark_styles = SourceCodeStyles.get("dark", font_lang="en", text_size=10.5)
SourceCode.draw(
    xy=(67, 57),
    width=59,
    code=yaml_code,
    styles=dark_styles,
    code_lang="yaml",
    show_linenum=True,
)
save()

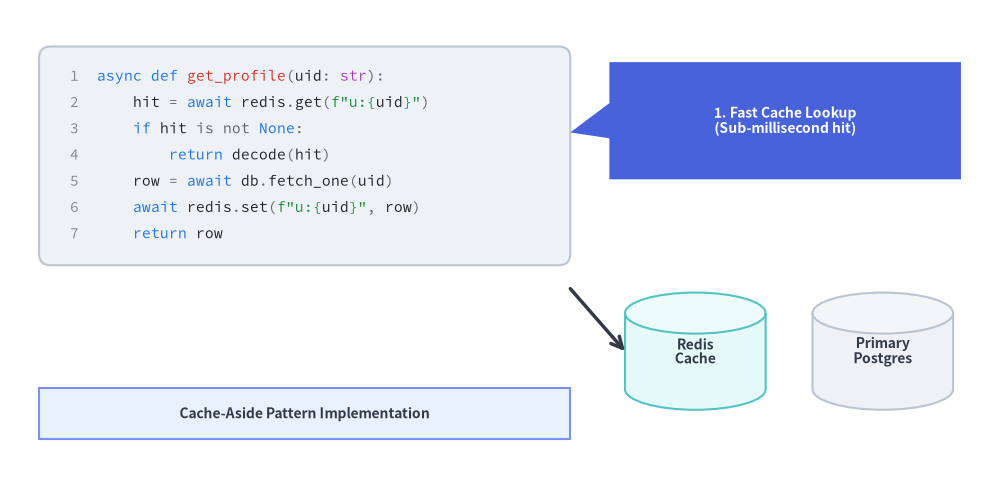

2. Annotating Code Blocks in Architecture & Tutorial Diagrams

Because SourceCode.draw() renders directly onto the shared vector canvas, you can combine code containers with callout bubbles (bubblespeech), architecture nodes, and arrows to create annotated code walkthroughs.

from drawlib.canvas import save, setup
from drawlib.lines import line
from drawlib.shapes import bubblespeech, cylinder, rectangle
from drawlib.smartarts import SourceCode, SourceCodeStyles
from drawlib.styles import Styles

setup(width=128, height=62)

# 1. Left: Syntax-Highlighted Code Block
snippet = """async def get_profile(uid: str):
    hit = await redis.get(f"u:{uid}")
    if hit is not None:
        return decode(hit)
    row = await db.fetch_one(uid)
    await redis.set(f"u:{uid}", row)
    return row"""

code_styles = SourceCodeStyles.get("google", font_lang="en", text_size=10.5).patch(
    box_style=Styles.Neutral.patch(shape_r=1.5),
)
SourceCode.draw(
    xy=(5, 56),
    width=68,
    code=snippet,
    styles=code_styles,
    code_lang="python",
    show_linenum=True,
)

# 2. Callout Bubble pointing to the cache-aside lookup line
bubblespeech(
    xy=(78, 39),
    width=45,
    height=15,
    tail_edge="left",
    tail_start_ratio=0.35,
    tail_end_ratio=0.65,
    tail_vertex_xy=(73, 45),
    style=Styles.PrimaryFlat.patch(shape_r=1.2),
    text="1. Fast Cache Lookup\n(Sub-millisecond hit)",
    text_style=Styles.WhiteBold.patch(text_size=10.0),
)

# 3. Downstream Persistence Nodes referenced by the code
cylinder(
    xy=(89, 17),
    width=18,
    height=15,
    style=Styles.SecondaryNeutral,
    text="Redis\nCache",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)
cylinder(
    xy=(113, 17),
    width=18,
    height=15,
    style=Styles.Neutral,
    text="Primary\nPostgres",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)

line((73, 25), (80, 17), arrow_head="->", style=Styles.DarkBold)
rectangle(
    (39, 9),
    width=68,
    height=6.5,
    style=Styles.PrimaryNeutral,
    text="Cache-Aside Pattern Implementation",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)
save()

3. Themes, Languages & Token Customization (SourceCodeStyles)

Built-in Themes & CJK Font Selection

Use SourceCodeStyles.get(styles, font_lang, *, font=None, text_size=12.0) (or get_source_code_styles(...)):

• styles (Theme Name):
  • "default": Clean light slate background with blue/green/red syntax colors.
  • "google": Crisp white card with Google-inspired syntax palette.
  • "dark" (or "monokai", "github-dark"): High-contrast dark theme.
  • "monochrome": Grayscale print-safe theme.
• font_lang:
  • "en" (default): Uses FontSourceCode.SOURCECODEPRO.
  • "ja", "zh-cn", "zh-tw", "ko": Automatically selects FontSourceCode.SOURCEHANCODEJP so CJK comments and strings render without missing-glyph tofu boxes.
• code_lang:
  • Supports "python", "yaml", "json", "sql", "bash", "go", "rust", "typescript", "javascript", "html", "css", "dockerfile", "toml", "protobuf", "c", "cpp", "java", "kotlin", "swift", "markdown", or None (auto-detected from file extension or content).

Customizing Token Styles (SourceCodeStyles & .patch())

SourceCodeStyles is an immutable Pydantic model defining the outer container, gutter line numbers, and 8 syntax token categories. Calling styles.patch(...) returns a new SourceCodeStyles instance with specified fields updated:

from drawlib.smartarts import SourceCodeStyles
from drawlib.styles import Styles

custom_styles = SourceCodeStyles.get("default", font_lang="en", text_size=10.5).patch(
    box_style=Styles.Neutral.patch(shape_r=2.0),
    keyword=Styles.PrimaryBold,
    comment=Styles.Muted,
    text_size=10.5,  # Updates font size across all token types and line numbers
)

4. API Reference

Drawing Code (SourceCode.draw / sourcecode)

SourceCode.draw(
    xy: tuple[float, float],           # Top-left corner (x, y) of the code container
    width: float,                      # Total container width in canvas units
    code: str | None = None,           # Source code string (mutually exclusive with `file`)
    *,
    styles: SourceCodeStyles,          # Required style configuration
    file: str | Path | None = None,    # Path to external source file (mutually exclusive with `code`)
    code_lang: str | None = None,      # Lexer language name (e.g. "python", "yaml")
    show_linenum: bool = False,        # Render line numbers in a left gutter
    scale: float = 1.0,                # Proportional scale factor anchored at `xy`
) -> None

• Function Aliases: sourcecode(...) is a top-level function alias for SourceCode.draw(...), and get_source_code_styles(...) is a top-level function alias for SourceCodeStyles.get(...).
• Height Calculation: Container height is computed automatically from the number of lines in code (or file) and styles.default.text_size.
• Loading External Files: Pass file="path/to/example.py" directly to SourceCode.draw(...), or read the file string via SourceCode.get_text(file, strip=True).
