Quick Start Guide

Drawlib makes creating publication-ready technical diagrams intuitive and reproducible. You can author diagrams either as standalone Python scripts (.py) or as embedded Markdown blocks (```drawlib).

The Standard 5-Step Drawing Workflow

Every Drawlib illustration follows a clean, predictable lifecycle:

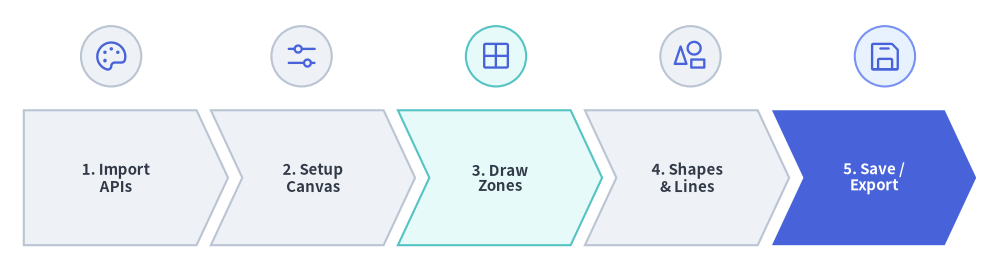

quick_start_1 — The Standard 5-Step Drawlib Drawing Workflow

Source Code

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.shapes import circle
from drawlib.smartarts import ChevronProcess
from drawlib.styles import Styles

setup(width=126, height=34)

workflow = ChevronProcess(
    style=Styles.Neutral,
    text_style=Styles.DarkBold.patch(text_size=10.8),
    description_style=Styles.Muted.patch(text_size=10.0),
    corner_angle=65.0,
    spacing=1.8,
    flat_left_end=True,
)
workflow.add("1. Import\nAPIs")
workflow.add("2. Setup\nCanvas")
workflow.add("3. Draw\nZones", style=Styles.SecondaryNeutral)
workflow.add("4. Shapes\n& Lines")
workflow.add(
    "5. Save /\nExport",
    style=Styles.PrimaryFlat,
    text_style=Styles.WhiteBold.patch(text_size=10.8),
)
workflow.draw(xy=(3.0, 3.0), width=120.0, height=17.0)

# Icons above each stage
stage_icons = [
    (14.0, phosphor.palette, Styles.Neutral),
    (38.0, phosphor.sliders_horizontal, Styles.Neutral),
    (62.5, phosphor.grid_four, Styles.SecondaryNeutral),
    (87.0, phosphor.shapes, Styles.Neutral),
    (111.5, phosphor.floppy_disk, Styles.PrimaryNeutral),
]
for cx, icon_fn, badge_style in stage_icons:
    circle((cx, 26.8), radius=3.8, style=badge_style)
    icon_fn((cx, 26.8), width=4.6, style=Styles.Primary)

save()

Import APIs: Import canvas management, drawing primitives, and styling presets.
Setup Canvas: Initialize canvas dimensions (width, height) via setup().
Draw Structural Containers: Create boundary boxes, cloud regions, or background grids.
Draw Entities & Connectors: Add shapes, icons, and lines with semantic styles and labels.
Save / Export: Save the drawing to an image file via save(), or let the Document Builder render it inline automatically.

1. Standalone Python Script (`images` Project)

[!IMPORTANT] Project-First Rule (drawlib init):
Rather than creating bare .py files in an uninitialized directory, always scaffold a Drawlib project first so styles.py (theme & language fonts), utils.py, _assets/, and build.sh are properly configured:
# Scaffold a standalone illustration project (creates images_src/ -> images/)
$ uv run drawlib init images

Create a Python script named images_src/client_server.py:

from drawlib.canvas import save, setup
from drawlib.lines import line
from drawlib.shapes import circle, rectangle
from drawlib.styles import Styles
from drawlib.text import text

# Step 2: Setup canvas dimensions (Cartesian space: 100 wide x 44 high)
setup(width=100, height=44)

# Step 3: Draw background boundary container
rectangle((50, 22), width=92, height=36, style=Styles.MutedDashed)

# Step 4: Draw main entities and connectors (50%+ Neutral-Grounded)
circle((25, 22), radius=12, style=Styles.Neutral, text="Client", text_style=Styles.DarkBold.patch(text_size=11.5))
rectangle((75, 22), width=26, height=20, style=Styles.PrimaryFlat, text="Server", text_style=Styles.WhiteBold.patch(text_size=11.5))

# Connection line with arrowhead
line((37, 22), (62, 22), arrow_head="->", style=Styles.DarkBold)
text((49.5, 27), "REST API", style=Styles.DarkBold.patch(text_size=11.0))

# Step 5: Save image (defaults to client_server.png)
save()

Running and Previewing

Build all scripts in images_src/ using the generated build script, or run a single script directly:

# Batch-compile all scripts in images_src/ to images/
$ ./images_src/build.sh

# Or run a single script directly with Python
$ uv run python images_src/client_server.py

Use the unified drawlib show CLI command to export headless previews or inspect coordinate overlays:

# Export directly to a specified output file
$ uv run drawlib show images_src/client_server.py -o .drawlib/scratch/output.png

# Overlay a visual coordinate grid (-g) to check element spacing
$ uv run drawlib show images_src/client_server.py -g -o .drawlib/scratch/output_grid.png

2. Embedded Markdown Document

Inside any Markdown document (such as doc.md in a doc or site project), simply embed the code block with drawlib:

# Architecture Overview

Here is our primary service flow:

```drawlib align=center file=client_server_communication.png caption="Client-Server REST Communication"
from drawlib.canvas import save, setup
from drawlib.shapes import rectangle, circle
from drawlib.lines import line
from drawlib.text import text
from drawlib.styles import Styles

setup(width=100, height=44)

rectangle((50, 22), width=92, height=36, style=Styles.MutedDashed)
circle((25, 22), radius=12, style=Styles.Neutral, text="Client", text_style=Styles.DarkBold.patch(text_size=11.5))
rectangle((75, 22), width=26, height=20, style=Styles.PrimaryFlat, text="Server", text_style=Styles.WhiteBold.patch(text_size=11.5))
line((37, 22), (62, 22), arrow_head="->", style=Styles.DarkBold)
text((49.5, 27), "REST API", style=Styles.DarkBold.patch(text_size=11.0))
save()
```

You can preview a specific named block inside a Markdown file with a coordinate grid before building the full site:

# Preview a specific named diagram block with a coordinate grid (-g)
$ uv run drawlib show doc.md client_server_communication.png -g -o .drawlib/scratch/preview.png

When compiled with drawlib build html or drawlib build markdown, the code fence is executed and replaced with the rendered image:

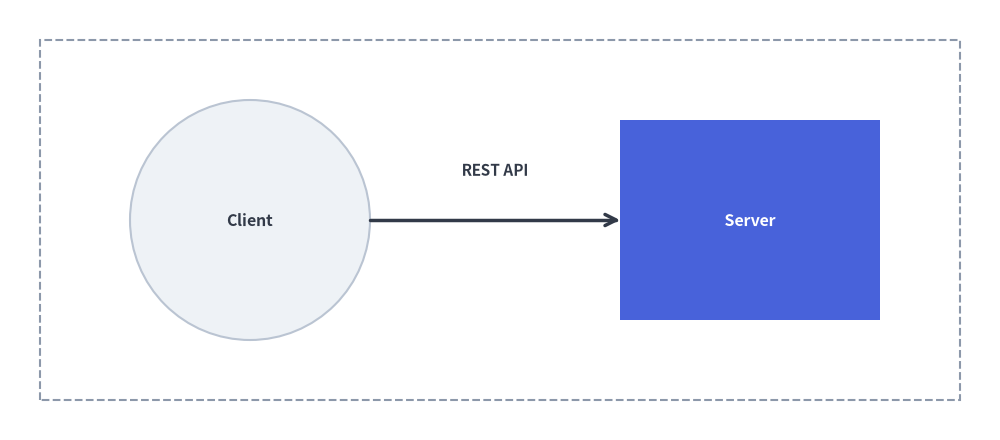

quick_start_2 — Client-Server REST Communication
