Tree Component

The TreeNode component renders hierarchical tree structures, such as codebase directory trees, organizational hierarchy charts, and taxonomy categorizations. It automates vertical branch alignment, indentation levels, and tree connector lines.

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.shapes import rectangle
from drawlib.smartarts import TreeNode
from drawlib.styles import Styles
from drawlib.text import text

setup(width=130, height=54)

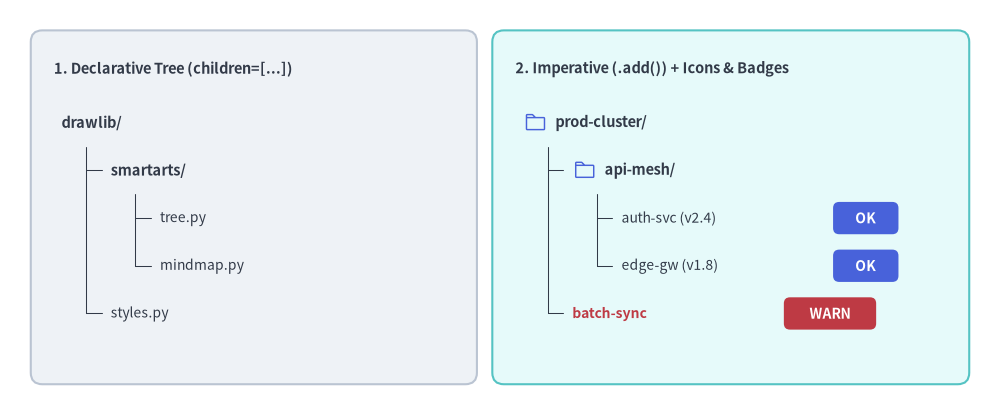

# 1. Left Card: Declarative Nested Hierarchy (children=[...])
rectangle((33, 27), width=58, height=46, style=Styles.Neutral.patch(shape_r=1.5))
text((7, 45.0), "1. Declarative Tree (children=[...])", style=Styles.DarkBold.patch(text_size=10.5, halign="left"))

decl_root = TreeNode(
    "drawlib/",
    text_style=Styles.DarkBold.patch(text_size=10.5),
    line_style=Styles.DarkThin,
    line_horizontal_margin=3.2,
    line_horizontal_length=3.0,
    line_vertical_margin=6.2,
    children=[
        TreeNode(
            "smartarts/",
            children=[
                TreeNode("tree.py", text_style=Styles.Dark.patch(text_size=10.0)),
                TreeNode("mindmap.py", text_style=Styles.Dark.patch(text_size=10.0)),
            ],
        ),
        TreeNode("styles.py", text_style=Styles.Dark.patch(text_size=10.0)),
    ],
)
decl_root.draw(xy=(8, 38.0))

# 2. Right Card: Imperative (.add()) with Vector Icons & Trailing Badges
rectangle((95, 27), width=62, height=46, style=Styles.SecondaryNeutral.patch(shape_r=1.5))
text((67, 45.0), "2. Imperative (.add()) + Icons & Badges", style=Styles.DarkBold.patch(text_size=10.5, halign="left"))

TreeNode.register_drawing_item(
    name="hero_dir",
    location="before",
    padding_width=4.2,
    function=phosphor.folder,
    style=Styles.PrimaryFlat,
    args={"width": 3.0},
)
TreeNode.register_drawing_item(
    name="hero_ok",
    location="after",
    padding_width=27.5,
    function=rectangle,
    style=Styles.PrimaryFlat.patch(shape_r=0.8),
    args={"width": 8.5, "height": 4.2, "text": "OK", "text_style": Styles.WhiteBold.patch(text_size=10.0)},
)
TreeNode.register_drawing_item(
    name="hero_warn",
    location="after",
    padding_width=27.5,
    function=rectangle,
    style=Styles.DangerFlat.patch(shape_r=0.8),
    args={"width": 12.0, "height": 4.2, "text": "WARN", "text_style": Styles.WhiteBold.patch(text_size=10.0)},
)

imp_root = TreeNode(
    "prod-cluster/",
    text_style=Styles.DarkBold.patch(text_size=10.5),
    line_style=Styles.DarkThin,
    line_horizontal_margin=3.2,
    line_horizontal_length=3.0,
    line_vertical_margin=6.2,
).set_drawing_item("hero_dir")

api_group = imp_root.add("api-mesh/").set_drawing_item("hero_dir")
api_group.add("auth-svc (v2.4)", text_style=Styles.Dark.patch(text_size=10.0)).set_drawing_item("hero_ok")
api_group.add("edge-gw (v1.8)", text_style=Styles.Dark.patch(text_size=10.0)).set_drawing_item("hero_ok")
imp_root.add("batch-sync", text_style=Styles.DangerBold.patch(text_size=10.0), line_style=Styles.MutedDashed).set_drawing_item("hero_warn")

imp_root.draw(xy=(68, 38.0))
save()

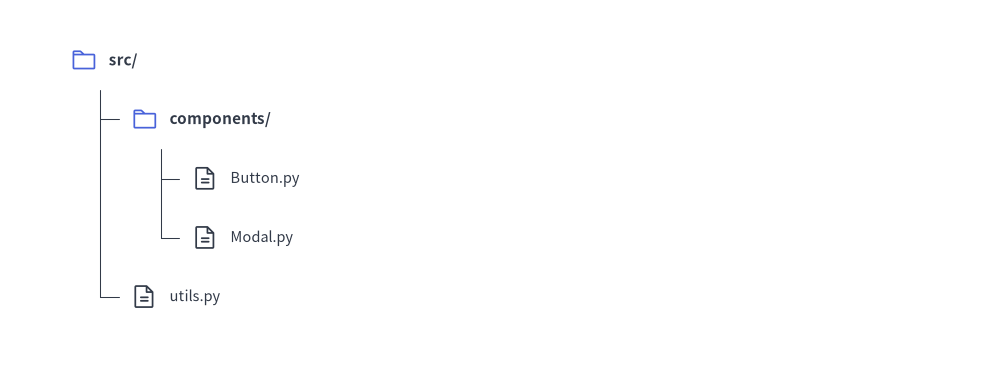

1. Quick Example: Project Directory Hierarchy

from drawlib.canvas import setup
from drawlib.smartarts import TreeNode
from drawlib.icons import phosphor
from drawlib.styles import Styles

setup(width=115, height=44)

# Register custom icons for folders and files
TreeNode.register_drawing_item(
    name="folder", location="before", padding_width=4.5, function=phosphor.folder,
    style=Styles.PrimaryFlat, args={"width": 3.2}
)
TreeNode.register_drawing_item(
    name="file", location="before", padding_width=4.5, function=phosphor.file_text,
    style=Styles.Dark, args={"width": 3.2}
)

root = TreeNode(
    "src/",
    text_style=Styles.DarkBold.patch(text_size=11.0),
    line_style=Styles.DarkThin,
    line_horizontal_margin=3.5,
    line_horizontal_length=3.2,
    line_vertical_margin=6.8,
    children=[
        TreeNode("components/", children=[
            TreeNode("Button.py", text_style=Styles.Dark.patch(text_size=10.5)).set_drawing_item("file"),
            TreeNode("Modal.py", text_style=Styles.Dark.patch(text_size=10.5)).set_drawing_item("file"),
        ]).set_drawing_item("folder"),
        TreeNode("utils.py", text_style=Styles.Dark.patch(text_size=10.5)).set_drawing_item("file"),
    ]
).set_drawing_item("folder")

root.draw(xy=(8, 37))

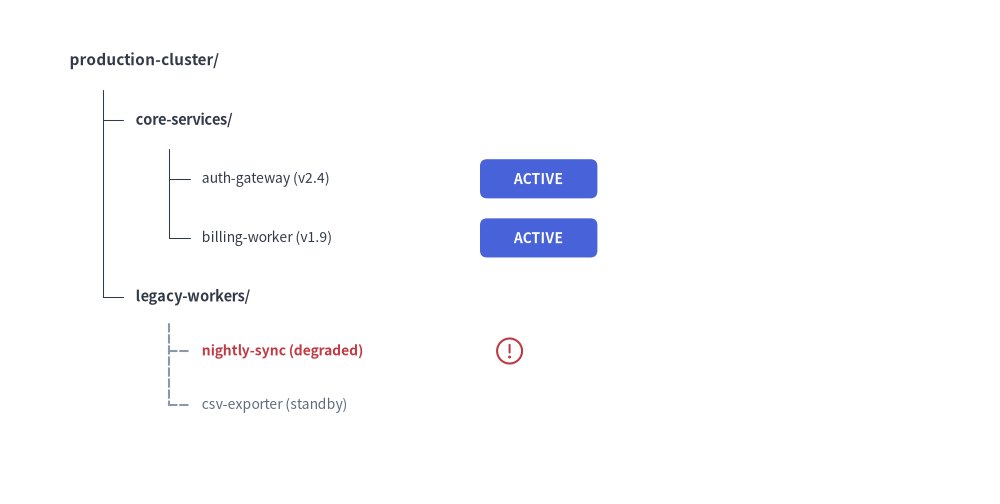

2. Imperative Construction (.add()), Cascading Overrides & "after" Status Badges

Instead of nesting children=[...] inside the constructor, you can build trees imperatively using parent.add(text, ...) -> TreeNode. Any style or margin parameter specified on an intermediate node automatically cascades down to its subtree unless overridden again. You can also register status badges or icons with location="after" (where padding_width specifies the horizontal offset from the node's left x coordinate to the badge).

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.shapes import rectangle
from drawlib.smartarts import TreeNode
from drawlib.styles import Styles

setup(width=115, height=58)

# Register trailing status badges (location="after" places the item at x + padding_width)
TreeNode.register_drawing_item(
    name="badge_live",
    location="after",
    padding_width=32.0,
    function=rectangle,
    style=Styles.PrimaryFlat.patch(shape_r=0.8),
    args={"width": 13.5, "height": 4.5, "text": "ACTIVE", "text_style": Styles.WhiteBold.patch(text_size=10.0)},
)
TreeNode.register_drawing_item(
    name="badge_warn",
    location="after",
    padding_width=33.5,
    function=phosphor.warning_circle,
    style=Styles.DangerFlat,
    args={"width": 3.8},
)

root = TreeNode(
    "production-cluster/",
    text_style=Styles.DarkBold.patch(text_size=11.0),
    line_style=Styles.DarkThin,
    line_horizontal_margin=3.8,
    line_horizontal_length=3.6,
    line_vertical_margin=6.8,
)

# 1. Core Services Subtree (inherits root margins, overrides text_style)
core = root.add("core-services/", text_style=Styles.DarkBold.patch(text_size=10.5))
core.add("auth-gateway (v2.4)", text_style=Styles.Dark.patch(text_size=10.0)).set_drawing_item("badge_live")
core.add("billing-worker (v1.9)", text_style=Styles.Dark.patch(text_size=10.0)).set_drawing_item("badge_live")

# 2. Legacy Subtree (overrides line_style and tighter vertical spacing for all its children)
legacy = root.add(
    "legacy-workers/",
    text_style=Styles.DarkBold.patch(text_size=10.5),
    line_style=Styles.MutedDashed,
    line_vertical_margin=6.2,
)
batch = legacy.add("nightly-sync (degraded)", text_style=Styles.DangerBold.patch(text_size=10.0))
batch.set_drawing_item("badge_warn")
legacy.add("csv-exporter (standby)", text_style=Styles.Muted.patch(text_size=10.0))

root.draw(xy=(8, 51))
save()

3. Geometry, Lifecycle & Coordinate Mechanics

• Top-Left Anchor (x, y): The coordinate passed to root.draw(xy=..., scale=1.0) represents the left edge and vertical center of the root node label. Passing scale proportionally scales indentation, vertical spacing, icons, and text sizes relative to xy.
• Downward & Rightward Flow: Child nodes step downward (child_y = current_y - line_vertical_margin) and indent rightward (child_x = parent_x + 2 * line_horizontal_margin).
• Layout-Preserving Visibility (show: bool = True):
  • Both TreeNode(text, ..., show=True) and node.add(text, ..., show=True) control node visibility.
  • Setting node.show = False hides the node, its incoming connector tick, and its descendants while preserving the exact vertical Y-coordinates of all subsequent sibling nodes.
• Root Node Style & Margin Requirements:
  The root TreeNode must define all five baseline style and spacing attributes (text_style, line_style, line_horizontal_margin, line_horizontal_length, and line_vertical_margin). Descendant nodes inherit these settings automatically via cascading unless overridden on a child node.

4. API Reference

Constructor (TreeNode)

TreeNode(
    text: str,
    *,
    text_style: Style | None = None,
    line_style: Style | None = None,
    line_horizontal_margin: float | None = None,
    line_horizontal_length: float | None = None,
    line_vertical_margin: float | None = None,
    children: list[TreeNode] | None = None,
    show: bool = True,
)

Adding Child Nodes (.add())

node.add(
    text: str,
    *,
    text_style: Style | None = None,
    line_style: Style | None = None,
    line_horizontal_margin: float | None = None,
    line_horizontal_length: float | None = None,
    line_vertical_margin: float | None = None,
    show: bool = True,
) -> TreeNode

Creates a new child TreeNode with label text: str, appends it to node.children, and returns the newly created child TreeNode instance.

Custom Icons & Badges (register_drawing_item & set_drawing_item)

TreeNode.register_drawing_item(
    name: str,
    location: Literal["before", "after"],
    padding_width: float,
    function: Callable,
    style: Style,
    args: dict,
) -> None

• node.set_drawing_item(name: str) -> TreeNode: Links a registered drawing item to node and returns self for method chaining.

Drawing & Mutable Properties

• node.draw(xy: tuple[float, float], scale: float = 1.0) -> None: Renders the tree rooted at top-left xy with optional proportional scaling scale.
• Mutable Node Properties:
  • node.text: str — Get or set the node label string.
  • node.text_style: Style | None — Get or set the node text style.
  • node.line_style: Style | None — Get or set the node connector line style.
  • node.children -> list[TreeNode] — Access the list of child TreeNode instances.
  • node.show: bool — Toggle layout-preserving visibility before or between draw() calls.
