Faces, Clocks, Symbols & Operators

The Faces, Clocks, Symbols & Operators category of drawlib.shapes provides 8 expressive persona, time, celestial, mechanical, and mathematical primitives: 9-expression user/threat faces (face), analog and font-free 7-segment digital clocks (clock), sun and moon schedule/theme symbols (sun, moon), healthcheck hearts (heart), serverless/event lightning bolts (lightning), $N$-toothed mechanical cogwheels (gear), and 6 geometric mathematical operator symbols (math_symbol).

shapes_symbol_1

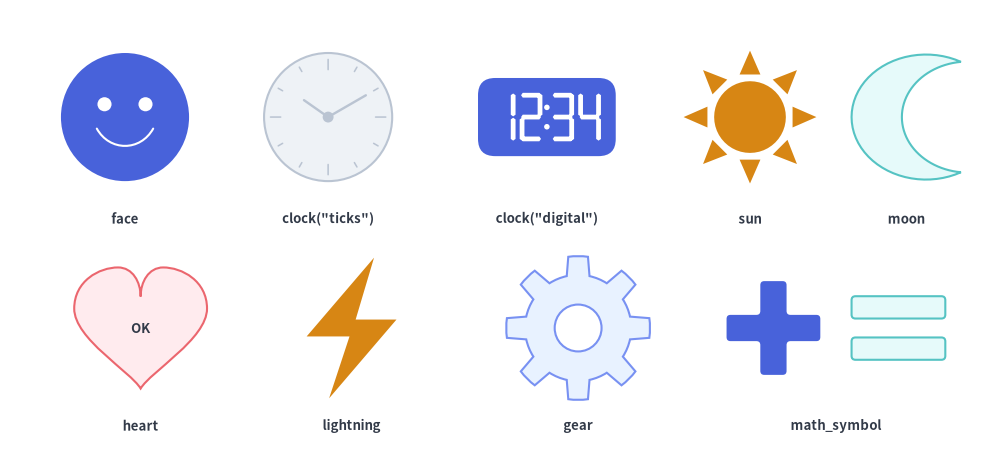

Overview of the 8 Face, Clock, Celestial, Mechanical, and Mathematical Symbol Primitives in drawlib.shapes
Source Code
from drawlib.canvas import save, setup
from drawlib.shapes import (
    clock,
    face,
    gear,
    heart,
    lightning,
    math_symbol,
    moon,
    sun,
)
from drawlib.styles import Styles
from drawlib.text import text

setup(width=128, height=58)

cap_st = Styles.DarkBold.patch(text_size=9.5)

# Row 1: face, clock (analog), clock (digital), sun, moon
face((16, 43), radius=8.2, variant="smile", style=Styles.PrimaryFlat)
text((16, 30), "face", style=cap_st)

clock((42, 43), radius=8.2, variant="ticks", hour=10, minute=10, style=Styles.Neutral)
text((42, 30), 'clock("ticks")', style=cap_st)

clock((70, 43), radius=8.2, variant="digital", hour=12, minute=34, style=Styles.PrimaryFlat)
text((70, 30), 'clock("digital")', style=cap_st)

sun((96, 43), radius=8.5, variant="rays", num_rays=8, style=Styles.WarningFlat)
text((96, 30), "sun", style=cap_st)

moon((116, 43), width=14, height=16, variant="crescent", style=Styles.SecondaryNeutral)
text((116, 30), "moon", style=cap_st)

# Row 2: heart, lightning, gear, math_symbol (+ and =)
heart(
    (18, 16),
    width=17,
    height=15.5,
    variant="standard",
    style=Styles.DangerNeutral,
    text="OK",
    text_style=Styles.DarkBold.patch(text_size=9.5),
)
text((18, 3.5), "heart", style=cap_st)

lightning((45, 16), width=11.5, height=18, variant="standard", style=Styles.WarningFlat)
text((45, 3.5), "lightning", style=cap_st)

gear(
    (74, 16),
    num_teeth=8,
    radius_ext=9.2,
    radius_int=6.8,
    hole_radius=3.0,
    style=Styles.PrimaryNeutral,
)
text((74, 3.5), "gear", style=cap_st)

math_symbol((99, 16), symbol="+", width=12, style=Styles.PrimaryFlat.patch(shape_r=0.5))
math_symbol((115, 16), symbol="=", width=12, style=Styles.SecondaryNeutral.patch(shape_r=0.5))
text((107, 3.5), "math_symbol", style=cap_st)

save()

1. Quick Comparison of Faces, Clocks, Symbols & Operators

Function Required Geometry Args Variants Key Geometry Modifiers Primary Diagram Use Cases
face xy, radius "smile", "neutral", "surprised", "sad", "angry", "dizzy", "dead", "skull", "devil" style.angle User/actor personas, SLO health sentiment, crashed nodes ("dead"), threat actors ("devil", "skull").
clock xy, radius "standard", "ticks" ("dial"), "alarm", "stopwatch" ("timer"), "digital" hour=10.0, minute=10.0 Cron jobs, SLA timers, latency stopwatches, and font-free 7-segment HH:MM digital timestamps.
sun xy, radius "rays" ("standard"), "ring", "beams" num_rays: int = 8 Daytime schedules, light theme icons, solar/clean energy nodes, brightness indicators.
moon xy, width, height "crescent" ("standard"), "thin", "waxing", "half" mirror: bool = False Nightly batch/backup jobs, dark theme icons, sleep/idle states.
heart xy, width, height "standard" ("classic"), "broken" style.angle Liveness/healthcheck probes ("standard"), degraded/unhealthy service states ("broken").
lightning xy, width, height "standard", "flat", "double", "flat_double", "angled", "slanted" mirror=False, style.shape_r Serverless functions, event/webhook triggers, cache hits, power/burst compute.
gear xy, num_teeth, radius_ext, radius_int Solid core (hole_radius=None) or Ring (hole_radius > 0) tooth_ext_ratio, tooth_int_ratio, style.shape_r Background worker daemons, CI/CD automation engines, configuration/settings nodes.

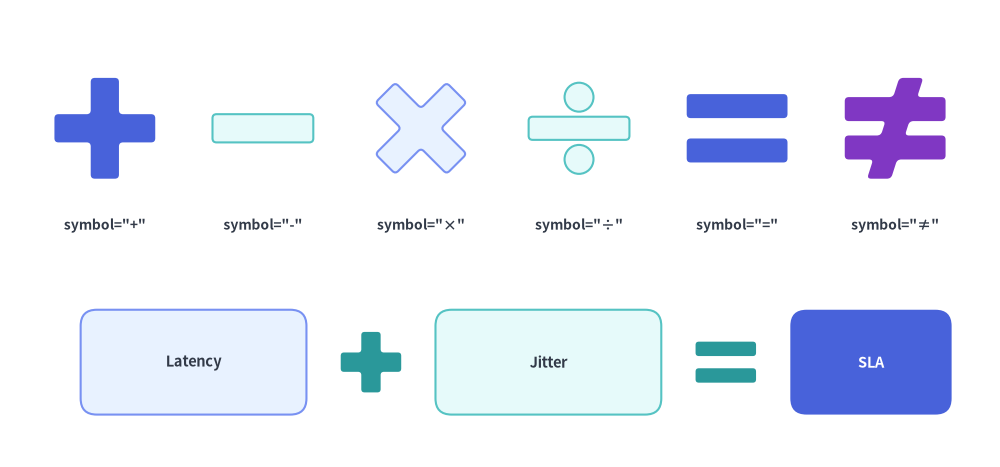

math_symbol xy, symbol, width "+", "-", "×", "÷", "=", "≠" (plus word aliases) height=None, thickness_ratio, style.shape_r Visual architecture formulas ([Service A] + [Cache] = [Low Latency]), comparison matrices.

2. Expressive Actor, Status & Threat Faces (face)

For user personas, customer journey maps, system health indicators, and threat/attacker modeling, face renders a circular or silhouette face with nine built-in expressions (variant):

face(
    xy: tuple[float, float],
    radius: float,
    *,
    style: Style,
    variant: Literal[
        "smile", "neutral", "sad", "angry", "surprised",
        "dizzy", "dead", "skull", "devil",
    ] = "smile",
    text: str = "",
    text_style: Style | None = None,
) -> None

Parameter Reference & variant Options

Parameter Type Default Description
xy tuple[float, float] Required Center coordinate (x, y) of the face.
radius float Required Outer radius of the face (> 0).
variant FaceVariant "smile" Facial expression or persona variant (case-insensitive):
• "smile": Upward cubic-Bézier smile curve.
• "neutral": Straight horizontal mouth line.
• "surprised": Elliptical open 'O' mouth.
• "sad": Downward cubic-Bézier frown curve.
• "angry": Downward frown curve plus inward-slanted eyebrows.
• "dizzy": Crossed 'X' eyes + wavy mouth (overloaded / degraded node).
• "dead": Crossed 'X' eyes + flat mouth with hanging tongue (crashed / OOM killed).
• "skull": Cranium + jawbone silhouette with hollow eye sockets, nasal cavity, and teeth (fatal / poison pill).
• "devil": Curved horns + slanted eyebrows + sinister grin (attacker / malicious actor).
style Style Required Face fill, outline, and rotation (angle). Features automatically use style.shape_line_color when a border is present, or high-contrast text_color/white on flat borderless styles (Styles.PrimaryFlat).
text / text_style str / Style | None "" / None Optional text label and typography style.
from drawlib.canvas import save, setup
from drawlib.shapes import face
from drawlib.styles import Styles
from drawlib.text import text

setup(width=132, height=44)

variants = [
    ("smile", Styles.PrimaryFlat),
    ("neutral", Styles.Neutral),
    ("surprised", Styles.SecondaryNeutral),
    ("sad", Styles.Neutral),
    ("angry", Styles.WarningNeutral),
    ("dizzy", Styles.WarningNeutral),
    ("dead", Styles.DangerNeutral),
    ("skull", Styles.Neutral),
    ("devil", Styles.DangerFlat),
]

for i, (v_name, st) in enumerate(variants):
    cx = 10 + i * 14.0
    face((cx, 26), radius=5.6, style=st, variant=v_name)
    text((cx, 11), f'"{v_name}"', style=Styles.DarkBold.patch(text_size=9.5))

save()
shapes_symbol_2

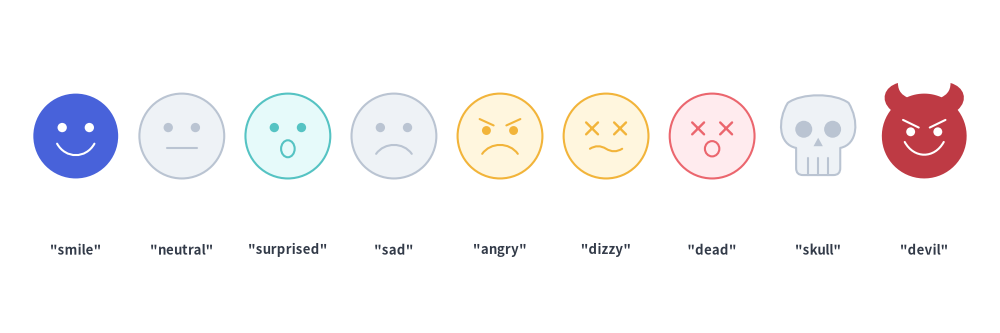

The Nine Face Variants in drawlib.shapes.face

3. Analog & Font-Free Digital Clocks (clock)

clock renders either an analog clock face with dynamically angled hour and minute hands ("standard", "ticks", "alarm", "stopwatch") or a font-free 7-segment digital clock ("digital"):

clock(
    xy: tuple[float, float],
    radius: float,
    *,
    variant: Literal[
        "standard",
        "ticks", "dial",
        "alarm",
        "stopwatch", "timer",
        "digital",
    ] = "standard",
    hour: float = 10.0,
    minute: float = 10.0,
    style: Style,
    text: str = "",
    text_style: Style | None = None,
) -> None

Parameter & variant Reference

Parameter Type Default Description
xy tuple[float, float] Required Center coordinate (x, y) of the clock dial or digital housing.
radius float Required Dial radius (> 0). For variant="digital", the rectangular housing has width 1.8 * radius and height 1.0 * radius.
variant ClockVariant "standard" Clock style (see Clock variant Comparison below).
hour float 10.0 Hour value (0–23). On analog variants, the hour hand smoothly advances with minute ($\theta_{\text{hour}} = 90^\circ - ((h \bmod 12) + m / 60) \times 30^\circ$). On variant="digital", formatted as zero-padded HH (int(hour) % 24).
minute float 10.0 Minute value (0–59). On analog variants, $\theta_{\text{minute}} = 90^\circ - m \times 6^\circ$. On variant="digital", formatted as zero-padded MM (int(minute) % 60).
style Style Required Fill, border, and rotation (angle) style. Hands, ticks, and 7-segment digits automatically select high-contrast stroke/fill colors (White on dark/flat fills, Dark on light/neutral fills).
text / text_style str / Style | None "" / None Optional text label centered at xy.
variant Accepted Aliases Visual Anatomy Typical Use Cases
"standard" (default) — Clean circular dial + center pivot dot + hour & minute hands Minimalist cron/schedule icons, TTL indicators.
"ticks" "dial" Circular dial + 12 radial hour tick marks (major ticks at 12, 3, 6, 9) + hands Scheduled batch jobs, uptime clocks, time-series windows.
"alarm" — Circular dial + 12 ticks + twin top hemisphere bells + two angled bottom legs Alerting thresholds, PagerDuty/on-call wakeups, SLA deadlines.
"stopwatch" "timer" Circular dial + 12 ticks + top crown stem + angled $45^\circ$ side pusher button Latency benchmarks, request timeout budgets, profiling timers.
"digital" — Rounded rectangular housing (1.8r × 1.0r) + pure-vector 7-segment HH:MM digits + colon dots Exact timestamp markers (00:00, 12:34, 23:59) with zero font dependencies and no ghost background segments.
from drawlib.canvas import save, setup
from drawlib.shapes import clock
from drawlib.styles import Styles
from drawlib.text import text

setup(width=130, height=48)

lbl = Styles.DarkBold.patch(text_size=9.5)

# 1. Standard minimal analog clock (10:10)
clock((15, 27), radius=8.8, variant="standard", hour=10, minute=10, style=Styles.Neutral)
text((15, 8.5), '"standard" (10:10)', style=lbl)

# 2. Ticks / dial analog clock (03:00)
clock((40, 27), radius=8.8, variant="ticks", hour=3, minute=0, style=Styles.PrimaryNeutral)
text((40, 8.5), '"ticks" (03:00)', style=lbl)

# 3. Alarm clock with twin bells & legs (07:30)
clock((65, 27), radius=8.2, variant="alarm", hour=7, minute=30, style=Styles.DangerNeutral)
text((65, 8.5), '"alarm" (07:30)', style=lbl)

# 4. Stopwatch / timer with top stem & side pusher (00:15)
clock((90, 27), radius=8.2, variant="stopwatch", hour=0, minute=15, style=Styles.SecondaryNeutral)
text((90, 8.5), '"stopwatch" (00:15)', style=lbl)

# 5. Font-free 7-segment digital clock (23:45)
clock((116, 27), radius=8.8, variant="digital", hour=23, minute=45, style=Styles.PrimaryFlat)
text((116, 8.5), '"digital" (23:45)', style=lbl)

save()
shapes_symbol_3

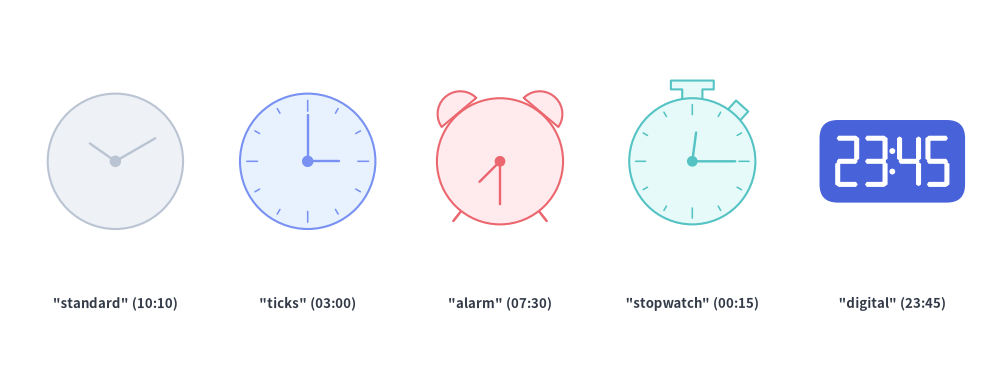

The Five Clock Variants: standard, ticks (dial), alarm, stopwatch (timer), and Font-Free 7-Segment digital

4. Celestial & Theme Symbols (sun, moon)

For light/dark theme toggles, daytime vs. nightly batch windows, and geographic time-of-day indicators, sun and moon provide multiple geometric variants:

sun(
    xy: tuple[float, float],
    radius: float,
    *,
    variant: Literal[
        "rays", "standard",
        "ring",
        "beams",
    ] = "rays",
    num_rays: int = 8,
    style: Style,
    text: str = "",
    text_style: Style | None = None,
) -> None

moon(
    xy: tuple[float, float],
    width: float,
    height: float,
    *,
    variant: Literal[
        "crescent", "standard",
        "thin",
        "waxing",
        "half",
    ] = "crescent",
    mirror: bool = False,
    style: Style,
    text: str = "",
    text_style: Style | None = None,
) -> None
Function Parameter Type Default Description
sun xy / radius tuple / float Required Center coordinate (cx, cy) and outer tip radius (> 0). Inner sun disc radius is 0.54 * radius.
variant SunVariant "rays" • "rays" ("standard"): Solid center disc surrounded by num_rays detached triangular rays.
• "ring": Hollow center annular ring surrounded by num_rays triangular rays.
• "beams": Solid center disc surrounded by num_rays rectangular beam bars.
num_rays int 8 Number of radial rays (>= 3, typically 8 or 12).
moon xy / width / height tuple / float Required Center coordinate (x, y) and exact outer bounding width and height (> 0).
variant MoonVariant "crescent" • "crescent" ("standard"): Classic balanced crescent moon.
• "thin": Slender, deeply scooped crescent.
• "waxing": Wide, fuller crescent with ample room for embedded text.
• "half": Straight-chord D-shaped half moon.
mirror bool False By default (mirror=False), the outer convex curve faces left ($-X$) and tips point right ($+X$). Set mirror=True to flip horizontally.
from drawlib.canvas import save, setup
from drawlib.shapes import moon, sun
from drawlib.styles import Styles
from drawlib.text import text

setup(width=130, height=46)

lbl = Styles.DarkBold.patch(text_size=9.5)

# Sun variants (rays, ring, beams)
sun((14, 27), radius=8.8, variant="rays", num_rays=8, style=Styles.WarningFlat)
text((14, 8.5), 'sun("rays")', style=lbl)

sun((35, 27), radius=8.8, variant="ring", num_rays=8, style=Styles.WarningNeutral)
text((35, 8.5), 'sun("ring")', style=lbl)

sun((56, 27), radius=8.8, variant="beams", num_rays=10, style=Styles.PrimaryFlat)
text((56, 8.5), 'sun("beams")', style=lbl)

# Moon variants (crescent, thin, waxing, half)
moon((76, 27), width=13, height=16, variant="crescent", style=Styles.SecondaryNeutral)
text((76, 8.5), '"crescent"', style=lbl)

moon((93, 27), width=11, height=16, variant="thin", style=Styles.PrimaryNeutral)
text((93, 8.5), '"thin"', style=lbl)

moon((109, 27), width=14, height=16, variant="waxing", mirror=True, style=Styles.SecondaryNeutral)
text((109, 8.5), '"waxing"', style=lbl)

moon((123, 27), width=9, height=16, variant="half", style=Styles.Neutral)
text((123, 8.5), '"half"', style=lbl)

save()
shapes_symbol_4

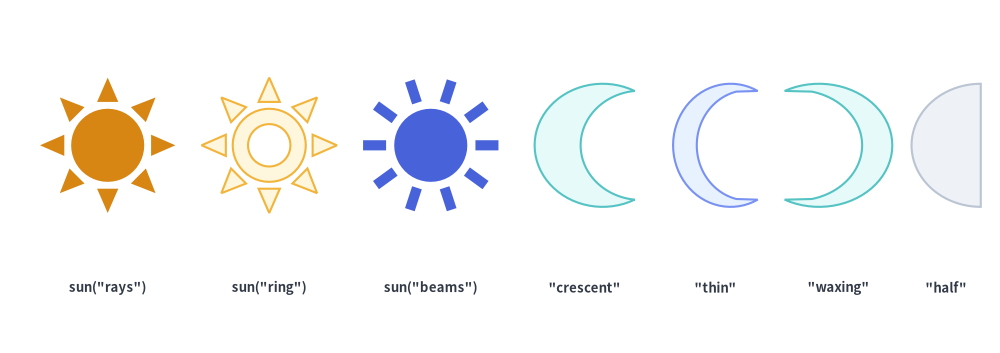

Sun Variants (rays, ring, beams) and Moon Phase Variants (crescent, thin, waxing, half)

5. Health Hearts & Event Lightning Bolts (heart, lightning)

5.1. Liveness & Healthcheck Hearts (heart)

heart renders a smooth cubic-Bézier heart ("standard") or a split two-piece cracked heart ("broken") for service healthchecks, SLA status cards, and user engagement metrics:

heart(
    xy: tuple[float, float],
    width: float,
    height: float,
    *,
    variant: Literal[
        "standard", "classic",
        "broken",
    ] = "standard",
    style: Style,
    text: str = "",
    text_style: Style | None = None,
) -> None

5.2. Serverless & Event Lightning Bolts (lightning)

lightning renders a high-voltage bolt silhouette with six geometric styles, optional horizontal reversal (mirror=True), and optional vertex rounding (style.shape_r):

lightning(
    xy: tuple[float, float],
    width: float,
    height: float,
    *,
    variant: Literal[
        "standard",
        "flat",
        "double",
        "flat_double",
        "angled",
        "slanted",
    ] = "standard",
    mirror: bool = False,
    style: Style,
    text: str = "",
    text_style: Style | None = None,
) -> None
lightning Variant Top Edge Zig-Zag Stages Typical Use Cases
"standard" (default) Pointed apex 1-step classic bolt Serverless functions (Lambda/Cloud Functions), webhook/event triggers, fast cache hits.
"flat" Flat horizontal top bar 1-step classic bolt Classic battery/charging icons and bold industrial hazard markers.
"double" Pointed apex 2-step multi-jag bolt High-voltage surges, cascading event streams, spike alerts.
"flat_double" Flat horizontal top bar 2-step multi-jag bolt Heavy power/burst compute indicators.
"angled" / "slanted" Slanted diagonal top edge Asymmetric dynamic bolt Action callouts and tilted comic/presentation accents.
from drawlib.canvas import save, setup
from drawlib.shapes import heart, lightning
from drawlib.styles import Styles
from drawlib.text import text

setup(width=132, height=46)

lbl = Styles.DarkBold.patch(text_size=9.5)

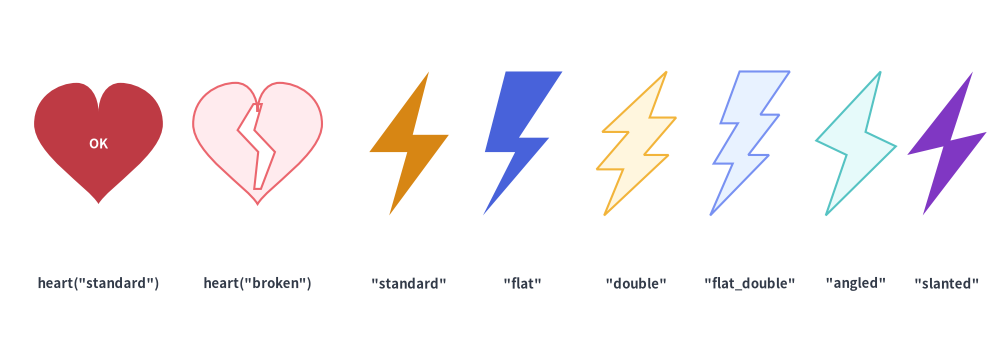

# 1. Heart variants ("standard" and "broken")
heart(
    (13, 27),
    width=17,
    height=16,
    variant="standard",
    style=Styles.DangerFlat,
    text="OK",
    text_style=Styles.WhiteBold.patch(text_size=9.5),
)
text((13, 8.5), 'heart("standard")', style=lbl)

heart((34, 27), width=17, height=16, variant="broken", style=Styles.DangerNeutral)
text((34, 8.5), 'heart("broken")', style=lbl)

# 2. All 6 Lightning variants
bolt_specs = [
    ("standard", 54, Styles.WarningFlat),
    ("flat", 69, Styles.PrimaryFlat),
    ("double", 84, Styles.WarningNeutral),
    ("flat_double", 99, Styles.PrimaryNeutral),
    ("angled", 113, Styles.SecondaryNeutral),
    ("slanted", 125, Styles.AccentFlat),
]
for var, cx, st in bolt_specs:
    lightning((cx, 27), width=10.5, height=19, variant=var, style=st)
    text((cx, 8.5), f'"{var}"', style=lbl)

save()
shapes_symbol_5
Heart Variants (standard, broken) and All Six Lightning Variants

6. Gears & Cogwheels (gear)

For automation engines, background workers, CI/CD runners, and system settings, gear renders an $N$-toothed mechanical cogwheel with circular root valleys, configurable tooth tip/base ratios, and an optional transparent center hole:

gear(
    xy: tuple[float, float],
    num_teeth: int,
    radius_ext: float,
    radius_int: float,
    *,
    tooth_ext_ratio: float | None = None,
    tooth_int_ratio: float | None = None,
    hole_radius: float | None = None,
    style: Style,
    text: str = "",
    text_style: Style | None = None,
) -> None

Parameter Reference

Parameter Type Default Description
xy tuple[float, float] Required Center coordinate (x, y) of the gear.
num_teeth int Required Number of gear teeth (>= 3, typically 6 to 12). Defines the angular pitch $\Delta\theta = 360^\circ / \text{num_teeth}$.
radius_ext float Required Outer tooth tip radius (> radius_int).
radius_int float Required Inner root valley radius (0 < radius_int < radius_ext).
tooth_ext_ratio float | None None Fraction of one pitch angle $\Delta\theta$ occupied by the outer tooth tip in (0.0, 1.0). Defaults to 0.35. Must satisfy tooth_ext_ratio <= tooth_int_ratio.
tooth_int_ratio float | None None Fraction of one pitch angle $\Delta\theta$ occupied by the inner tooth base in (0.0, 1.0). Defaults to 0.55. Must satisfy tooth_int_ratio >= tooth_ext_ratio.
hole_radius float | None None Radius of the transparent circular cutout in the center (0 < hole_radius < radius_int). When None (default), the gear has a solid core ideal for displaying text.
style Style Required Fill, border, rotation (angle), and tooth corner rounding (shape_r: scalar float or (4 * num_teeth)-tuple).
text / text_style str / Style | None "" / None Centered text label and optional typography override.

Tooth Geometry & Customization Rules

  • Trapezoidal vs. Square Teeth: By default (tooth_ext_ratio=0.35, tooth_int_ratio=0.55), each tooth tapers outward like a realistic involute gear. Setting both ratios equal (e.g. tooth_ext_ratio=0.45, tooth_int_ratio=0.45) produces straight-sided radial teeth.
  • Root Arcs & Corner Rounding (style.shape_r): When style.shape_r is None, root valleys and outer tips follow true circular arcs of radii radius_int and radius_ext. When style.shape_r is set (e.g. Styles.PrimaryNeutral.patch(shape_r=0.8)), all $4 \times \text{num_teeth}$ tooth corners are smoothly filleted.
  • Solid Core vs. Center Hole (hole_radius): Omit hole_radius when placing a text label inside the gear; specify hole_radius (e.g. 0.4 * radius_int) for a classic ring-style cogwheel.
from drawlib.canvas import save, setup
from drawlib.shapes import gear
from drawlib.styles import Styles
from drawlib.text import text

setup(width=126, height=48)

# 1. Solid gear with embedded text (hole_radius=None)
gear(
    (18, 27),
    num_teeth=8,
    radius_ext=13.0,
    radius_int=9.8,
    style=Styles.PrimaryFlat,
    text="Worker",
    text_style=Styles.WhiteBold.patch(text_size=10.0),
)
text((18, 8), "hole_radius=None", style=Styles.DarkBold.patch(text_size=9.5))

# 2. Standard 8-tooth gear with center hole (tooth_ext_ratio=0.35, tooth_int_ratio=0.55)
gear(
    (49, 27),
    num_teeth=8,
    radius_ext=13.0,
    radius_int=9.5,
    hole_radius=4.2,
    style=Styles.PrimaryNeutral,
)
text((49, 8), "hole_radius=4.2", style=Styles.DarkBold.patch(text_size=9.5))

# 3. 12-tooth gear with wide square teeth (tooth_ext_ratio=0.48, tooth_int_ratio=0.48)
gear(
    (80, 27),
    num_teeth=12,
    radius_ext=13.0,
    radius_int=10.0,
    tooth_ext_ratio=0.48,
    tooth_int_ratio=0.48,
    hole_radius=5.0,
    style=Styles.SecondaryNeutral,
)
text((80, 8), "num_teeth=12 (square)", style=Styles.DarkBold.patch(text_size=9.5))

# 4. 6-tooth heavy gear with filleted tooth corners (shape_r=1.0)
gear(
    (110, 27),
    num_teeth=6,
    radius_ext=13.0,
    radius_int=8.8,
    tooth_ext_ratio=0.38,
    tooth_int_ratio=0.60,
    hole_radius=3.8,
    style=Styles.Neutral.patch(shape_r=1.0),
)
text((110, 8), "num_teeth=6, shape_r=1.0", style=Styles.DarkBold.patch(text_size=9.5))

save()
shapes_symbol_6

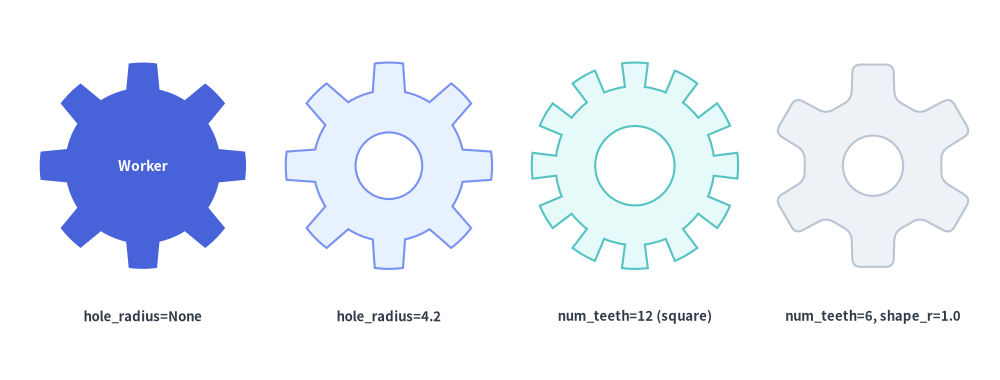

Gear Variations: Solid Core with Text, Standard Center Hole, Fine Teeth, and Rounded Tooth Corners

7. Mathematical Operator Symbols (math_symbol)

For visual equations and concept formulas ([Card A] + [Card B] = [Outcome]), math_symbol renders mathematical operators as filled, bordered geometric shapes rather than thin font glyphs:

math_symbol(
    xy: tuple[float, float],
    symbol: Literal[
        "+", "plus",
        "-", "−", "minus",
        "*", "x", "×", "multiply",
        "/", "÷", "divide",
        "=", "equal",
        "!=", "≠", "not_equal",
    ],
    width: float,
    height: float | None = None,
    *,
    thickness_ratio: float | None = None,
    style: Style,
    text: str = "",
    text_style: Style | None = None,
) -> None

Parameter Reference

Parameter Type Default Description
xy tuple[float, float] Required Center coordinate (x, y) of the symbol bounding box.
symbol MathSymbol Required Operator symbol or canonical name (see Supported symbol Variants below).
width float Required Outer horizontal width of the symbol (> 0).
height float | None None Outer vertical height (> 0). When None, defaults to width (square bounding box).
thickness_ratio float | None None Bar thickness fraction in (0.0, 1.0) relative to min(width, height). Defaults to 0.28.
style Style Required Fill, border, rotation (angle), and bar corner rounding (shape_r: scalar float).
text / text_style str / Style | None "" / None Centered text label and optional typography override.

Supported symbol Variants & Aliases

Primary symbol Accepted Aliases Geometric Construction
"+" "plus" Unified 12-vertex orthogonal cross contour (no internal overlapping stroke lines).
"-" "−", "minus" Single horizontal rectangular bar centered vertically.
"×" "*", "x", "multiply" Unified 12-vertex diagonal cross rotated $45^\circ$ and scaled to fit (width, height).
"÷" "/", "divide" Horizontal center bar combined with upper and lower circular dots (Path.make_compound_path).
"=" "equal" Two parallel horizontal bars spaced symmetrically above and below center.
"≠" "!=", "not_equal" Two parallel horizontal bars intersected by an angled slash in a single unified outer contour.
from drawlib.canvas import save, setup
from drawlib.shapes import math_symbol, rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=124, height=58)

# Row 1: All 6 symbols (+, -, ×, ÷, =, ≠)
symbols = [
    ("+", 'symbol="+"', Styles.PrimaryFlat),
    ("-", 'symbol="-"', Styles.SecondaryNeutral),
    ("×", 'symbol="×"', Styles.PrimaryNeutral),
    ("÷", 'symbol="÷"', Styles.SecondaryNeutral),
    ("=", 'symbol="="', Styles.PrimaryFlat),
    ("≠", 'symbol="≠"', Styles.AccentFlat),
]

for idx, (sym, label, st) in enumerate(symbols):
    cx = 13 + idx * 19.6
    math_symbol((cx, 42), symbol=sym, width=12.5, style=st.patch(shape_r=0.5))
    text((cx, 30), label, style=Styles.DarkBold.patch(text_size=10.0))

# Row 2: Visual equation layout (Card + Card = Result Card)
rectangle(
    (24, 13),
    width=28,
    height=13,
    style=Styles.PrimaryNeutral.patch(shape_r=2),
    text="Latency",
    text_style=Styles.DarkBold.patch(text_size=10.5),
)
math_symbol((46, 13), symbol="+", width=7.5, thickness_ratio=0.32, style=Styles.SecondaryFlat.patch(shape_r=0.4))
rectangle(
    (68, 13),
    width=28,
    height=13,
    style=Styles.SecondaryNeutral.patch(shape_r=2),
    text="Jitter",
    text_style=Styles.DarkBold.patch(text_size=10.5),
)
math_symbol((90, 13), symbol="=", width=7.5, thickness_ratio=0.28, style=Styles.SecondaryFlat.patch(shape_r=0.4))
rectangle(
    (108, 13),
    width=20,
    height=13,
    style=Styles.PrimaryFlat.patch(shape_r=2),
    text="SLA",
    text_style=Styles.WhiteBold.patch(text_size=10.5),
)

save()
shapes_symbol_7
Mathematical Operator Symbols (+, -, ×, ÷, =, ≠), Thickness Ratios, and Visual Equation Layout
