Polygons & Custom Paths

The Polygons & Custom Paths category of drawlib.shapes provides 9 geometric and path primitives: planar triangles and quadrilaterals (triangle, parallelogram, trapezoid, rhombus), radially symmetric shapes (regularpolygon, star), decorative corner-cut frames (plaque), arbitrary coordinate polygons (polygon), and a low-level Bézier vector path builder (shape).

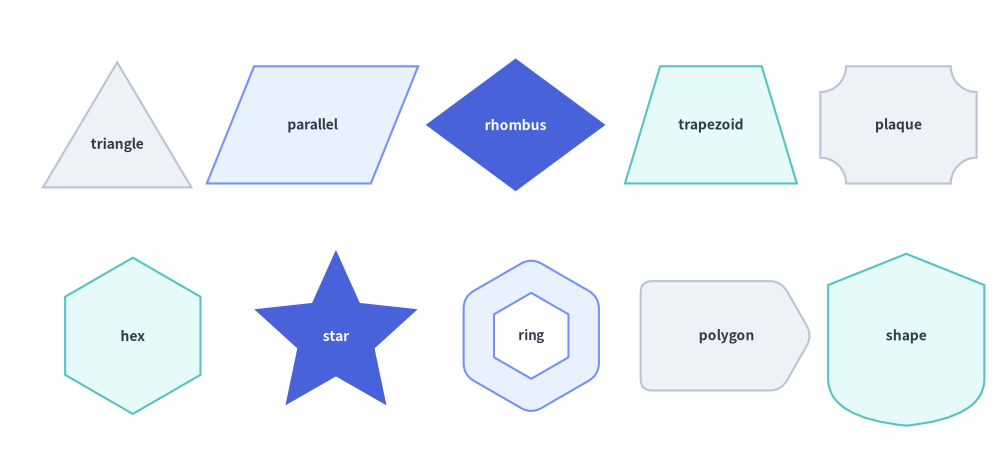

shapes_polygon_1
Overview of the 9 Polygon, Plaque, and Custom Vector Path Primitives in drawlib.shapes
Source Code
from drawlib.canvas import save, setup
from drawlib.shapes import (
    parallelogram,
    plaque,
    polygon,
    regularpolygon,
    rhombus,
    shape,
    star,
    trapezoid,
    triangle,
)
from drawlib.styles import Styles

setup(width=128, height=58)

lbl_dark = Styles.DarkBold.patch(text_size=10.0)
lbl_white = Styles.WhiteBold.patch(text_size=10.0)

# Row 1: Planar Triangle, Parallelogram, Rhombus, Trapezoid, Plaque
triangle(
    (15, 42),
    width=19,
    height=16,
    style=Styles.Neutral,
    text="triangle",
    text_style=lbl_dark.patch(xy_shift=(0, -2.5)),
)
parallelogram(
    (40, 42),
    width=21,
    height=15,
    corner_angle=68,
    style=Styles.PrimaryNeutral,
    text="parallel",
    text_style=lbl_dark,
)
rhombus(
    (66, 42),
    width=23,
    height=17,
    style=Styles.PrimaryFlat,
    text="rhombus",
    text_style=lbl_white,
)
trapezoid(
    (91, 42),
    height=15,
    bottomedge_width=22,
    topedge_width=13,
    style=Styles.SecondaryNeutral,
    text="trapezoid",
    text_style=lbl_dark,
)
plaque(
    (115, 42),
    width=20,
    height=15,
    variant="concave",
    style=Styles.Neutral,
    text="plaque",
    text_style=lbl_dark,
)

# Row 2: Regular Polygon, Star, Hollow Hexagon, Arbitrary Polygon, Custom Bézier Shape
regularpolygon(
    (17, 15),
    num_vertex=6,
    radius=10.0,
    style=Styles.SecondaryNeutral,
    text="hex",
    text_style=lbl_dark,
)
star(
    (43, 15),
    num_vertex=5,
    radius_ext=11.0,
    radius_int=5.2,
    style=Styles.PrimaryFlat,
    text="star",
    text_style=lbl_white,
)
regularpolygon(
    (68, 15),
    num_vertex=6,
    radius=10.0,
    hole_ratio=0.55,
    style=Styles.PrimaryNeutral.patch(shape_r=1.5),
    text="ring",
    text_style=Styles.DarkBold.patch(text_size=9.5),
)
polygon(
    [(82, 8), (100, 8), (104, 15), (100, 22), (82, 22)],
    style=Styles.Neutral.patch(shape_r=1.5),
    text="polygon",
    text_style=lbl_dark,
)
shape(
    (116, 15),
    path_points=[(0, 6), (0, 18), (10, 22), (20, 18), (20, 6), ((20, 1), (10, 0)), ((0, 1), (0, 6))],
    style=Styles.SecondaryNeutral,
    text="shape",
    text_style=lbl_dark,
)

save()

1. Quick Comparison of Polygon & Path Primitives

Function Anchor Vertex Count hole_ratio style.shape_r Typical Diagram Use Cases
triangle Center (cx, cy) 3 Yes (0, 1) float or 3-tuple (bl, top, br) Warning badges, delta markers, pyramids, right/skewed triangles.
parallelogram Center (cx, cy) 4 Yes (0, 1) float or 4-tuple (bl, tl, tr, br) Flowchart data I/O blocks, message streams, skewed layers.
trapezoid Center (cx, cy) 4 Yes (0, 1) float or 4-tuple (bl, tl, tr, br) Multiplexers, neural network pooling layers, stage reducers.
rhombus Center (cx, cy) 4 Yes (0, 1) float or 4-tuple (left, top, right, bottom) Flowchart decision gates, ER relationship diamonds, routers.
regularpolygon Center (cx, cy) num_vertex >= 3 Yes (0, 1) float or N-tuple Hexagon microservice pods (N=6), octagons (N=8), pentagons (N=5).
star Center (cx, cy) 2 * num_vertex — float or (2N)-tuple Rating stars (N=5), seal/award badges (N=8, 12), focal markers.
plaque Center (cx, cy) 8 / 12 / Curved — float or tuple (chamfered/notched) Certificate frames, SLA badges, formal labels, ticket cards.
polygon Explicit xys len(xys) >= 3 — float or N-tuple Custom network zones, irregular regions, bespoke multi-vertex cards.
shape Center (cx, cy) Arbitrary — — Custom silhouettes mixing straight lines, quadratic, and cubic Béziers.

2. Planar Quadrilaterals & Triangles (triangle, parallelogram, trapezoid, rhombus)

All four planar polygon functions share a consistent center-anchored bounding-box contract and support corner rounding (style.shape_r), hollow cutouts (hole_ratio), and rotation (style.angle):

triangle(
    xy: tuple[float, float],
    width: float,
    height: float,
    topvertex_x: float | None = None,
    *,
    hole_ratio: float | None = None,
    style: Style,
    text: str = "",
    text_style: Style | None = None,
) -> None

parallelogram(
    xy: tuple[float, float],
    width: float,
    height: float,
    corner_angle: float = 60.0,
    *,
    hole_ratio: float | None = None,
    style: Style,
    text: str = "",
    text_style: Style | None = None,
) -> None

trapezoid(
    xy: tuple[float, float],
    height: float,
    bottomedge_width: float,
    topedge_width: float,
    topedge_x: float | None = None,
    *,
    hole_ratio: float | None = None,
    style: Style,
    text: str = "",
    text_style: Style | None = None,
) -> None

rhombus(
    xy: tuple[float, float],
    width: float,
    height: float,
    *,
    hole_ratio: float | None = None,
    style: Style,
    text: str = "",
    text_style: Style | None = None,
) -> None

Parameter Reference

Function Parameter Type Default Description
Common xy tuple[float, float] Required Center coordinate (x, y) of the unrotated bounding box (when using preset Styles.*).
hole_ratio float | None None Optional concentric center cutout ratio in (0.0, 1.0).
style Style Required Fill, border, rotation (angle), and vertex rounding (shape_r: scalar float or per-vertex tuple).
text / text_style str / Style | None "" / None Centered text label and optional typography override (use xy_shift to nudge text in asymmetric triangles/trapezoids).
triangle width / height float Required Base width (> 0) and vertical height (> 0).
topvertex_x float | None None Horizontal offset of the top apex relative to the bottom-left corner (None defaults to width / 2 for an isosceles triangle; 0 creates a left-aligned right triangle; width creates a right-aligned right triangle).
parallelogram width / height float Required Base edge width (> 0) and vertical height (> 0). Note: total horizontal bounding width is width + height / tan(corner_angle).
corner_angle float 60.0 Bottom-left interior slant angle in degrees (0 < corner_angle < 90).
trapezoid height float Required Vertical height (> 0). Note: trapezoid specifies bottomedge_width and topedge_width instead of width.
bottomedge_width float Required Length of the bottom horizontal edge (> 0).
topedge_width float Required Length of the top horizontal edge (> 0). Set topedge_width > bottomedge_width for an inverted funnel trapezoid.
topedge_x float | None None Horizontal offset of the top-left vertex relative to the bottom-left vertex (None centers the top edge symmetrically: (bottomedge_width - topedge_width) / 2).
rhombus width / height float Required Total horizontal diagonal span and vertical diagonal span (> 0).
from drawlib.canvas import save, setup
from drawlib.shapes import parallelogram, rhombus, trapezoid, triangle
from drawlib.styles import Styles

setup(width=124, height=40)

lbl_dark = Styles.DarkBold.patch(text_size=10.5)

# 1. Parallelogram (I/O Stream)
parallelogram(
    (19, 20),
    width=24,
    height=16,
    corner_angle=70,
    style=Styles.Neutral,
    text="Input I/O",
    text_style=lbl_dark,
)

# 2. Rhombus (Decision Gate with rounded vertices)
rhombus(
    (52, 20),
    width=28,
    height=20,
    style=Styles.PrimaryFlat.patch(shape_r=1.5),
    text="Valid?",
    text_style=Styles.WhiteBold.patch(text_size=10.5),
)

# 3. Symmetric Trapezoid (Pooling / Funnel Layer)
trapezoid(
    (84, 20),
    height=16,
    bottomedge_width=26,
    topedge_width=14,
    style=Styles.SecondaryNeutral,
    text="Pool",
    text_style=lbl_dark,
)

# 4. Asymmetric Triangle (topvertex_x shifts apex horizontally)
triangle(
    (111, 20),
    width=19,
    height=16,
    topvertex_x=4,
    style=Styles.Neutral,
    text="Skew",
    text_style=Styles.DarkBold.patch(text_size=10.0, xy_shift=(-1.5, -2.5)),
)

save()

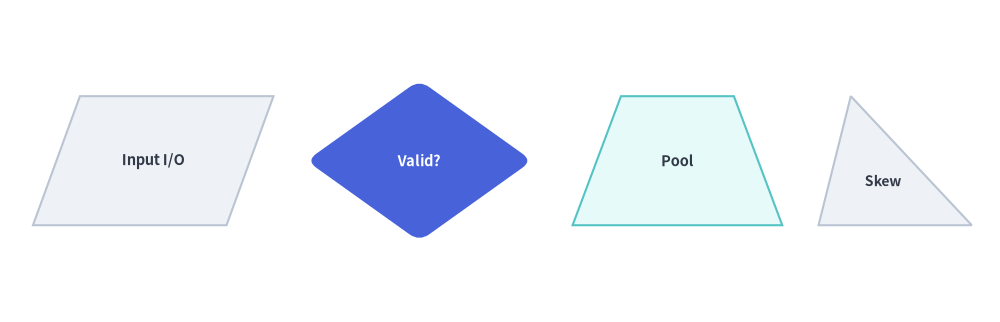

shapes_polygon_2
Parallelogram, Rhombus, Trapezoid, and Asymmetric Triangle

Hollow Cutouts (hole_ratio) & Per-Vertex Rounding (shape_r) on Planar Polygons

All four planar polygons accept hole_ratio in (0.0, 1.0) to cut out a proportional inner hole, and accept either a scalar float or a per-vertex tuple in style.patch(shape_r=...):

from drawlib.canvas import save, setup
from drawlib.shapes import parallelogram, rhombus, trapezoid, triangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=128, height=44)

lbl = Styles.DarkBold.patch(text_size=9.5)

# 1. Hollow rounded triangle (warning frame)
triangle(
    (18, 25),
    width=22,
    height=19,
    hole_ratio=0.52,
    style=Styles.WarningFlat.patch(shape_r=1.8),
)
text((18, 8), "triangle(hole=0.52)", style=lbl)

# 2. Hollow rounded rhombus
rhombus(
    (49, 25),
    width=26,
    height=20,
    hole_ratio=0.55,
    style=Styles.PrimaryFlat.patch(shape_r=1.5),
)
text((49, 8), "rhombus(hole=0.55)", style=lbl)

# 3. Hollow parallelogram
parallelogram(
    (81, 25),
    width=21,
    height=17,
    corner_angle=68,
    hole_ratio=0.55,
    style=Styles.PrimaryNeutral.patch(shape_r=1.5),
)
text((81, 8), "parallelogram(hole=0.55)", style=lbl)

# 4. Trapezoid with top corners rounded only: shape_r=(0, 3.5, 3.5, 0)
trapezoid(
    (112, 25),
    height=17,
    bottomedge_width=24,
    topedge_width=15,
    style=Styles.SecondaryNeutral.patch(shape_r=(0, 3.5, 3.5, 0)),
    text="Top r=3.5",
    text_style=lbl,
)
text((112, 8), "shape_r=(0,3.5,3.5,0)", style=lbl)

save()

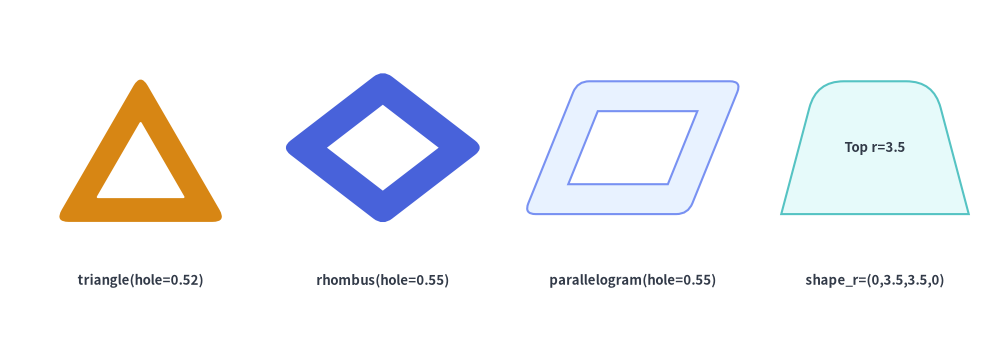

shapes_polygon_3
Hollow Cutouts (hole_ratio) and Per-Vertex Rounding (shape_r) on Planar Polygons

3. Regular Polygons & Stars (regularpolygon, star)

regularpolygon and star construct radially symmetric shapes centered at xy, with the first vertex placed at the top ($90^\circ$, or rotated by style.angle):

regularpolygon(
    xy: tuple[float, float],
    num_vertex: int,
    radius: float,
    *,
    hole_ratio: float | None = None,
    style: Style,
    text: str = "",
    text_style: Style | None = None,
) -> None

star(
    xy: tuple[float, float],
    num_vertex: int,
    radius_ext: float,
    radius_int: float,
    *,
    style: Style,
    text: str = "",
    text_style: Style | None = None,
) -> None
Function Parameter Type Default Description
regularpolygon xy tuple[float, float] Required Center coordinate (cx, cy) of the circumscribed circle.
num_vertex int Required Number of polygon vertices/sides (>= 3, e.g. 5 for pentagon, 6 for hexagon, 8 for octagon).
radius float Required Circumscribed radius from center xy to each vertex (> 0).
hole_ratio float | None None Optional concentric polygon cutout ratio in (0.0, 1.0).
style Style Required Supports angle rotation and shape_r vertex rounding (scalar float or num_vertex-tuple).
star xy tuple[float, float] Required Center coordinate (cx, cy) of the star.
num_vertex int Required Number of outer star tips (>= 3). Total polygon vertices = 2 * num_vertex.
radius_ext float Required Outer tip radius (> radius_int).
radius_int float Required Inner valley radius (0 < radius_int < radius_ext).
style Style Required Supports angle rotation and shape_r rounding (scalar float or (2 * num_vertex)-tuple of alternating (outer_tip, inner_valley) radii).
from drawlib.canvas import save, setup
from drawlib.shapes import regularpolygon, star
from drawlib.styles import Styles

setup(width=120, height=40)

lbl_dark = Styles.DarkBold.patch(text_size=10.5)

# 1. Pentagon (num_vertex=5)
regularpolygon(
    (18, 20),
    num_vertex=5,
    radius=12,
    style=Styles.Neutral,
    text="N=5",
    text_style=lbl_dark,
)

# 2. Rounded Hexagon Pod (num_vertex=6, shape_r=2)
regularpolygon(
    (47, 20),
    num_vertex=6,
    radius=12,
    style=Styles.PrimaryFlat.patch(shape_r=2),
    text="Hex Pod",
    text_style=Styles.WhiteBold.patch(text_size=10.5),
)

# 3. 5-Point Star (radius_ext=13, radius_int=6.0)
star(
    (76, 20),
    num_vertex=5,
    radius_ext=13,
    radius_int=6.0,
    style=Styles.SecondaryNeutral,
    text="Star 5",
    text_style=lbl_dark,
)

# 4. Rounded 8-Point Badge Star (num_vertex=8, shape_r=1.0)
star(
    (104, 20),
    num_vertex=8,
    radius_ext=12.5,
    radius_int=8.8,
    style=Styles.PrimaryNeutral.patch(shape_r=1.0),
    text="Badge",
    text_style=lbl_dark,
)

save()

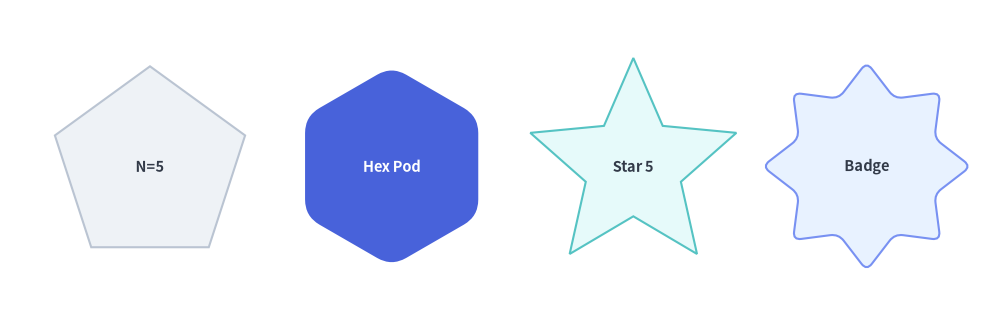

shapes_polygon_4
Regular Polygons and Stars with Vertex Count and Corner Rounding Variations

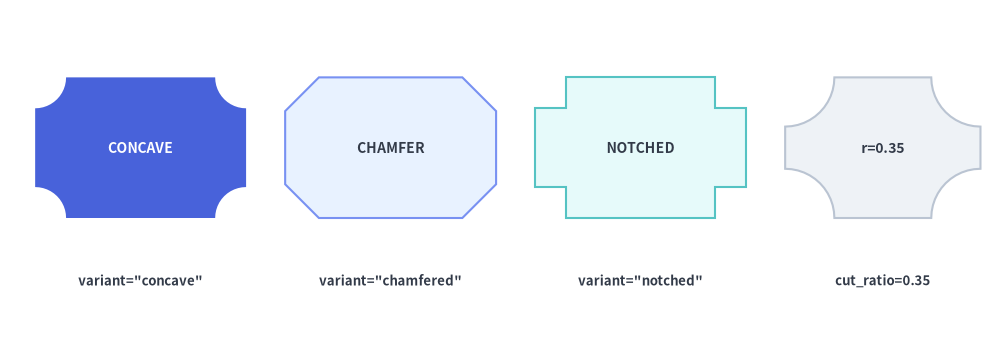

4. Decorative & Certificate Plaques (plaque)

plaque renders a rectangular frame with decorative corner cutouts—ideal for SLA/compliance badges, certificate headers, ticket stubs, and formal architectural labels:

plaque(
    xy: tuple[float, float],
    width: float,
    height: float,
    *,
    variant: Literal[
        "concave", "standard",
        "chamfered", "octagon",
        "notched",
    ] = "concave",
    cut_ratio: float | None = None,
    style: Style,
    text: str = "",
    text_style: Style | None = None,
) -> None

Parameter & variant Reference

Parameter Type Default Description
xy tuple[float, float] Required Center coordinate (x, y) of the plaque bounding box (supports style.halign / style.valign).
width / height float Required Outer horizontal width (> 0) and vertical height (> 0).
variant PlaqueVariant "concave" Corner cutout geometry (see Plaque variant Comparison below).
cut_ratio float | None None Corner cutout size fraction in [0.02, 0.45] relative to min(width, height). Defaults to 0.20 when None.
style Style Required Fill, border, rotation (angle), and optional vertex filleting (shape_r is supported on "chamfered" and "notched" variants).
text / text_style str / Style | None "" / None Centered text label and optional typography override.
variant Accepted Aliases Corner Geometry Supports style.shape_r Typical Use Cases
"concave" (default) "standard" Smooth inward quarter-circle arcs scooped out of all 4 corners — (Curved arcs) Classic ornamental plaques, tickets, and certification badges.
"chamfered" "octagon" Straight $45^\circ$ diagonal corner cuts (8-vertex octagonal card) Yes (float or 8-tuple) Industrial/hardware labels, stop/gate cards, and beveled frames.
"notched" — Orthogonal $90^\circ$ L-shaped inward corner steps (12-vertex stepped card) Yes (float or 12-tuple) Retro/pixel-style frames, bus cards, and architectural title blocks.
from drawlib.canvas import save, setup
from drawlib.shapes import plaque
from drawlib.styles import Styles
from drawlib.text import text

setup(width=128, height=44)

lbl = Styles.DarkBold.patch(text_size=9.5)

# 1. Concave (inward circular arc corners)
plaque(
    (18, 25),
    width=27,
    height=18,
    variant="concave",
    cut_ratio=0.22,
    style=Styles.PrimaryFlat,
    text="CONCAVE",
    text_style=Styles.WhiteBold.patch(text_size=10.0),
)
text((18, 8), 'variant="concave"', style=lbl)

# 2. Chamfered / Octagon (45° diagonal cut corners)
plaque(
    (50, 25),
    width=27,
    height=18,
    variant="chamfered",
    cut_ratio=0.24,
    style=Styles.PrimaryNeutral,
    text="CHAMFER",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)
text((50, 8), 'variant="chamfered"', style=lbl)

# 3. Notched (90° inward step corners)
plaque(
    (82, 25),
    width=27,
    height=18,
    variant="notched",
    cut_ratio=0.22,
    style=Styles.SecondaryNeutral,
    text="NOTCHED",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)
text((82, 8), 'variant="notched"', style=lbl)

# 4. Deep concave cut (cut_ratio=0.35)
plaque(
    (113, 25),
    width=25,
    height=18,
    variant="concave",
    cut_ratio=0.35,
    style=Styles.Neutral,
    text="r=0.35",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)
text((113, 8), "cut_ratio=0.35", style=lbl)

save()
shapes_polygon_5
The Three Plaque Variants (concave, chamfered, notched) and cut_ratio Customization

5. Arbitrary Coordinate Polygons (polygon)

polygon constructs a closed polygon directly from an explicit sequence of canvas vertex coordinates xys=[(x1, y1), (x2, y2), ...], with optional interior cutout holes:

polygon(
    xys: list[tuple[float, float]],
    *,
    holes: list[list[tuple[float, float]]] | None = None,
    style: Style,
    text: str = "",
    text_style: Style | None = None,
) -> None
Parameter Type Default Description
xys list[tuple[float, float]] Required Ordered sequence of at least 3 outer canvas vertex coordinates [(x1, y1), (x2, y2), ...].
holes list[list[tuple[float, float]]] | None None Optional list of inner cutout rings [[(hx1, hy1), ...], ...]. Winding direction is normalized automatically (xys CCW, holes CW).
style.shape_r float | tuple[float, ...] | None None Pass a scalar float to round all outer and hole vertices equally, or a tuple of radii (r1, r2, ..., rN) matching len(xys) to round specific outer vertices selectively (0 keeps a vertex sharp).
text / text_style str / Style | None "" / None Embedded label automatically placed at the bounding-box center of xys.
from drawlib.canvas import save, setup
from drawlib.shapes import polygon
from drawlib.styles import Styles
from drawlib.text import text

setup(width=128, height=44)

lbl = Styles.DarkBold.patch(text_size=9.5)

# 1. Irregular network zone with uniform corner rounding
polygon(
    xys=[(6, 12), (10, 36), (38, 38), (44, 14), (22, 8)],
    style=Styles.Neutral.patch(shape_r=3),
    text="Subnet A",
    text_style=Styles.DarkBold.patch(text_size=10.5),
)

# 2. Custom tag card with per-vertex radii (sharp tip on right)
polygon(
    xys=[(50, 12), (50, 36), (76, 36), (88, 24), (76, 12)],
    style=Styles.PrimaryFlat.patch(shape_r=(3, 3, 2, 0, 2)),
    text="Tag",
    text_style=Styles.WhiteBold.patch(text_size=10.5),
)

# 3. Compound polygon frame with two interior cutout holes
polygon(
    xys=[(94, 10), (124, 10), (124, 38), (94, 38)],
    holes=[
        [(98, 26), (108, 26), (108, 34), (98, 34)],
        [(110, 14), (120, 14), (120, 22), (110, 22)],
    ],
    style=Styles.PrimaryNeutral.patch(shape_r=1.5),
)
text((109, 5), "holes=[...]", style=lbl)

save()

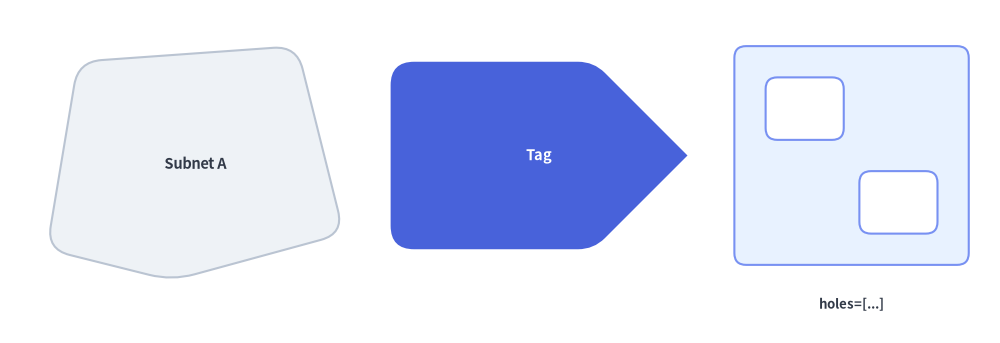

shapes_polygon_6
Custom Polygons with Uniform Rounding, Per-Vertex Rounding, and Interior Cutout Holes

6. Low-Level Vector & Bézier Path Builder (shape)

For custom silhouettes that combine straight lines, quadratic Bézier curves, and cubic Bézier curves with relative positioning and rotation around xy, use shape():

shape(
    xy: tuple[float, float],
    path_points: list[
        tuple[float, float]
        | tuple[tuple[float, float], tuple[float, float]]
        | tuple[tuple[float, float], tuple[float, float], tuple[float, float]]
    ],
    *,
    style: Style,
    text: str = "",
    text_style: Style | None = None,
    is_default_center: bool = False,
) -> None
Parameter / path_points Element Type / Tuple Format Description
xy tuple[float, float] Anchor coordinate (x, y) on the canvas (center of bounding box when using preset Styles.*).
First Element path_points[0] (x0, y0) Must be a 2-float starting vertex (x0, y0) in local coordinates (Path.MOVETO).
Straight Line Segment (x, y) Draws a straight line to (x, y) (Path.LINETO).
Quadratic Bézier Segment ((cp_x, cp_y), (end_x, end_y)) Curves toward single control point cp before ending at end (Path.CURVE3).
Cubic Bézier Segment ((cp1_x, cp1_y), (cp2_x, cp2_y), (end_x, end_y)) Curves via two control points cp1 and cp2 to end (Path.CURVE4).
is_default_center bool Fallback alignment when style.halign or style.valign is None. All preset Styles.* explicitly set halign="center", valign="center", centering the path's bounding box at xy.
from drawlib.canvas import save, setup
from drawlib.shapes import shape
from drawlib.styles import Styles

setup(width=115, height=44)

# 1. Custom Crest Silhouette (Quadratic Bézier curved base)
shape(
    xy=(32, 22),
    path_points=[
        (0, 14),
        (0, 28),
        (14, 32),
        (28, 28),
        (28, 14),
        ((28, 4), (14, 0)),
        ((0, 4), (0, 14)),
    ],
    style=Styles.PrimaryFlat,
    text="Custom\nCrest",
    text_style=Styles.WhiteBold.patch(text_size=10.5),
)

# 2. Custom Symmetric Hourglass Silhouette (Cubic Bézier waist)
shape(
    xy=(80, 22),
    path_points=[
        (0, 0),
        ((10, 10), (10, 20), (0, 30)),
        (34, 30),
        ((24, 20), (24, 10), (34, 0)),
    ],
    style=Styles.SecondaryNeutral,
    text="Cubic\nBezier",
    text_style=Styles.DarkBold.patch(text_size=10.5),
)

save()

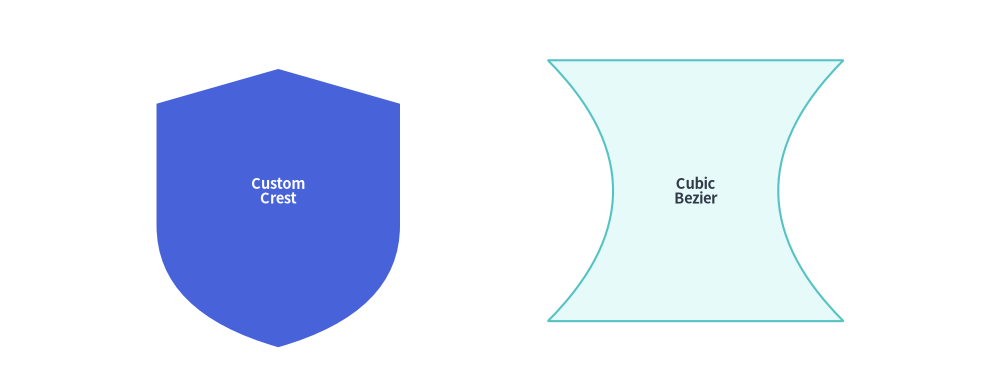

shapes_polygon_7
Custom Vector Shapes Using Quadratic and Cubic Bézier Path Points

[!TIP]
