GanttChart: Project Roadmaps, Milestones & Dependencies

GanttChart (drawlib.charts.gantt) provides declarative, vector-grade project roadmaps, sprint schedules, and milestone timelines. Timeline intervals are structured horizontally along the X-axis while section divider banners, task rows, and milestones stack sequentially downwards along the Y-axis.

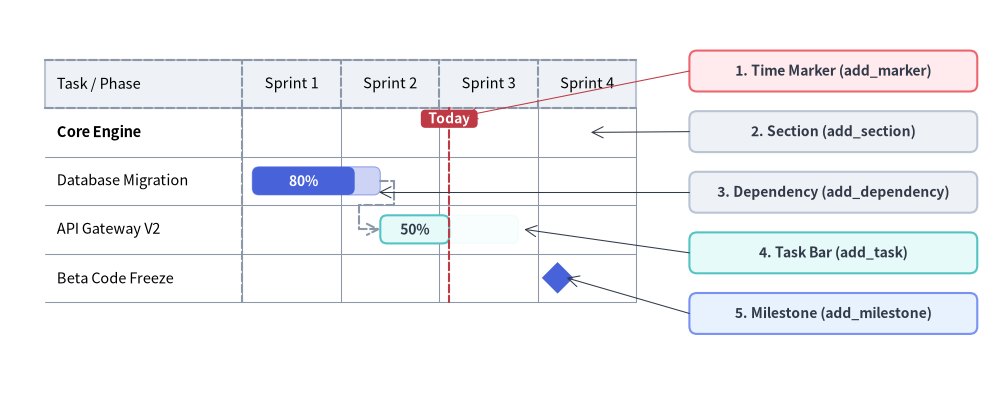

1. Overview & Structural Hierarchy

from drawlib.canvas import save, setup
from drawlib.charts.gantt import GanttChart
from drawlib.lines import line
from drawlib.shapes import rectangle
from drawlib.styles import Styles

setup(width=132, height=52)

chart = GanttChart(
    columns=["Sprint 1", "Sprint 2", "Sprint 3", "Sprint 4"],
    axis_line_style=Styles.MutedDashed,
    axis_text_style=Styles.Black.patch(text_size=10.5),
    grid_style=Styles.MutedThin,
    header_style=Styles.Neutral,
    progress_text_style=Styles.WhiteBold.patch(text_size=10.0),
    width=82.0,
    label_width=26.0,
    header_height=6.4,
    row_height=6.4,
    bar_radius=0.9,
)

chart.add_section("Core Engine", text_style=Styles.BlackBold.patch(text_size=10.5))
t1 = chart.add_task("Database Migration", start=0.1, end=1.4, style=Styles.PrimaryFlat, progress=0.8)
t2 = chart.add_task(
    "API Gateway V2",
    start=1.4,
    end=2.8,
    style=Styles.SecondaryNeutral,
    progress=0.5,
    progress_text_style=Styles.DarkBold.patch(text_size=10.0),
)
chart.add_milestone("Beta Code Freeze", at=3.2, style=Styles.PrimaryFlat)
chart.add_dependency(t1, t2)
chart.add_marker(at=2.1, style=Styles.DangerDashed, label="Today", label_style=Styles.WhiteBold.patch(text_size=10.0))

chart.draw(xy=(4.0, 8.0))

# Compute exact row Y coordinates from chart.get_size()
_, chart_h = chart.get_size()
rows_top = 8.0 + chart_h - 2.0 - chart.header_height
row_cy = [rows_top - (i + 0.5) * chart.row_height for i in range(4)]

# Structural Callout Annotations on the Right
callouts = [
    (42.5, "1. Time Marker (add_marker)", Styles.DangerNeutral),
    (34.5, "2. Section (add_section)", Styles.Neutral),
    (26.5, "3. Dependency (add_dependency)", Styles.Neutral),
    (18.5, "4. Task Bar (add_task)", Styles.SecondaryNeutral),
    (10.5, "5. Milestone (add_milestone)", Styles.PrimaryNeutral),
]
for cy, label_txt, box_style in callouts:
    rectangle(
        (110.0, cy),
        width=38.0,
        height=5.4,
        style=box_style.patch(shape_r=1.0),
        text=label_txt,
        text_style=Styles.DarkBold.patch(text_size=10.0),
    )

line((91.0, 42.5), (61.4, rows_top - 1.0), arrow_head="->", style=Styles.DangerThin)
line((91.0, 34.5), (78.0, row_cy[0]), arrow_head="->", style=Styles.DarkThin)
line((91.0, 26.5), (50.0, row_cy[1] - 1.5), arrow_head="->", style=Styles.DarkThin)
line((91.0, 18.5), (69.2, row_cy[2]), arrow_head="->", style=Styles.DarkThin)
line((91.0, 10.5), (74.8, row_cy[3]), arrow_head="->", style=Styles.DarkThin)

save()

• Section Dividers (add_section): Full-width banner rows that categorize tasks into functional phases or teams.
• Task Bars (add_task): Scheduled duration bars supporting completion ratios (progress in 0.0–1.0) where the completed portion is filled at full opacity and the remaining span is tinted at reduced alpha.
• Milestones (add_milestone): Zero-duration diamond (rhombus) markers anchored at a specific column or numeric time index.
• Vertical Time Markers (add_marker): Full-height vertical reference lines with top badge labels (e.g., "Today").
• Dependency Connectors (add_dependency): Orthogonal routed arrows linking a predecessor task's end to a successor task's start.
• Dependency Visibility Cascading (show): Hiding a Task (task.show = False or task.draw_ratio = 0.0) preserves its row slot in the schedule and automatically hides any Dependency arrows where from_task or to_task is that task.

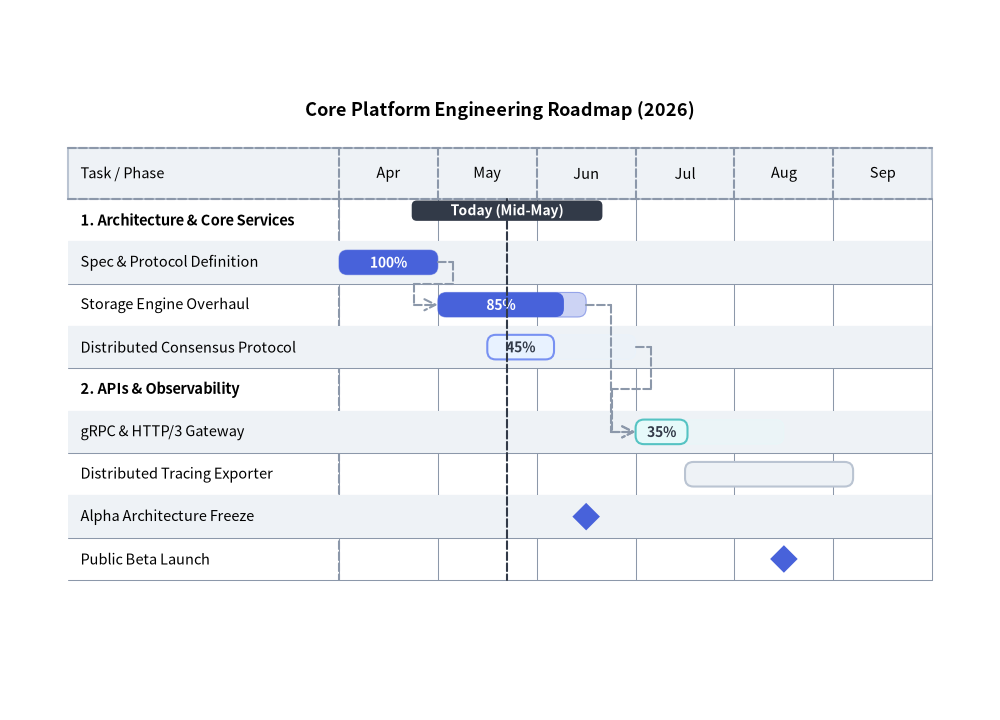

2. Engineering Release Roadmap with Dependencies

The following example demonstrates sections, tasks with completion progress indicators, milestones, orthogonal dependency routing, and a vertical "Today" marker:

from drawlib.canvas import save, setup
from drawlib.charts.gantt import GanttChart
from drawlib.styles import Styles

setup(width=118, height=85)

chart = GanttChart(
    columns=["Apr", "May", "Jun", "Jul", "Aug", "Sep"],
    axis_line_style=Styles.MutedDashed,
    axis_text_style=Styles.Black.patch(text_size=10.5),
    grid_style=Styles.MutedThin,
    header_style=Styles.Neutral,
    zebra_style=Styles.NeutralFlat,
    progress_text_style=Styles.WhiteBold.patch(text_size=10.0),
    width=106.0,
    label_width=32.0,
    title="Core Platform Engineering Roadmap (2026)",
    title_style=Styles.BlackBold.patch(text_size=13.0),
    header_height=6.0,
    row_height=5.0,
    bar_radius=1.0,
)

# 1. Core Services Section
chart.add_section("1. Architecture & Core Services", text_style=Styles.BlackBold.patch(text_size=10.5))
t1 = chart.add_task("Spec & Protocol Definition", start="Apr", end=1.0, style=Styles.PrimaryFlat, progress=1.0)
t2 = chart.add_task("Storage Engine Overhaul", start=1.0, end=2.5, style=Styles.PrimaryFlat, progress=0.85)
t3 = chart.add_task(
    "Distributed Consensus Protocol",
    start=1.5,
    end=3.0,
    style=Styles.PrimaryNeutral,
    progress=0.45,
    progress_text_style=Styles.DarkBold.patch(text_size=10.0),
)

# 2. APIs & Observability Section
chart.add_section("2. APIs & Observability", text_style=Styles.BlackBold.patch(text_size=10.5))
t4 = chart.add_task(
    "gRPC & HTTP/3 Gateway",
    start=3.0,
    end=4.5,
    style=Styles.SecondaryNeutral,
    progress=0.35,
    progress_text_style=Styles.DarkBold.patch(text_size=10.0),
)
t5 = chart.add_task("Distributed Tracing Exporter", start=3.5, end=5.2, style=Styles.Neutral, progress=0.0)

# 3. Milestones, Dependencies & Today Marker
chart.add_milestone("Alpha Architecture Freeze", at="Jun", style=Styles.PrimaryFlat)
chart.add_milestone("Public Beta Launch", at=4.5, style=Styles.PrimaryFlat)

chart.add_dependency(t1, t2)
chart.add_dependency(t2, t4)
chart.add_dependency(t3, t4)
chart.add_marker(at=1.7, style=Styles.DarkDashed, label="Today (Mid-May)", label_style=Styles.WhiteBold.patch(text_size=10.0))

chart.draw(xy=(6.0, 10.0))
save()

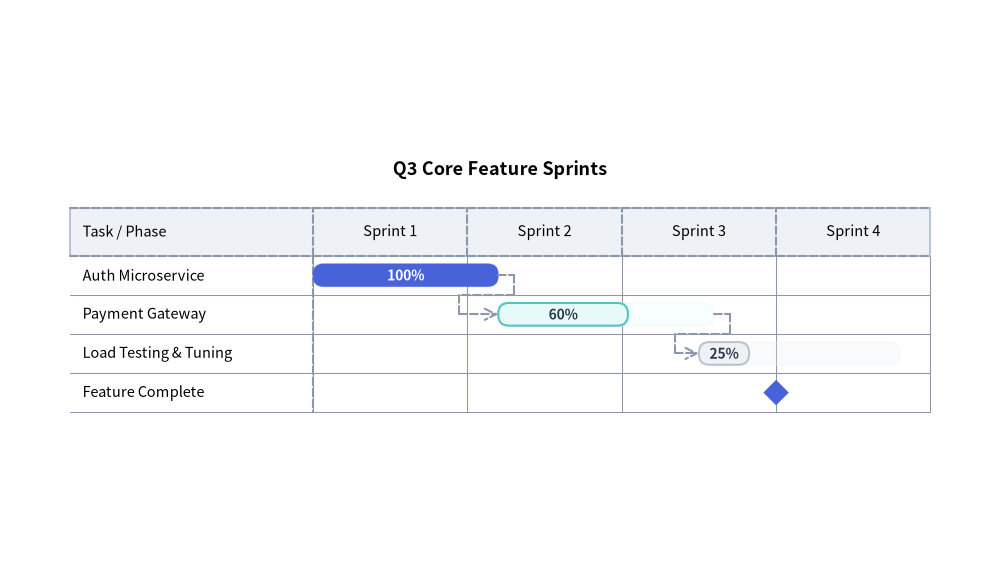

3. Time Coordinate Indexing & Agile Sprint Schedule

In GanttChart, time coordinates (start, end, at) can be specified either as:

1. Column Name String: Matches an exact string in columns (start="Apr" resolves to the left edge of the "Apr" column, end="Apr" resolves to the right edge of "Apr", and at="Jun" resolves to the midpoint of "Jun").
2. Floating-Point Offset: 0.0 is the left edge of column 0, 1.0 is the boundary between column 0 and column 1, 1.5 is the midpoint of column 1, etc.

from drawlib.canvas import save, setup
from drawlib.charts.gantt import GanttChart
from drawlib.styles import Styles

setup(width=115, height=66)

chart = GanttChart(
    columns=["Sprint 1", "Sprint 2", "Sprint 3", "Sprint 4"],
    axis_line_style=Styles.MutedDashed,
    axis_text_style=Styles.Black.patch(text_size=10.5),
    grid_style=Styles.MutedThin,
    header_style=Styles.Neutral,
    progress_text_style=Styles.WhiteBold.patch(text_size=10.0),
    width=103.0,
    label_width=28.0,
    title="Q3 Core Feature Sprints",
    title_style=Styles.BlackBold.patch(text_size=13.0),
    bar_radius=1.2,
)

s1 = chart.add_task("Auth Microservice", start=0.0, end=1.2, style=Styles.PrimaryFlat, progress=1.0)
s2 = chart.add_task(
    "Payment Gateway",
    start=1.2,
    end=2.6,
    style=Styles.SecondaryNeutral,
    progress=0.6,
    progress_text_style=Styles.DarkBold.patch(text_size=10.0),
)
s3 = chart.add_task(
    "Load Testing & Tuning",
    start=2.5,
    end=3.8,
    style=Styles.Neutral,
    progress=0.25,
    progress_text_style=Styles.DarkBold.patch(text_size=10.0),
)

chart.add_dependency(s1, s2)
chart.add_dependency(s2, s3)
chart.add_milestone("Feature Complete", at=3.0, style=Styles.PrimaryFlat)

chart.draw(xy=(6.0, 12.0))
save()

4. API Reference

Constructor (GanttChart)

All constructor arguments are keyword-only (*):

from drawlib.charts.gantt import Dependency, DrawDirection, GanttChart, Marker, Milestone, Section, Task

chart = GanttChart(
    *,
    columns: list[str],
    axis_line_style: Style,
    axis_text_style: Style | None = None,
    header_style: Style | None = None,
    grid_style: Style | None = None,
    zebra_style: Style | None = None,
    progress_text_style: Style | None = None,
    background_style: Style | None = None,
    title: str = "",
    title_style: Style | None = None,
    width: float = 90.0,
    height: float | None = None,
    row_height: float = 4.5,
    header_height: float = 5.5,
    label_width: float = 24.0,
    bar_radius: float = 0.8,
)

Methods & Properties

• add_section(name: str, style: Style | None = None, text_style: Style | None = None, *, show: bool = True) -> Section: Appends a category section divider row and returns the mutable Section instance (style overrides the banner rectangle fill/border; text_style overrides chart.axis_text_style for the section title).
• add_task(name: str, start: str | float, end: str | float, style: Style, progress: float = 0.0, progress_text_style: Style | None = None, *, show: bool = True, draw_ratio: float = 1.0, draw_direction: DrawDirection = "left_to_right") -> Task: Appends a scheduled task bar row and returns the mutable Task instance.
  • progress: Completion ratio clamped to [0.0, 1.0]. When progress > 0, the full scheduled span is drawn as a translucent tint (alpha=0.28) of style's fill color while the completed portion (progress * width) is drawn with the solid style.
  • progress_text_style: Per-task override for the percentage label typography (falls back to chart.progress_text_style).
  • draw_ratio & draw_direction: Partial spatial rendering ("left_to_right" extends the bar horizontally from start toward end; "bottom_to_top" grows the bar vertically from its bottom edge).
• add_milestone(name: str, at: str | float, style: Style, *, show: bool = True) -> Milestone: Appends a milestone row with a diamond marker anchored at time at and returns the mutable Milestone instance.
• add_marker(at: str | float, style: Style, label: str = "", label_style: Style | None = None, *, show: bool = True) -> Marker: Adds a full-height vertical reference line at time at with an optional top pill badge (label + label_style) and returns the mutable Marker instance.
• add_dependency(from_task: Task, to_task: Task, style: Style | None = None, *, show: bool = True) -> Dependency: Adds an orthogonal dependency arrow from from_task to to_task (falling back to chart.axis_line_style when style=None) and returns the mutable Dependency instance. Automatically hidden if from_task.show, to_task.show, or dep.show is False (or if either task's draw_ratio <= 0.0).
• get_size() -> tuple[float, float]: Returns (width, height), computing height dynamically from the registered row count when chart.height is None.
• draw(xy: tuple[float, float] = (0.0, 0.0), *, width: float | None = None, height: float | None = None, scale: float = 1.0) -> None: Renders the Gantt chart anchored at bottom-left xy, with optional temporary size overrides and uniform scale.
• Properties:
  • chart.columns -> list[str]: Copy of timeline column labels.
  • chart.items -> list[Task | Section | Milestone]: Copy of registered schedule rows in top-to-bottom order.
  • chart.markers -> list[Marker]: Copy of registered vertical markers.
  • chart.dependencies -> list[Dependency]: Copy of registered dependency connectors.
