Animating Charts

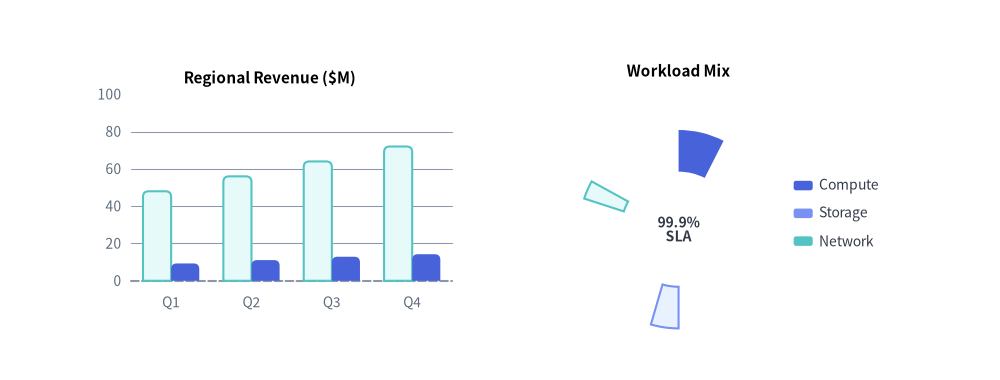

All 7 chart classes in drawlib.charts (BarChart, LineChart, AreaChart, PieChart, RadarChart, ScatterChart, GanttChart) follow the Pre-Build & Mutate lifecycle:

from drawlib.anim import Animation
from drawlib.canvas import save, setup
from drawlib.charts.bar import BarChart
from drawlib.charts.pie import PieChart
from drawlib.styles import Styles

setup(width=126, height=48)
anim = Animation(fps=10.0)

bar = BarChart(
    categories=["Q1", "Q2", "Q3", "Q4"],
    axis_line_style=Styles.MutedDashed,
    axis_text_style=Styles.Muted.patch(text_size=10.0),
    grid_style=Styles.MutedThin,
    width=52,
    height=33,
    title="Regional Revenue ($M)",
    title_style=Styles.BlackBold.patch(text_size=11.0),
    bar_r=0.7,
)
bar.configure_y_axis(min_value=0, max_value=100)
s_base = bar.add_series("2025", [48, 56, 64, 72], style=Styles.SecondaryNeutral)
s_curr = bar.add_series("2026", [62, 74, 86, 95], style=Styles.PrimaryFlat)

pie = PieChart(
    radius=12.5,
    hole_ratio=0.58,
    center_text="99.9%\nSLA",
    center_text_style=Styles.DarkBold.patch(text_size=10.0),
    title="Workload Mix",
    title_style=Styles.BlackBold.patch(text_size=11.0),
)
sl1 = pie.add_slice("Compute", 50.0, style=Styles.PrimaryFlat)
sl2 = pie.add_slice("Storage", 30.0, style=Styles.PrimaryNeutral)
sl3 = pie.add_slice("Network", 20.0, style=Styles.SecondaryNeutral)
slices = [sl1, sl2, sl3]

for r in [0.15, 0.35, 0.55, 0.80, 1.0]:
    s_curr.draw_ratio = r
    for sl in slices:
        sl.draw_ratio = r
    is_last = (r == 1.0)
    with anim.frame(duration=2.2 if is_last else 0.12):
        bar.draw(xy=(8.0, 7.5))
        pie.draw(xy=(69.0, 2.5))
        pie.draw_legend(xy=(100.0, 24.5), text_style=Styles.Dark.patch(text_size=10.0))

save()

1. Instantiate the chart and register all series, slices, or tasks once outside the loop (s = chart.add_series(...), sl = chart.add_slice(...), t = chart.add_task(...)).
2. Inside with anim.frame():, mutate .show, .draw_ratio (0.0 to 1.0), or .draw_direction ("bottom_to_top" or "left_to_right"), and call chart.draw(xy=..., scale=1.0).

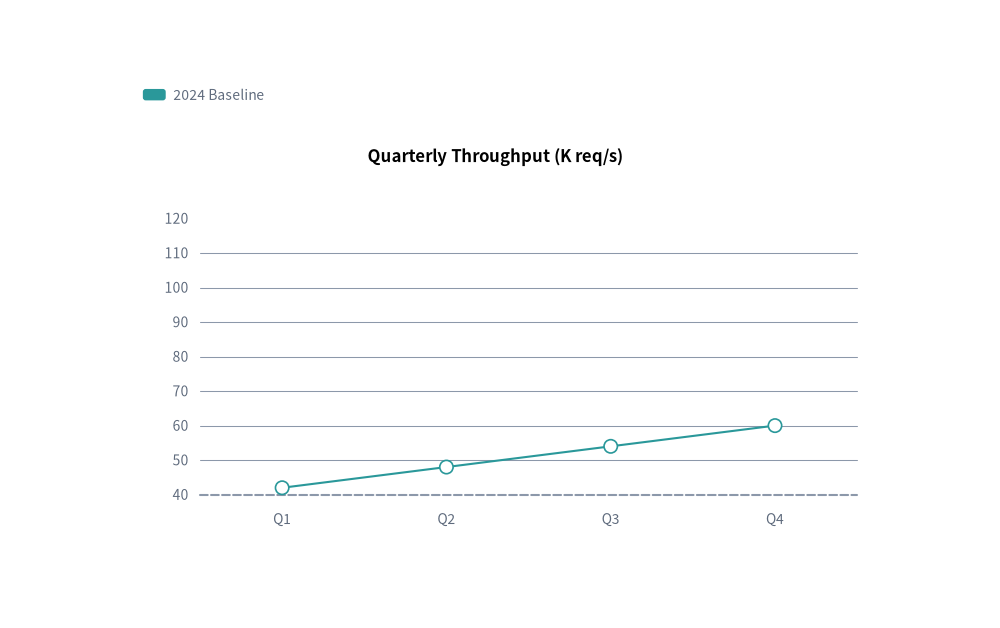

1. Progressive Series Reveal (s.show)

Because Drawlib computes automatic axis bounds (min_value, max_value, tick_step), pie proportions, and Gantt row heights across all registered elements regardless of show=False, toggling s.show = True across frames reveals series one by one without ever shifting or rescaling the chart axes:

from drawlib.anim import Animation
from drawlib.canvas import save, setup
from drawlib.charts.line import LineChart
from drawlib.styles import Styles

setup(width=105, height=66)
anim = Animation(fps=1.2)

chart = LineChart(
    categories=["Q1", "Q2", "Q3", "Q4"],
    axis_line_style=Styles.MutedDashed,
    axis_text_style=Styles.Muted.patch(text_size=10.0),
    grid_style=Styles.MutedThin,
    width=82,
    height=44,
    title="Quarterly Throughput (K req/s)",
    title_style=Styles.BlackBold.patch(text_size=12.0),
    smooth=True,
)

s1 = chart.add_series("2024 Baseline", [42, 48, 54, 60], style=Styles.Secondary, line_style="dashed")
s2 = chart.add_series("2025 Target", [50, 65, 78, 92], style=Styles.Accent)
s3 = chart.add_series("2026 Actual", [55, 76, 94, 115], style=Styles.Primary, line_width=2.5)
series_list = [s1, s2, s3]

for step in range(len(series_list)):
    for i, s in enumerate(series_list):
        s.show = (i <= step)
    is_last = (step == len(series_list) - 1)
    with anim.frame(duration=2.5 if is_last else 0.9):
        chart.draw(xy=(11, 8))
        chart.draw_legend(xy=(15, 56), text_style=Styles.Muted.patch(text_size=10.0), orientation="horizontal")

save()

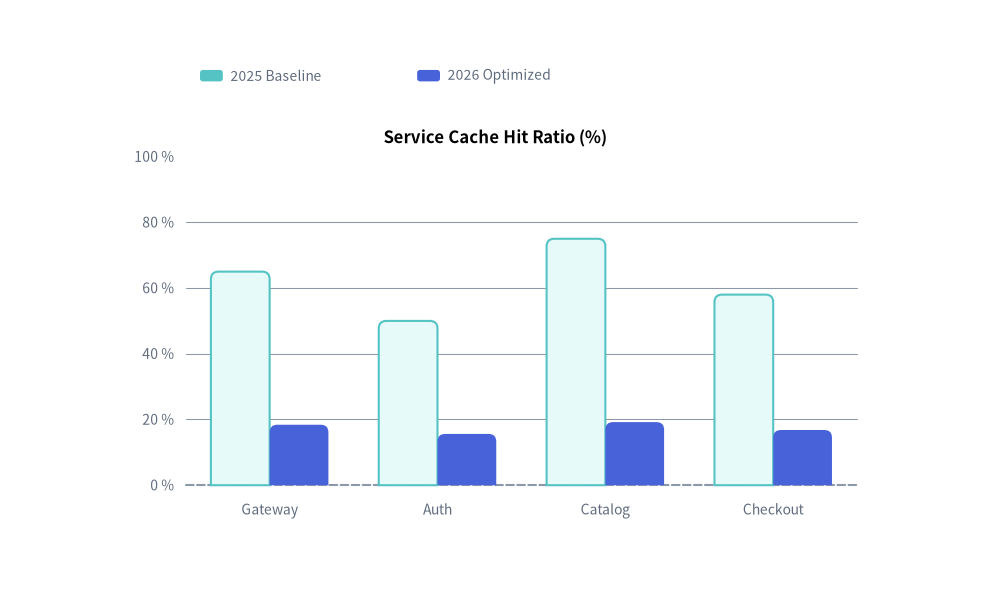

2. Partial Spatial Growth (s.draw_ratio & s.draw_direction)

Every Series, Slice, and Task supports built-in partial spatial rendering via draw_ratio: float (0.0 to 1.0) and draw_direction: DrawDirection ("bottom_to_top" or "left_to_right"):

• BarChart: "bottom_to_top" (default) grows all bars vertically from the baseline; "left_to_right" reveals bars sequentially category-by-category.
• LineChart / AreaChart: "left_to_right" (default) sweeps the curve continuously from left to right; "bottom_to_top" rises vertically from the baseline.
• ScatterChart: "left_to_right" (default) sweeps series points across the X-axis range (x <= x_min + (x_max - x_min) * r); "bottom_to_top" rises from the bottom axis toward target y while scaling marker radius by r. Individual standalone points registered via pt = chart.add(x, y, ...) also expose pt.show: bool and pt.style: Style.
• PieChart: "left_to_right" (default) sweeps the wedge angularly; "bottom_to_top" expands radially outward.
• RadarChart: "bottom_to_top" (default) expands the polygon radially from the center; "left_to_right" sweeps spoke-by-spoke.
• GanttChart: "left_to_right" (default) extends task bars horizontally from start toward end; "bottom_to_top" grows task bars vertically from their bottom edge.

from drawlib.anim import Animation
from drawlib.canvas import save, setup
from drawlib.charts.bar import BarChart
from drawlib.styles import Styles

setup(width=105, height=64)
anim = Animation(fps=10.0)

chart = BarChart(
    categories=["Gateway", "Auth", "Catalog", "Checkout"],
    axis_line_style=Styles.MutedDashed,
    axis_text_style=Styles.Muted.patch(text_size=10.0),
    grid_style=Styles.MutedThin,
    width=82,
    height=44,
    title="Service Cache Hit Ratio (%)",
    title_style=Styles.BlackBold.patch(text_size=12.0),
    bar_r=0.8,
)
chart.configure_y_axis(min_value=0, max_value=100, unit="%")

s1 = chart.add_series("2025 Baseline", [65, 50, 75, 58], style=Styles.SecondaryNeutral)
s2 = chart.add_series("2026 Optimized", [92, 78, 96, 84], style=Styles.PrimaryFlat)

for r in [0.2, 0.4, 0.6, 0.8, 1.0]:
    s2.draw_ratio = r
    is_last = (r == 1.0)
    with anim.frame(duration=2.2 if is_last else 0.12):
        chart.draw(xy=(11, 8))
        chart.draw_legend(xy=(21, 56), text_style=Styles.Muted.patch(text_size=10.0), orientation="horizontal")

save()

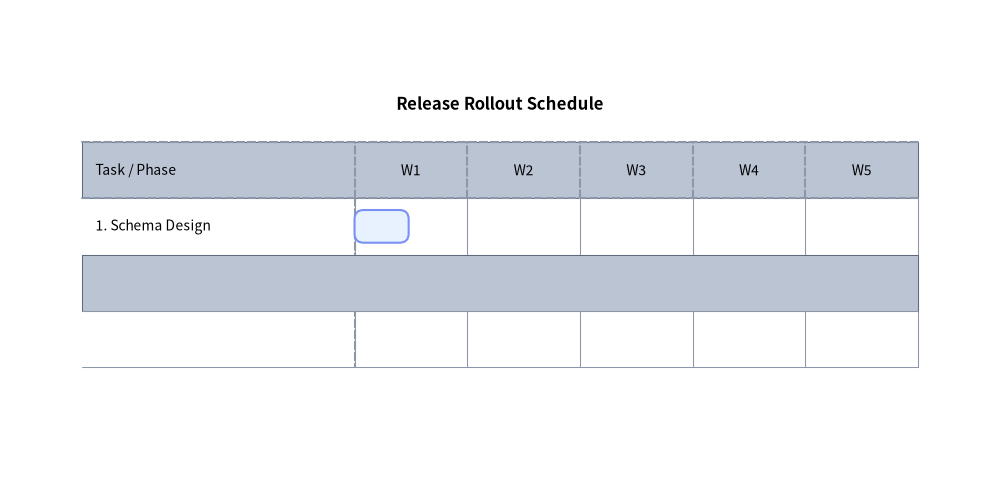

3. Project Schedule Reveal (GanttChart)

In GanttChart, every registration method returns a mutable model object:

• Task (gantt.add_task(...)): .show, .style, .text_style, .draw_ratio, .draw_direction ("left_to_right" or "bottom_to_top"). Hiding a Task (task.show = False) also automatically hides any Dependency arrows connected to from_task or to_task.
• Section (gantt.add_section(...)): .show, .style, .text_style.
• Milestone (gantt.add_milestone(...)): .show, .style, .text_style.
• Marker (gantt.add_marker(...)): .show, .style, .text_style.
• Dependency (gantt.add_dependency(...)): .show, .style.

Mutating task.show and task.draw_ratio reveals and extends task bars along the timeline while keeping all row lanes and column headers fixed:

from drawlib.anim import Animation
from drawlib.canvas import save, setup
from drawlib.charts.gantt import GanttChart
from drawlib.styles import Styles

setup(width=110, height=54)
anim = Animation(fps=8.0)

gantt = GanttChart(
    columns=["W1", "W2", "W3", "W4", "W5"],
    axis_line_style=Styles.MutedDashed,
    axis_text_style=Styles.Black.patch(text_size=10.0),
    grid_style=Styles.MutedThin,
    header_style=Styles.MutedThin,
    zebra_style=Styles.MutedThin,
    width=96.0,
    label_width=30.0,
    header_height=6.2,
    row_height=6.2,
    title="Release Rollout Schedule",
    title_style=Styles.BlackBold.patch(text_size=12.0),
    bar_radius=1.0,
)

t1 = gantt.add_task("1. Schema Design", start="W1", end=1.2, style=Styles.PrimaryNeutral)
t2 = gantt.add_task("2. Core Engine", start="W2", end=3.2, style=Styles.PrimaryFlat, show=False)
t3 = gantt.add_task("3. Production GA", start="W4", end=4.8, style=Styles.SecondaryNeutral, show=False)
tasks = [t1, t2, t3]

for idx, active_task in enumerate(tasks):
    active_task.show = True
    for r in [0.4, 0.8, 1.0]:
        active_task.draw_ratio = r
        is_final = (idx == len(tasks) - 1 and r == 1.0)
        with anim.frame(duration=2.5 if is_final else 0.14):
            gantt.draw(xy=(7, 7))

save()

4. Spatial Overrides & Proportional Scaling (draw & draw_legend)

Every chart's draw() and draw_legend() methods accept temporary spatial overrides and a uniform proportional scale: float = 1.0 factor anchored at xy:

• Cartesian & Gantt Charts (BarChart, LineChart, AreaChart, ScatterChart, GanttChart): chart.draw(xy=(x, y), *, width=None, height=None, scale=1.0)
• Radial Charts (PieChart, RadarChart): chart.draw(xy=(x, y), *, radius=None, width=None, height=None, scale=1.0)
• Standalone Legend: chart.draw_legend(xy=(x, y), text_style=..., orientation="vertical"|"horizontal", swatch_width=2.4, swatch_height=1.2, item_gap=4.0, *, scale=1.0)

Passing scale != 1.0 scales the entire chart container, axis lines, bars/curves, markers, and typography proportionally without mutating the underlying chart configuration.
