BoxList

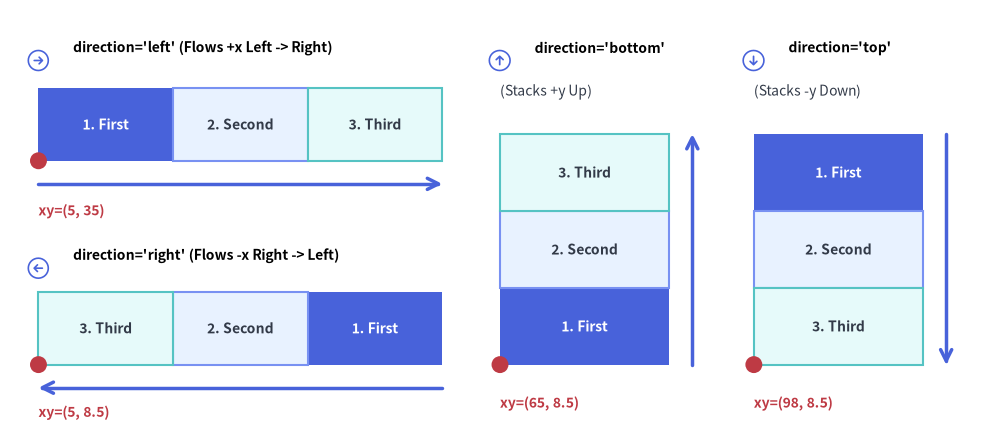

The BoxList component renders contiguous linear sequences of rectangular cards along a horizontal or vertical axis. Custom-styled items are automatically rendered in a second pass so their borders cleanly overlay adjacent default boxes—making BoxList ideal for memory/packet layouts, stage sequences, and vertical feature stacks.

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.lines import line
from drawlib.shapes import circle
from drawlib.smartarts import BoxList
from drawlib.styles import Styles
from drawlib.text import text

setup(width=130, height=56)

bl = BoxList(
    style=Styles.Neutral,
    text_style=Styles.DarkBold.patch(text_size=10.0),
)
bl.add("1. First", style=Styles.PrimaryFlat, text_style=Styles.WhiteBold.patch(text_size=10.0))
bl.add("2. Second", style=Styles.PrimaryNeutral)
bl.add("3. Third", style=Styles.SecondaryNeutral)

# 1. Top-Left Panel: direction="left" (flows +x from left to right)
phosphor.arrow_circle_right(xy=(5.0, 48.0), width=3.4, style=Styles.PrimaryFlat)
text((9.5, 49.7), "direction='left' (Flows +x Left -> Right)", style=Styles.BlackBold.patch(text_size=10.0, halign="left"))
bl.draw(xy=(5.0, 35.0), box_width=17.5, box_height=9.5, direction="left")
line((5.0, 32.0), (57.5, 32.0), arrow_head="->", style=Styles.PrimaryBold)
circle((5.0, 35.0), radius=1.1, style=Styles.DangerFlat)
text((5.0, 28.5), "xy=(5, 35)", style=Styles.DangerBold.patch(text_size=10.0, halign="left"))

# 2. Bottom-Left Panel: direction="right" (flows -x from right to left)
phosphor.arrow_circle_left(xy=(5.0, 21.0), width=3.4, style=Styles.PrimaryFlat)
text((9.5, 22.7), "direction='right' (Flows -x Right -> Left)", style=Styles.BlackBold.patch(text_size=10.0, halign="left"))
bl.draw(xy=(5.0, 8.5), box_width=17.5, box_height=9.5, direction="right")
line((57.5, 5.5), (5.0, 5.5), arrow_head="->", style=Styles.PrimaryBold)
circle((5.0, 8.5), radius=1.1, style=Styles.DangerFlat)
text((5.0, 2.3), "xy=(5, 8.5)", style=Styles.DangerBold.patch(text_size=10.0, halign="left"))

# 3. Middle Panel: direction="bottom" (stacks +y upward from bottom)
phosphor.arrow_circle_up(xy=(65.0, 48.0), width=3.4, style=Styles.PrimaryFlat)
text((69.5, 49.7), "direction='bottom'", style=Styles.BlackBold.patch(text_size=10.0, halign="left"))
text((65.0, 44.0), "(Stacks +y Up)", style=Styles.Dark.patch(text_size=10.0, halign="left"))
bl.draw(xy=(65.0, 8.5), box_width=22.0, box_height=10.0, direction="bottom")
line((90.0, 8.5), (90.0, 38.5), arrow_head="->", style=Styles.PrimaryBold)
circle((65.0, 8.5), radius=1.1, style=Styles.DangerFlat)
text((65.0, 3.5), "xy=(65, 8.5)", style=Styles.DangerBold.patch(text_size=10.0, halign="left"))

# 4. Right Panel: direction="top" (stacks -y downward from top)
phosphor.arrow_circle_down(xy=(98.0, 48.0), width=3.4, style=Styles.PrimaryFlat)
text((102.5, 49.7), "direction='top'", style=Styles.BlackBold.patch(text_size=10.0, halign="left"))
text((98.0, 44.0), "(Stacks -y Down)", style=Styles.Dark.patch(text_size=10.0, halign="left"))
bl.draw(xy=(98.0, 8.5), box_width=22.0, box_height=10.0, direction="top")
line((123.0, 38.5), (123.0, 8.5), arrow_head="->", style=Styles.PrimaryBold)
circle((98.0, 8.5), radius=1.1, style=Styles.DangerFlat)
text((98.0, 3.5), "xy=(98, 8.5)", style=Styles.DangerBold.patch(text_size=10.0, halign="left"))

save()

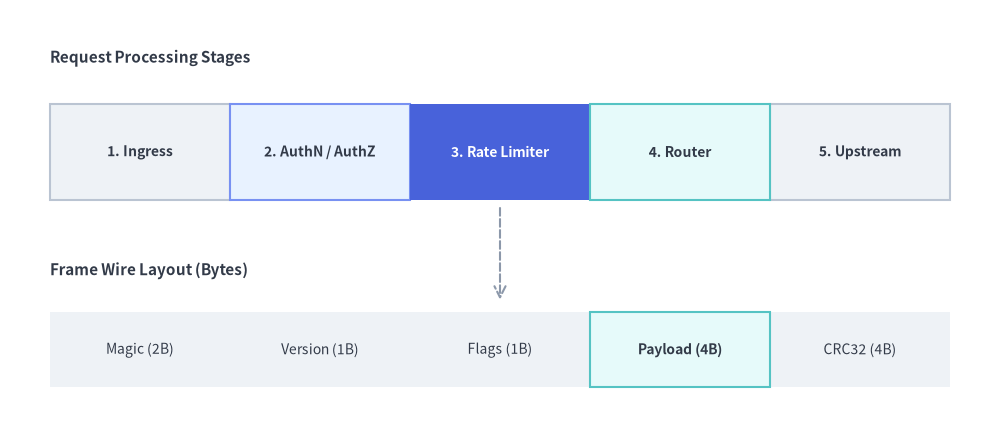

1. Horizontal Sequence with Highlighted Focal Stage (direction="left")

When direction="left" (the default), boxes flow horizontally to the right (+x) starting from xy=(x, y). You can combine multiple BoxList instances with arrows or labels to illustrate pipelines and packet structures.

from drawlib.canvas import save, setup
from drawlib.lines import line
from drawlib.smartarts import BoxList
from drawlib.styles import Styles
from drawlib.text import text

setup(width=120, height=52)

# 1. Top: Data Processing Pipeline Sequence
text((6, 45), "Request Processing Stages", style=Styles.DarkBold.patch(text_size=11.0, halign="left"))

pipeline = BoxList(
    style=Styles.Neutral,
    text_style=Styles.DarkBold.patch(text_size=10.0),
)
pipeline.add("1. Ingress")
pipeline.add("2. AuthN / AuthZ", style=Styles.PrimaryNeutral)
pipeline.add(
    "3. Rate Limiter",
    style=Styles.PrimaryFlat,
    text_style=Styles.WhiteBold.patch(text_size=10.0),
)
pipeline.add("4. Router", style=Styles.SecondaryNeutral)
pipeline.add("5. Upstream")
pipeline.draw(xy=(6, 28), box_width=21.6, box_height=11.5, direction="left")

# 2. Bottom: Contiguous Binary Frame / Memory Layout
text((6, 19.5), "Frame Wire Layout (Bytes)", style=Styles.DarkBold.patch(text_size=11.0, halign="left"))

packet = BoxList(
    style=Styles.NeutralFlat,
    text_style=Styles.Dark.patch(text_size=10.0),
)
packet.add("Magic (2B)")
packet.add("Version (1B)")
packet.add("Flags (1B)")
packet.add("Payload (4B)", style=Styles.SecondaryNeutral, text_style=Styles.DarkBold.patch(text_size=10.0))
packet.add("CRC32 (4B)")
packet.draw(xy=(6, 5.5), box_width=21.6, box_height=9.0, direction="left")

line((60, 27), (60, 16), arrow_head="->", style=Styles.MutedDashed)
save()

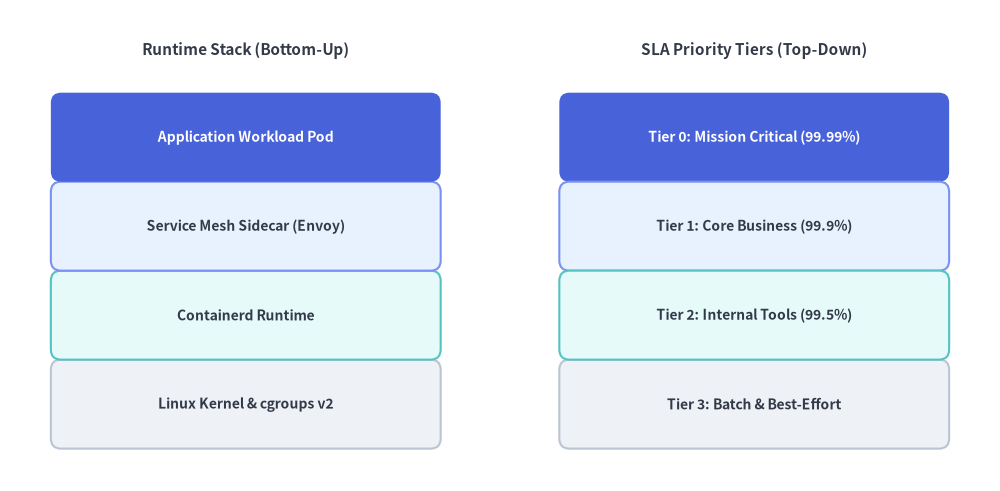

2. Vertical Feature & Layer Stack (direction="bottom" / direction="top")

Using direction="bottom" stacks boxes vertically upward (+y) inside the bounding box, while direction="top" stacks boxes downward (-y) from the top of the bounding box. Patching shape_r on the box style creates rounded feature cards.

from drawlib.canvas import save, setup
from drawlib.smartarts import BoxList
from drawlib.styles import Styles
from drawlib.text import text

setup(width=118, height=58)

# Left Stack: Bottom-up OS / Runtime Stack (direction="bottom")
text((29, 52), "Runtime Stack (Bottom-Up)", style=Styles.DarkBold.patch(text_size=11.0))

runtime_stack = BoxList(
    style=Styles.Neutral.patch(shape_r=1.2),
    text_style=Styles.DarkBold.patch(text_size=10.0),
)
runtime_stack.add("Linux Kernel & cgroups v2", style=Styles.Neutral.patch(shape_r=1.2))
runtime_stack.add("Containerd Runtime", style=Styles.SecondaryNeutral.patch(shape_r=1.2))
runtime_stack.add("Service Mesh Sidecar (Envoy)", style=Styles.PrimaryNeutral.patch(shape_r=1.2))
runtime_stack.add(
    "Application Workload Pod",
    style=Styles.PrimaryFlat.patch(shape_r=1.2),
    text_style=Styles.WhiteBold.patch(text_size=10.0),
)
runtime_stack.draw(xy=(6, 5), box_width=46.0, box_height=10.5, direction="bottom")

# Right Stack: Top-down Priority Tiers (direction="top")
text((89, 52), "SLA Priority Tiers (Top-Down)", style=Styles.DarkBold.patch(text_size=11.0))

sla_tiers = BoxList(
    style=Styles.Neutral.patch(shape_r=1.2),
    text_style=Styles.DarkBold.patch(text_size=10.0),
)
sla_tiers.add(
    "Tier 0: Mission Critical (99.99%)",
    style=Styles.PrimaryFlat.patch(shape_r=1.2),
    text_style=Styles.WhiteBold.patch(text_size=10.0),
)
sla_tiers.add("Tier 1: Core Business (99.9%)", style=Styles.PrimaryNeutral.patch(shape_r=1.2))
sla_tiers.add("Tier 2: Internal Tools (99.5%)", style=Styles.SecondaryNeutral.patch(shape_r=1.2))
sla_tiers.add("Tier 3: Batch & Best-Effort", style=Styles.Neutral.patch(shape_r=1.2))
sla_tiers.draw(xy=(66, 5), box_width=46.0, box_height=10.5, direction="top")
save()

3. Layout Direction, Anchor Alignment & Two-Pass Z-Order

As illustrated in the opening diagram at the top of this page:

• Layout Direction (direction):
  • "left" (default): Boxes sequence rightward (+x) from the left edge of the bounding box.
  • "right": Boxes sequence leftward (-x) from the right edge of the bounding box.
  • "bottom": Boxes stack upward (+y) from the bottom edge of the bounding box.
  • "top": Boxes stack downward (-y) from the top edge of the bounding box.
• Anchor Alignment (align):
  • "bottom_left" (default): xy specifies the bottom-left corner of the overall BoxList bounding box.
  • "center": xy specifies the center of the overall BoxList bounding box.
• Two-Pass Highlight Z-Order: BoxList.draw() automatically renders default-styled boxes first and custom-styled boxes second so highlighted borders are never occluded by adjacent neutral boxes.

4. API Reference

Constructor

BoxList(
    *,
    style: Style,
    text_style: Style,
)

Methods & Properties

• add(text: str, *, style: Style | None = None, text_style: Style | None = None, show: bool = True) -> BoxListItem: Appends a box item to the sequence and returns a mutable BoxListItem (text, style, text_style, show). Setting show=False hides that box while keeping the positions of all following boxes unchanged.
• boxlist.items -> list[BoxListItem]: Returns the list of all registered BoxListItem instances (text: str, style: Style, text_style: Style, show: bool), allowing deferred mutation before or between draw() calls.
• draw(xy: tuple[float, float], box_width: float, box_height: float, direction: Literal["left", "right", "bottom", "top"] = "left", align: Literal["bottom_left", "center"] = "bottom_left", scale: float = 1.0) -> None: Renders the sequence of boxes anchored at xy (bottom-left or center), with optional proportional scaling via scale.
