Site Project Guide (drawlib init site)

The site starter template builds a responsive multi-page technical documentation website with hierarchical sidebar navigation, mobile-responsive layout, syntax highlighting, and dual publishing to static HTML and GitHub-ready Markdown.

Drawlib compiles docs_src/navbar.md and your Markdown pages into a two-column documentation portal with strict build-time link validation:

project_site_1

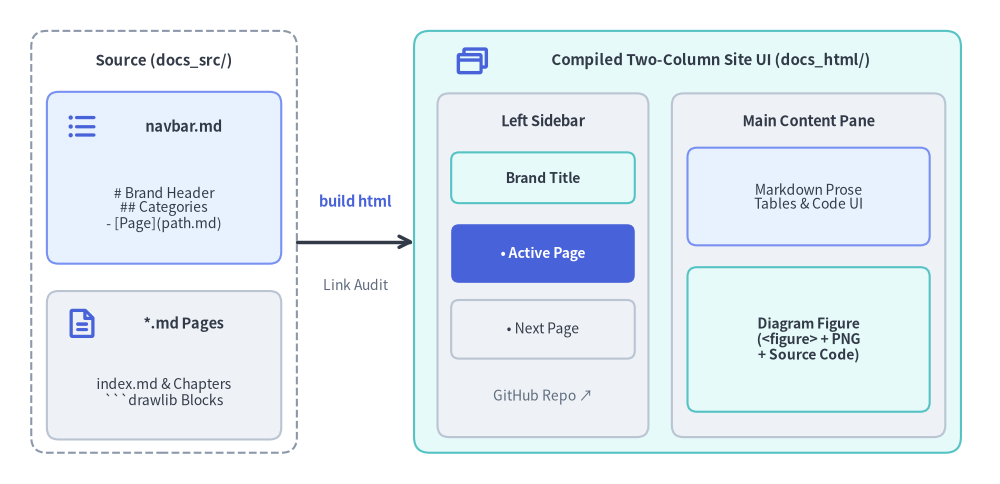

How navbar.md and Markdown Pages Compile into the Two-Column Documentation Site UI
Source Code
from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.lines import line
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=128, height=62)

# Left: Source directory container
rectangle((21, 31), width=34, height=54, style=Styles.MutedDashed.patch(shape_r=2.0))
text((21, 54.2), "Source (docs_src/)", style=Styles.DarkBold.patch(text_size=10.8))

rectangle((21, 39.2), width=30, height=22, style=Styles.PrimaryNeutral.patch(shape_r=1.5))
phosphor.list_bullets((10.5, 45.8), width=4.4, style=Styles.PrimaryBold)
text((23.5, 45.8), "navbar.md", style=Styles.DarkBold.patch(text_size=10.5))
text((21, 35.2), "# Brand Header\n## Categories\n- [Page](path.md)", style=Styles.Dark.patch(text_size=10.0))

rectangle((21, 15.2), width=30, height=19, style=Styles.Neutral.patch(shape_r=1.5))
phosphor.file_text((10.5, 20.5), width=4.4, style=Styles.PrimaryBold)
text((23.5, 20.5), "*.md Pages", style=Styles.DarkBold.patch(text_size=10.5))
text((21, 11.8), "index.md & Chapters\n```drawlib Blocks", style=Styles.Dark.patch(text_size=10.0))

# Middle: Compiler step
line((38, 31), (53, 31), arrow_head="->", style=Styles.DarkBold)
text((45.5, 36.2), "build html", style=Styles.PrimaryBold.patch(text_size=10.5))
text((45.5, 25.5), "Link Audit", style=Styles.Muted.patch(text_size=10.0))

# Right: Compiled Two-Column Site UI (docs_html/)
rectangle((88, 31), width=70, height=54, style=Styles.SecondaryNeutral.patch(shape_r=2.0))
phosphor.browsers((60.5, 54.2), width=4.6, style=Styles.PrimaryBold)
text((91.0, 54.2), "Compiled Two-Column Site UI (docs_html/)", style=Styles.DarkBold.patch(text_size=10.8))

# Left Sticky Sidebar
rectangle((69.5, 28.0), width=27, height=44, style=Styles.Neutral.patch(shape_r=1.5))
text((69.5, 46.5), "Left Sidebar", style=Styles.DarkBold.patch(text_size=10.5))
rectangle(
    (69.5, 39.2),
    width=23.5,
    height=6.5,
    style=Styles.SecondaryNeutral.patch(shape_r=1.0),
    text="Brand Title",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)
rectangle(
    (69.5, 29.5),
    width=23.5,
    height=7.5,
    style=Styles.PrimaryFlat.patch(shape_r=1.0),
    text="• Active Page",
    text_style=Styles.WhiteBold.patch(text_size=10.0),
)
rectangle(
    (69.5, 19.8),
    width=23.5,
    height=7.5,
    style=Styles.Neutral.patch(shape_r=1.0),
    text="• Next Page",
    text_style=Styles.Dark.patch(text_size=10.0),
)
text((69.5, 11.2), "GitHub Repo ↗", style=Styles.Muted.patch(text_size=10.0))

# Right Main Content Pane
rectangle((103.5, 28.0), width=35, height=44, style=Styles.Neutral.patch(shape_r=1.5))
text((103.5, 46.5), "Main Content Pane", style=Styles.DarkBold.patch(text_size=10.5))
rectangle(
    (103.5, 36.8),
    width=31,
    height=12.5,
    style=Styles.PrimaryNeutral.patch(shape_r=1.2),
    text="Markdown Prose\nTables & Code UI",
    text_style=Styles.Dark.patch(text_size=10.0),
)
rectangle(
    (103.5, 18.5),
    width=31,
    height=18.5,
    style=Styles.SecondaryNeutral.patch(shape_r=1.2),
    text="Diagram Figure\n(<figure> + PNG\n+ Source Code)",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)

save()

1. Project Initialization

Scaffold a documentation website using drawlib init:

# Scaffold default 'docs_src/' in the current directory:
drawlib init site

# Or specify a custom target prefix (creates 'my_docs_src/', 'my_docs_html/', etc.):
drawlib init site my_docs --style google --lang en

2. Directory Layout & Architecture

project_site_2

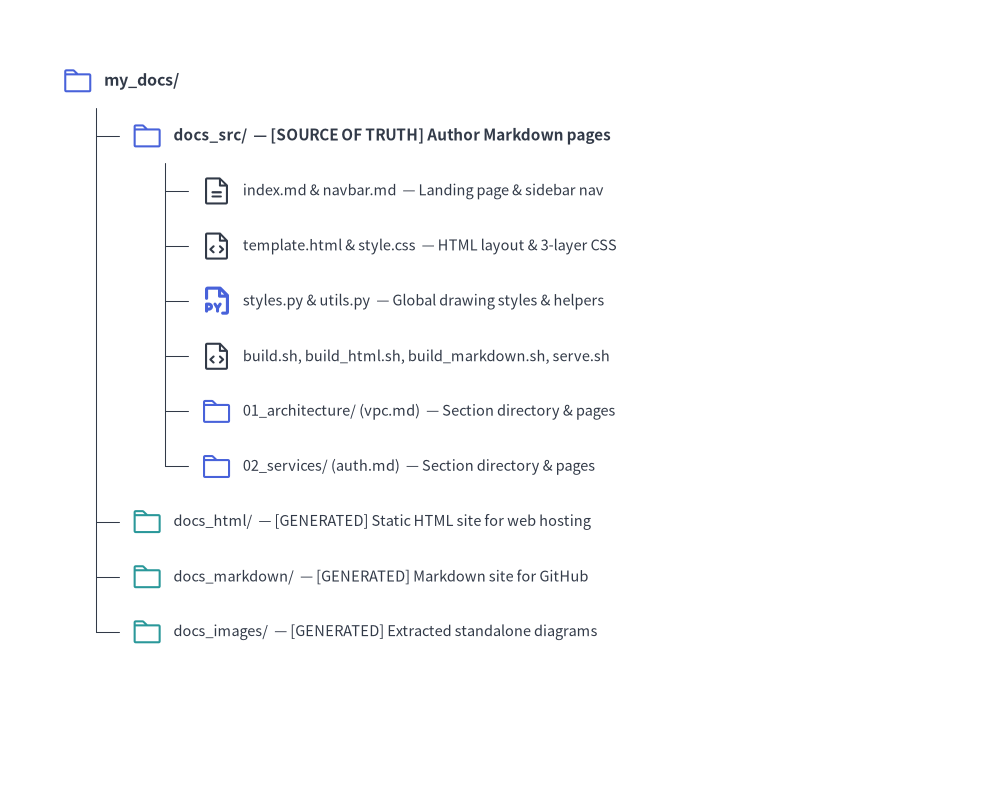

Directory Structure of a Multi-Page Documentation Website (site) Project
Source Code
from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.smartarts import TreeNode
from drawlib.styles import Styles

setup(width=98, height=78)

TreeNode.register_drawing_item(
    name="folder",
    location="before",
    padding_width=4.2,
    function=phosphor.folder,
    style=Styles.PrimaryFlat,
    args={"width": 3.2},
)
TreeNode.register_drawing_item(
    name="folder_out",
    location="before",
    padding_width=4.2,
    function=phosphor.folder,
    style=Styles.Secondary,
    args={"width": 3.2},
)
TreeNode.register_drawing_item(
    name="md",
    location="before",
    padding_width=4.2,
    function=phosphor.file_text,
    style=Styles.Dark,
    args={"width": 3.2},
)
TreeNode.register_drawing_item(
    name="py",
    location="before",
    padding_width=4.2,
    function=phosphor.file_py,
    style=Styles.PrimaryBold,
    args={"width": 3.2},
)
TreeNode.register_drawing_item(
    name="code",
    location="before",
    padding_width=4.2,
    function=phosphor.file_code,
    style=Styles.Dark,
    args={"width": 3.2},
)

root = TreeNode(
    "my_docs/",
    text_style=Styles.DarkBold.patch(text_size=11.5),
    line_style=Styles.DarkThin,
    line_horizontal_margin=3.4,
    line_horizontal_length=3.4,
    line_vertical_margin=5.4,
).set_drawing_item("folder")

src = root.add(
    "docs_src/  — [SOURCE OF TRUTH] Author Markdown pages",
    text_style=Styles.DarkBold.patch(text_size=11.0),
).set_drawing_item("folder")
src.add(
    "index.md & navbar.md  — Landing page & sidebar nav",
    text_style=Styles.Dark.patch(text_size=10.5),
).set_drawing_item("md")
src.add(
    "template.html & style.css  — HTML layout & 3-layer CSS",
    text_style=Styles.Dark.patch(text_size=10.5),
).set_drawing_item("code")
src.add(
    "styles.py & utils.py  — Global drawing styles & helpers",
    text_style=Styles.Dark.patch(text_size=10.5),
).set_drawing_item("py")
src.add(
    "build.sh, build_html.sh, build_markdown.sh, serve.sh",
    text_style=Styles.Dark.patch(text_size=10.5),
).set_drawing_item("code")
src.add(
    "01_architecture/ (vpc.md)  — Section directory & pages",
    text_style=Styles.Dark.patch(text_size=10.5),
).set_drawing_item("folder")
src.add(
    "02_services/ (auth.md)  — Section directory & pages",
    text_style=Styles.Dark.patch(text_size=10.5),
).set_drawing_item("folder")

root.add(
    "docs_html/  — [GENERATED] Static HTML site for web hosting",
    text_style=Styles.Dark.patch(text_size=10.5),
).set_drawing_item("folder_out")
root.add(
    "docs_markdown/  — [GENERATED] Markdown site for GitHub",
    text_style=Styles.Dark.patch(text_size=10.5),
).set_drawing_item("folder_out")
root.add(
    "docs_images/  — [GENERATED] Extracted standalone diagrams",
    text_style=Styles.Dark.patch(text_size=10.5),
).set_drawing_item("folder_out")

root.draw(xy=(6, 70))
save()

3. Sidebar Navigation (navbar.md)

The sidebar navigation structure is governed entirely by docs_src/navbar.md:

# Drawlib Documentation

- [Home](index.md)

## Core Infrastructure
- [VPC Architecture](01_architecture/vpc.md)
- [Storage Tier](01_architecture/storage.md)

## Microservices
- [Authentication Gateway](02_services/auth.md)
- [Payment Service](02_services/payments.md)

## External Resources
- [GitHub Repository](https://github.com/example/repo)

Authoring Rules:

  1. Brand Header (# Title): The top level # Heading 1 sets the brand title in the sidebar header.
  2. Category Groupings (## Category): Each ## Heading 2 defines a collapsible navigation category section.
  3. Internal Document Links: Relative paths must point to existing Markdown files within docs_src/.
  4. External Links: URLs beginning with http:// or https:// automatically open in a new tab (target="_blank") with an external link indicator.
  5. Strict Build-Time Validation: If any linked document does not exist, the build immediately aborts with an error indicating the file and line number.
  6. Active Page Tracking: The currently viewed page is automatically highlighted (.nav-item.active) with dynamic relative path resolution.

4. Static Asset Synchronization

Any static assets placed in docs_src/ (such as custom logos, sample data files, or images in _assets/) are recursively mirrored to docs_html/ and docs/, preserving folder hierarchies.

5. Building & Local Preview

Compile Site

./docs_src/build_html.sh       # Compile HTML site (docs_html/)
./docs_src/build_markdown.sh   # Compile Markdown site (docs_markdown/ or docs/)
./docs_src/build_image.sh      # Extract standalone images (docs_images/)
./docs_src/build.sh            # Run all builds sequentially

Local Preview Server & Link Audit

Start the local development server to preview pages:

uv run drawlib serve docs_html/

Before deploying to production, run a headless pre-flight audit:

uv run drawlib serve docs_html/ --check

6. Parallel Multi-Agent Site Authoring

Multi-page site projects (docs_src/**/*.md) scale naturally across parallel AI subagents:

  1. Phase 1 (Parent Setup): Scaffold docs_src/ (drawlib init site) and finalize shared files (styles.py, utils.py, _assets/, index.md, and the complete navbar.md sidebar tree) before launching subagents.
  2. Phase 2 (Parallel Subagents): Assign each subagent a disjoint page or section directory (e.g., 01_architecture/*.md vs. 02_services/*.md). Each subagent treats styles.py, utils.py, and navbar.md as read-only, authors its assigned pages, and runs -g grid previews using unique scratch filenames (-o .drawlib/scratch/<page>_<block>_grid.png).
  3. Phase 3 (Unified Build & Link Audit): Once all subagents finish, the parent agent runs ./docs_src/build.sh once and verifies site-wide link integrity with uv run drawlib serve docs_html/ --check.
