Panel

The Panel component renders titled container frames with a header band (header_variant="filled" | "underline" | "floating" | "window") and provides get_content_box(xy, width, height, padding=...) to automatically compute the inner drawable (inner_xy, inner_width, inner_height) for nesting other SmartArts, Charts, or Diagrams inside the container. Every displayed element requires an explicit Style (style, header_style, text_style always; description_style when description is non-empty; icon_style when icon is provided; dot_styles when header_variant="window").

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.smartarts import CardList, KpiCards, Panel, Roadmap
from drawlib.styles import Styles

setup(width=160, height=112)

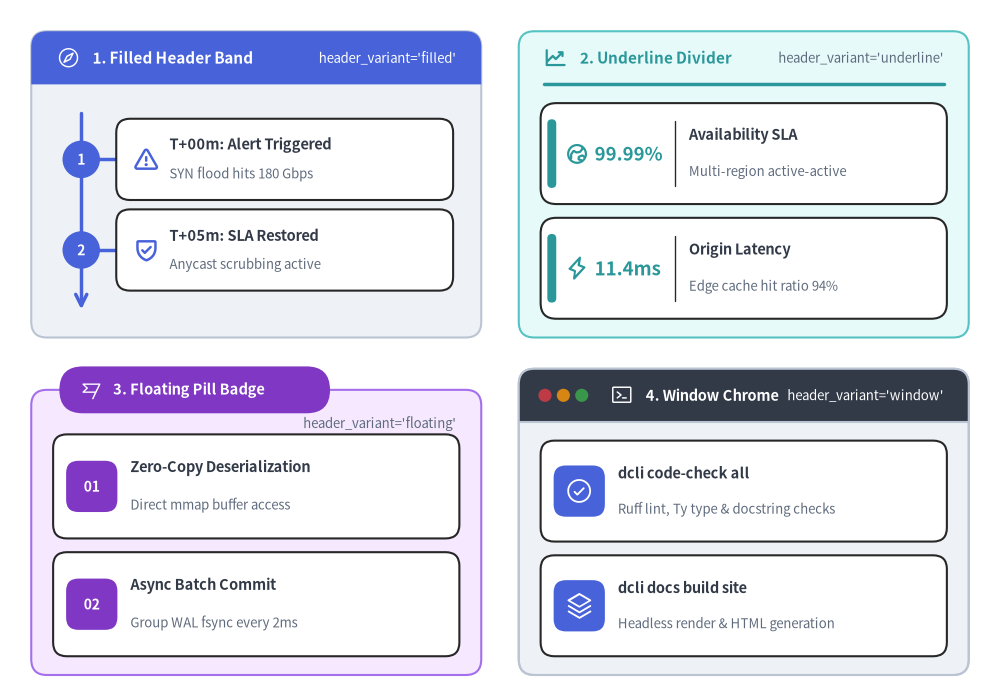

# 1. Top-Left: header_variant="filled"
p1 = Panel(
    "1. Filled Header Band",
    "header_variant='filled'",
    style=Styles.Neutral,
    header_style=Styles.PrimaryFlat,
    text_style=Styles.WhiteBold.patch(text_size=11.0),
    description_style=Styles.White.patch(text_size=9.5),
    icon=phosphor.compass,
    icon_style=Styles.White,
    header_variant="filled",
    header_height=8.5,
)
p1.draw((5.0, 58.0), width=72.0, height=49.0)
c1_xy, c1_w, c1_h = p1.get_content_box((5.0, 58.0), width=72.0, height=49.0, padding=(3.5, 3.0))

rm = Roadmap(
    style=Styles.White,
    text_style=Styles.DarkBold.patch(text_size=10.5),
    description_style=Styles.Muted.patch(text_size=9.5),
    spine_style=Styles.PrimaryBold,
    badge_style=Styles.PrimaryFlat,
    badge_text_style=Styles.WhiteBold.patch(text_size=10.0),
    icon_style=Styles.PrimaryBold,
    spacing=2.0,
)
rm.add("T+00m: Alert Triggered", "SYN flood hits 180 Gbps", badge_text="1", icon=phosphor.warning)
rm.add("T+05m: SLA Restored", "Anycast scrubbing active", badge_text="2", icon=phosphor.shield_check)
rm.draw(c1_xy, width=c1_w, height=c1_h)

# 2. Top-Right: header_variant="underline"
p2 = Panel(
    "2. Underline Divider",
    "header_variant='underline'",
    style=Styles.SecondaryNeutral,
    header_style=Styles.SecondaryBold,
    text_style=Styles.SecondaryBold.patch(text_size=11.0),
    description_style=Styles.Muted.patch(text_size=9.5),
    icon=phosphor.chart_line_up,
    icon_style=Styles.SecondaryBold,
    header_variant="underline",
    header_height=8.5,
)
p2.draw((83.0, 58.0), width=72.0, height=49.0)
c2_xy, c2_w, c2_h = p2.get_content_box((83.0, 58.0), width=72.0, height=49.0, padding=(3.5, 3.0))

kpi = KpiCards(
    style=Styles.White,
    metric_style=Styles.SecondaryBold.patch(text_size=13.5),
    text_style=Styles.DarkBold.patch(text_size=10.5),
    description_style=Styles.Muted.patch(text_size=9.5),
    accent_style=Styles.SecondaryFlat,
    icon_style=Styles.SecondaryBold,
    metric_width_ratio=0.32,
    spacing=2.2,
)
kpi.add("99.99%", "Availability SLA", "Multi-region active-active", icon=phosphor.globe_hemisphere_east)
kpi.add("11.4ms", "Origin Latency", "Edge cache hit ratio 94%", icon=phosphor.lightning)
kpi.draw(c2_xy, width=c2_w, height=c2_h)

# 3. Bottom-Left: header_variant="floating"
p3 = Panel(
    "3. Floating Pill Badge",
    "header_variant='floating'",
    style=Styles.AccentNeutral,
    header_style=Styles.AccentFlat,
    text_style=Styles.WhiteBold.patch(text_size=10.5),
    description_style=Styles.Muted.patch(text_size=9.5),
    icon=phosphor.flag_banner,
    icon_style=Styles.White,
    header_variant="floating",
    header_height=7.5,
)
p3.draw((5.0, 4.0), width=72.0, height=49.0)
c3_xy, c3_w, c3_h = p3.get_content_box((5.0, 4.0), width=72.0, height=49.0, padding=(3.5, 3.0))

cl3 = CardList(
    style=Styles.White,
    text_style=Styles.DarkBold.patch(text_size=10.5),
    description_style=Styles.Muted.patch(text_size=9.5),
    badge_style=Styles.AccentFlat,
    badge_text_style=Styles.WhiteBold.patch(text_size=10.0),
    icon_style=Styles.White,
    spacing=2.2,
)
cl3.add("Zero-Copy Deserialization", "Direct mmap buffer access", badge_text="01")
cl3.add("Async Batch Commit", "Group WAL fsync every 2ms", badge_text="02")
cl3.draw(c3_xy, width=c3_w, height=c3_h)

# 4. Bottom-Right: header_variant="window"
p4 = Panel(
    "4. Window Chrome",
    "header_variant='window'",
    style=Styles.Neutral,
    header_style=Styles.DarkFlat,
    text_style=Styles.WhiteBold.patch(text_size=10.5),
    description_style=Styles.White.patch(text_size=9.5),
    icon=phosphor.terminal_window,
    icon_style=Styles.White,
    dot_styles=(
        Styles.DangerFlat.patch(shape_line_width=0),
        Styles.WarningFlat.patch(shape_line_width=0),
        Styles.SuccessFlat.patch(shape_line_width=0),
    ),
    header_variant="window",
    header_height=8.5,
    header_align="left",
)
p4.draw((83.0, 4.0), width=72.0, height=49.0)
c4_xy, c4_w, c4_h = p4.get_content_box((83.0, 4.0), width=72.0, height=49.0, padding=(3.5, 3.0))

cl4 = CardList(
    style=Styles.White,
    text_style=Styles.DarkBold.patch(text_size=10.5),
    description_style=Styles.Muted.patch(text_size=9.5),
    badge_style=Styles.PrimaryFlat,
    icon_style=Styles.White,
    spacing=2.2,
)
cl4.add("dcli code-check all", "Ruff lint, Ty type & docstring checks", icon=phosphor.check_circle)
cl4.add("dcli docs build site", "Headless render & HTML generation", icon=phosphor.stack)
cl4.draw(c4_xy, width=c4_w, height=c4_h)

save()

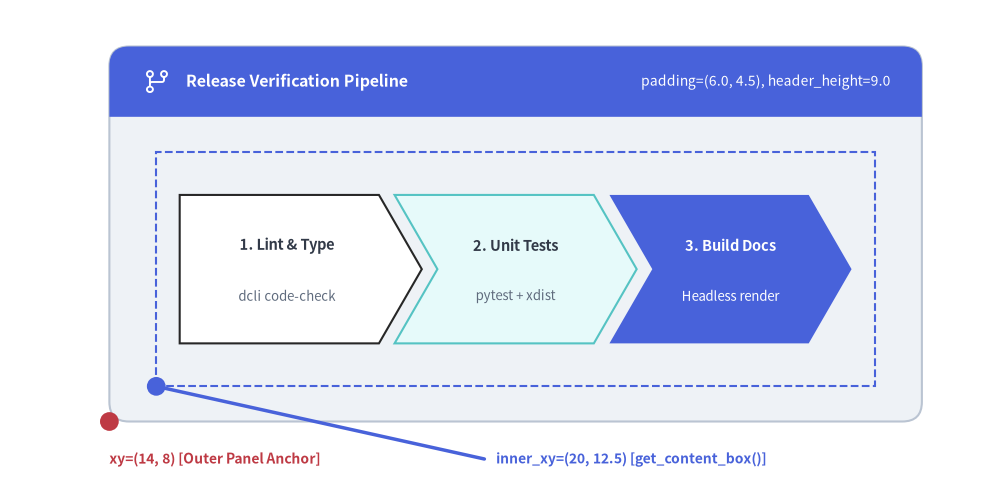

1. Inner Content Box Calculation (get_content_box)

When placing another component (Roadmap, CardList, KpiCards, ChevronProcess, or BarChart) inside a Panel, call panel.get_content_box(xy, width, height, padding=(pad_x, pad_y), align=..., content_align=...) to obtain (inner_xy, inner_width, inner_height). This automatically subtracts header_height from the top and insets all four sides by padding:

• align: "bottom_left" | "center" = "bottom_left": Matches the align passed to panel.draw(xy, width, height, align=...).
• content_align: "bottom_left" | "center" | None = None: Controls whether the returned inner_xy is the "bottom_left" or "center" of the inner box. When None (default), it inherits align—so get_content_box(..., align="center") returns the center coordinate ready for rectangle(inner_xy, ...) or inner_component.draw(inner_xy, ..., align="center").

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.lines import line
from drawlib.shapes import circle, rectangle
from drawlib.smartarts import ChevronProcess, Panel
from drawlib.styles import Styles
from drawlib.text import text

setup(width=128, height=62)

panel_xy = (14.0, 8.0)
panel_w, panel_h = 104.0, 48.0

panel = Panel(
    "Release Verification Pipeline",
    "padding=(6.0, 4.5), header_height=9.0",
    style=Styles.Neutral,
    header_style=Styles.PrimaryFlat,
    text_style=Styles.WhiteBold.patch(text_size=11.5),
    description_style=Styles.White.patch(text_size=10.0),
    icon=phosphor.git_branch,
    icon_style=Styles.White,
    header_variant="filled",
    header_height=9.0,
)
panel.draw(panel_xy, width=panel_w, height=panel_h)

# Compute inner drawable box
inner_xy, inner_w, inner_h = panel.get_content_box(
    panel_xy,
    width=panel_w,
    height=panel_h,
    padding=(6.0, 4.5),
)

# Visualize the computed inner bounding box with a dashed outline
rectangle(
    (inner_xy[0] + inner_w / 2.0, inner_xy[1] + inner_h / 2.0),
    width=inner_w,
    height=inner_h,
    style=Styles.PrimaryDashed,
)

# Render a ChevronProcess inside the computed box
proc = ChevronProcess(
    style=Styles.White,
    text_style=Styles.DarkBold.patch(text_size=10.5),
    description_style=Styles.Muted.patch(text_size=9.5),
    flat_left_end=True,
    spacing=2.0,
)
proc.add("1. Lint & Type", description="dcli code-check")
proc.add("2. Unit Tests", description="pytest + xdist", style=Styles.SecondaryNeutral)
proc.add(
    "3. Build Docs",
    description="Headless render",
    style=Styles.PrimaryFlat,
    text_style=Styles.WhiteBold.patch(text_size=10.5),
    description_style=Styles.White.patch(text_size=9.5),
)
proc.draw((inner_xy[0] + 3.0, inner_xy[1] + 5.5), width=inner_w - 6.0, height=inner_h - 11.0)

# Coordinate anchor markers
circle(panel_xy, radius=1.2, style=Styles.DangerFlat)
text((panel_xy[0], 3.2), "xy=(14, 8) [Outer Panel Anchor]", style=Styles.DangerBold.patch(text_size=10.0, halign="left"))

circle(inner_xy, radius=1.2, style=Styles.PrimaryFlat)
line((inner_xy[0], inner_xy[1]), (62.0, 3.2), style=Styles.PrimaryBold)
text((63.5, 3.2), "inner_xy=(20, 12.5) [get_content_box()]", style=Styles.PrimaryBold.patch(text_size=10.0, halign="left"))

save()

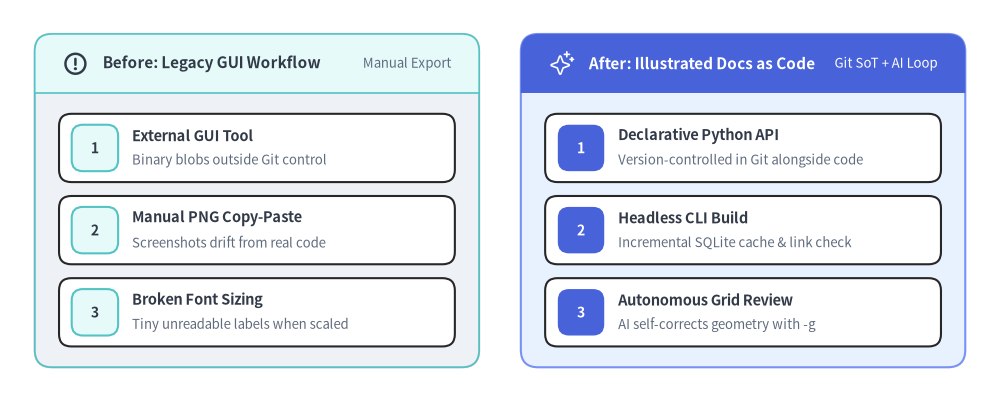

2. Multi-Column Architecture Comparison with Panel

Combining multiple Panel containers side by side makes it straightforward to structure multi-column comparisons, before/after migrations, or regional cluster topologies with zero manual header-band math:

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.smartarts import CardList, Panel
from drawlib.styles import Styles

setup(width=144, height=58)

# Left Panel: Legacy Manual Workflow (Neutral header)
left_panel = Panel(
    "Before: Legacy GUI Workflow",
    "Manual Export",
    style=Styles.Neutral,
    header_style=Styles.SecondaryNeutral.patch(shape_line_width=1.2),
    text_style=Styles.DarkBold.patch(text_size=11.0),
    description_style=Styles.Muted.patch(text_size=9.5),
    icon=phosphor.warning_circle,
    icon_style=Styles.DarkBold,
    header_variant="filled",
    header_height=8.5,
)
left_panel.draw((5.0, 5.0), width=64.0, height=48.0)
l_xy, l_w, l_h = left_panel.get_content_box((5.0, 5.0), width=64.0, height=48.0, padding=(3.5, 3.0))

legacy_list = CardList(
    style=Styles.White,
    text_style=Styles.DarkBold.patch(text_size=10.5),
    description_style=Styles.Muted.patch(text_size=9.5),
    badge_style=Styles.SecondaryNeutral,
    badge_text_style=Styles.DarkBold.patch(text_size=10.0),
    spacing=2.0,
)
legacy_list.add("External GUI Tool", "Binary blobs outside Git control", badge_text="1")
legacy_list.add("Manual PNG Copy-Paste", "Screenshots drift from real code", badge_text="2")
legacy_list.add("Broken Font Sizing", "Tiny unreadable labels when scaled", badge_text="3")
legacy_list.draw(l_xy, width=l_w, height=l_h)

# Right Panel: Drawlib Workflow (Primary Hero header)
right_panel = Panel(
    "After: Illustrated Docs as Code",
    "Git SoT + AI Loop",
    style=Styles.PrimaryNeutral,
    header_style=Styles.PrimaryFlat,
    text_style=Styles.WhiteBold.patch(text_size=11.0),
    description_style=Styles.White.patch(text_size=9.5),
    icon=phosphor.sparkle,
    icon_style=Styles.White,
    header_variant="filled",
    header_height=8.5,
)
right_panel.draw((75.0, 5.0), width=64.0, height=48.0)
r_xy, r_w, r_h = right_panel.get_content_box((75.0, 5.0), width=64.0, height=48.0, padding=(3.5, 3.0))

modern_list = CardList(
    style=Styles.White,
    text_style=Styles.DarkBold.patch(text_size=10.5),
    description_style=Styles.Muted.patch(text_size=9.5),
    badge_style=Styles.PrimaryFlat,
    badge_text_style=Styles.WhiteBold.patch(text_size=10.0),
    spacing=2.0,
)
modern_list.add("Declarative Python API", "Version-controlled in Git alongside code", badge_text="1")
modern_list.add("Headless CLI Build", "Incremental SQLite cache & link check", badge_text="2")
modern_list.add("Autonomous Grid Review", "AI self-corrects geometry with -g", badge_text="3")
modern_list.draw(r_xy, width=r_w, height=r_h)

save()

3. API Summary

Constructor (Panel)

Methods
