SequenceDiagram: Lifelines, Synchronous Calls & Condition Blocks

SequenceDiagram models chronological interactions and communication protocols between collaborating participants over time. Time progresses strictly downwards along vertical lifelines, with horizontal arrows representing messages.

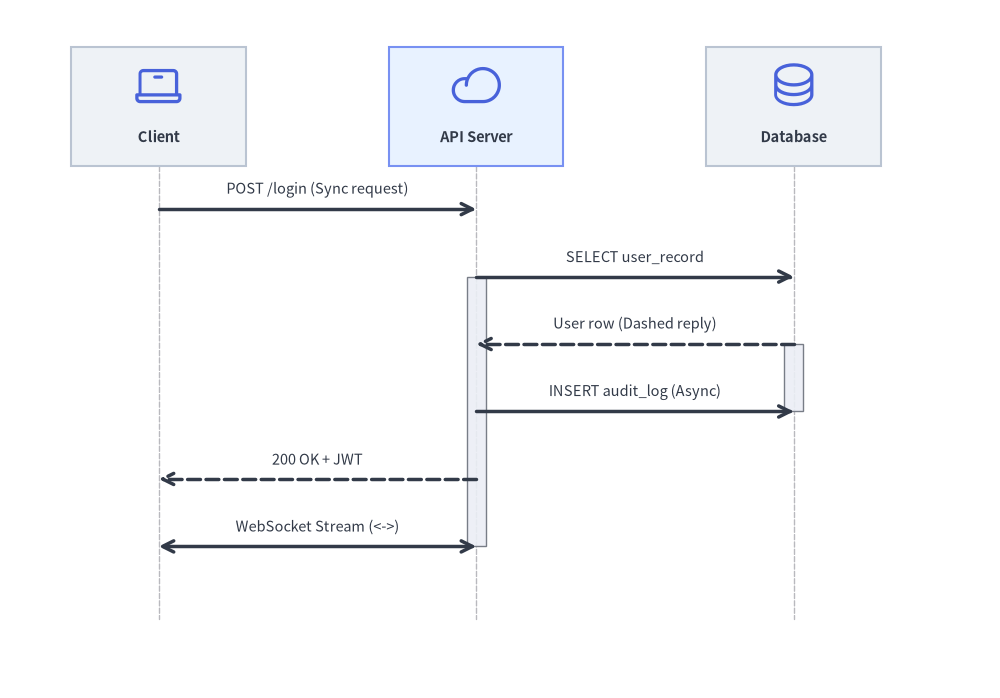

1. Overview & Key Concepts

from drawlib.canvas import save, setup
from drawlib.diagrams.sequence import Participant, PhosphorIcon, SequenceDiagram
from drawlib.styles import Styles

setup(width=126, height=88)

d = SequenceDiagram(
    node_style=Styles.Primary,
    node_text_style=Styles.DarkBold.patch(text_size=10.5),
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=10.5),
    node_card_style=Styles.Neutral,
    col_width=40.0,
    step_y=8.5,
)

client = d.add(Participant("Client", width=22, height=15, icon=PhosphorIcon.LAPTOP, icon_size=6.5))
api = d.add(
    Participant("API Server", width=22, height=15, icon=PhosphorIcon.CLOUD, icon_size=6.5, card_style=Styles.PrimaryNeutral)
)
db = d.add(Participant("Database", width=22, height=15, icon=PhosphorIcon.DATABASE, icon_size=6.5))

client.request(api, "POST /login (Sync request)")
api.activate()

api.request(db, "SELECT user_record")
db.activate()
db.reply(api, "User row (Dashed reply)")
db.deactivate()

api.request(db, "INSERT audit_log (Async)", is_async=True)
api.reply(client, "200 OK + JWT")
api.deactivate()

client.connect(api, "WebSocket Stream (<->)", arrow="<->")

d.draw(xy=(4.0, 3.0))
save()

• Vertical Lifelines: Participants are placed along the horizontal header band, with lifelines extending downwards.
• Message Semantics (illustrated in the diagram above):
  • request(): Solid line with a filled arrowhead for synchronous calls. With is_async=True, renders an open stick arrowhead.
  • reply(): Dashed line with a filled arrowhead for return responses.
  • connect(): Bidirectional communication (arrow="<->"), such as full-duplex WebSocket channels.
  • Self-Calls: p.request(p, label) loops back to the caller's own lifeline.
• Activation Boxes: p.activate() and p.deactivate() draw execution focus rectangles along lifelines.
• Autonumbering: Setting autonumber=True automatically numbers messages sequentially (1., 2., 3., ...).
• Pythonic Condition Frames (with): Use Python context managers (with d.loop(), with d.alt(), with d.opt()) to wrap structured interaction frames cleanly.

2. Constructor & Participant Management

from drawlib.diagrams.sequence import (
    Block,
    GcpIcon,
    Participant,
    ParticipantGroup,
    PhosphorIcon,
    SequenceDiagram,
)
from drawlib.styles import Styles

d = SequenceDiagram(
    node_style=Styles.Primary,
    node_text_style=Styles.DarkBold,
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark,
    node_card_style=Styles.Neutral,
    title="Checkout Transaction Pipeline",
    autonumber=True,            # Auto-number messages (1., 2., 3., ...)
)

# Participant group for clustered backend services
vpc = d.add(ParticipantGroup(title="Google Cloud VPC", padding=4.0))
api = vpc.add(Participant("Cloud Run\n(Gateway)", width=22, height=16, icon=GcpIcon.CLOUD_RUN, card_style=Styles.PrimaryNeutral))
db = vpc.add(Participant("Cloud SQL", width=22, height=16, icon=GcpIcon.CLOUD_SQL))

# External participant
client = d.add(Participant("Web Browser", width=22, height=16, icon=PhosphorIcon.BROWSER))

Parameter Reference Tables

SequenceDiagram Class

Participant Class

• Horizontal Lifeline Pinning & Sizing:
  • d.add(participant, x: float | None = None, *, show: bool | None = None) -> Participant: Registers a participant, optionally pinning its lifeline to an explicit horizontal coordinate x.
  • participant.set_x(x: float) -> Participant: Explicitly pins the participant's horizontal lifeline position x and returns self.
  • participant.activate() -> None and participant.deactivate() -> None: Starts and ends an execution focus bar on the lifeline.
  • participant.get_size() -> tuple[float, float] and participant.get_header_size() -> tuple[float, float]: Returns (width, height).

ParticipantGroup Class

• group.add(participant: Participant, *, show: bool | None = None) -> Participant: Adds a participant to the group (and registers it with the parent diagram).

Messages, Notes, Spacing & Rendering API

• Participant-Level & Diagram-Level Messages:
  • a.request(b, label="", is_async=False, style=None, text_style=None, show=True) -> Message or d.request(a, b, ...) -> Message: Solid request arrow (->). Passing the same participant (a.request(a, "...")) renders a 3-segment self-call loop (msg.is_self_call == True).
  • b.reply(a, label="", is_async=False, style=None, text_style=None, show=True) -> Message or d.reply(b, a, ...) -> Message: Dashed return arrow (-->).
  • a.connect(b, label="", arrow="->", is_async=False, style=None, text_style=None, show=True) -> Message or d.connect(a, b, ...) -> Message: Custom directional or bidirectional (arrow="<->" | "->" | "-") message.
• Message Fluent Mutators:
  • msg.set_label(text: str) -> Message
  • msg.set_reply(is_reply: bool = True) -> Message
  • msg.set_async(is_async: bool = True) -> Message
  • msg.set_arrow(arrow: Literal["->", "<->", "-"]) -> Message
  • msg.set_style(style: Style) -> Message
  • msg.set_text_style(text_style: Style) -> Message
  • msg.set_padding(padding: float | tuple[float, float]) -> Message
• Sticky Notes (d.note & p.note):
  • d.note(text: str, on: Participant | None = None, over: list[Participant] | None = None, pos: Literal["left", "right", "over"] = "right", style: Style | None = None, show: bool = True) -> Note: Places a sticky note beside a single lifeline (on=p, pos="left"|"right") or spanning across multiple lifelines (over=[p1, p2]).
  • p.note(text: str, pos: Literal["left", "right"] = "right", style: Style | None = None, show: bool = True) -> Note: Convenience shorthand for d.note(text, on=p, pos=pos, ...).
  • Note Mutators: note.set_text(text) -> Note, note.set_style(style) -> Note, note.set_text_style(text_style) -> Note.
• Timeline Spacing, Sizing & Rendering:
  • d.space(dy: float = 5.0) -> None: Advances the vertical timeline by an extra dy units to add visual breathing room between phases.
  • d.get_size() -> tuple[float, float]: Computes the total (width, height) of the sequence diagram.
  • d.draw(xy=(0.0, 0.0), *, scale: float = 1.0) -> None: Renders the sequence diagram anchored at bottom-left xy, proportionally scaling column widths, vertical steps, icons, and typography by scale.

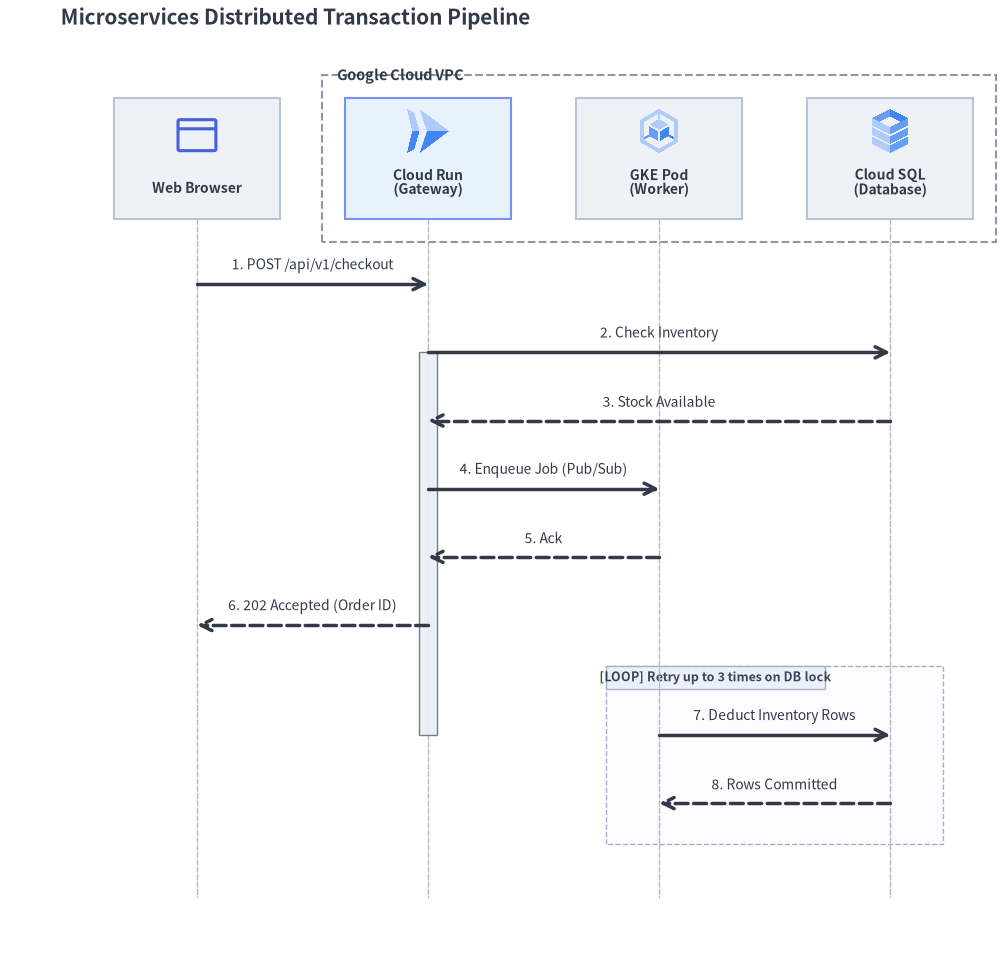

3. Distributed Transaction Pipeline

The following complete example showcases participant groups, cloud icons, activations, asynchronous dispatches, and a retry loop frame:

from drawlib.canvas import save, setup
from drawlib.diagrams.sequence import GcpIcon, Participant, ParticipantGroup, PhosphorIcon, SequenceDiagram
from drawlib.styles import Styles

setup(width=132, height=128)

d = SequenceDiagram(
    node_style=Styles.Primary,
    node_text_style=Styles.DarkBold.patch(text_size=10.0),
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=10.0),
    node_card_style=Styles.Neutral,
    title="Microservices Distributed Transaction Pipeline",
    autonumber=True,
    col_width=30.5,
    step_y=9.0,
)

# 1. Participants: Client on the left, Backend services in VPC group on the right
client = d.add(Participant("Web Browser", width=22, height=16, icon=PhosphorIcon.BROWSER, icon_size=6.5))

backend = d.add(
    ParticipantGroup(
        title="Google Cloud VPC",
        padding=3.0,
        style=Styles.MutedDashed,
        text_style=Styles.DarkBold.patch(text_size=10.5, halign="left", valign="top"),
    )
)
api = backend.add(
    Participant("Cloud Run\n(Gateway)", width=22, height=16, icon=GcpIcon.CLOUD_RUN, icon_size=6.5, card_style=Styles.PrimaryNeutral)
)
worker = backend.add(Participant("GKE Pod\n(Worker)", width=22, height=16, icon=GcpIcon.GOOGLE_KUBERNETES_ENGINE, icon_size=6.5))
db = backend.add(Participant("Cloud SQL\n(Database)", width=22, height=16, icon=GcpIcon.CLOUD_SQL, icon_size=6.5))

# 2. Interactions
client.request(api, "POST /api/v1/checkout")
api.activate()

api.request(db, "Check Inventory")
db.reply(api, "Stock Available")

api.request(worker, "Enqueue Job (Pub/Sub)", is_async=True)
worker.reply(api, "Ack", is_async=True)

api.reply(client, "202 Accepted (Order ID)")
api.deactivate()

with d.loop("Retry up to 3 times on DB lock"):
    worker.request(db, "Deduct Inventory Rows")
    db.reply(worker, "Rows Committed")

d.draw(xy=(3.0, 2.5))
save()

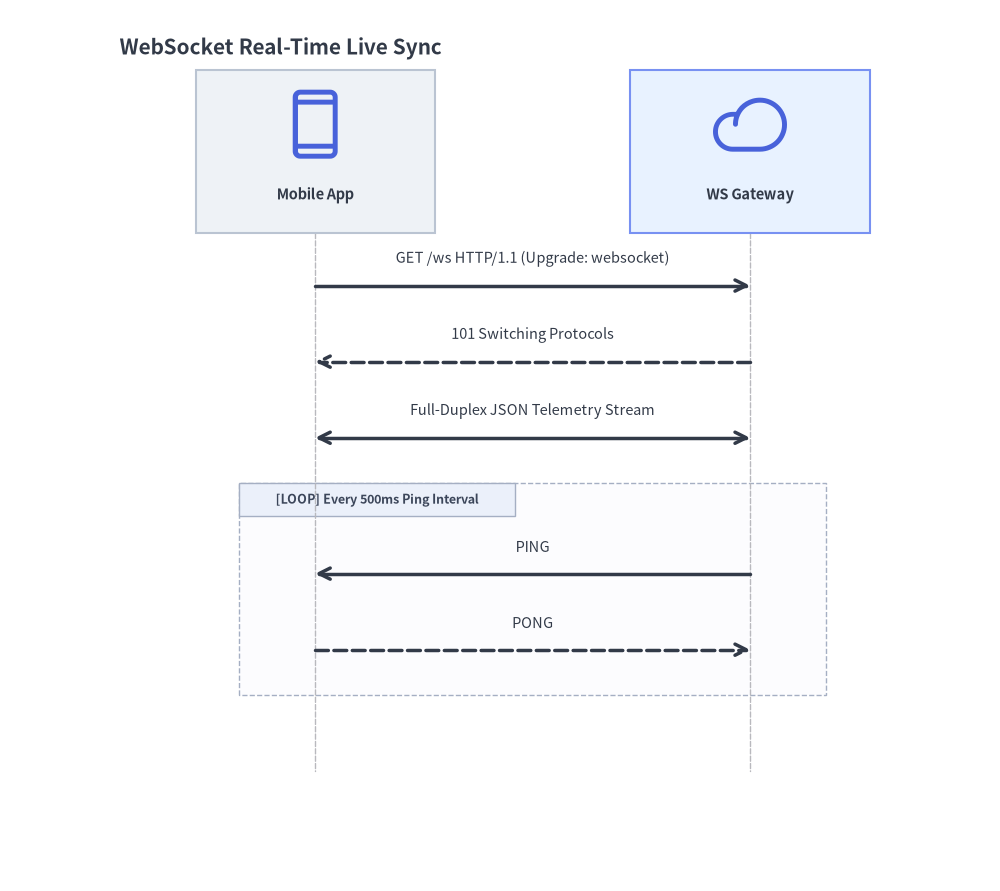

4. WebSocket Full-Duplex Streaming

For real-time bidirectional streams, use connect() with arrow="<->":

from drawlib.canvas import save, setup
from drawlib.diagrams.sequence import Participant, PhosphorIcon, SequenceDiagram
from drawlib.styles import Styles

setup(width=92, height=82)

d = SequenceDiagram(
    node_style=Styles.Primary,
    node_text_style=Styles.DarkBold.patch(text_size=10.5),
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=10.5),
    node_card_style=Styles.Neutral,
    title="WebSocket Real-Time Live Sync",
    col_width=40.0,
)

app = d.add(Participant("Mobile App", width=22, height=15, icon=PhosphorIcon.DEVICE_MOBILE, icon_size=7.0))
gateway = d.add(
    Participant("WS Gateway", width=22, height=15, icon=PhosphorIcon.CLOUD, icon_size=7.0, card_style=Styles.PrimaryNeutral)
)

app.request(gateway, "GET /ws HTTP/1.1 (Upgrade: websocket)")
gateway.reply(app, "101 Switching Protocols")

# Bidirectional streaming channel
app.connect(gateway, "Full-Duplex JSON Telemetry Stream", arrow="<->")

with d.loop("Every 500ms Ping Interval"):
    gateway.request(app, "PING", is_async=True)
    app.reply(gateway, "PONG", is_async=True)

d.draw(xy=(6.0, 4.0))
save()

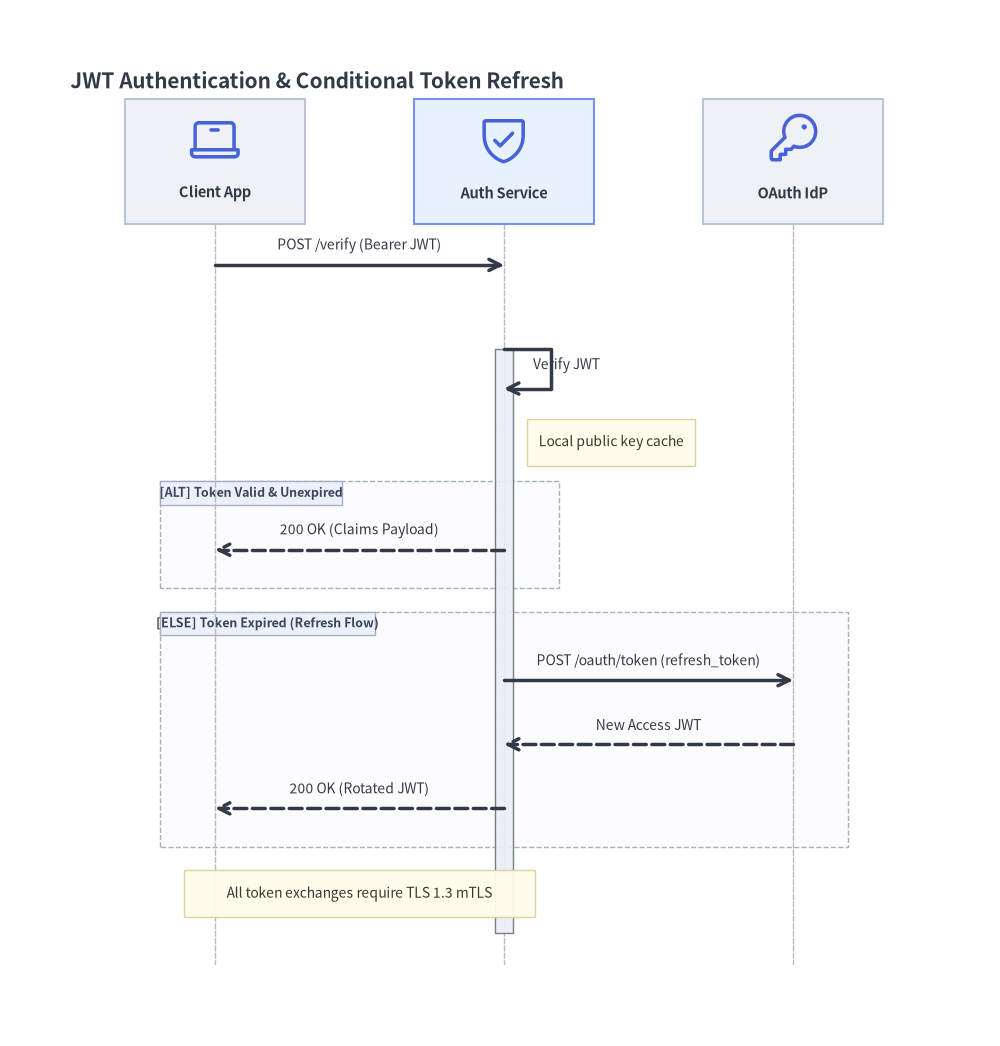

5. Condition Frames (alt / else_), Self-Calls & Sticky Notes

Drawlib supports all 7 standard UML interaction operators (BlockType = Literal["loop", "alt", "else", "opt", "par", "critical", "break"]) via context managers on SequenceDiagram or direct Block(block_type, label="", diagram=d, style=None, text_style=None, show=True) instantiation:

Frames automatically compute their enclosing bounding box around all enclosed messages and notes, drawing the [OPERATOR] label tag in the top-left corner.

The following example demonstrates self-calls (auth.request(auth, ...)), sticky notes (auth.note(...) and d.note(..., over=[...])), and conditional alt / else_ branches:

from drawlib.canvas import save, setup
from drawlib.diagrams.sequence import Participant, PhosphorIcon, SequenceDiagram
from drawlib.styles import Styles

setup(width=128, height=134)

d = SequenceDiagram(
    node_style=Styles.Primary,
    node_text_style=Styles.DarkBold.patch(text_size=10.5),
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=10.0),
    node_card_style=Styles.Neutral,
    title="JWT Authentication & Conditional Token Refresh",
    col_width=37.0,
    step_y=8.2,
)

client = d.add(Participant("Client App", width=23, height=16, icon=PhosphorIcon.LAPTOP, icon_size=7.0))
auth = d.add(
    Participant("Auth Service", width=23, height=16, icon=PhosphorIcon.SHIELD_CHECK, icon_size=7.0, card_style=Styles.PrimaryNeutral)
)
idp = d.add(Participant("OAuth IdP", width=23, height=16, icon=PhosphorIcon.KEY, icon_size=7.0))

client.request(auth, "POST /verify (Bearer JWT)")
auth.activate()

# Self-call for local signature verification + attached participant note
auth.request(auth, "Verify JWT")
auth.note("Local public key cache", pos="right")

# Conditional alt / else_ blocks
with d.alt("Token Valid & Unexpired"):
    auth.reply(client, "200 OK (Claims Payload)")

with d.else_("Token Expired (Refresh Flow)"):
    auth.request(idp, "POST /oauth/token (refresh_token)")
    idp.reply(auth, "New Access JWT")
    auth.reply(client, "200 OK (Rotated JWT)")

auth.deactivate()

# Spanning note across multiple participants
d.note("All token exchanges require TLS 1.3 mTLS", over=[client, auth])

d.draw(xy=(4.0, 3.5))
save()
