PieChart: Proportional Compositions & Donut Badges

PieChart (drawlib.charts.pie) visualizes proportional compositions where slices represent parts of a whole ($100%$). It supports classic solid pie charts, modern donut rings with center KPI badges, outward slice explosion, custom angular orientations, and decoupled legend rendering.

1. Overview & Topologies

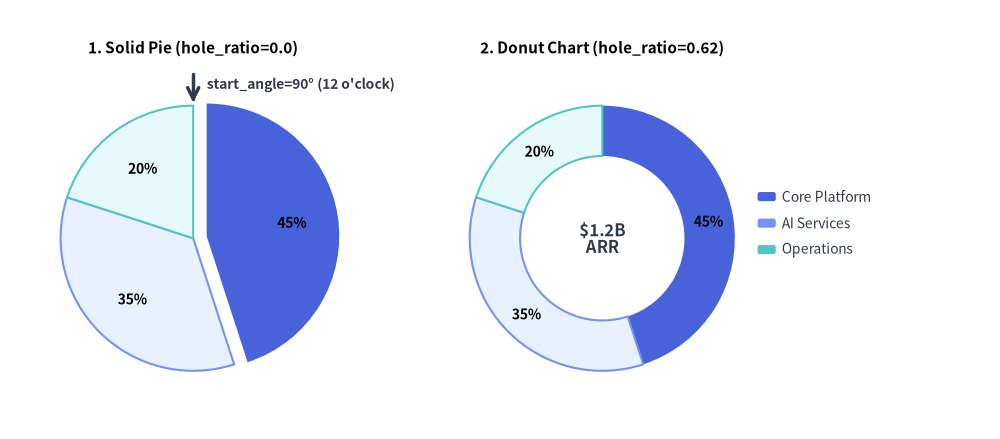

pie_1
Standard Solid Pie Chart vs. Donut Chart with Center KPI
Source Code
from drawlib.canvas import save, setup
from drawlib.charts.pie import PieChart
from drawlib.lines import line
from drawlib.styles import Styles
from drawlib.text import text

setup(width=132, height=58)

# Left: Solid Pie Chart (hole_ratio=0.0) with Exploded Slice
solid_pie = PieChart(
    radius=17.5,
    hole_ratio=0.0,
    start_angle=90.0,
    title="1. Solid Pie (hole_ratio=0.0)",
    title_style=Styles.BlackBold.patch(text_size=11.0),
    value_text_style=Styles.BlackBold.patch(text_size=10.0),
    value_format="{:.0f}%",
)
solid_pie.add_slice("Core Platform", 45.0, style=Styles.PrimaryFlat, explode=1.8)
solid_pie.add_slice("AI Services", 35.0, style=Styles.PrimaryNeutral)
solid_pie.add_slice("Operations", 20.0, style=Styles.SecondaryNeutral)
solid_pie.draw(xy=(4.0, 5.0))

# Callout for start_angle=90° (12 o'clock)
pie_w, pie_h = solid_pie.get_size()
pie_cx = 4.0 + pie_w / 2.0
pie_top_y = 5.0 + (pie_h - 6.0) / 2.0 + 17.5
line((pie_cx, pie_top_y + 4.2), (pie_cx, pie_top_y + 0.4), arrow_head="->", style=Styles.DarkBold)
text(
    (pie_cx + 1.8, pie_top_y + 2.8),
    "start_angle=90° (12 o'clock)",
    style=Styles.DarkBold.patch(text_size=10.0, halign="left"),
)

# Right: Donut Chart (hole_ratio=0.62) with Center KPI
donut_pie = PieChart(
    radius=17.5,
    hole_ratio=0.62,
    center_text="$1.2B\nARR",
    center_text_style=Styles.DarkBold.patch(text_size=12.0),
    title="2. Donut Chart (hole_ratio=0.62)",
    title_style=Styles.BlackBold.patch(text_size=11.0),
    value_text_style=Styles.BlackBold.patch(text_size=10.0),
    value_format="{:.0f}%",
)
donut_pie.add_slice("Core Platform", 45.0, style=Styles.PrimaryFlat)
donut_pie.add_slice("AI Services", 35.0, style=Styles.PrimaryNeutral)
donut_pie.add_slice("Operations", 20.0, style=Styles.SecondaryNeutral)
donut_pie.draw(xy=(58.0, 5.0))
donut_pie.draw_legend(xy=(100.0, 32.0), text_style=Styles.Dark.patch(text_size=10.0))

save()
  • Solid Pie (hole_ratio=0.0): Traditional full sector representation (hole_ratio is clamped to [0.0, 0.9]).
  • Donut Chart (hole_ratio=0.5 to 0.7): Ring layout that provides central canvas real estate for multi-line key indicators (center_text + center_text_style).
  • Exploded Slices (explode > 0.0): Displaces a specific wedge radially outward along its bisector angle for visual emphasis.
  • Automatic < 4% Inline Label Suppression: When value_text_style is provided, inline percentage labels are automatically suppressed for narrow wedges representing less than $4%$ of the total sum (or when draw_ratio < 0.6) to prevent illegible text collisions. Always pair charts containing small slices with chart.draw_legend(...).
  • Flexible Value Formatting (value_format): Accepts either a format string ("{:.1f}%") or a custom callable Callable[[float], str] receiving the computed percentage (0.0 to 100.0), such as lambda pct: f"{pct:.0f}%".

2. Donut Chart with Center KPI Badge

Donut charts are ideal for executive dashboards. Ground supporting slices in calm neutral tokens (Styles.PrimaryNeutral, Styles.SecondaryNeutral, Styles.Neutral) while reserving Styles.PrimaryFlat for the primary focal slice:

from drawlib.canvas import save, setup
from drawlib.charts.pie import PieChart
from drawlib.styles import Styles

setup(width=102, height=78)

chart = PieChart(
    radius=24.0,
    hole_ratio=0.62,
    center_text="$1.2B\nARR",
    center_text_style=Styles.BlackBold.patch(text_size=12.0),
    title="Revenue Contribution by Product Line",
    title_style=Styles.BlackBold.patch(text_size=13.0),
    value_text_style=Styles.BlackBold.patch(text_size=10.5),
)
chart.add_slice("Cloud Infrastructure", 540.0, style=Styles.PrimaryFlat)
chart.add_slice("AI Developer Tools", 340.0, style=Styles.PrimaryNeutral)
chart.add_slice("Security Suite", 220.0, style=Styles.SecondaryNeutral)
chart.add_slice("Legacy Support", 100.0, style=Styles.Neutral)

chart.draw(xy=(8.0, 8.0))
chart.draw_legend(xy=(64.0, 48.0), text_style=Styles.Dark.patch(text_size=10.5))
save()

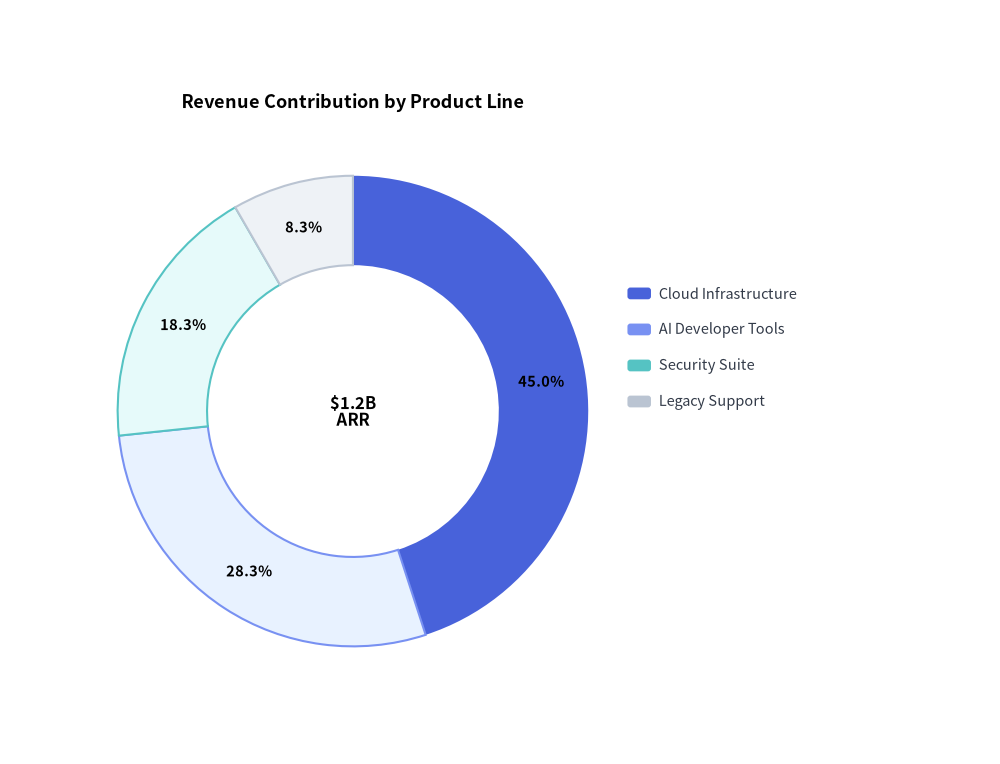

pie_2
Revenue Contribution Donut Chart

3. Exploded Slice Allocation & Callable Formatter

Setting explode > 0.0 radially displaces a slice away from the center origin. Here we also pass a callable value_format and include a minor $3%$ slice whose inline label is automatically suppressed by the < 4% threshold rule while remaining visible in the legend:

from drawlib.canvas import save, setup
from drawlib.charts.pie import PieChart
from drawlib.styles import Styles

setup(width=102, height=78)

chart = PieChart(
    radius=24.0,
    title="R&D Budget Allocation (2026)",
    title_style=Styles.BlackBold.patch(text_size=13.0),
    value_text_style=Styles.BlackBold.patch(text_size=10.5),
    value_format=lambda pct: f"{pct:.0f}%",
)
chart.add_slice("Generative AI Models", 45.0, style=Styles.PrimaryFlat, explode=2.8)
chart.add_slice("Core Infrastructure", 28.0, style=Styles.PrimaryNeutral)
chart.add_slice("DevOps & Tooling", 16.0, style=Styles.SecondaryNeutral)
chart.add_slice("Compliance & Audit", 8.0, style=Styles.Neutral)
chart.add_slice("Experimental Labs (3%)", 3.0, style=Styles.Muted)

chart.draw(xy=(8.0, 8.0))
chart.draw_legend(xy=(64.0, 50.0), text_style=Styles.Dark.patch(text_size=10.5))
save()

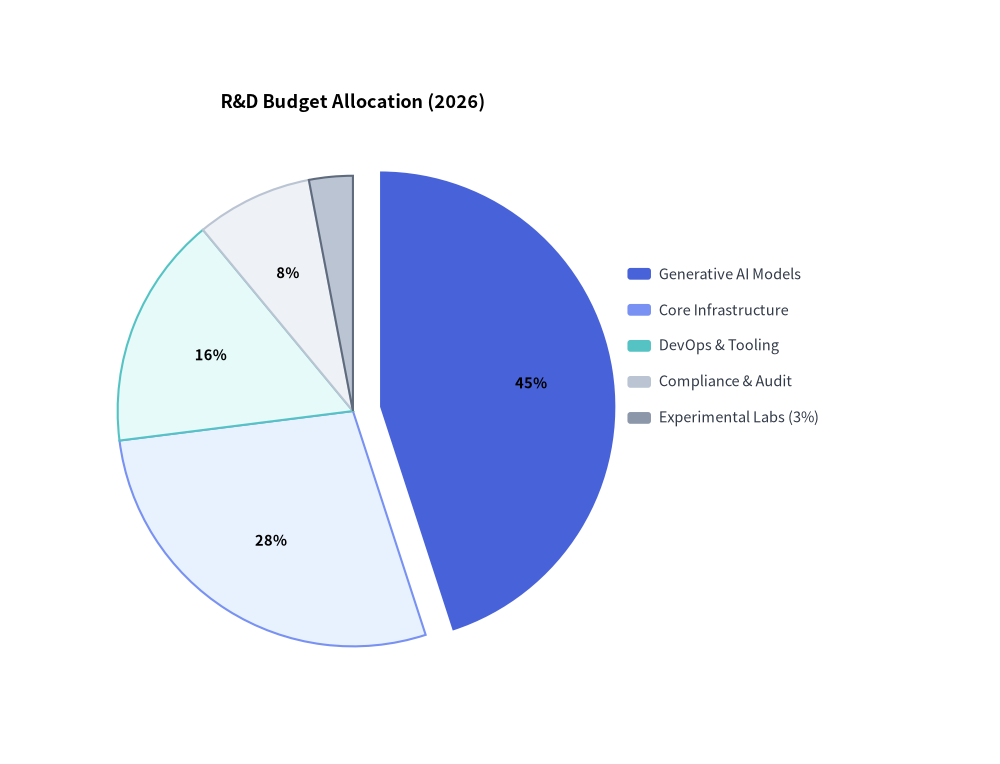

pie_3
Budget Allocation with Exploded Hero Slice and Callable Formatter

4. API Reference

Constructor (PieChart)

All constructor arguments are keyword-only (*):

from drawlib.charts.pie import DrawDirection, FormatterType, PieChart, Slice

chart = PieChart(
    *,
    radius: float = 20.0,
    hole_ratio: float = 0.0,
    start_angle: float = 90.0,
    clockwise: bool = True,
    value_text_style: Style | None = None,
    value_format: FormatterType = "{:.1f}%",
    center_text: str = "",
    center_text_style: Style | None = None,
    background_style: Style | None = None,
    title: str = "",
    title_style: Style | None = None,
    width: float | None = None,
    height: float | None = None,
)
Parameter Type Default Description
radius float 20.0 Outer radius of the pie circle in canvas units.
hole_ratio float 0.0 Inner hole radius ratio (0.0 for solid pie; clamped to [0.0, 0.9] for donut rings).
start_angle float 90.0 Starting radial angle in degrees (90.0 is 12 o'clock, 0.0 is 3 o'clock).
clockwise bool True When True, slices progress clockwise from start_angle; when False, counter-clockwise.
value_text_style Style | None None Style for percentage badges drawn inside wedges ($\ge 4%$ share). If None, badges are omitted.
value_format FormatterType "{:.1f}%" Format string or Callable[[float], str] receiving the slice's percentage (0.0–100.0).
center_text str "" Text rendered inside the donut hole (supports \n multiline strings; requires hole_ratio > 0).
center_text_style Style | None None Typography style for center_text. Required for center badge text to render.
background_style Style | None None Style for the outer chart background card. If None, card is omitted.
title str "" Chart title text rendered at the top of the container.
title_style Style | None None Typography style for title. Required for the title to render.
width / height float | None None Explicit container dimensions. If None, computed automatically from radius and title.

Methods & Properties

  • add_slice(name: str, value: float, style: Style, explode: float = 0.0, legend_text_style: Style | None = None, *, show: bool = True, draw_ratio: float = 1.0, draw_direction: DrawDirection = "left_to_right") -> Slice: Registers a proportional wedge and returns the mutable Slice instance.
    • explode: Outward radial offset distance along the slice's mid-angle (0.0 = flush with center).
    • legend_text_style: Optional custom Style for this slice's label in draw_legend().
    • show: Toggles slice visibility while preserving the total pie sum across all slices so remaining wedges do not rescale.
    • draw_ratio & draw_direction: Partial spatial rendering ("left_to_right" sweeps angularly across span * draw_ratio; "bottom_to_top" grows radially outward from the inner edge toward radius).
  • get_size() -> tuple[float, float]: Returns the computed (width, height) bounding box of the chart container.
  • draw(xy: tuple[float, float] = (0.0, 0.0), *, radius: float | None = None, width: float | None = None, height: float | None = None, scale: float = 1.0) -> None: Renders the chart anchored at bottom-left xy, with optional temporary radius/width/height overrides and uniform scale.
  • draw_legend(xy: tuple[float, float], text_style: Style, orientation: Literal["vertical", "horizontal"] = "vertical", swatch_width: float = 2.4, swatch_height: float = 1.2, item_gap: float = 4.0, *, scale: float = 1.0) -> None: Renders the decoupled slice legend at xy.
  • Properties:
    • chart.slices -> list[Slice]: Returns a copy of registered Slice objects.
