CardList

The CardList component renders vertical stacks (direction="vertical") or horizontal step sequences (direction="horizontal") of rich cards equipped with circular or rounded-rectangle badges (badge_shape), vector icons (icon), numbered or text badge labels (badge_text), card titles (text), multi-line descriptions (description), and optional inter-card connecting arrows (show_arrows=True). Unlike BoxList (which draws contiguous single-label boxes) or KpiCards (which highlights large numeric metrics), CardList is purpose-built for feature catalogs, defense-in-depth layer explanations, and multi-step engineering workflows.

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.lines import line
from drawlib.shapes import circle
from drawlib.smartarts import CardList
from drawlib.styles import Styles
from drawlib.text import text

setup(width=132, height=58)

# Subtle center divider
line((64.5, 4.0), (64.5, 54.0), style=Styles.MutedDashed)

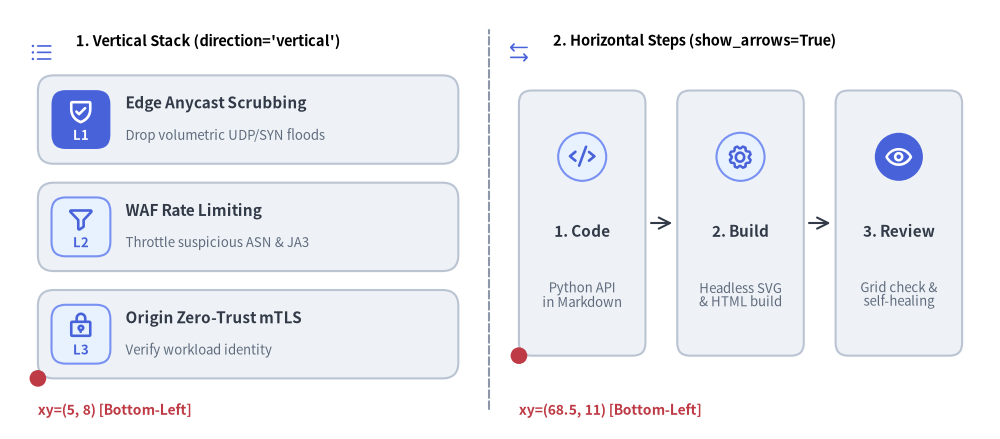

# 1. Left Panel: Vertical Feature Stack (direction="vertical", badge_shape="rounded_rect")
phosphor.list_bullets(xy=(5.5, 51.0), width=3.4, style=Styles.PrimaryFlat)
text((10.0, 52.5), "1. Vertical Stack (direction='vertical')", style=Styles.BlackBold.patch(text_size=10.5, halign="left"))

cl_v = CardList(
    style=Styles.Neutral,
    text_style=Styles.DarkBold.patch(text_size=11.0),
    description_style=Styles.Muted.patch(text_size=9.5),
    badge_shape="rounded_rect",
    badge_style=Styles.PrimaryNeutral,
    badge_text_style=Styles.PrimaryBold.patch(text_size=9.5),
    icon_style=Styles.PrimaryBold,
    direction="vertical",
    spacing=2.5,
)
cl_v.add(
    "Edge Anycast Scrubbing",
    "Drop volumetric UDP/SYN floods",
    badge_text="L1",
    icon=phosphor.shield_check,
    badge_style=Styles.PrimaryFlat,
    badge_text_style=Styles.WhiteBold.patch(text_size=9.5),
    icon_style=Styles.WhiteBold,
)
cl_v.add("WAF Rate Limiting", "Throttle suspicious ASN & JA3", badge_text="L2", icon=phosphor.funnel)
cl_v.add("Origin Zero-Trust mTLS", "Verify workload identity", badge_text="L3", icon=phosphor.lock_key)
cl_v.draw(xy=(5.0, 8.0), width=55.5, height=40.0)

circle((5.0, 8.0), radius=1.1, style=Styles.DangerFlat)
text((5.0, 3.8), "xy=(5, 8) [Bottom-Left]", style=Styles.DangerBold.patch(text_size=10.0, halign="left"))

# 2. Right Panel: Horizontal Step Sequence (direction="horizontal", show_arrows=True)
phosphor.arrows_left_right(xy=(68.5, 51.0), width=3.4, style=Styles.PrimaryFlat)
text((73.0, 52.5), "2. Horizontal Steps (show_arrows=True)", style=Styles.BlackBold.patch(text_size=10.5, halign="left"))

cl_h = CardList(
    style=Styles.Neutral,
    text_style=Styles.DarkBold.patch(text_size=11.0),
    description_style=Styles.Muted.patch(text_size=9.5),
    badge_shape="circle",
    badge_style=Styles.PrimaryNeutral,
    icon_style=Styles.PrimaryBold,
    direction="horizontal",
    show_arrows=True,
    arrow_style=Styles.Dark,
    spacing=4.2,
)
cl_h.add("1. Code", "Python API\nin Markdown", icon=phosphor.code)
cl_h.add("2. Build", "Headless SVG\n& HTML build", icon=phosphor.gear)
cl_h.add(
    "3. Review",
    "Grid check &\nself-healing",
    icon=phosphor.eye,
    badge_style=Styles.PrimaryFlat,
    icon_style=Styles.WhiteBold,
)
cl_h.draw(xy=(68.5, 11.0), width=58.5, height=35.0)

circle((68.5, 11.0), radius=1.1, style=Styles.DangerFlat)
text((68.5, 3.8), "xy=(68.5, 11) [Bottom-Left]", style=Styles.DangerBold.patch(text_size=10.0, halign="left"))

save()

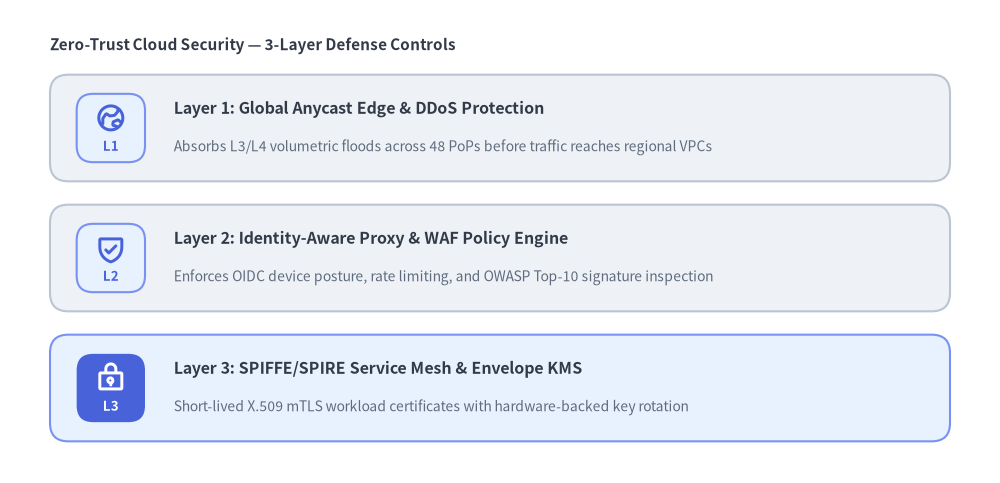

1. Vertical Feature & Defense-in-Depth Cards (direction="vertical")

In direction="vertical" (the default), cards are ordered top-to-bottom inside the (width, height) bounding box. Each card displays a left-side badge (badge_shape="rounded_rect" or "circle"), followed by a bold card title (text) and multi-line description.

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.smartarts import CardList
from drawlib.styles import Styles
from drawlib.text import text

setup(width=120, height=58)

text((6.0, 52.5), "Zero-Trust Cloud Security — 3-Layer Defense Controls", style=Styles.DarkBold.patch(text_size=11.0, halign="left"))

layers = CardList(
    style=Styles.Neutral,
    text_style=Styles.DarkBold.patch(text_size=11.5),
    description_style=Styles.Muted.patch(text_size=10.0),
    badge_shape="rounded_rect",
    badge_style=Styles.PrimaryNeutral,
    badge_text_style=Styles.PrimaryBold.patch(text_size=9.5),
    icon_style=Styles.PrimaryBold,
    direction="vertical",
    spacing=2.8,
)
layers.add(
    "Layer 1: Global Anycast Edge & DDoS Protection",
    "Absorbs L3/L4 volumetric floods across 48 PoPs before traffic reaches regional VPCs",
    badge_text="L1",
    icon=phosphor.globe_hemisphere_east,
)
layers.add(
    "Layer 2: Identity-Aware Proxy & WAF Policy Engine",
    "Enforces OIDC device posture, rate limiting, and OWASP Top-10 signature inspection",
    badge_text="L2",
    icon=phosphor.shield_check,
)
layers.add(
    "Layer 3: SPIFFE/SPIRE Service Mesh & Envelope KMS",
    "Short-lived X.509 mTLS workload certificates with hardware-backed key rotation",
    badge_text="L3",
    icon=phosphor.lock_key,
    style=Styles.PrimaryNeutral,
    badge_style=Styles.PrimaryFlat,
    badge_text_style=Styles.WhiteBold.patch(text_size=9.5),
    icon_style=Styles.WhiteBold,
)
layers.draw(xy=(6.0, 5.0), width=108.0, height=44.0)

save()

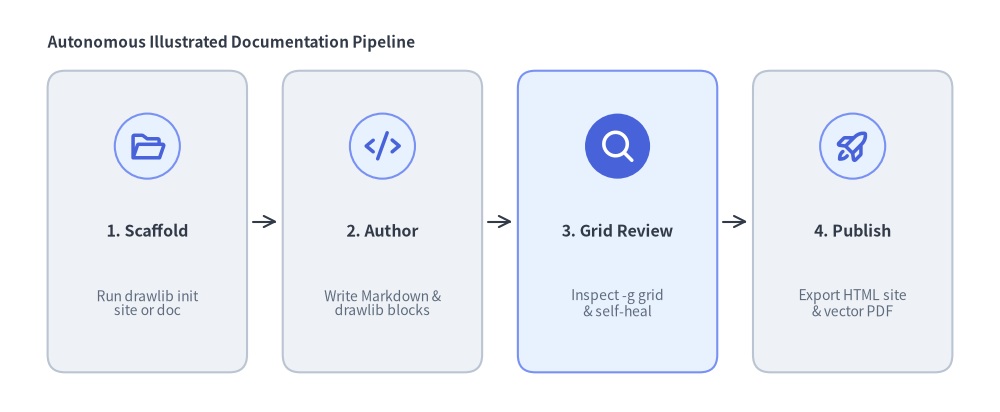

2. Horizontal Step Sequence with Connecting Arrows (direction="horizontal")

Setting direction="horizontal" arranges cards left-to-right, placing the badge/icon centered in the upper zone of each card with the title (text) and description stacked below. Enabling show_arrows=True (with arrow_style) draws connecting arrows (->) between adjacent cards across the spacing gap.

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.smartarts import CardList
from drawlib.styles import Styles
from drawlib.text import text

setup(width=126, height=52)

text((6.0, 46.5), "Autonomous Illustrated Documentation Pipeline", style=Styles.DarkBold.patch(text_size=11.0, halign="left"))

workflow = CardList(
    style=Styles.Neutral,
    text_style=Styles.DarkBold.patch(text_size=11.5),
    description_style=Styles.Muted.patch(text_size=10.0),
    badge_shape="circle",
    badge_style=Styles.PrimaryNeutral,
    icon_style=Styles.PrimaryBold,
    direction="horizontal",
    show_arrows=True,
    arrow_style=Styles.Dark,
    spacing=4.5,
)
workflow.add(
    "1. Scaffold",
    "Run drawlib init\nsite or doc",
    icon=phosphor.folder_open,
)
workflow.add(
    "2. Author",
    "Write Markdown &\ndrawlib blocks",
    icon=phosphor.code,
)
workflow.add(
    "3. Grid Review",
    "Inspect -g grid\n& self-heal",
    icon=phosphor.magnifying_glass,
    style=Styles.PrimaryNeutral,
    badge_style=Styles.PrimaryFlat,
    icon_style=Styles.WhiteBold,
)
workflow.add(
    "4. Publish",
    "Export HTML site\n& vector PDF",
    icon=phosphor.rocket_launch,
)
workflow.draw(xy=(6.0, 5.0), width=114.0, height=38.0)

save()

3. Badge Modes & Orientation Geometry

• Bottom-Left Anchor (xy): CardList.draw(xy=(x, y), width=W, height=H) places the bottom-left corner of the bounding box at (x, y) and extends W units rightward (+x) and H units upward (+y).
• Badge Shapes (badge_shape):
  • "rounded_rect" (default): Draws a rounded square badge container with subtle corner rounding (badge_style required).
  • "circle": Draws a circular badge container (badge_style required).
  • "none": Draws no badge background shape and renders icon or badge_text directly.
• Badge Content Rules:
  • If icon is provided, the vector icon is rendered using icon_style.
  • If badge_text is provided, the badge label is rendered using badge_text_style.
  • If both icon and badge_text are provided, the icon is rendered in the upper portion of the badge and badge_text is rendered below it inside the badge.

4. API Reference

Constructor

CardList(
    *,
    style: Style,
    text_style: Style,
    description_style: Style | None = None,
    badge_shape: Literal["circle", "rounded_rect", "none"] = "rounded_rect",
    badge_style: Style | None = None,
    badge_text_style: Style | None = None,
    icon_style: Style | None = None,
    direction: Literal["vertical", "horizontal"] = "vertical",
    spacing: float = 2.5,
    show_arrows: bool = False,
    arrow_style: Style | None = None,
)

Methods & Properties

• add(text: str, description: str = "", *, badge_text: str | None = None, icon: Callable | None = None, style: Style | None = None, text_style: Style | None = None, description_style: Style | None = None, badge_style: Style | None = None, badge_text_style: Style | None = None, icon_style: Style | None = None, show: bool = True) -> CardListItem: Appends a card item (text is the primary card title) and returns a mutable CardListItem. Setting item.show = False hides that card (and any adjacent arrow) while preserving the coordinates of all sibling cards.
• cardlist.items -> list[CardListItem]: Returns the list of registered CardListItem instances for deferred mutation.
• draw(xy: tuple[float, float], width: float = 100.0, height: float = 60.0, *, scale: float = 1.0) -> Self: Renders the card sequence inside the (width, height) bounding box anchored at bottom-left xy.
