Mathematical Utilities & Dynamic Geometric Layouts (drawlib.math)

Drawlib provides geometric and mathematical calculation utilities to streamline coordinate positioning, angle derivations, distance measurements, and dynamic bounding box computations for technical diagrams.

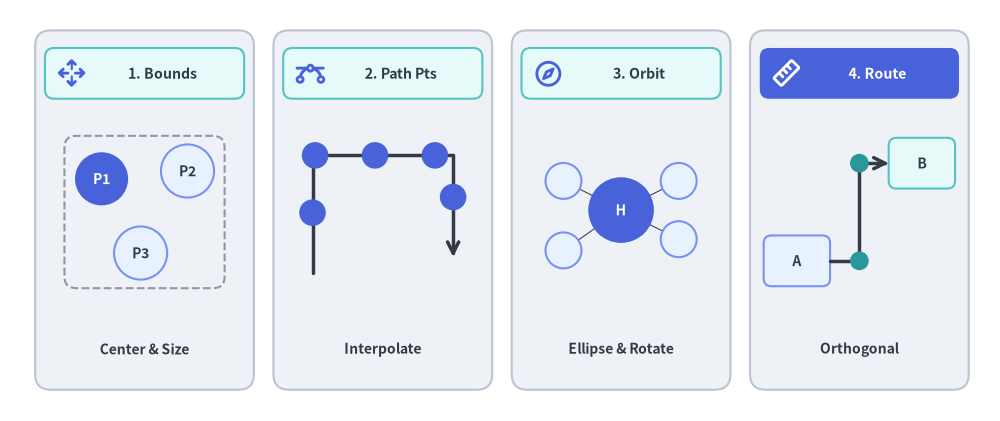

The drawlib.math module provides four core geometric capabilities for algorithmic layouts and animations:

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.lines import line, lines
from drawlib.math import (
    compute_orthogonal_path,
    get_center_and_size,
    get_intermediate_path_points,
    get_point_on_ellipse,
    rotate_point,
)
from drawlib.shapes import circle, rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=128, height=54)

# Panel 1: Dynamic Bounding Box (get_center_and_size)
rectangle((18.5, 27), width=28, height=46, style=Styles.Neutral.patch(shape_r=2.0))
rectangle((18.5, 44.5), width=25.5, height=6.5, style=Styles.SecondaryNeutral.patch(shape_r=1.2))
phosphor.arrows_out_cardinal((9.2, 44.5), width=3.8, style=Styles.PrimaryBold)
text((20.8, 44.5), "1. Bounds", style=Styles.DarkBold.patch(text_size=10.2))

pts = [(13.0, 31.0), (24.0, 32.0), (18.0, 21.5)]
(bcx, bcy), (bw, bh) = get_center_and_size(pts)
rectangle((bcx, bcy), width=bw + 9.5, height=bh + 9.0, style=Styles.MutedDashed.patch(shape_r=1.5))
for idx, pt in enumerate(pts, start=1):
    st = Styles.PrimaryFlat if idx == 1 else Styles.PrimaryNeutral
    tst = Styles.WhiteBold.patch(text_size=10.0) if idx == 1 else Styles.DarkBold.patch(text_size=10.0)
    circle(pt, radius=3.4, style=st, text=f"P{idx}", text_style=tst)
text((18.5, 9.2), "Center & Size", style=Styles.DarkBold.patch(text_size=10.0))

# Panel 2: Polyline Path Interpolation (get_intermediate_path_points)
rectangle((49.0, 27), width=28, height=46, style=Styles.Neutral.patch(shape_r=2.0))
rectangle((49.0, 44.5), width=25.5, height=6.5, style=Styles.SecondaryNeutral.patch(shape_r=1.2))
phosphor.bezier_curve((39.7, 44.5), width=3.8, style=Styles.PrimaryBold)
text((51.3, 44.5), "2. Path Pts", style=Styles.DarkBold.patch(text_size=10.2))

poly = [(40.0, 19.0), (40.0, 34.0), (58.0, 34.0), (58.0, 21.0)]
lines(poly, style=Styles.DarkBold, arrow_head="->")
for px, py in get_intermediate_path_points(poly, num=5, include_ends=False):
    circle((px, py), radius=1.7, style=Styles.PrimaryFlat)
text((49.0, 9.2), "Interpolate", style=Styles.DarkBold.patch(text_size=10.0))

# Panel 3: Radial & Elliptical Orbit (get_point_on_ellipse / rotate_point)
rectangle((79.5, 27), width=28, height=46, style=Styles.Neutral.patch(shape_r=2.0))
rectangle((79.5, 44.5), width=25.5, height=6.5, style=Styles.SecondaryNeutral.patch(shape_r=1.2))
phosphor.compass((70.2, 44.5), width=3.8, style=Styles.PrimaryBold)
text((81.8, 44.5), "3. Orbit", style=Styles.DarkBold.patch(text_size=10.2))

hub_xy = (79.5, 27.0)
sat_pts = [
    get_point_on_ellipse(hub_xy, 18, 13, 35),
    get_point_on_ellipse(hub_xy, 18, 13, 145),
    rotate_point((88.5, 27.0), 215, center=hub_xy),
    get_point_on_ellipse(hub_xy, 18, 13, 325),
]
for s_pt in sat_pts:
    line(hub_xy, s_pt, style=Styles.DarkThin)
circle(hub_xy, radius=4.2, style=Styles.PrimaryFlat, text="H", text_style=Styles.WhiteBold.patch(text_size=10.0))
for s_pt in sat_pts:
    circle(s_pt, radius=2.3, style=Styles.PrimaryNeutral)
text((79.5, 9.2), "Ellipse & Rotate", style=Styles.DarkBold.patch(text_size=10.0))

# Panel 4: Orthogonal Port Routing (compute_orthogonal_path)
rectangle((110.0, 27), width=28, height=46, style=Styles.Neutral.patch(shape_r=2.0))
rectangle((110.0, 44.5), width=25.5, height=6.5, style=Styles.PrimaryFlat.patch(shape_r=1.2))
phosphor.ruler((100.7, 44.5), width=3.8, style=Styles.WhiteBold)
text((112.3, 44.5), "4. Route", style=Styles.WhiteBold.patch(text_size=10.2))

rectangle(
    (102.0, 20.5),
    width=8.5,
    height=6.5,
    style=Styles.PrimaryNeutral.patch(shape_r=1.0),
    text="A",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)
rectangle(
    (118.0, 33.0),
    width=8.5,
    height=6.5,
    style=Styles.SecondaryNeutral.patch(shape_r=1.0),
    text="B",
    text_style=Styles.DarkBold.patch(text_size=10.0),
)
route = compute_orthogonal_path(
    start_pt=(106.25, 20.5),
    end_pt=(113.75, 33.0),
    start_side="right",
    end_side="left",
    routing="orthogonal",
    offset=2.0,
)
lines(route, style=Styles.DarkBold, arrow_head="->")
for wx, wy in route[1:-1]:
    circle((wx, wy), radius=1.2, style=Styles.SecondaryFlat)
text((110.0, 9.2), "Orthogonal", style=Styles.DarkBold.patch(text_size=10.0))

save()

1. Imports & Core Functions

All public math, interpolation, transformation, and routing utilities are imported from drawlib.math:

from drawlib.math import (
    # Distance, Angle & Bounding Box
    get_angle,                     # Calculate angle in degrees [0, 360) from point A to point B
    get_center_and_size,           # Compute center coordinates and bounding box dimensions
    get_distance,                  # Compute Euclidean distance between two points
    # Linear & Polyline Trajectory Interpolation
    get_intermediate_point,        # Compute the 50% midpoint between two points
    get_intermediate_points,       # Compute evenly spaced points along a straight segment
    get_intermediate_path_point,   # Compute 50% arc-length midpoint along a polyline path
    get_intermediate_path_points,  # Compute evenly spaced points along a polyline path
    get_intermediate_paths,        # Compute progressive partial sub-paths along a polyline
    # Vector Arithmetic, Rotation & Ellipse Geometry
    plus_2points,                  # Element-wise vector addition (x1 + x2, y1 + y2)
    minus_2points,                 # Element-wise vector subtraction (x1 - x2, y1 - y2)
    rotate_point,                  # Rotate a single point around a center by angle in degrees
    get_rotated_points,            # Rotate a list of points around a center by angle in degrees
    get_rotated_path_points,       # Rotate path points (including Bezier control tuples)
    get_point_on_ellipse,          # Calculate point on ellipse perimeter at a given angle
    # Orthogonal Waypoint Routing
    compute_orthogonal_path,       # Compute right-angled or direct waypoints between two anchors
    Side,                          # Literal["left", "right", "top", "bottom"]
    RoutingType,                   # Literal["direct", "orthogonal"]
)

2. Function Specifications

2.1 get_angle(xy1, xy2) -> float

Calculates the counter-clockwise angle in degrees from point xy1 to point xy2:

• Reference: 0° points horizontally along the positive X-axis (East).
• Range: [0.0, 360.0).
  • Point to the right: 0.0°
  • Point directly above: 90.0°
  • Point to the left: 180.0°
  • Point directly below: 270.0°
• Primary Use Case: Aligning text labels or rotating directional icons parallel to slanted connection lines.

2.2 get_distance(xy1, xy2) -> float

Calculates the Euclidean distance $\sqrt{(x_2 - x_1)^2 + (y_2 - y_1)^2}$ between two points:

• Primary Use Case: Determining line lengths, collision thresholds, and radial distribution spacing.

2.3 get_center_and_size(xys) -> tuple[tuple[float, float], tuple[float, float]]

Computes the geometric midpoint and outer bounding box dimensions for an arbitrary collection of coordinates:

• Returns: ((center_x, center_y), (width, height)).
• Primary Use Case: Dynamically enclosing multiple service nodes inside an automated background container rectangle with uniform padding.

2.4 get_intermediate_point(xy1, xy2) & get_intermediate_points(xy1, xy2, num=1, *, include_ends=False)

Computes linearly interpolated coordinates between xy1 and xy2:

• get_intermediate_point(xy1, xy2) -> tuple[float, float]: Returns the exact 50% midpoint (mx, my).
• get_intermediate_points(xy1, xy2, num=1, *, include_ends=False) -> list[tuple[float, float]]: Returns num evenly spaced intermediate points (or num + 2 points including xy1 and xy2 when include_ends=True).
• Primary Use Case: Animating moving packets or progressively extending block arrows (arrow(xy1, pt, ...)) and lines across frames.

2.5 get_intermediate_path_point(xys), get_intermediate_path_points(xys, ...) & get_intermediate_paths(xys, ...)

Computes trajectory-aware intermediate points and progressive prefix sub-paths along a multi-point polyline xys (such as L-shaped or U-shaped routes):

• get_intermediate_path_point(xys) -> tuple[float, float]: Returns the coordinate at 50% of the total arc length along xys (e.g., the center of the bottom bar of a U-shaped path).
• get_intermediate_path_points(xys, num=1, *, include_ends=False) -> list[tuple[float, float]]: Returns num evenly spaced (x, y) coordinates along the trajectory of xys (or num + 2 points with include_ends=True).
• get_intermediate_paths(xys, num=1, *, include_ends=False) -> list[list[tuple[float, float]]]: Returns num progressive partial coordinate lists [(x0, y0), ..., (xt, yt)] starting at xys[0], passing through all corners reached so far, and ending at the step's tip (plus the full xys at the end when include_ends=True). Ideal for growing lines(), lines_curved(), or arrow_polyline() along L/U trajectories.

2.6 Vector Arithmetic, Rotation & Ellipse Helpers

• plus_2points(xy1, xy2) / minus_2points(xy1, xy2): Element-wise 2D coordinate addition (x1 + x2, y1 + y2) and subtraction (x1 - x2, y1 - y2).
• rotate_point(xy, angle, center=(0.0, 0.0)): Rotates xy counter-clockwise by angle degrees around center.
• get_rotated_points(xys, center, angle) / get_rotated_path_points(path_points, center, angle): Rotates a list of polygon vertices or Bezier path control points around center.
• get_point_on_ellipse(center, width, height, angle): Computes the (x, y) boundary point on an ellipse of size (width, height) at angle degrees (0° = East, 90° = North).

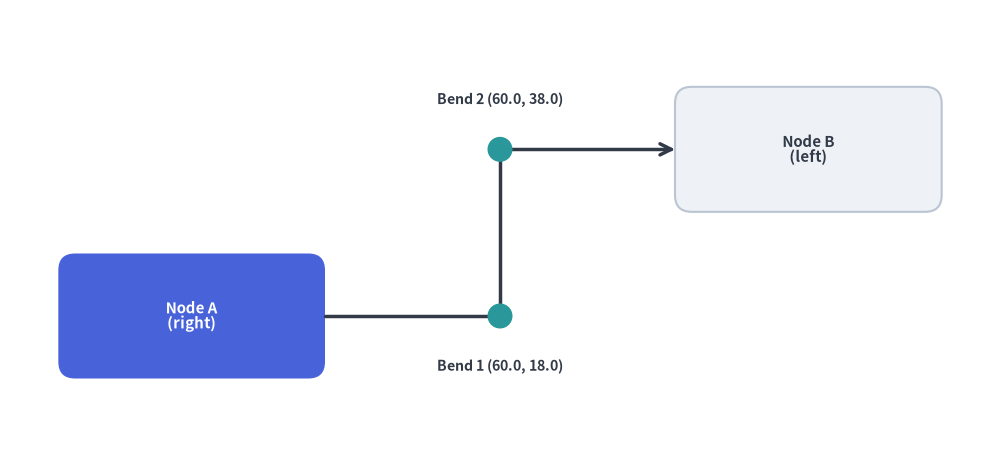

2.7 Orthogonal Waypoint Routing (compute_orthogonal_path)

Computes right-angled ("orthogonal") or straight ("direct") polyline waypoints connecting two anchor coordinates given their exit/entry boundary sides ("left", "right", "top", "bottom"):

from drawlib.canvas import save, setup
from drawlib.lines import lines
from drawlib.math import compute_orthogonal_path
from drawlib.shapes import circle, rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=120, height=56)

# 1. Draw anchor nodes (Node A right edge = 39.0, Node B left edge = 81.0)
rectangle(
    (23, 18),
    width=32,
    height=15,
    style=Styles.PrimaryFlat.patch(shape_r=2.0),
    text="Node A\n(right)",
    text_style=Styles.WhiteBold.patch(text_size=10.8),
)
rectangle(
    (97, 38),
    width=32,
    height=15,
    style=Styles.Neutral.patch(shape_r=2.0),
    text="Node B\n(left)",
    text_style=Styles.DarkBold.patch(text_size=10.8),
)

# 2. Compute orthogonal Z-bend waypoints
waypoints = compute_orthogonal_path(
    start_pt=(39.0, 18.0),
    end_pt=(81.0, 38.0),
    start_side="right",
    end_side="left",
    routing="orthogonal",
    offset=3.0,
)

# 3. Render orthogonal connector and intermediate bend markers
lines(waypoints, style=Styles.DarkBold, arrow_head="->")
for wx, wy in waypoints[1:-1]:
    circle((wx, wy), radius=1.5, style=Styles.SecondaryFlat)

text((60.0, 12.0), "Bend 1 (60.0, 18.0)", style=Styles.DarkBold.patch(text_size=10.2))
text((60.0, 44.0), "Bend 2 (60.0, 38.0)", style=Styles.DarkBold.patch(text_size=10.2))

save()

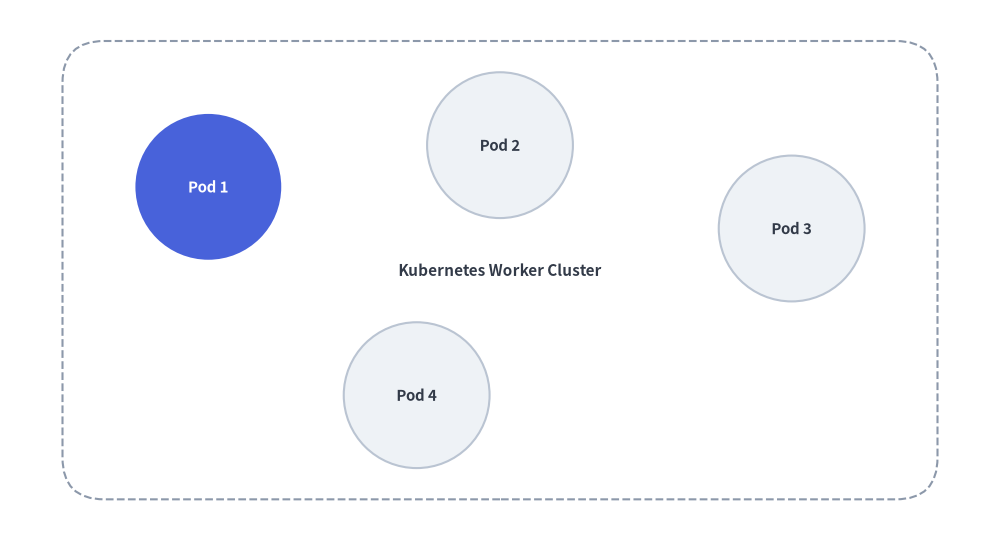

3. Dynamic Automated Grouping Box

Using get_center_and_size(), you can calculate the exact boundary of a cluster of service nodes and draw an encompassing card behind them:

from drawlib.canvas import save, setup
from drawlib.math import get_center_and_size
from drawlib.shapes import circle, rectangle
from drawlib.styles import Styles

setup(width=96, height=52)

# 1. Define service node positions
nodes = [(20, 34), (48, 38), (76, 30), (40, 14)]

# 2. Calculate dynamic bounding box
(cx, cy), (bw, bh) = get_center_and_size(nodes)

# 3. Draw background container with +28 width and +20 height padding
rectangle(
    (cx, cy),
    width=bw + 28,
    height=bh + 20,
    style=Styles.MutedDashed.patch(shape_r=4),
    text="Kubernetes Worker Cluster",
    text_style=Styles.DarkBold.patch(text_size=11.0),
)

# 4. Render nodes
for i, (x, y) in enumerate(nodes, start=1):
    st = Styles.PrimaryFlat if i == 1 else Styles.Neutral
    t_st = Styles.WhiteBold.patch(text_size=10.8) if i == 1 else Styles.DarkBold.patch(text_size=10.8)
    circle((x, y), radius=7.0, style=st, text=f"Pod {i}", text_style=t_st)
save()

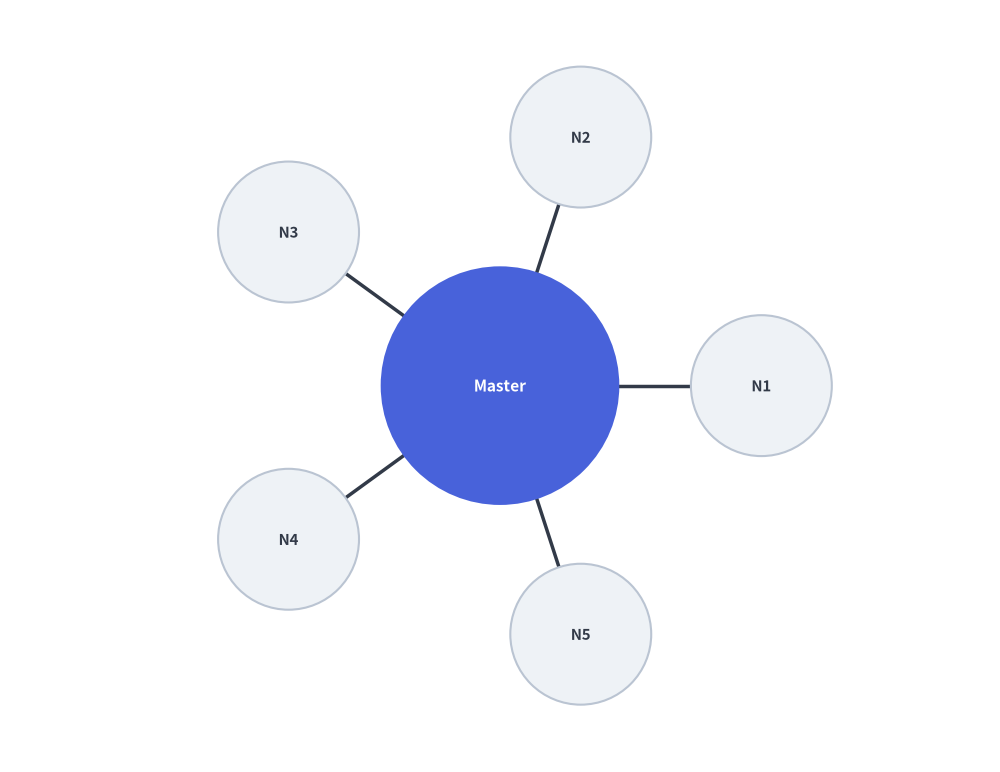

4. Radial Circular Node Distribution

To distribute $N$ worker nodes symmetrically around a central hub:

import math
from drawlib.canvas import save, setup
from drawlib.lines import line
from drawlib.math import get_angle, get_distance
from drawlib.shapes import circle
from drawlib.styles import Styles

setup(width=88, height=68)

hub = (44, 34)
radius = 23
num_clients = 5

# 1. Draw spoke lines and surrounding worker nodes first
for i in range(num_clients):
    angle_rad = 2 * math.pi * i / num_clients
    node_xy = (hub[0] + radius * math.cos(angle_rad), hub[1] + radius * math.sin(angle_rad))

    # Calculate connection angle and distance
    dist = get_distance(hub, node_xy)
    angle_deg = get_angle(hub, node_xy)

    line(hub, node_xy, style=Styles.DarkBold)
    circle(node_xy, radius=6.2, style=Styles.Neutral, text=f"N{i+1}", text_style=Styles.DarkBold.patch(text_size=10.8))

# 2. Draw Central Hub on top so spoke lines do not cross label text
circle(hub, radius=10.5, style=Styles.PrimaryFlat, text="Master", text_style=Styles.WhiteBold.patch(text_size=11.2))
save()

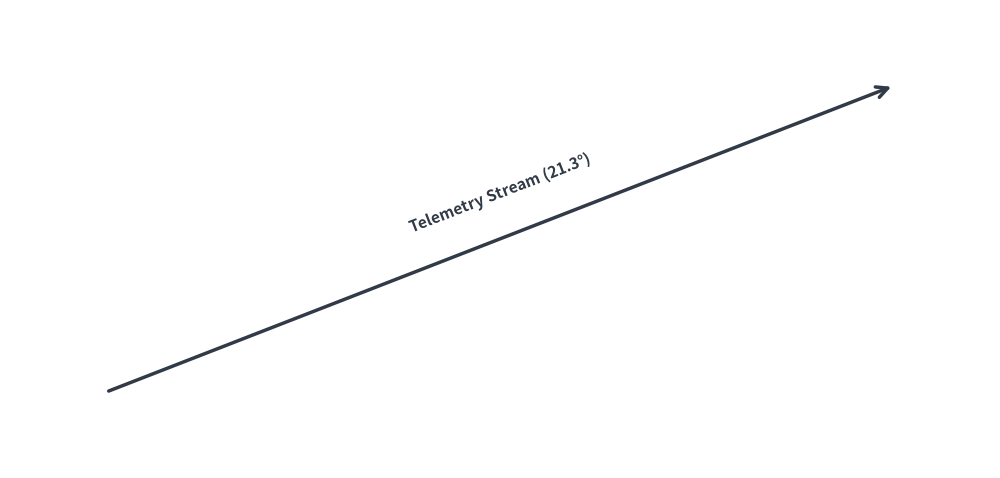

5. Slanted Connection Line Text Alignment

Align text labels parallel to angled lines using get_angle():

from drawlib.canvas import save, setup
from drawlib.lines import line
from drawlib.math import get_angle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=92, height=44)

p1 = (10, 8)
p2 = (82, 36)

# Draw slanted wire
line(p1, p2, arrow_head="->", style=Styles.DarkBold)

# Calculate rotation angle and midpoint
angle = get_angle(p1, p2)
midpoint = ((p1[0] + p2[0]) / 2, (p1[1] + p2[1]) / 2 + 4.2)

# Render rotated text parallel to the connection
text(midpoint, f"Telemetry Stream ({angle:.1f}°)", style=Styles.DarkBold.patch(angle=angle, text_size=11.2))
save()
