Charts Overview

The drawlib.charts module provides a declarative, pure-Python data visualization engine for comparative, statistical, relational, and project schedule charts.

All seven chart families render as first-class vector canvas components that coexist on a unified coordinate plane alongside callouts, cards, and technical diagrams.

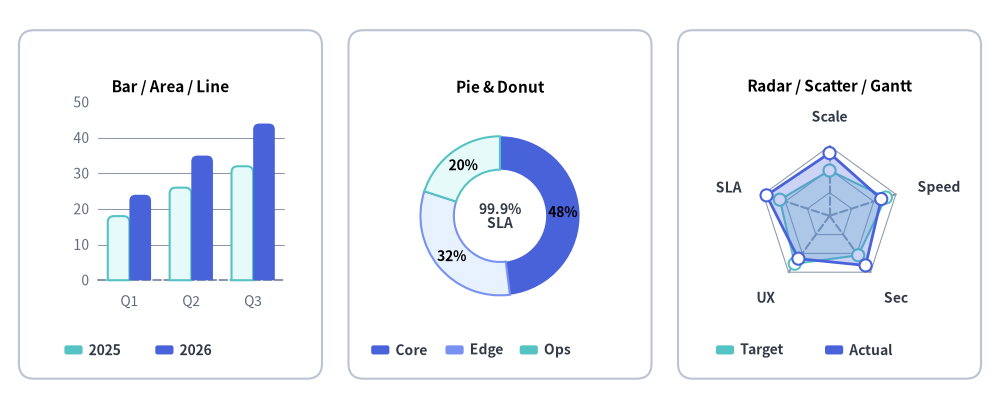

from drawlib.canvas import save, setup
from drawlib.charts.bar import BarChart
from drawlib.charts.pie import PieChart
from drawlib.charts.radar import RadarChart
from drawlib.shapes import rectangle
from drawlib.styles import Colors, Styles

setup(width=132, height=54)

card_style = Styles.Neutral.patch(shape_r=2.0, shape_line_color=Colors.Gray4, shape_fill_color=Colors.White)
rectangle((22.5, 27.0), width=40.0, height=46.0, style=card_style)
rectangle((66.0, 27.0), width=40.0, height=46.0, style=card_style)
rectangle((109.5, 27.0), width=40.0, height=46.0, style=card_style)

# 1. Left: Compact BarChart (Bar / Area / Line Cartesian family)
bar = BarChart(
    categories=["Q1", "Q2", "Q3"],
    axis_line_style=Styles.MutedDashed,
    axis_text_style=Styles.Muted.patch(text_size=10.0),
    grid_style=Styles.MutedThin,
    width=36.0,
    height=33.0,
    bar_mode="group",
    bar_r=0.8,
    title="Bar / Area / Line",
    title_style=Styles.BlackBold.patch(text_size=11.0),
)
bar.add_series("2025", [18.0, 26.0, 32.0], style=Styles.SecondaryNeutral)
bar.add_series("2026", [24.0, 35.0, 44.0], style=Styles.PrimaryFlat)
bar.draw(xy=(4.5, 12.0))
bar.draw_legend(xy=(8.5, 7.8), text_style=Styles.DarkBold.patch(text_size=10.0), orientation="horizontal")

# 2. Center: Compact PieChart Donut
pie = PieChart(
    radius=10.5,
    width=36.0,
    height=33.0,
    hole_ratio=0.58,
    center_text="99.9%\nSLA",
    center_text_style=Styles.DarkBold.patch(text_size=10.0),
    title="Pie & Donut",
    title_style=Styles.BlackBold.patch(text_size=11.0),
    value_text_style=Styles.BlackBold.patch(text_size=10.0),
    value_format="{:.0f}%",
)
pie.add_slice("Core", 48.0, style=Styles.PrimaryFlat)
pie.add_slice("Edge", 32.0, style=Styles.PrimaryNeutral)
pie.add_slice("Ops", 20.0, style=Styles.SecondaryNeutral)
pie.draw(xy=(48.0, 12.0))
pie.draw_legend(xy=(49.0, 7.8), text_style=Styles.DarkBold.patch(text_size=10.0), orientation="horizontal", item_gap=1.8)

# 3. Right: Compact RadarChart (5 spokes)
radar = RadarChart(
    categories=["Scale", "Speed", "Sec", "UX", "SLA"],
    axis_line_style=Styles.MutedDashed,
    axis_text_style=Styles.DarkBold.patch(text_size=10.0),
    grid_style=Styles.MutedThin,
    radius=9.2,
    width=36.0,
    height=33.0,
    min_value=0.0,
    max_value=100.0,
    levels=3,
    grid_shape="polygon",
    title="Radar / Scatter / Gantt",
    title_style=Styles.BlackBold.patch(text_size=11.0),
)
radar.add_series("Target", [65, 85, 70, 85, 75], style=Styles.SecondaryNeutral, fill_alpha=0.25, line_style="dashed")
radar.add_series("Actual", [90, 78, 88, 76, 95], style=Styles.PrimaryFlat, fill_alpha=0.28)
radar.draw(xy=(91.5, 12.0))
radar.draw_legend(xy=(94.5, 7.8), text_style=Styles.DarkBold.patch(text_size=10.0), orientation="horizontal")

save()

1. Why Pure-Python Charts in Drawlib?

Unlike traditional Python visualization libraries (such as Matplotlib, Seaborn, or Plotly) that generate isolated image files or web-only canvases, Drawlib charts are first-class vector canvas elements:

• Seamless Canvas Coexistence: Charts can share the same canvas with architecture schemas, callout bubbles, and icons.
• Deterministic Layouts: All margins, tick spaces, and plot boxes are mathematically computed from explicit canvas dimensions (width, height).
• Consistent Visual Theming & Style Presence: Charts follow the "style-as-presence" philosophy. If an element has a style, it is drawn; if omitted (None), no fallback element or unwanted default grid/background is rendered. Legends are decoupled and rendered explicitly via chart.draw_legend(...).

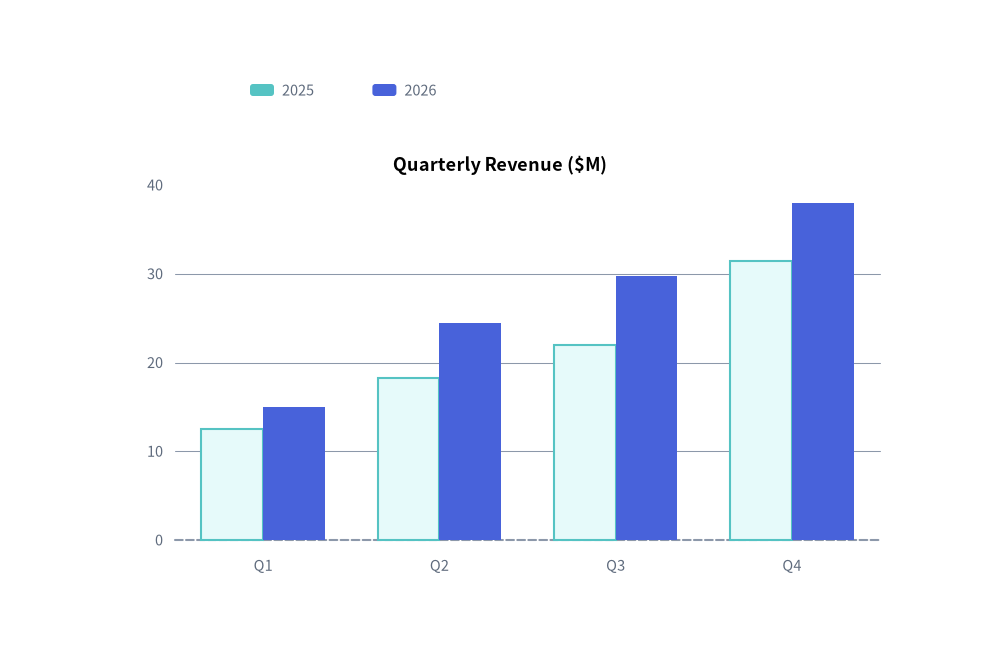

from drawlib.canvas import save, setup
from drawlib.charts.bar import BarChart
from drawlib.styles import Styles

setup(width=100, height=66)

chart = BarChart(
    categories=["Q1", "Q2", "Q3", "Q4"],
    axis_line_style=Styles.MutedDashed,
    axis_text_style=Styles.Muted.patch(text_size=10.5),
    grid_style=Styles.MutedThin,
    width=82,
    height=45,
    title="Quarterly Revenue ($M)",
    title_style=Styles.BlackBold.patch(text_size=13.0),
)
chart.add_series("2025", [12.5, 18.2, 22.0, 31.4], style=Styles.SecondaryNeutral)
chart.add_series("2026", [15.0, 24.5, 29.8, 38.0], style=Styles.PrimaryFlat)

chart.draw(xy=(9, 7))
chart.draw_legend(xy=(25, 57), text_style=Styles.Muted.patch(text_size=10.5), orientation="horizontal")
save()

2. The Seven Chart Families & Submodule Exports

Drawlib organizes charts into seven specialized submodules under drawlib.charts, built on a shared foundation for Axes, Scales & Legends:

Exported Type Literals Reference

3. Universal Chart Architecture & Presence-Based Styling

Every chart in Drawlib follows a consistent lifecycle and coordinate contract (see Axes, Scales & Legends for full details on axis formatting, logarithmic scaling, legend customization, and get_size()):

1. Dimension Instantiation & Mandatory Anchor

Specify category labels and a mandatory axis_line_style (the structural anchor for Cartesian, Radar, and Gantt charts) during initialization:

chart = BarChart(
    categories=["US", "EU", "APAC"],
    axis_line_style=Styles.Primary,
    axis_text_style=Styles.Black,
    grid_style=Styles.MutedThin,
    width=90,
    height=50,
    title="Regional Distribution",
    title_style=Styles.BlackBold,
)

2. Presence-Based Styling Summary (Style | None = None)

Drawlib charts enforce a strict "Style-as-Presence" rule: optional visual elements default to None and are only rendered when an explicit Style is provided:

3. Adding Data Series & Configuring Axes

Add data series directly with explicit styles, and optionally configure axis bounds, ticks, units, or logarithmic scales via configure_x_axis() / configure_y_axis():

chart.add_series("Allocated", [120, 180, 240], style=Styles.PrimaryFlat)
chart.add_series("Available", [90, 150, 210], style=Styles.SecondaryFlat)
chart.configure_y_axis(min_value=0, max_value=300, tick_step=100, unit="TB")

4. Rendering via Bottom-Left Anchor & Decoupled Legend

All charts are anchored by their bottom-left corner via draw(xy=(x, y)). Legends are rendered independently wherever desired via draw_legend(xy=(x, y), text_style=...):

chart.draw(xy=(15, 10))
chart.draw_legend(xy=(85, 50), text_style=Styles.Black)

4. Component Lifecycle, Partial Rendering & Spatial Scaling

All Drawlib charts follow the unified 4-phase component lifecycle (1. Instantiate -> 2. Register Elements -> 3. Mutate State -> 4. Render), making it effortless to create step-by-step slide builds, progressive data reveals, and multi-chart dashboards:

1. Element Visibility (show) & Stable Axis Bounds

Every element registration method (add_series, add_slice, add, add_task, add_section, add_milestone, add_marker, add_dependency) accepts show: bool = True and returns the mutable element instance (Series, Slice, Point, Task, etc.).

• Toggling elem.show = False (or draw_ratio = 0.0) hides that element during rendering while preserving the full 100% dataset's automatic axis scale, pie total proportion, and Gantt row layout. Axes never jump when series are revealed sequentially across slides or animation frames.

2. Partial Spatial Rendering (draw_ratio & draw_direction)

Series, Slice, and Task objects support draw_ratio: float = 1.0 (0.0 to 1.0) and draw_direction: DrawDirection ("bottom_to_top" or "left_to_right"):

3. Spatial Overrides & Proportional Scaling (scale)

Every draw() call accepts optional temporary layout overrides (width, height, and radius on PieChart/RadarChart) as well as scale: float = 1.0 (also supported on draw_legend()). Passing scale != 1.0 scales the entire chart—including plot geometry, stroke widths, point markers, and font sizes—proportionally from xy:

from drawlib.canvas import save, setup
from drawlib.charts.bar import BarChart
from drawlib.charts.line import LineChart
from drawlib.styles import Styles

setup(width=115, height=58)

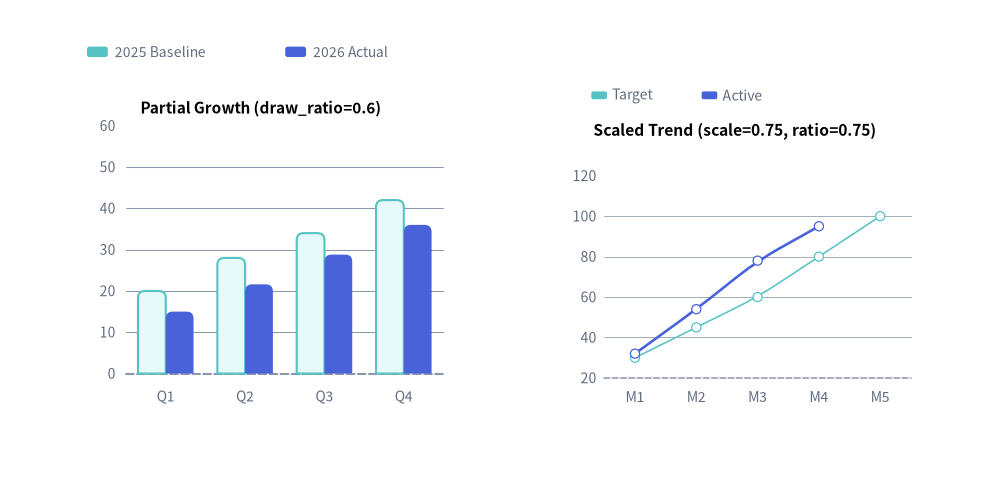

# Left: BarChart with partial series rendering (draw_ratio)
bar = BarChart(
    categories=["Q1", "Q2", "Q3", "Q4"],
    axis_line_style=Styles.MutedDashed,
    axis_text_style=Styles.Muted.patch(text_size=10.0),
    grid_style=Styles.MutedThin,
    width=48,
    height=38,
    title="Partial Growth (draw_ratio=0.6)",
    title_style=Styles.BlackBold.patch(text_size=11.0),
    bar_r=0.8,
)
bar.add_series("2025 Baseline", [20, 28, 34, 42], style=Styles.SecondaryNeutral, draw_ratio=1.0)
bar.add_series("2026 Actual", [25, 36, 48, 60], style=Styles.PrimaryFlat, draw_ratio=0.6)
bar.draw(xy=(6, 10))
bar.draw_legend(xy=(10, 52), text_style=Styles.Muted.patch(text_size=10.0), orientation="horizontal")

# Right: LineChart rendered at compact 0.75x proportional scale
line = LineChart(
    categories=["M1", "M2", "M3", "M4", "M5"],
    axis_line_style=Styles.MutedDashed,
    axis_text_style=Styles.Muted.patch(text_size=13.5),
    grid_style=Styles.MutedThin,
    width=60,
    height=46,
    title="Scaled Trend (scale=0.75, ratio=0.75)",
    title_style=Styles.BlackBold.patch(text_size=15.0),
    smooth=True,
)
line.add_series("Target", [30, 45, 60, 80, 100], style=Styles.SecondaryNeutral, line_style="dashed")
line.add_series("Active", [32, 54, 78, 95, 120], style=Styles.PrimaryFlat, line_width=2.5, draw_ratio=0.75)
line.draw(xy=(62, 10), scale=0.75)
line.draw_legend(xy=(68, 47), text_style=Styles.Muted.patch(text_size=13.5), orientation="horizontal", scale=0.75)
save()
