Programmatic Python API (drawlib.tools)

While the drawlib CLI provides terminal commands for common workflows, Drawlib exposes a comprehensive Python developer API under drawlib.tools. This API allows you to integrate document compilation, diagram export, image snapshot testing, and template automation directly into CI/CD pipelines, web servers, and custom build scripts.

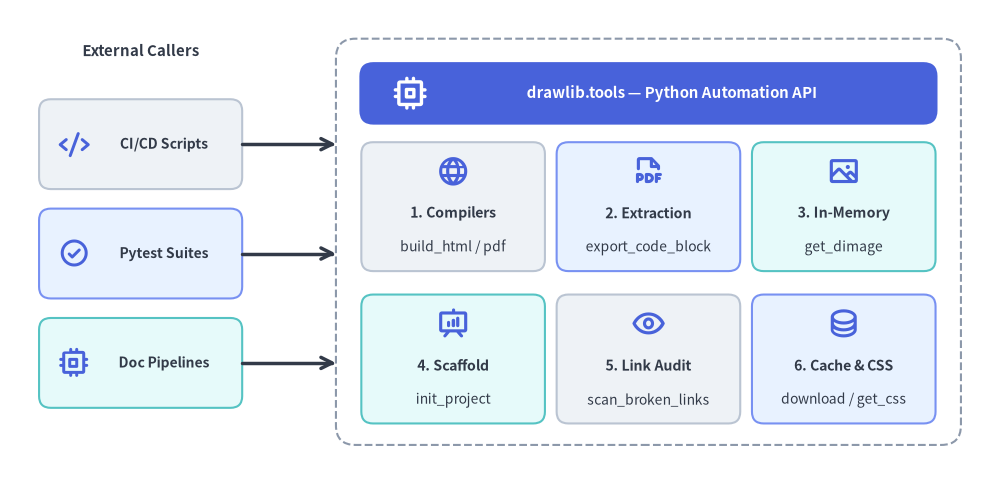

The drawlib.tools facade organizes programmatic automation into six core subsystems:

from drawlib.canvas import save, setup
from drawlib.icons import phosphor
from drawlib.lines import line
from drawlib.shapes import rectangle
from drawlib.styles import Styles
from drawlib.text import text

setup(width=128, height=62)

# Left Column: External Callers
text((18, 55.5), "External Callers", style=Styles.DarkBold.patch(text_size=10.8))

callers = [
    (43.5, "CI/CD Scripts", Styles.Neutral, phosphor.code),
    (29.5, "Pytest Suites", Styles.PrimaryNeutral, phosphor.check_circle),
    (15.5, "Doc Pipelines", Styles.SecondaryNeutral, phosphor.cpu),
]
for cy, clabel, cst, cicon in callers:
    rectangle((18, cy), width=26, height=11.5, style=cst.patch(shape_r=1.5))
    cicon((9.5, cy), width=4.0, style=Styles.PrimaryBold)
    text((21.0, cy), clabel, style=Styles.DarkBold.patch(text_size=10.0))

# Right Container: drawlib.tools Facade + 3x2 Subsystem Grid
rectangle((83, 31), width=80, height=52, style=Styles.MutedDashed.patch(shape_r=2.5))

rectangle((83, 50.0), width=74, height=8.0, style=Styles.PrimaryFlat.patch(shape_r=1.8))
phosphor.cpu((52.5, 50.0), width=4.6, style=Styles.WhiteBold)
text((86.0, 50.0), "drawlib.tools — Python Automation API", style=Styles.WhiteBold.patch(text_size=10.8))

# Row 1 of 3x2 Grid
grid_items = [
    (58.0, 35.5, "1. Compilers", "build_html / pdf", Styles.Neutral, phosphor.globe),
    (83.0, 35.5, "2. Extraction", "export_code_block", Styles.PrimaryNeutral, phosphor.file_pdf),
    (108.0, 35.5, "3. In-Memory", "get_dimage", Styles.SecondaryNeutral, phosphor.image),
    (58.0, 16.0, "4. Scaffold", "init_project", Styles.SecondaryNeutral, phosphor.presentation_chart),
    (83.0, 16.0, "5. Link Audit", "scan_broken_links", Styles.Neutral, phosphor.eye),
    (108.0, 16.0, "6. Cache & CSS", "download / get_css", Styles.PrimaryNeutral, phosphor.database),
]
for gx, gy, gtitle, gsub, gst, gicon in grid_items:
    rectangle((gx, gy), width=23.5, height=16.5, style=gst.patch(shape_r=1.5))
    gicon((gx, gy + 4.5), width=4.2, style=Styles.PrimaryBold)
    text((gx, gy - 0.8), gtitle, style=Styles.DarkBold.patch(text_size=10.2))
    text((gx, gy - 5.2), gsub, style=Styles.Dark.patch(text_size=10.0))

# Connectors from External Callers to drawlib.tools Container
line((31, 43.5), (43, 43.5), arrow_head="->", style=Styles.DarkBold)
line((31, 29.5), (43, 29.5), arrow_head="->", style=Styles.DarkBold)
line((31, 15.5), (43, 15.5), arrow_head="->", style=Styles.DarkBold)

save()

1. Module Overview & Complete Exports (drawlib.tools)

from drawlib.tools import (
    # Document, Slide, & Image Compilation
    build_document,
    build_html,
    build_markdown,
    build_pdf,
    build_slide,
    build_image,
    detect_document_type,
    # Single Diagram Extraction & Desktop Preview
    export_code_block,
    show_code_block,
    # Project Scaffolding
    init_project,
    list_project_types,
    # Local Preview Server & Broken Link Scanner
    serve_docs,
    scan_broken_links,
    # Cache Management
    list_cache,
    clear_cache,
    download_cache,
    # CSS Stylesheet Presets
    list_css,
    list_html_css,
    list_pdf_css,
    list_slide_css,
    get_css,
    export_css,
)

2. Document, Slide & Image Compilation API

2.1 build_html() & build_markdown()

Compiles a documentation source directory (docs_src/) into a static HTML website and GitHub-Flavored Markdown:

from drawlib.tools import build_html, build_markdown

build_html(
    input_dir="docs_src/",
    output_dir="docs_html/",
    styles_path="docs_src/styles.py",  # Optional custom styles script
    utils_path="docs_src/utils.py",    # Optional drawing helper script
    no_cache=False,                    # Set True to bypass SQLite cache
    image_format="png",                # "png" or "webp"
)

build_markdown(
    input_dir="docs_src/",
    output_dir="docs_markdown/",
    styles_path="docs_src/styles.py",
)

2.2 build_pdf() & build_slide()

Compiles linear documents or 16:9 slide decks into vector PDFs and interactive HTML presentations:

from drawlib.tools import build_pdf, build_slide

# Compile linear document with Table of Contents and chapter page breaks:
build_pdf(
    input_path="doc_src/",
    output_file="doc.pdf",
    generate_index=True,               # Generate Table of Contents (--toc)
    page_break=True,                   # Page break before each chapter
)

# Compile 16:9 interactive HTML presentation deck:
build_slide(
    input_dir="slide_src/",
    output_dir="slide_html/",
    image_format="svg",
)

2.3 build_image()

Batch executes standalone Python scripts in images_src/ or extracts embedded diagrams from Markdown files:

from drawlib.tools import build_image

build_image(
    input_path="images_src/",
    output_path="images/",
    styles_path="images_src/styles.py",
    utils_path="images_src/utils.py",
    grid=False,
)

3. Single Diagram Extraction (export_code_block)

Extracts and renders a single diagram from a Markdown file or a standalone .py script without opening a GUI display:

from drawlib.tools import export_code_block

# Extract a named block from Markdown with coordinate grid (Recommended):
export_code_block(
    file_path="docs_src/architecture.md",
    target="service_arch.png",         # Explicit file: name or 1-based index ("1")
    output_path=".drawlib/scratch/arch.png",
    grid=True,                         # Overlay coordinate grid
)

# Export from standalone Python script:
export_code_block(
    file_path="images_src/diagram.py",
    output_path="images/diagram.png",
    grid=False,
)

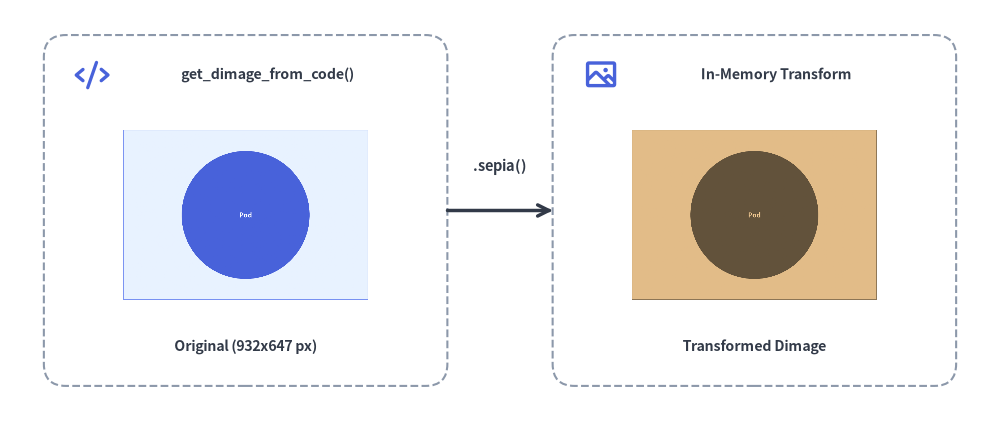

4. In-Memory Image API (get_dimage & get_dimage_from_code)

Drawlib can capture canvases directly into in-memory Dimage objects (from drawlib.canvas import get_dimage or from drawlib.images import get_dimage_from_code) without writing temporary files to disk:

• get_dimage() (from drawlib.canvas import get_dimage): Captures the currently active canvas into a Dimage instance (dimage.get_image_size(), dimage.get_pil_image(), dimage.trim(), dimage.sepia(), dimage.save(...)).
• get_dimage_from_code(code) (from drawlib.images import get_dimage_from_code): Executes a self-contained Python drawing snippet in an isolated sandbox and returns the rendered Dimage in memory:

from drawlib.canvas import get_dimage, save, setup
from drawlib.icons import phosphor
from drawlib.images import get_dimage_from_code, image
from drawlib.lines import line
from drawlib.shapes import rectangle
from drawlib.styles import Colors, Styles
from drawlib.text import text

# 1. Execute a self-contained Python snippet in an isolated sandbox to get a Dimage
sub_dimage = get_dimage_from_code("""
from drawlib.canvas import setup
from drawlib.shapes import circle, rectangle
from drawlib.styles import Styles
setup(width=28, height=20)
rectangle((14, 10), width=26, height=18, style=Styles.PrimaryNeutral)
circle((14, 10), radius=6.8, style=Styles.PrimaryFlat, text="Pod", text_style=Styles.WhiteBold.patch(text_size=18))
""").trim()

# 2. Apply non-destructive Dimage transformations in memory
sepia_dimage = sub_dimage.sepia()
w_px, h_px = sub_dimage.get_image_size()

# 3. Composite both in-memory Dimage objects onto the main canvas
setup(width=114, height=48)

rectangle((28, 24), width=46, height=40, style=Styles.MutedDashed.patch(shape_r=2.5))
phosphor.code((10.5, 39.5), width=4.0, style=Styles.PrimaryBold)
text((30.5, 39.5), "get_dimage_from_code()", style=Styles.DarkBold.patch(text_size=10.2))
image((28, 23.5), width=28, image=sub_dimage, style=Styles.Primary.patch(shape_line_width=1.2, shape_line_color=Colors.Primary))
text((28, 8.5), f"Original ({w_px}x{h_px} px)", style=Styles.DarkBold.patch(text_size=10.2))

line((51, 24), (63, 24), arrow_head="->", style=Styles.DarkBold)
text((57, 29.0), ".sepia()", style=Styles.DarkBold.patch(text_size=10.5))

rectangle((86, 24), width=46, height=40, style=Styles.MutedDashed.patch(shape_r=2.5))
phosphor.image((68.5, 39.5), width=4.0, style=Styles.PrimaryBold)
text((88.5, 39.5), "In-Memory Transform", style=Styles.DarkBold.patch(text_size=10.2))
image((86, 23.5), width=28, image=sepia_dimage, style=Styles.Secondary.patch(shape_line_width=1.2))
text((86, 8.5), "Transformed Dimage", style=Styles.DarkBold.patch(text_size=10.2))

# Capture full composite canvas if needed via get_dimage()
_composite_snapshot = get_dimage()
save()

(For slide runtime context helpers current_slide, SlideContext, and BoundingBox, see Slide Stage Layout & API.)

5. Automated Visual & Link Regression Testing with Pytest

Integrate diagram rendering and broken-link scanning into your pytest suite to ensure code changes never break documentation or illustrations:

from pathlib import Path
from drawlib.tools import export_code_block, scan_broken_links


def test_architecture_diagram_renders(tmp_path: Path) -> None:
    target_png = tmp_path / "test_diagram.png"

    export_code_block(
        file_path="docs_src/index.md",
        target="1",
        output_path=str(target_png),
        grid=False,
    )

    # Assert diagram was generated with valid file size
    assert target_png.exists()
    assert target_png.stat().st_size > 2048


def test_compiled_html_has_no_broken_links() -> None:
    html_count, link_count, broken = scan_broken_links("docs_html/")
    assert html_count > 0
    assert broken == [], f"Broken links detected: {broken}"
