HeatmapChart & HeatmapOverlay: 2D Matrix Grids & Diagram Thermal Overlays

Note (Upcoming in v0.3.1): drawlib.charts.heatmap (HeatmapChart and HeatmapOverlay) is scheduled for the upcoming v0.3.1 release and is not yet included in the v0.3.0 package on PyPI.

drawlib.charts.heatmap provides two complementary heatmap visualization classes styled via Style color-stop interpolation (styles=[Style, ...] or min_style=..., max_style=...):

  1. HeatmapChart: A standard 2D matrix/grid heatmap across categorical x_categories and y_categories with auto-contrasting in-cell numerical labels, configurable cell gaps and corner rounding (cell_gap, cell_r), and continuous colorbar (draw_colorbar) or stepped legend (draw_legend).
  2. HeatmapOverlay: A spatial thermal/hotspot overlay designed to be drawn directly on top of diagrams (such as ClassDiagram, ArchitectureDiagram, ErDiagram, or GeoMap) to highlight high-risk classes, cyclomatic complexity, bug density, or regional/service bottlenecks in either "smooth" (2D Gaussian thermal gradient) or "contour" (concentric vector isoline rings) mode.

1. Overview & Topologies

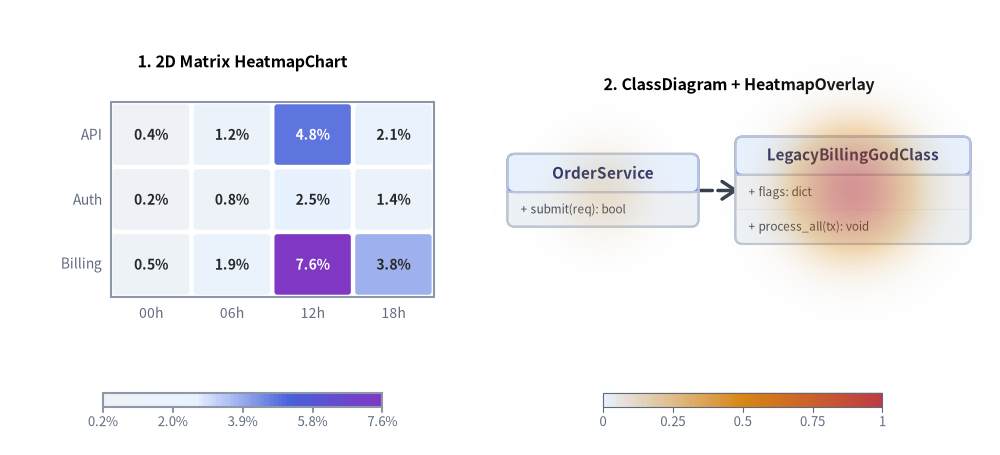

heatmap_1
Heatmap Topologies: 2D Matrix HeatmapChart vs. ClassDiagram Thermal HeatmapOverlay
Source Code
from drawlib.canvas import save, setup
from drawlib.charts.heatmap import HeatmapChart, HeatmapOverlay
from drawlib.diagrams.class_diagram import ClassDiagram, ClassNode
from drawlib.styles import Styles

setup(width=136, height=62)

# Left: 2D Matrix HeatmapChart
matrix = HeatmapChart(
    styles=[Styles.Neutral, Styles.PrimaryNeutral, Styles.PrimaryFlat, Styles.AccentFlat],
    x_categories=["00h", "06h", "12h", "18h"],
    axis_line_style=Styles.Muted,
    axis_text_style=Styles.Muted.patch(text_size=10.0),
    value_text_style=Styles.BlackBold.patch(text_size=10.0),
    width=58.0,
    height=40.0,
    title="1. 2D Matrix HeatmapChart",
    title_style=Styles.BlackBold.patch(text_size=11.5),
    value_format="{:.1f}%",
)
matrix.add_row("API", [0.4, 1.2, 4.8, 2.1])
matrix.add_row("Auth", [0.2, 0.8, 2.5, 1.4])
matrix.add_row("Billing", [0.5, 1.9, 7.6, 3.8])
matrix.draw(xy=(4.0, 16.0))
matrix.draw_colorbar(
    xy=(14.0, 6.5),
    text_style=Styles.Muted.patch(text_size=9.5),
    length=38.0,
    thickness=2.0,
)

# Right: Spatial Thermal HeatmapOverlay on ClassDiagram
diag = ClassDiagram(
    node_style=Styles.Neutral,
    header_style=Styles.PrimaryNeutral,
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=9.5),
    title="2. ClassDiagram + HeatmapOverlay",
    title_style=Styles.BlackBold.patch(text_size=11.5),
)
c_api = diag.add(ClassNode("OrderService", width=26.0).add_method("submit", "req", "bool"), xy=(82.0, 36.0))
c_god = diag.add(
    ClassNode("LegacyBillingGodClass", width=32.0)
    .add_attribute("flags", "dict")
    .add_method("process_all", "tx", "void"),
    xy=(116.0, 36.0),
)
diag.connect(c_api, c_god, "dependency", directed=True)
diag.draw(xy=(0.0, 0.0))

overlay = HeatmapOverlay(
    styles=[Styles.PrimaryNeutral, Styles.WarningFlat, Styles.DangerFlat],
    mode="smooth",
    max_alpha=0.55,
)
overlay.add_spot(c_god, value=0.95, radius=19.0)
overlay.add_spot(c_api, value=0.35, radius=14.0)
overlay.draw(xy=(0.0, 0.0))
overlay.draw_colorbar(
    xy=(82.0, 6.5),
    text_style=Styles.Muted.patch(text_size=9.5),
    length=38.0,
    thickness=2.0,
)

save()

2. Standard 2D Matrix Heatmap (HeatmapChart)

HeatmapChart maps a 2D grid of values across x_categories and y_categories into interpolated Style colors, automatically adjusting cell label contrast (auto_contrast_text=True) so numbers stay legible across both light and dark cells:

from drawlib.canvas import save, setup
from drawlib.charts.heatmap import HeatmapChart
from drawlib.styles import Styles

setup(width=115, height=80)

chart = HeatmapChart(
    styles=[Styles.Neutral, Styles.PrimaryNeutral, Styles.PrimaryFlat, Styles.AccentFlat],
    x_categories=["00:00", "04:00", "08:00", "12:00", "16:00", "20:00"],
    axis_line_style=Styles.Muted,
    axis_text_style=Styles.Muted.patch(text_size=10.0),
    value_text_style=Styles.BlackBold.patch(text_size=10.0),
    width=92.0,
    height=50.0,
    cell_gap=0.7,
    cell_r=0.5,
    title="Production Gateway Error Rate (%) by Day & Hour",
    title_style=Styles.BlackBold.patch(text_size=13.0),
    value_format="{:.1f}%",
)
chart.add_row("Monday", [0.2, 0.1, 1.4, 3.8, 2.9, 0.8])
chart.add_row("Tuesday", [0.3, 0.2, 1.8, 4.5, 3.1, 0.9])
chart.add_row("Wednesday", [0.1, 0.2, 2.2, 6.4, 4.8, 1.2])
chart.add_row("Thursday", [0.4, 0.3, 1.5, 3.2, 2.4, 0.7])
chart.add_row("Friday", [0.5, 0.2, 2.9, 8.5, 5.2, 1.9])

chart.draw(xy=(12.0, 22.0))
chart.draw_colorbar(
    xy=(36.0, 8.0),
    text_style=Styles.Muted.patch(text_size=10.0),
    length=48.0,
    thickness=2.4,
    label="Error Rate (%)",
)

save()

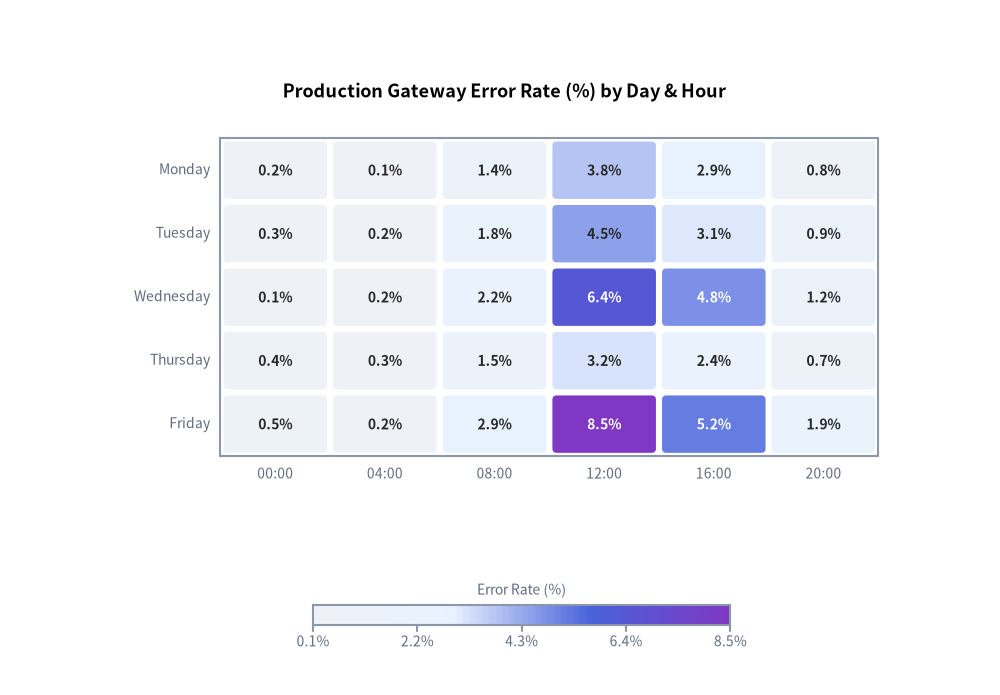

heatmap_2
Service Latency & Error Correlation Matrix with Continuous Colorbar

3. 6-Class ClassDiagram Hotspot Overlay (HeatmapOverlay: Smooth Mode)

When analyzing codebases, architecture topologies, or UML class models, HeatmapOverlay lets you raise the visual temperature over fragile or complex components (add_spot(class_node, value=..., radius=...)). Passing a ClassNode directly resolves its canvas center .xy automatically.

The following example overlays a smooth 2D Gaussian thermal field (mode="smooth") onto a 6-class Order & Payment UML ClassDiagram, pinpointing the high-risk LegacyPaymentGateway God class (0.96) and its tightly-coupled OrderOrchestrator (0.72) and FraudRuleEngine (0.55):

from drawlib.canvas import save, setup
from drawlib.charts.heatmap import HeatmapOverlay
from drawlib.diagrams.class_diagram import ClassDiagram, ClassNode
from drawlib.styles import Styles

setup(width=142, height=96)

# 1. Build 6-Class UML ClassDiagram (2 rows x 3 columns)
diagram = ClassDiagram(
    node_style=Styles.Neutral,
    header_style=Styles.PrimaryNeutral,
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=9.5),
    title="Order & Payment Subsystem: Complexity & Bug Hotspot Analysis (6 Classes)",
    title_style=Styles.BlackBold.patch(text_size=13.0),
    margin=8.0,
)

# Top Tier (Row 1: y = 68.0)
ctrl = diagram.add(
    ClassNode("OrderController", width=29.0)
    .add_method("create_order", "req", "Order")
    .add_method("cancel_order", "id", "bool"),
    xy=(24.0, 68.0),
)
orch = diagram.add(
    ClassNode("OrderOrchestrator", width=31.0)
    .add_attribute("retry_policy", "dict", is_public=False)
    .add_method("dispatch", "order", "Receipt")
    .add_method("rollback", "tx_id", "void"),
    xy=(71.0, 68.0),
)
notif = diagram.add(
    ClassNode("NotificationService", width=29.0)
    .add_attribute("smtp_host", "str", is_public=False)
    .add_method("send_receipt", "user", "bool")
    .add_method("alert_ops", "msg", "void"),
    xy=(118.0, 68.0),
)

# Bottom Tier (Row 2: y = 33.0)
fraud = diagram.add(
    ClassNode("FraudRuleEngine", width=29.0)
    .add_attribute("rule_cache", "list", is_public=False)
    .add_method("evaluate", "order", "float")
    .add_method("reload_rules", "", "int"),
    xy=(24.0, 33.0),
)
gateway = diagram.add(
    ClassNode("LegacyPaymentGateway", width=33.0)
    .add_attribute("global_locks", "dict", is_public=False)
    .add_attribute("raw_socket_pool", "list", is_public=False)
    .add_method("charge_card", "payload", "str")
    .add_method("reconcile_batch", "raw", "void")
    .add_method("parse_iso8583", "buf", "dict"),
    xy=(71.0, 33.0),
)
ledger = diagram.add(
    ClassNode("LedgerRepository", width=29.0)
    .add_attribute("db_pool", "Pool", is_public=False)
    .add_method("append_entry", "tx", "UUID")
    .add_method("query_audit", "id", "list"),
    xy=(118.0, 33.0),
)

# Connect the 6 classes orthogonally
diagram.connect(ctrl, orch, "dependency", start_side="right", end_side="left", label="delegates", directed=True)
diagram.connect(orch, notif, "dependency", start_side="right", end_side="left", label="notifies", directed=True)
diagram.connect(ctrl, fraud, "dependency", start_side="bottom", end_side="top", label="validates", directed=True)
diagram.connect(orch, gateway, "composition", start_side="bottom", end_side="top", label="invokes", directed=True)
diagram.connect(fraud, gateway, "association", start_side="right", end_side="left", label="scores", directed=True)
diagram.connect(gateway, ledger, "association", start_side="right", end_side="left", label="records", directed=True)

diagram.draw(xy=(0.0, 0.0))

# 2. Overlay Thermal Hotspots directly onto ClassNode coordinates
overlay = HeatmapOverlay(
    styles=[Styles.PrimaryNeutral, Styles.WarningFlat, Styles.DangerFlat],
    mode="smooth",
    max_alpha=0.55,
    blend_mode="max",
)
overlay.add_spot(gateway, value=0.96, radius=22.0)
overlay.add_spot(orch, value=0.72, radius=18.0)
overlay.add_spot(fraud, value=0.55, radius=16.0)
overlay.add_spot(ctrl, value=0.30, radius=14.0)
overlay.add_spot(ledger, value=0.15, radius=12.0)
overlay.draw(xy=(0.0, 0.0))

overlay.draw_colorbar(
    xy=(47.0, 6.5),
    text_style=Styles.Muted.patch(text_size=10.0),
    length=48.0,
    thickness=2.2,
    label="Complexity & Bug Risk Score",
)

save()

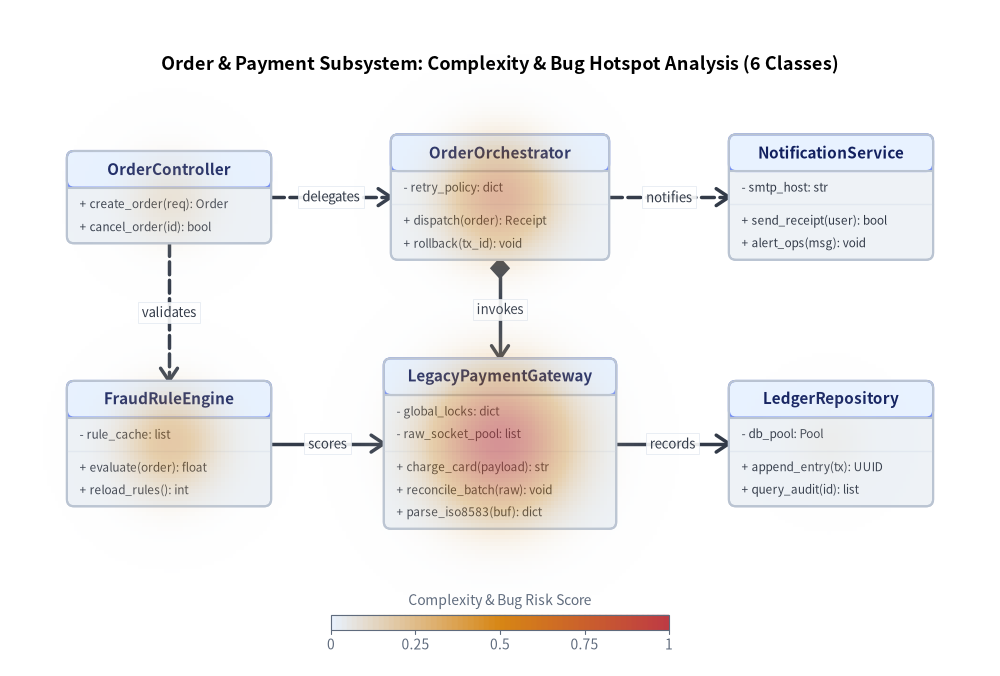

heatmap_3
6-Class UML ClassDiagram with Smooth Thermal Hotspot Overlay (mode='smooth')

4. Concentric Isoline Ring Overlay (mode="contour")

For crisp vector diagrams or print documentation where discrete isoline rings are preferred over continuous gradients, set mode="contour" and levels=4 on the 6-class diagram:

from drawlib.canvas import save, setup
from drawlib.charts.heatmap import HeatmapOverlay
from drawlib.diagrams.class_diagram import ClassDiagram, ClassNode
from drawlib.styles import Styles

setup(width=142, height=96)

diagram = ClassDiagram(
    node_style=Styles.Neutral,
    header_style=Styles.PrimaryNeutral,
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=9.5),
    title="Change Blast Radius Analysis Across 6 Classes (mode='contour')",
    title_style=Styles.BlackBold.patch(text_size=13.0),
    margin=10.0,
)

# Top Tier (Row 1: y = 66.0)
ctrl = diagram.add(
    ClassNode("OrderController", width=29.0)
    .add_method("create_order", "req", "Order")
    .add_method("cancel_order", "id", "bool"),
    xy=(24.0, 66.0),
)
orch = diagram.add(
    ClassNode("OrderOrchestrator", width=31.0)
    .add_attribute("retry_policy", "dict", is_public=False)
    .add_method("dispatch", "order", "Receipt")
    .add_method("rollback", "tx_id", "void"),
    xy=(71.0, 66.0),
)
notif = diagram.add(
    ClassNode("NotificationService", width=29.0)
    .add_attribute("smtp_host", "str", is_public=False)
    .add_method("send_receipt", "user", "bool")
    .add_method("alert_ops", "msg", "void"),
    xy=(118.0, 66.0),
)

# Bottom Tier (Row 2: y = 32.0)
fraud = diagram.add(
    ClassNode("FraudRuleEngine", width=29.0)
    .add_attribute("rule_cache", "list", is_public=False)
    .add_method("evaluate", "order", "float")
    .add_method("reload_rules", "", "int"),
    xy=(24.0, 32.0),
)
gateway = diagram.add(
    ClassNode("LegacyPaymentGateway", width=33.0)
    .add_attribute("global_locks", "dict", is_public=False)
    .add_attribute("raw_socket_pool", "list", is_public=False)
    .add_method("charge_card", "payload", "str")
    .add_method("reconcile_batch", "raw", "void")
    .add_method("parse_iso8583", "buf", "dict"),
    xy=(71.0, 32.0),
)
ledger = diagram.add(
    ClassNode("LedgerRepository", width=29.0)
    .add_attribute("db_pool", "Pool", is_public=False)
    .add_method("append_entry", "tx", "UUID")
    .add_method("query_audit", "id", "list"),
    xy=(118.0, 32.0),
)

diagram.connect(ctrl, orch, "dependency", start_side="right", end_side="left", label="delegates", directed=True)
diagram.connect(orch, notif, "dependency", start_side="right", end_side="left", label="notifies", directed=True)
diagram.connect(ctrl, fraud, "dependency", start_side="bottom", end_side="top", label="validates", directed=True)
diagram.connect(orch, gateway, "composition", start_side="bottom", end_side="top", label="invokes", directed=True)
diagram.connect(fraud, gateway, "association", start_side="right", end_side="left", label="scores", directed=True)
diagram.connect(gateway, ledger, "association", start_side="right", end_side="left", label="records", directed=True)

diagram.draw(xy=(0.0, 0.0))

overlay = HeatmapOverlay(
    styles=[Styles.PrimaryNeutral, Styles.WarningFlat, Styles.DangerFlat],
    mode="contour",
    levels=4,
    max_alpha=0.45,
)
overlay.add_spot(gateway, value=0.96, radius=20.0)
overlay.add_spot(orch, value=0.72, radius=16.0)
overlay.add_spot(fraud, value=0.55, radius=14.0)
overlay.draw(xy=(0.0, 0.0))

overlay.draw_legend(
    xy=(43.0, 6.0),
    text_style=Styles.Muted.patch(text_size=10.0),
    orientation="horizontal",
    labels=["Low", "Moderate", "High", "Critical"],
)

save()

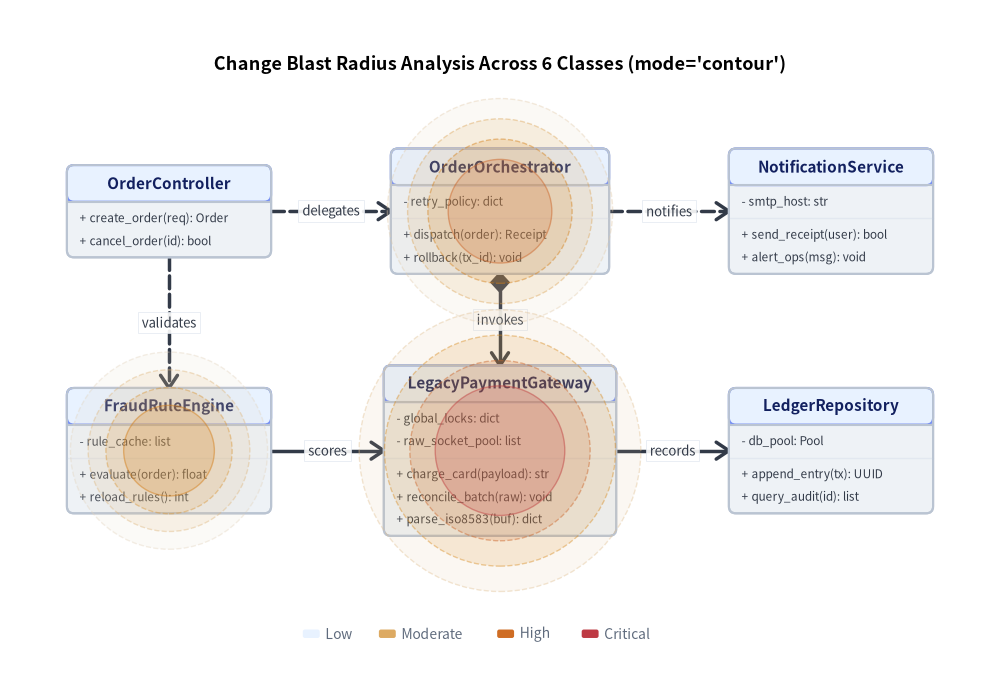

heatmap_4
6-Class UML ClassDiagram with Concentric Vector Isoline Rings (mode='contour')

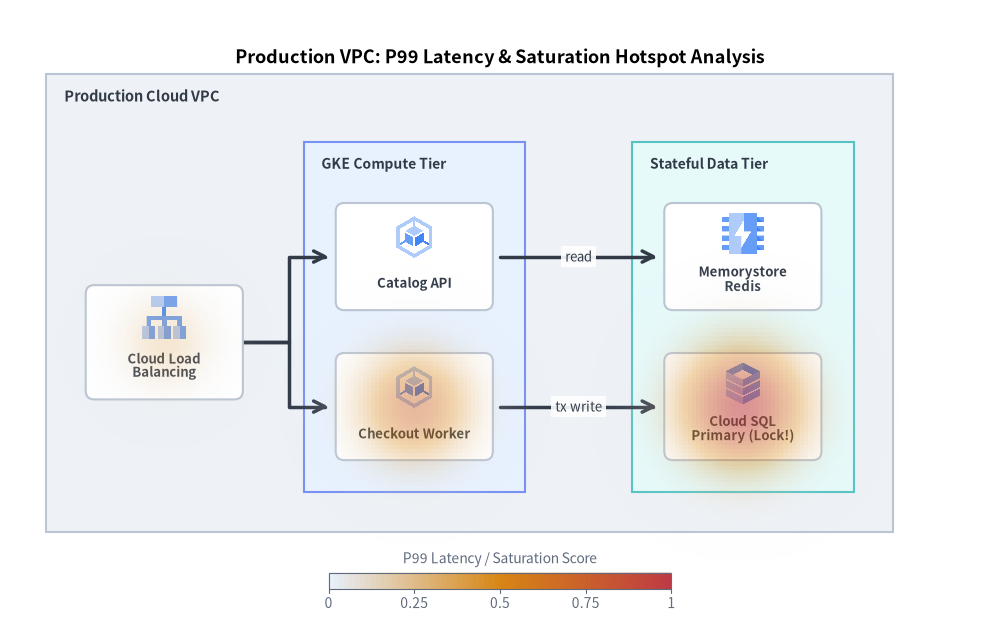

5. Cloud Architecture Latency & Incident Overlay (ArchitectureDiagram + HeatmapOverlay)

HeatmapOverlay.add_spot() also accepts ArchitectureDiagram Node and NodeGroup instances directly—automatically resolving nested NodeGroup hierarchy offsets so you can highlight infrastructure bottlenecks, CPU saturation, or P99 latency spikes over cloud architecture diagrams:

from drawlib.canvas import save, setup
from drawlib.charts.heatmap import HeatmapOverlay
from drawlib.diagrams.architecture import ArchitectureDiagram, GcpIcon, Node, NodeGroup
from drawlib.styles import Colors, Styles

setup(width=140, height=88)

arch = ArchitectureDiagram(
    node_style=Styles.Primary,
    node_text_style=Styles.DarkBold.patch(text_size=9.5),
    edge_style=Styles.DarkBold,
    edge_text_style=Styles.Dark.patch(text_size=9.5),
    node_card_style=Styles.Neutral.patch(shape_fill_color=Colors.White, shape_r=1.2),
)

vpc = arch.add(
    NodeGroup(
        title="Production Cloud VPC",
        padding=5.5,
        style=Styles.Neutral,
        text_style=Styles.DarkBold.patch(text_size=10.5, halign="left", valign="top"),
    ),
    xy=(8.0, 15.0),
)

# Edge Ingress
lb = vpc.add(
    Node("Cloud Load\nBalancing", width=22.0, height=16.0, icon=GcpIcon.CLOUD_LOAD_BALANCING, icon_size=6.8),
    xy=(15.0, 25.0),
)

# Compute Subnet
compute_grp = vpc.add(
    NodeGroup(
        title="GKE Compute Tier",
        padding=4.5,
        style=Styles.PrimaryNeutral,
        text_style=Styles.DarkBold.patch(text_size=10.0, halign="left", valign="top"),
    ),
    xy=(36.0, 4.0),
)
api_svc = compute_grp.add(
    Node("Catalog API", width=22.0, height=15.0, icon=GcpIcon.GOOGLE_KUBERNETES_ENGINE, icon_size=6.5),
    xy=(14.0, 33.0),
)
checkout_svc = compute_grp.add(
    Node("Checkout Worker", width=22.0, height=15.0, icon=GcpIcon.GOOGLE_KUBERNETES_ENGINE, icon_size=6.5),
    xy=(14.0, 12.0),
)

# Data Subnet
data_grp = vpc.add(
    NodeGroup(
        title="Stateful Data Tier",
        padding=4.5,
        style=Styles.SecondaryNeutral,
        text_style=Styles.DarkBold.patch(text_size=10.0, halign="left", valign="top"),
    ),
    xy=(82.0, 4.0),
)
cache_node = data_grp.add(
    Node("Memorystore\nRedis", width=22.0, height=15.0, icon=GcpIcon.MEMORYSTORE, icon_size=6.5),
    xy=(14.0, 33.0),
)
sql_primary = data_grp.add(
    Node("Cloud SQL\nPrimary (Lock!)", width=22.0, height=15.0, icon=GcpIcon.CLOUD_SQL, icon_size=6.5),
    xy=(14.0, 12.0),
)

lb.fork([api_svc, checkout_svc], at_x=34.0, padding=1.0)
api_svc.connect(cache_node, label="read", padding=1.0)
checkout_svc.connect(sql_primary, label="tx write", padding=1.0)

arch.draw(xy=(0.0, 0.0))

# Overlay thermal hotspots directly on nested ArchitectureDiagram Nodes
overlay = HeatmapOverlay(
    styles=[Styles.PrimaryNeutral, Styles.WarningFlat, Styles.DangerFlat],
    mode="smooth",
    max_alpha=0.58,
    width=140.0,
    height=77.0,
    title="Production VPC: P99 Latency & Saturation Hotspot Analysis",
    title_style=Styles.BlackBold.patch(text_size=13.0),
)
overlay.add_spot(sql_primary, value=0.96, radius=19.0)
overlay.add_spot(checkout_svc, value=0.72, radius=17.0)
overlay.add_spot(lb, value=0.35, radius=14.0)
overlay.draw(xy=(0.0, 0.0))

overlay.draw_colorbar(
    xy=(46.0, 5.5),
    text_style=Styles.Muted.patch(text_size=10.0),
    length=48.0,
    thickness=2.2,
    label="P99 Latency / Saturation Score",
)

save()
heatmap_5
Cloud VPC Architecture Diagram with Thermal Bottleneck Overlay

6. Geographical Traffic & Regional Heatmap (GeoMap + HeatmapOverlay)

When working with GeoMap (drawlib.smartarts.GeoMap), pass gmap.get_area_xy(area) (by country, prefecture, or ward name) or gmap.lonlat_to_xy(lon, lat) (by longitude and latitude) directly to overlay.add_spot() to build geographical heatmaps over world, country, or city maps:

from drawlib.canvas import save, setup
from drawlib.charts.heatmap import HeatmapOverlay
from drawlib.shapes import rectangle
from drawlib.smartarts import GeoMap
from drawlib.styles import Colors, Styles
from drawlib.text import text

setup(width=140, height=78)

card_style = Styles.Neutral.patch(shape_r=2.0, shape_line_color=Colors.Gray4, shape_fill_color=Colors.White)
rectangle((36.5, 43.0), width=65.0, height=58.0, style=card_style)
rectangle((103.5, 43.0), width=65.0, height=58.0, style=card_style)

text((36.5, 68.5), "1. Global Edge Traffic (GeoMap.World.All)", style=Styles.BlackBold.patch(text_size=11.0))
text((103.5, 68.5), "2. Domestic Load by Prefecture (GeoMap.Countries.Japan)", style=Styles.BlackBold.patch(text_size=11.0))

# Left: World Map + HeatmapOverlay
world = GeoMap(GeoMap.World.All, area_style=Styles.Neutral)
world.draw(xy=(6.5, 16.0), width=60.0, height=48.0)

world_overlay = HeatmapOverlay(
    styles=[Styles.PrimaryNeutral, Styles.WarningFlat, Styles.DangerFlat],
    mode="smooth",
    max_alpha=0.62,
    min_value=0.0,
    max_value=1.0,
)
world_overlay.add_spot(world.get_area_xy("Japan"), value=0.95, radius=9.5, label="Tokyo")
world_overlay.add_spot(world.get_area_xy("United States"), value=0.85, radius=11.0, label="US-East")
world_overlay.add_spot(world.get_area_xy("Germany"), value=0.72, radius=9.5, label="EU-Central")
world_overlay.add_spot(world.get_area_xy("Singapore"), value=0.60, radius=8.5, label="Singapore")
world_overlay.add_spot(world.get_area_xy("Brazil"), value=0.40, radius=8.0)
world_overlay.draw(xy=(0.0, 0.0))

# Right: Japan Map + HeatmapOverlay
jp = GeoMap(GeoMap.Countries.Japan, area_style=Styles.Neutral)
jp.draw(xy=(73.5, 16.0), width=60.0, height=48.0, lon_range=(129, 146), lat_range=(30, 46))

jp_overlay = HeatmapOverlay(
    styles=[Styles.PrimaryNeutral, Styles.WarningFlat, Styles.DangerFlat],
    mode="smooth",
    max_alpha=0.65,
    min_value=0.0,
    max_value=1.0,
)
jp_overlay.add_spot(jp.get_area_xy("Tokyo"), value=0.98, radius=10.5, label="Tokyo")
jp_overlay.add_spot(jp.get_area_xy("Osaka"), value=0.80, radius=8.5, label="Osaka")
jp_overlay.add_spot(jp.get_area_xy("Aichi"), value=0.62, radius=7.0)
jp_overlay.add_spot(jp.get_area_xy("Fukuoka"), value=0.55, radius=7.5, label="Fukuoka")
jp_overlay.add_spot(jp.lonlat_to_xy(141.35, 43.06), value=0.45, radius=7.5, label="Sapporo")
jp_overlay.draw(xy=(0.0, 0.0))

jp_overlay.draw_colorbar(
    xy=(46.0, 5.0),
    text_style=Styles.Muted.patch(text_size=10.0),
    length=48.0,
    thickness=2.2,
    label="Normalized Traffic Intensity",
)

save()

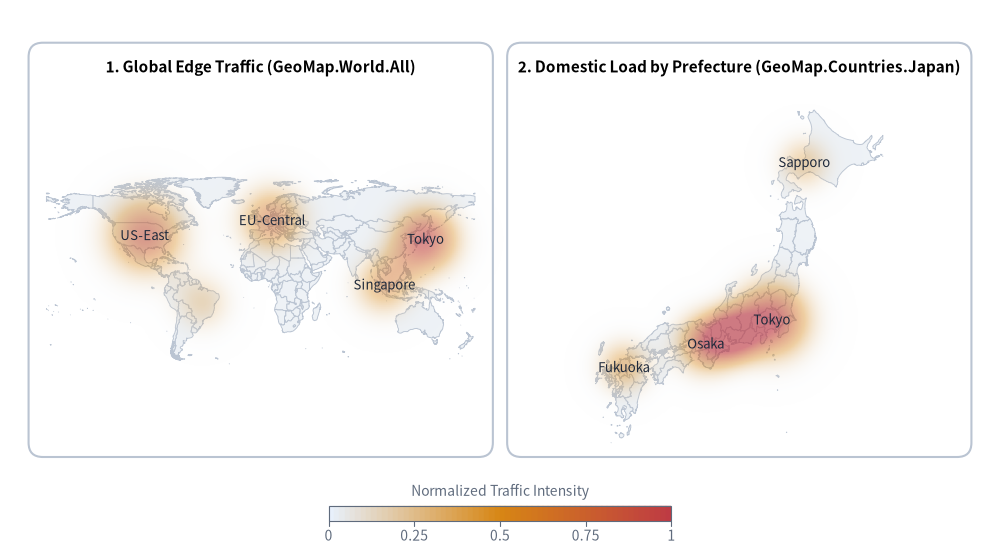

heatmap_6
Geographical Traffic & Edge Request Heatmaps on GeoMap (World & Japan)
